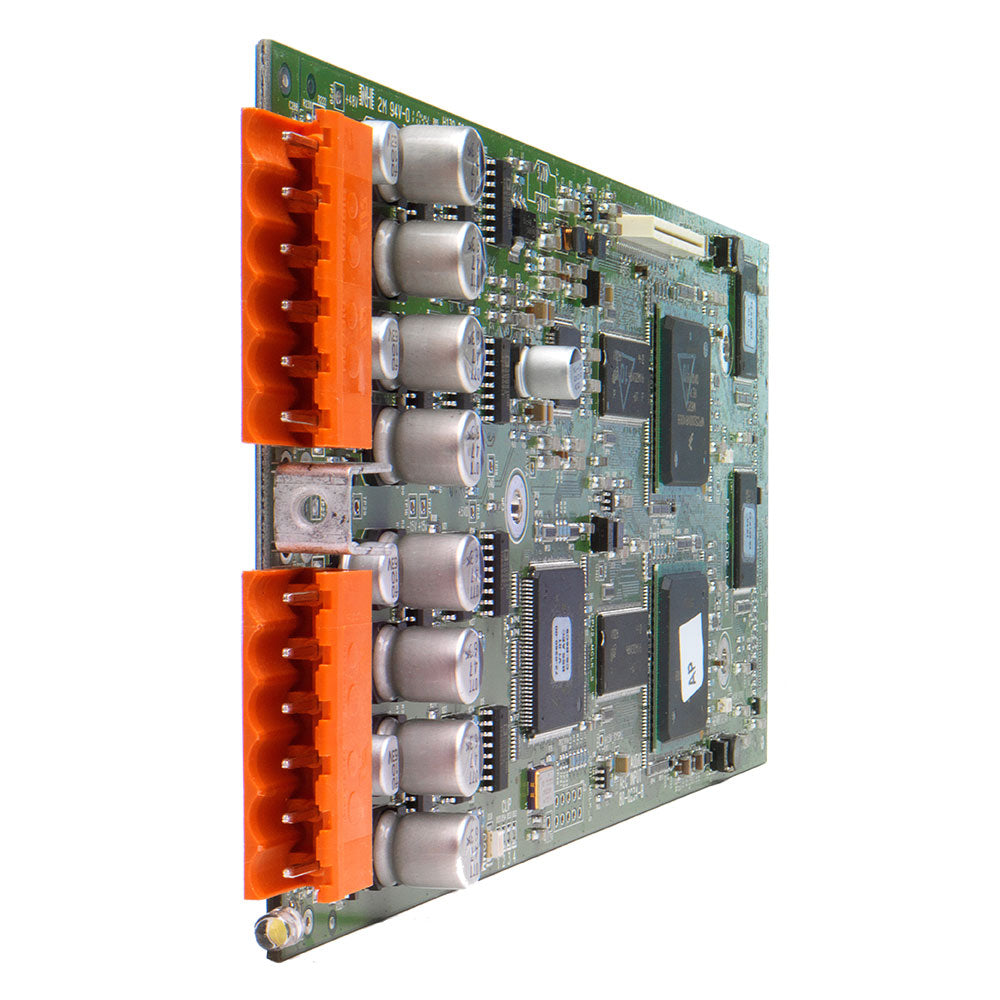

BSS BLUDIGITAL-OUT AES/EBU or S/PDIF Output plus Wordclock Card for Soundweb London Processors

The Soundweb London Digital Output card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.

The Digital Output Card can be configured in the following ways:

• 2 Stereo AES/EBU Signals
• 1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
• 2 Stereo S/PDIF Signals

The Digital Output Card has two Combicon connectors which are used as follows:

• Connector 1

  • Stereo Audio, Channels 1 and 2 - AES/EBU / S/PDIF
  • Stereo Audio, Channels 3 and 4 - AES/EBU / S/PDIF
• Connector 2*

  • Clock Input - High Impedance
  • Clock Input - 75R Terminated

* active clock selected within HiQnet London Architect
