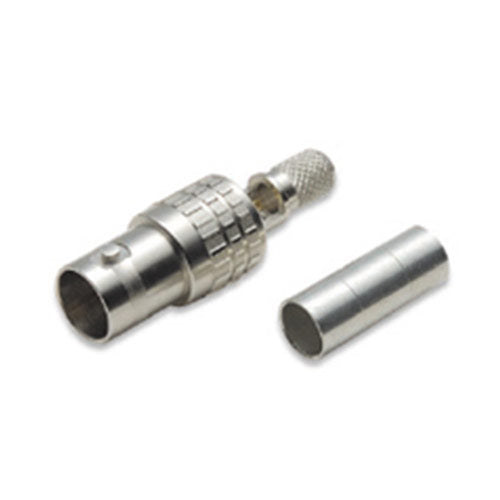

Canare BCJ-C4 75-Ohm BNC Jack Plug (Female)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Canare BCJ-C4 75-Ohm BNC Jack Plug (Female)
Sale price$8.00
Description
75ohm BNC Female Connector, Straight Plug. Cable: LV-61S, 8241, 8279, RG59B/U. Pin: Solder. Sleeve: BN7015A. Die Set: TCD-4C, TCD-451CA
Features:
- True 75 ohm construction
- DC to 1.5 GHz >26dB Return Loss (<1.1 VSWR)
- Elongated Body for better finger grip
- Superior cable pull strength
- Beryllium copper, Gold plated center contact
- Easy Assembly using Canare Strip & Crimp Tools
| Parts Included | Body, Crimp Sleeve |
| Impedance | 75 Ohms |
| Bandwidth VSWR (Return Loss) DC to 1.5GHz | <1.1 (>26dB) |
| Body Material (Plating) |
Brass (Nickel) |
| Center Contact Material (Plating) |
Beryllium copper (Gold) |
| Outer Contact Material | Brass (Nickel) |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) |
Copper (Tin) |
| Cable Retention lbs. (kgs) |
>55 (>24.9) |
| Insulation Resistance at 500V DC | >1000M ohm |
| Voltage Rating for 1 mim. | 1500V AC (rms) |
| Center Contact Resistance | <6m ohm |
| Outer Contact Resistance | <3m ohm |
75ohm BNC Female Connector, Straight Plug. Cable: LV-61S, 8241, 8279, RG59B/U. Pin: Solder. Sleeve: BN7015A. Die Set: TCD-4C, TCD-451CA
Features:
- True 75 ohm construction
- DC to 1.5 GHz >26dB Return Loss (<1.1 VSWR)
- Elongated Body for better finger grip
- Superior cable pull strength
- Beryllium copper, Gold plated center contact
- Easy Assembly using Canare Strip & Crimp Tools
| Parts Included | Body, Crimp Sleeve |
| Impedance | 75 Ohms |
| Bandwidth VSWR (Return Loss) DC to 1.5GHz | <1.1 (>26dB) |
| Body Material (Plating) |
Brass (Nickel) |
| Center Contact Material (Plating) |
Beryllium copper (Gold) |
| Outer Contact Material | Brass (Nickel) |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) |
Copper (Tin) |
| Cable Retention lbs. (kgs) |
>55 (>24.9) |
| Insulation Resistance at 500V DC | >1000M ohm |
| Voltage Rating for 1 mim. | 1500V AC (rms) |
| Center Contact Resistance | <6m ohm |
| Outer Contact Resistance | <3m ohm |
