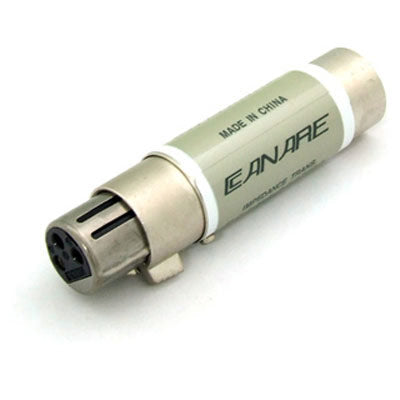

Canare BCJ-XJ-A10TRC 110 to 75 Ohm Digital Audio Impedance Transformer - XLR to BNC
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
110-75 ohm Digital Audio Impedance Transformer 1 Volt peak to peak Output version for integrating base band Video DA's and Routing Switchers. 110 - 75 ohm Impedance Transformer with 10dB Attenuation Pad XLR3: Female;BNC: Female ;Pack Qty: 1 pc
Features:- SMPTE 276M and AES3 Transmission Standard
- Coaxial transmission of 2 Channel Digital Audio
- Allows longer cable runs than 110 ohm twisted pair
- AES/EBU Signal distribution using Canare 75 ohm Video Patchbays
| Model | BCJ-XJ-A10TRA |
| Bandwidth | 0.1 - 6MHz |
| Maximum Voltage | 5Vp-p |
| VSWR | <1.1 |
| Insertion Loss | <0.3dB |
| 110 ohm Port (Balanced) | XLR3 Female;1: Shell;2: Hot;3:Cold |
| 75 ohm Port (Unbalanced) | Canare 75 ohm BNC Receptacle |
110-75 ohm Digital Audio Impedance Transformer 1 Volt peak to peak Output version for integrating base band Video DA's and Routing Switchers. 110 - 75 ohm Impedance Transformer with 10dB Attenuation Pad XLR3: Female;BNC: Female ;Pack Qty: 1 pc
Features:- SMPTE 276M and AES3 Transmission Standard
- Coaxial transmission of 2 Channel Digital Audio
- Allows longer cable runs than 110 ohm twisted pair
- AES/EBU Signal distribution using Canare 75 ohm Video Patchbays
| Model | BCJ-XJ-A10TRA |
| Bandwidth | 0.1 - 6MHz |
| Maximum Voltage | 5Vp-p |
| VSWR | <1.1 |
| Insertion Loss | <0.3dB |
| 110 ohm Port (Balanced) | XLR3 Female;1: Shell;2: Hot;3:Cold |
| 75 ohm Port (Unbalanced) | Canare 75 ohm BNC Receptacle |
