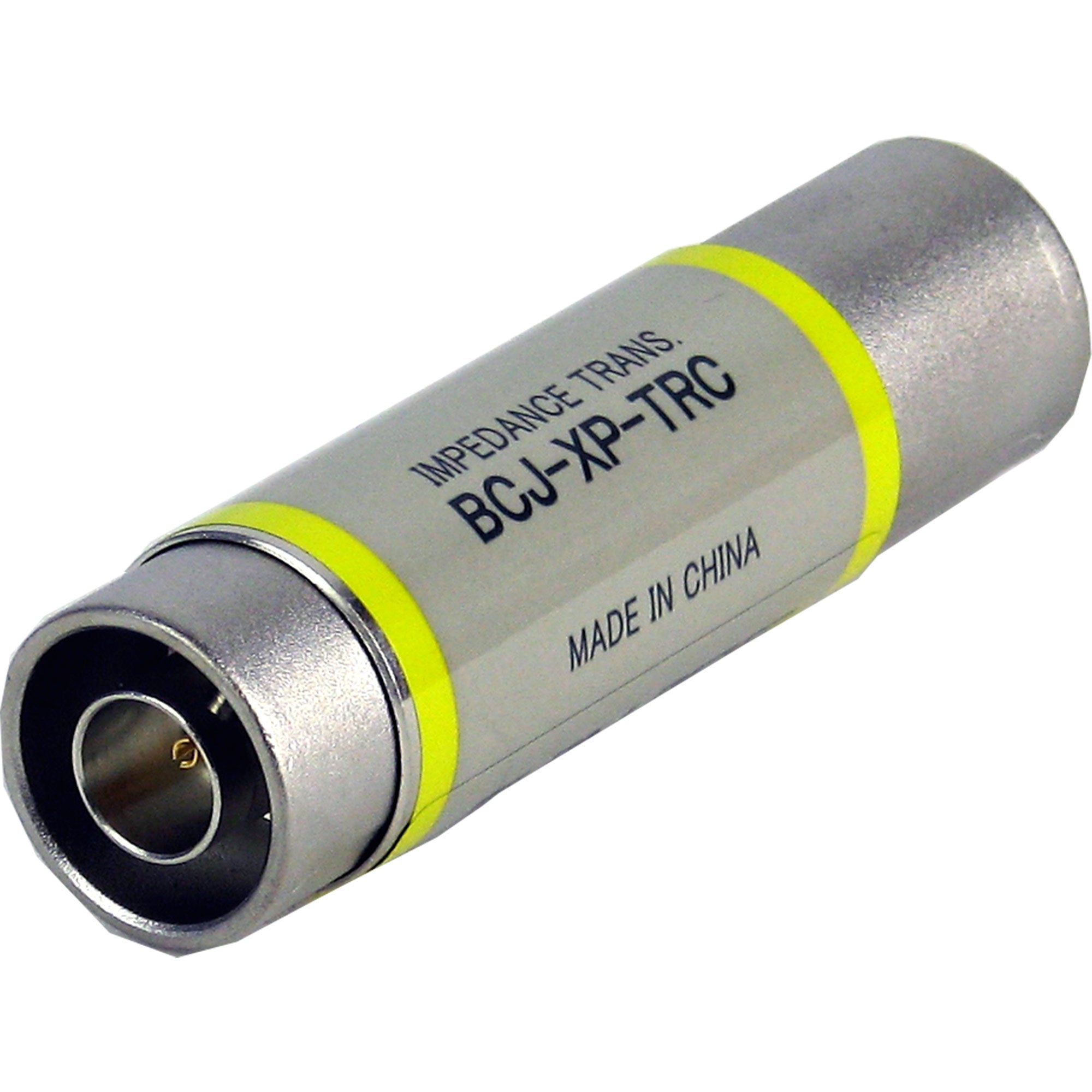

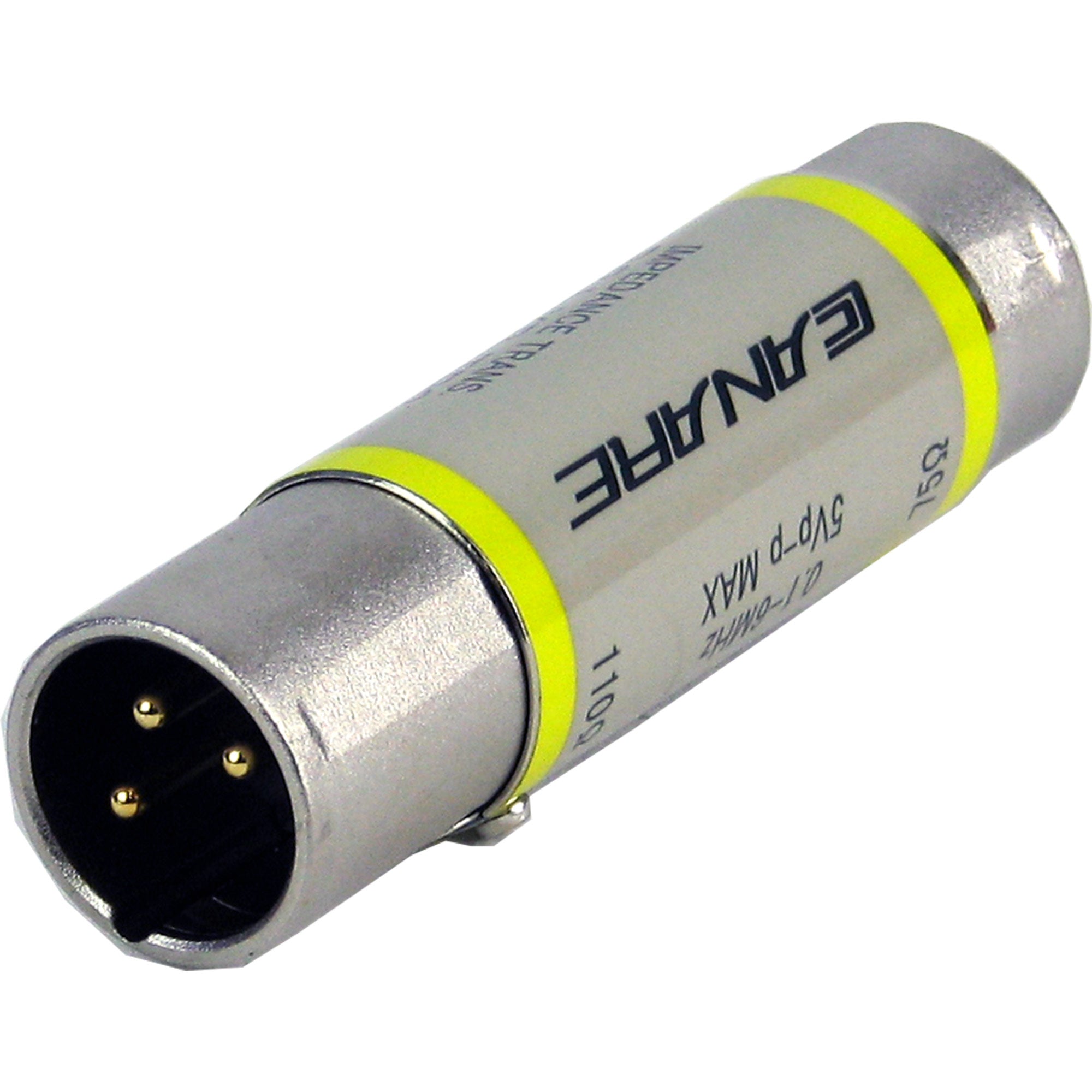

Canare BCJ-XP-TRC XLR-3 Male to BNC Female 75 Ohm to 110 Ohm Digital Audio Impedance Transformer


  • Dale #:

    CANA-BCJXPTRC
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

110 - 75 ohm Impedance Transformer. XLR3: Male BNC: Female Features: SMPTE 276M and AES3 Transmission Standard Coaxial transmission of 2 Channel Digital Audio Allows longer cable runs than 110 ohm twisted pair AES/EBU Signal distribution using Canare 75 ohm Video Patchbays Applications: Pos... Read More

Free Shipping (orders over $75)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

110 - 75 ohm Impedance Transformer. XLR3: Male BNC: Female

Features:

  • SMPTE 276M and AES3 Transmission Standard
  • Coaxial transmission of 2 Channel Digital Audio
  • Allows longer cable runs than 110 ohm twisted pair
  • AES/EBU Signal distribution using Canare 75 ohm Video Patchbays

Applications:

  • Post Production Suites
  • Recording Studios
  • AES/EBU Digital Audio Routing

More +

Product Specs

ModelBCJ-XP-TRB
Bandwidth0.1 - 6MHz
Maximum Voltage5Vp-p
VSWR<1.1
Insertion Loss<0.3dB
110 ohm Port (Balanced)XLR3 Female 1: Shell 2: Hot 3:Cold
75 ohm Port (Unbalanced)Canare 75 ohm BNC Receptacle

More +
