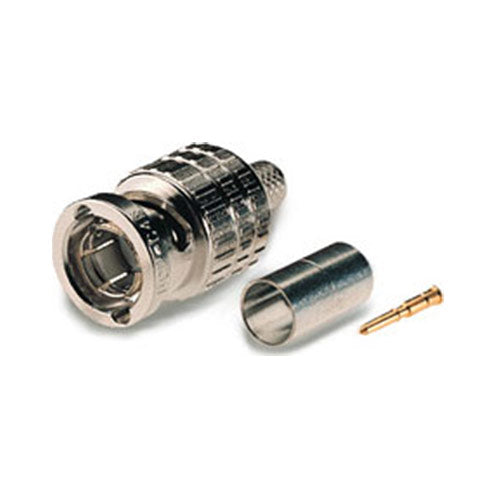

Canare BCP-A55 75-Ohm BNC Crimp Plug


  • Dale #:

    CANA-BCPA55
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

BCP-A Series (Straight Type) - VSWR 1.1 @ 2GHz, VSWR 1.2@3GH, fits coaxial cabling such as Belden 1695A. Features: True 75 ohm construction Crimp Pin & Sleeve High performance of 1.1 or less VSWR up to 3GHz. Elongated Body for better finger grip  Position mark on body all... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

BCP-A Series (Straight Type) - VSWR 1.1 @ 2GHz, VSWR 1.2@3GH, fits coaxial cabling such as Belden 1695A.

Features:

  • True 75 ohm construction Crimp Pin & Sleeve
  • High performance of 1.1 or less VSWR up to 3GHz.
  • Elongated Body for better finger grip
  •  Position mark on body allows the connector fit to be checked easily.
  • Superior cable pull strength
  • Gold plated center pins 'snap' into place
  • Connector Body has been die-cast, achieving a lower price with higher performance
  • Easy Assembly using Canare Strip & Crimp Tools

More +

Product Specs

Cable 1695A
Boot CB05A
Crimp Die TCD-35CA
Crimp Pin B11020D
Sleeve BN7045A
