Description

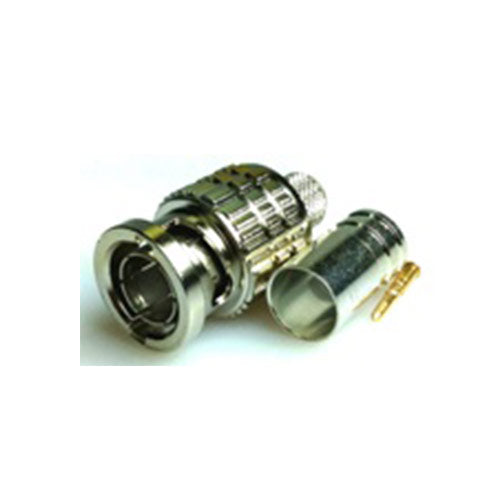

75 ohm BNC Connector, Straight Plug, fits cabling such as Belden 1694A.
Features:
- True 75 ohm construction Crimp Pin & Sleeve
- High performance of 1.1 or less VSWR up to 3GHz.
- Elongated Body for better finger grip
- Position mark on body allows the connector fit to be checked easily.
- Superior cable pull strength
- Gold plated center pins 'snap' into place
- Connector Body has been die-cast, achieving a lower price with higher performance
- Easy Assembly using Canare Strip & Crimp Tools
Cable | L-4.5CHD 1694A |
Boot | CB05A |
Crimp Die | TCD-35CA |
Crimp Pin | B11020D |
Sleeve | BN7046 |
75 ohm BNC Connector, Straight Plug, fits cabling such as Belden 1694A.
Features:
- True 75 ohm construction Crimp Pin & Sleeve
- High performance of 1.1 or less VSWR up to 3GHz.
- Elongated Body for better finger grip
- Position mark on body allows the connector fit to be checked easily.
- Superior cable pull strength
- Gold plated center pins 'snap' into place
- Connector Body has been die-cast, achieving a lower price with higher performance
- Easy Assembly using Canare Strip & Crimp Tools
Cable | L-4.5CHD 1694A |
Boot | CB05A |
Crimp Die | TCD-35CA |
Crimp Pin | B11020D |
Sleeve | BN7046 |
