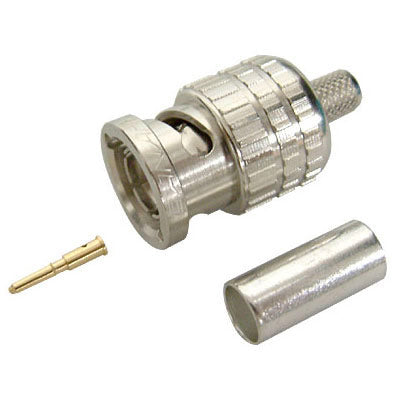

Canare BCP-C3B BNC 75 Ohm Crimp Plug for V-3C/A2V1/A2V2-L Cable
Dale #:
CANA-BCPC3BAvailability:
In StockAvailable for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm
Description
75 ohm BNC Connector, Straight Plug Features: True 75 ohm construction; Crimp Pin Sleeve DC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR) Mechanically mates with common 50 ohm BNC Elongated Body for better finger grip Superior cable pull strength Gold plated center pins 'snap lock' in plac... Read MoreOur Price: $3.03
Free Shipping (orders over $99)
Suggested Accessories
Description
75 ohm BNC Connector, Straight Plug
Features:
- True 75 ohm construction; Crimp Pin Sleeve
- DC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR)
- Mechanically mates with common 50 ohm BNC
- Elongated Body for better finger grip
- Superior cable pull strength
- Gold plated center pins 'snap lock' in place
- Beryllium copper outer contact
- Easy Assembly using Canare Strip Crimp Tools
- Operating temperature -20 to +60 degrees Celsius
Applications:
- SMPTE 259M 292M Compliant
- Serial Digital Video
- HDTV Upgrades
- NTSC Analog
- Test Equipment
- Satellite Headends
- TELCOM
More +
Product Specs
| Model | BCP-C3B |
| Parts | Body Crimp Pin,Sleeve |
| Imp | 75 ohm |
| Bandwidth VSWR (Return Loss) DC to 2GHz | <1.1 (>26dB) |
| Body Material (Plating) | Brass (Nickel) |
| Center Contact Material (Plating) | Brass (Gold) |
| Outer Contact Material | Beryllium copper |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) | Copper (Tin) |
| Cable Retention lbs. (kgs) | >55 (>24.9) |
| Insulation Resistance at 500V DC | >1000M ohm |
| Voltage Rating for 1 mim. | 1500V AC (rms) |
| Center Contact Resistance | <6m ohm |
| Outer Contact Resistance | <3m ohm |
| Cable | A2V1,A2V2-L,V-3C,L-3C2VS. |
| Boot | CB02,CB03 |
| Crimp Die | TCD-35CA,TCD-3C |
| Crimp Pin | B11014E |
| Sleeve | BN7003A |
More +
