Description

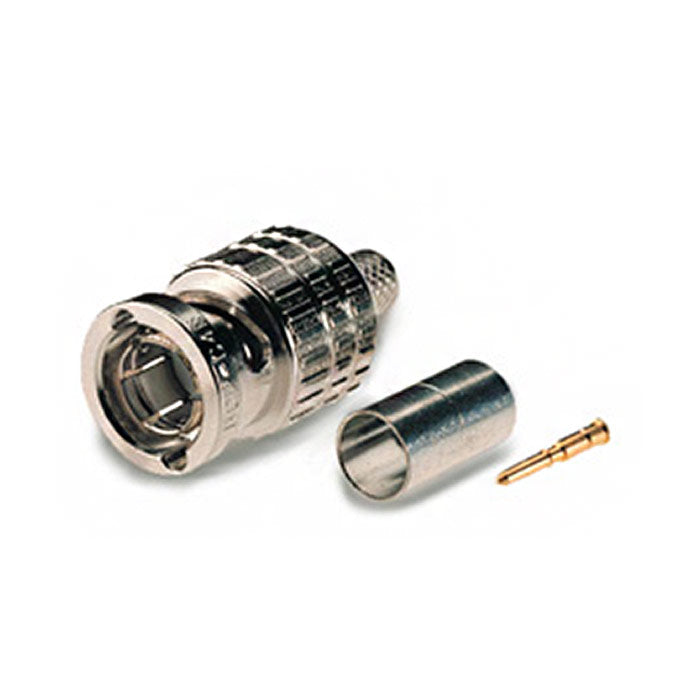

CANA-BCPC71A is a 75 ohm BNC connector with a straight plug.
Features:- True 75 Ohm construction, Crimp Pin & Sleeve
- DC to 2.0 GHz, >26dB Return Loss (<1.1 VSWR)
- Mechanically mates with common 50 Ohm BNC
- Elongated Body for better finger grip
- Superior cable pull strength
- Gold plated center pins 'snap lock' in place
- Beryllium copper outer contact
- Easy Assembly using Canare Strip & Crimp Tools
- Operating temperature -20 to +60 degrees Celsius
Cable | other |
Boot | ~ |
Crimp Die | TCD-7CA |
Crimp Pin | BN1043A |
Sleeve | BN7021A |
Parts | Body Crimp Pin, Sleeve |
Imp | 75 Ohm |
Bandwidth VSWR (Return Loss) DC to 2GHz | <1.1 (>26dB) |
Body Material (Plating) | Brass (Nickel) |
Center Contact Material (Plating) | Brass (Gold) |
Outer Contact Material | Beryllium copper |
Dielectric Material | PTFE |
Crimp Sleeve Material (Plating) | Copper (Tin) |
Cable Retention lbs. (kgs) | >55 (>24.9) |
Insulation Resistance at 500V DC | >1000M Ohm |
Voltage Rating for 1 mim | 1500V AC (RMS) |
Center Contact Resistance | <6m Ohm |
Outer Contact Resistance | <3m Ohm |
