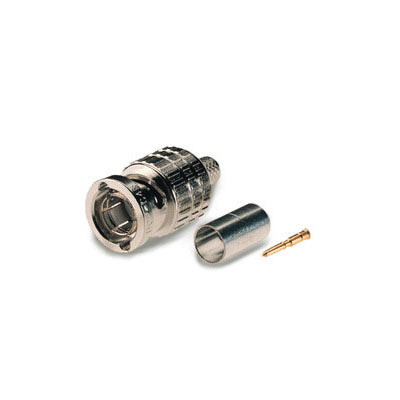

Canare BCP-C77A 75 Ohm BNC Crimp Connector for LV-77S Cable

Sale price$3.39
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Canare offers a full line of high performance MIL-C-39012 true 75 ohm BNC connectors with impedance matched performance characteristics and specifications that properly address the latest generations of high bandwidth digital video equipment. Importantly, Canare 75 ohm BNC connectors offer excellent mechanical pull strength and very low digital signal reflections; RL =/>26dB (VSWR =/<1.1) DC to 2GHz.

    Much of the 75 ohm video coax cable in use today may still be terminated with 50 ohm BNC connectors. Although this pairing is adequate for lower frequency bandwidths (such as standard NTSC broadcast transmissions), this mismatch will result in signal degradation and reduced picture quality at today's ultra high analog and digital video transmission rates. Features
    • True 75 ohm construction; Crimp Pin SleeveDC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR)Mechanically mates with common 50 ohm BNCElongated Body for better finger gripSuperior cable pull strengthGold plated center pins 'snap lock' in placeBeryllium copper outer contactEasy Assembly using Canare Strip Crimp ToolsOperating temperature -20 to +60 degrees Celsius
    CableLV-77S
    BootCB26
    Crimp DieTCD-5CF
    Crimp PinB11016E
    SleeveB75004A
    PartsBody Crimp Pin, Sleeve
    Imp75 ohm
    Bandwidth VSWR (Return Loss) DC to 2GHz<1.1 (>26dB)
    Body Material (Plating)Brass (Nickel)
    Center Contact Material (Plating)Brass (Gold)
    Dielectric MaterialPTFE
    Crimp Sleeve Material (Plating)Copper (Tin)
    Cable Retention lbs. (kgs)>55 (>24.9)
    Insulation Resistance at 500V DC>1000M ohm
    Voltage Rating for 1 mim.1500V AC (rms)
    Center Contact Resistance<6m ohm
    Outer Contact Resistance<3m ohm

    Canare offers a full line of high performance MIL-C-39012 true 75 ohm BNC connectors with impedance matched performance characteristics and specifications that properly address the latest generations of high bandwidth digital video equipment. Importantly, Canare 75 ohm BNC connectors offer excellent mechanical pull strength and very low digital signal reflections; RL =/>26dB (VSWR =/<1.1) DC to 2GHz.

    Much of the 75 ohm video coax cable in use today may still be terminated with 50 ohm BNC connectors. Although this pairing is adequate for lower frequency bandwidths (such as standard NTSC broadcast transmissions), this mismatch will result in signal degradation and reduced picture quality at today's ultra high analog and digital video transmission rates. Features
    • True 75 ohm construction; Crimp Pin SleeveDC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR)Mechanically mates with common 50 ohm BNCElongated Body for better finger gripSuperior cable pull strengthGold plated center pins 'snap lock' in placeBeryllium copper outer contactEasy Assembly using Canare Strip Crimp ToolsOperating temperature -20 to +60 degrees Celsius
    CableLV-77S
    BootCB26
    Crimp DieTCD-5CF
    Crimp PinB11016E
    SleeveB75004A
    PartsBody Crimp Pin, Sleeve
    Imp75 ohm
    Bandwidth VSWR (Return Loss) DC to 2GHz<1.1 (>26dB)
    Body Material (Plating)Brass (Nickel)
    Center Contact Material (Plating)Brass (Gold)
    Dielectric MaterialPTFE
    Crimp Sleeve Material (Plating)Copper (Tin)
    Cable Retention lbs. (kgs)>55 (>24.9)
    Insulation Resistance at 500V DC>1000M ohm
    Voltage Rating for 1 mim.1500V AC (rms)
    Center Contact Resistance<6m ohm
    Outer Contact Resistance<3m ohm
