Canare FJ-JRU F-Jack to F-Jack Flush Panel Connector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.

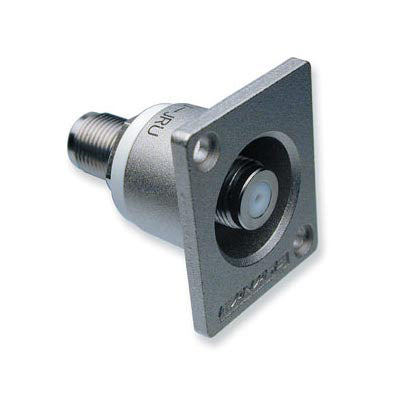

Canare FJ-JRU F-Jack to F-Jack Flush Panel Connector
Sale price$13.12
Regular price$13.81
Description
Features:
- 75-ohm F RECESSED Bulkhead Port.
- Jack (Female) to Jack (Female)
- Mounts in Common Canare Hole Punch
- Totally Isolated from Panel
- =26dB (=1.1 VSWR) DC-2GHz
| Bandwidth VSWR Return Loss DC to 2GHz | ≤ 1.1,> 26dB |
| Center Contact Material Plating | Beryllium Copper Gold |
| Body Material Plating | Brass Nickel |
| Dielectric | PTFE |
| Flange Material Plating | DieCast AL Nickel |
| Insulation resistance at 500V DC | > 500MΩ |
| Voltage rating for 1 minute | 500V AC(rms) |
| center contact resistance | < 5mΩ |
| outer contact resistance | < 5mΩ |
Features:
- 75-ohm F RECESSED Bulkhead Port.
- Jack (Female) to Jack (Female)
- Mounts in Common Canare Hole Punch
- Totally Isolated from Panel
- =26dB (=1.1 VSWR) DC-2GHz
| Bandwidth VSWR Return Loss DC to 2GHz | ≤ 1.1,> 26dB |
| Center Contact Material Plating | Beryllium Copper Gold |
| Body Material Plating | Brass Nickel |
| Dielectric | PTFE |
| Flange Material Plating | DieCast AL Nickel |
| Insulation resistance at 500V DC | > 500MΩ |
| Voltage rating for 1 minute | 500V AC(rms) |
| center contact resistance | < 5mΩ |
| outer contact resistance | < 5mΩ |
