Canare FP-C3 F Type Crimp Connector for Canare L-3C2VS V3-3C V4-3C and V5-3C Cable
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Canare FP-C3 F Type Crimp Connector for Canare L-3C2VS V3-3C V4-3C and V5-3C Cable
Sale price$3.42
Regular price$3.60
Description

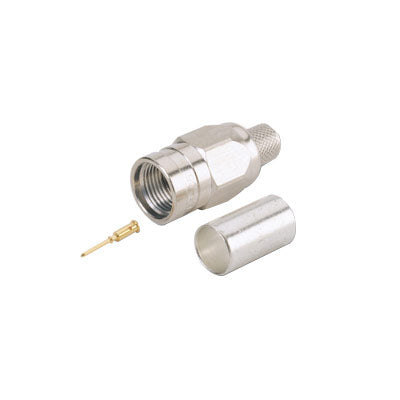

FPC3 is a 75 ohm F Crimp Plug (FP-C Series) Connector, Straight Plug.
Applications: Digital Broadband, Satellite System, RF Equipment, Cable Modems, Satellite Headends and TELCOM.Features:- True 75 ohm construction Crimp Pin & Sleeve
- DC to 2.0 GHz 26dB Return Loss (1.1 VSWR)
- Use with Solid or Stranded Center 75 ohm Coax
- Elongated Body for better finger grip
- Superior cable pull strength
- Gold plated center pins 'snap lock' in place
- Easy Assembly using Canare Strip & Crimp Tools
| Product Listings | |
| Model | FP-C3 |
| Cable | A2V1, A2VA-L, V-3C, L-3C2VS |
| Boot | CB24, CB24, CB24, CB24 |
| Crimp Die | TCD-35CA, TCD-3C |
| Crimp Pin | BN1002B |
| Sleeve | BN7003A |
| NOMINAL SPECIFICATIONS (FP-C Series) | |
| Parts | Body, Crimp Pin, Crimp Sleeve |
| Imp. | 75 ohm |
| Bandwidth VSWR (Return Loss) DC to 2GHz | <1.1(>26dB) |
| Body Material (Plating) | Brass (Nickel) |
| Center Contact Material (Plating) | Brass (Gold) |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) | Copper (Tin) |
| Cable Retention lbs. (kgs) | <55 (>24.9) |
| Insulation Resistance at 500V DC | >500M ohm |
| Voltage Rating for 1 mim | 500V AC (rms) |
| Center Contact Resistance | <5m ohm |
| Outer Contact Resistance | <5m ohm |
| Product Listings | |
| Model | FP-C3 |
| Cable | A2V1, A2VA-L, V-3C, L-3C2VS |
| Boot | CB24, CB24, CB24, CB24 |
| Crimp Die | TCD-35CA, TCD-3C |
| Crimp Pin | BN1002B |
| Sleeve | BN7003A |
| NOMINAL SPECIFICATIONS (FP-C Series) | |
| Parts | Body, Crimp Pin, Crimp Sleeve |
| Imp. | 75 ohm |
| Bandwidth VSWR (Return Loss) DC to 2GHz | <1.1(>26dB) |
| Body Material (Plating) | Brass (Nickel) |
| Center Contact Material (Plating) | Brass (Gold) |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) | Copper (Tin) |
| Cable Retention lbs. (kgs) | <55 (>24.9) |
| Insulation Resistance at 500V DC | >500M ohm |
| Voltage Rating for 1 mim | 500V AC (rms) |
| Center Contact Resistance | <5m ohm |
| Outer Contact Resistance | <5m ohm |
