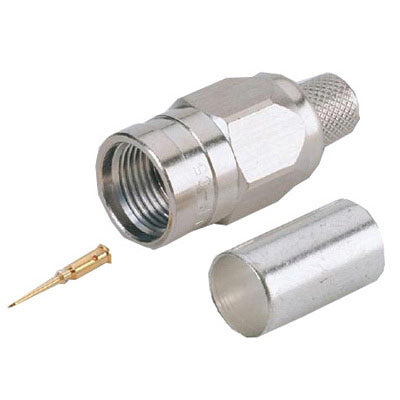

Canare FP-C53A F Type Crimp Connector for 1530A 1694 9066 9114 9118 9248


  • Dale #:

    CANA-FPC53A
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

Most F connectors on the market utilize a coaxial cable's solid inner conductor as the plug's center contact pin. This design can cause near and long term problems from center conductor nicks, bending, dielectric migration, metal fatigue and contact corrosion. Furthermore, this type of commonly i... Read More

Free Shipping (orders over $75)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Most F connectors on the market utilize a coaxial cable's solid inner conductor as the plug's center contact pin. This design can cause near and long term problems from center conductor nicks, bending, dielectric migration, metal fatigue and contact corrosion. Furthermore, this type of commonly installed F connector may also produce signal degradation, outages, poor picture quality, RF leakage problems and most importantly... an expensive service call. To meet the growing demands of advanced Digital Broadband equipment, Canare has developed the world's first precision, high reliability 75Ohms F Connector. Electromechanically stable (nickel over brass body, high quality tapped threads, extra wide torque nut, gold crimp pin, extra long crimp sleeve), our FP-C is quick to install using the same Canare strip crimp tools as our standard 75Ohms BNC and RCA plugs. Canare true 75Ohms F Connectors are impedance matched with excellent Return Loss characteristics and can easily handle future “Smart House” RF broadband multimedia networks to 1 GHz and beyond. Will mate with SCTE approved standard F receptacles.

FEATURES
  • ≥26dB Return Loss DC–2GHz (≤1.1 VSWR)Crimp Pin Sleeve DesignUse with Solid or Stranded Center 75Ohms CoaxCenter Pin Snap Locks into ConnectorSuperior cable pull strength

More +

Product Specs

Body Material PlatingBrass Nickel
Center Contact Material PlatingBrass Nickel
DielectricPTFE
CrimpSleeve
Material PlatingCopper Tin
Cable Retention lbs(kg)>55 (>24.9)
Insulation Resistance (500V DC)>500 MegaOhms
Voltage Rating (1 min)500V AC (rms)
Center Contact Resistance<5 miliOhms
Outer Contact Resistance <5 miliOhms

More +
