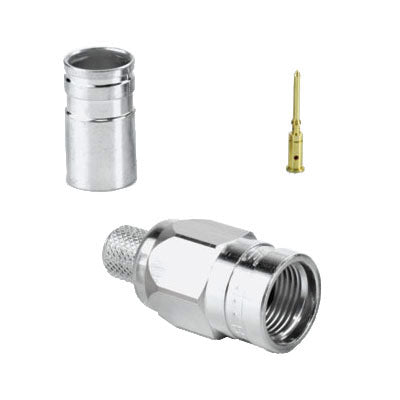

Canare FPC4F Crimp Type 75 Ohm F Connector for L-4CFB and V-4CFB Cable
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Canare FPC4F Crimp Type 75 Ohm F Connector for L-4CFB and V-4CFB Cable
Sale price$3.42
Regular price$3.60
Description
FEATURES:
- True 75 ohm construction; Crimp Pin & Sleeve
- DC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR)
- Use with Solid or Stranded Center 75 ohm Coax
- Elongated Body for better finger grip
- Superior cable pull strength
- Gold plated center pins 'snap lock' in place
- Easy Assembly using Canare Strip & Crimp Tools
| Parts | Body Crimp Pin,Crimp Sleeve |
| Impedance | 75 ohm |
| Bandwidth VSWR (Return Loss) DC to 2GHz | <1.1 (>26dB) |
| Body Material (Plating) | Brass (Nickel) |
| Center Contact Material (Plating) | Brass (Gold) |
| Outer Contact Material | Beryllium,copper |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) | Copper (Tin) |
| Cable Retention lbs. (kgs) | >55 (>24.9) |
| Insulation Resistance at 500V DC | >500M ohm |
| Voltage Rating for 1 mim | 500V AC (rms) |
| Center Contact Resistance | <5m ohm |
| Outer Contact Resistance | <5m ohm |
| Cable | L-4CFB;V-4CFB |
| Boot | CB25 |
| Crimp Die | TCD-451CA;TCD-4C |
| Crimp Pin | BN1004B |
| Sleeve | BN7015A |
FEATURES:
- True 75 ohm construction; Crimp Pin & Sleeve
- DC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR)
- Use with Solid or Stranded Center 75 ohm Coax
- Elongated Body for better finger grip
- Superior cable pull strength
- Gold plated center pins 'snap lock' in place
- Easy Assembly using Canare Strip & Crimp Tools
| Parts | Body Crimp Pin,Crimp Sleeve |
| Impedance | 75 ohm |
| Bandwidth VSWR (Return Loss) DC to 2GHz | <1.1 (>26dB) |
| Body Material (Plating) | Brass (Nickel) |
| Center Contact Material (Plating) | Brass (Gold) |
| Outer Contact Material | Beryllium,copper |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) | Copper (Tin) |
| Cable Retention lbs. (kgs) | >55 (>24.9) |
| Insulation Resistance at 500V DC | >500M ohm |
| Voltage Rating for 1 mim | 500V AC (rms) |
| Center Contact Resistance | <5m ohm |
| Outer Contact Resistance | <5m ohm |
| Cable | L-4CFB;V-4CFB |
| Boot | CB25 |
| Crimp Die | TCD-451CA;TCD-4C |
| Crimp Pin | BN1004B |
| Sleeve | BN7015A |
