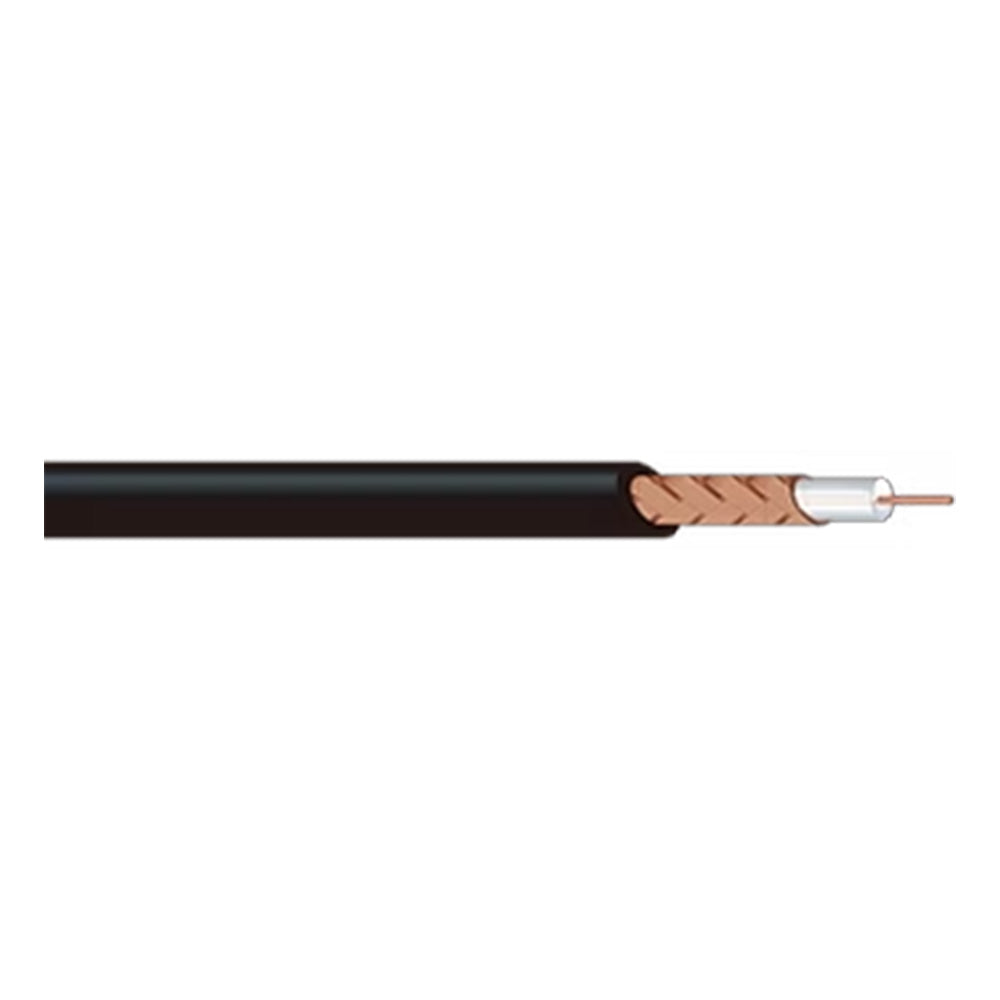

Canare LV-61S - Bulk 75-Ohm Video Coaxial Cable (Black / 153 Meter Spool)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Canare’s No.1 Selling Coax. A lightweight, very flexible RG59B/U equivalent that is perfect for all video facility equipment interfacing, ENG/OB work and video patch cord assemblies. The smooth non-glare finish PVC jackets are available in 10 distinctive colors (including Chroma-Key Blue!) and will stay flexible even in sub-zero weather!
Features:
- Flexible Center Conductor: Stranded Bare Copper
- Dielectric strips away clean from Conductor
- Tightly Woven Braid Shield
- Stays Flexible even in Sub Zero Weather
- Available in 10 Colors
Applications
- Broadcast Transmission
- Analog and Digital
- ENG/EFP
- Inter-Rack Wiring
- Video Patch Cords
| Standard Length | 500 ft (153 m) |
| Weight per Standard Length | 19 lbs (8.6 kg) |
| Nominal Outside Diameter | .240 in (6.1 mm) |
| Brittle Point | -22 F (-30 C) |
| Cond.-AWG (Qty./mil.) | AC-#24 (7/7.88) |
| Cond. O.D. | .024 in (0.6 mm) |
| Dielectric Insulation Type | PE |
| Insulation O.D. | .142 in (3.6 mm) |
| Shield Material Coverage | AC Braid >95% |
| Cond. D.C.R | <25.9 ohms/1000 ft (<8.5 ohms/100 m) |
| Shield D.C.R | <4.0 ohms/1000 ft (<1.3 ohms/100 m) |
| Nominal Capacitance @ 1 KHz | 67 ohms |
| Nominal Impedance | 75 ohms |
| Nominal Attenuation @ 10 MHz | 13 dB/1000 ft (4.2 dB/100 m) |
| Velocity of Prop. | 66% |
| Colors | Black, Blue, Brown, Gray, Green, Orange, Purple, Red, White, Yellow |
Canare’s No.1 Selling Coax. A lightweight, very flexible RG59B/U equivalent that is perfect for all video facility equipment interfacing, ENG/OB work and video patch cord assemblies. The smooth non-glare finish PVC jackets are available in 10 distinctive colors (including Chroma-Key Blue!) and will stay flexible even in sub-zero weather!
Features:
- Flexible Center Conductor: Stranded Bare Copper
- Dielectric strips away clean from Conductor
- Tightly Woven Braid Shield
- Stays Flexible even in Sub Zero Weather
- Available in 10 Colors
Applications
- Broadcast Transmission
- Analog and Digital
- ENG/EFP
- Inter-Rack Wiring
- Video Patch Cords
| Standard Length | 500 ft (153 m) |
| Weight per Standard Length | 19 lbs (8.6 kg) |
| Nominal Outside Diameter | .240 in (6.1 mm) |
| Brittle Point | -22 F (-30 C) |
| Cond.-AWG (Qty./mil.) | AC-#24 (7/7.88) |
| Cond. O.D. | .024 in (0.6 mm) |
| Dielectric Insulation Type | PE |
| Insulation O.D. | .142 in (3.6 mm) |
| Shield Material Coverage | AC Braid >95% |
| Cond. D.C.R | <25.9 ohms/1000 ft (<8.5 ohms/100 m) |
| Shield D.C.R | <4.0 ohms/1000 ft (<1.3 ohms/100 m) |
| Nominal Capacitance @ 1 KHz | 67 ohms |
| Nominal Impedance | 75 ohms |
| Nominal Attenuation @ 10 MHz | 13 dB/1000 ft (4.2 dB/100 m) |
| Velocity of Prop. | 66% |
| Colors | Black, Blue, Brown, Gray, Green, Orange, Purple, Red, White, Yellow |
