Canare MBCP-C5F Crimp 75-Ohm BNC Plug Assembly
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Crimp BNC connector fits cabling such as: Canare L-5CFB and V-5CFB, Belden 9290 and 1189A, and similar. Crimps with TC-1 and TCD-5CF die. Strips with TS100E and TS-5C die.
Canare's newly developed BNC crimp plug designed for Canare Mid Size Video Patchbay. 12mm O.D. ideal for use with high-density integrated devices.
Features:
- SMPTE 259M & 292M Compliant.
- Serial Digital Video.
- HDTV Upgrades.
- NTSC Analog.
- Test Equipment.
- Satellite Headends.
- TELCOM.
- True 75 ohm construction Crimp Pin & Sleeve.
- DC to 2.4 GHz >20dB Return Loss.
- Mechanically mates with Normal BNC.
- Elongated Body for better finger grip.
- Superior cable pull strength.
- Gold plated center pins 'snap lock in place.
- Beryllium copper outer contact.
- Easy Assembly using Canare Strip & Crimp Tools
| Matching Cable (Canare) | L-2.5CFB |
| Matching Cable (Other) | - |
| Center Pin | B11020D |
| Sleeve | B75004A |
| Boot | CB26 |
| Die Set | TCD-5CF TCD-55FA |

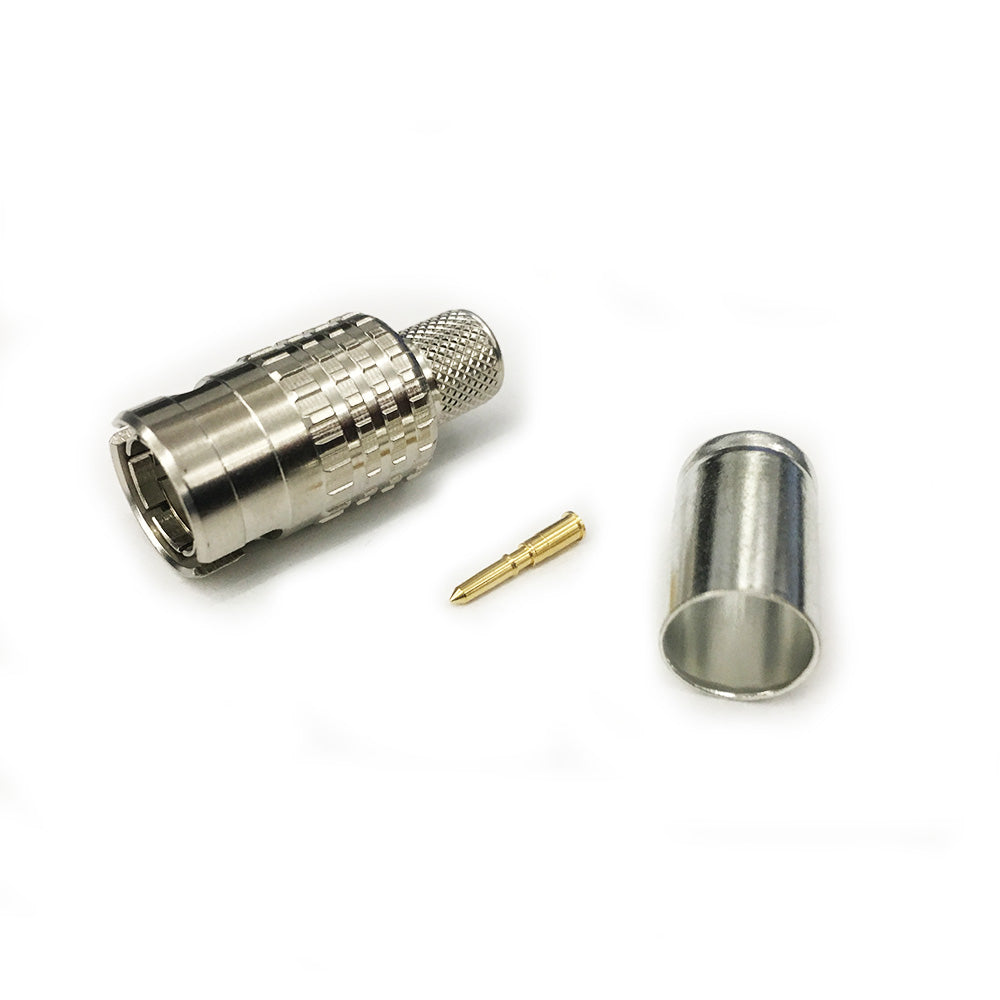

| Parts | Body, Crimp Pin, Sleeve |
| Impedance | 75 Ohms |
| Bandwidth VSWR (Return Loss) DC to 2GHz |
<1.2 (>20dB) |
| Body Material (Plating) | Brass (Nickel) |
| Center Contact Material (Plating) | Brass (Gold) |
| Outer Contact Material | Beryllium copper |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) | Copper (Tin) |
| Cable Retention lbs. (kgs) | >55 (>24.9) |
| Insulation Resistance at 500V DC | >1000M ohm |
| Voltage Rating for 1 mim. | 1500V AC (rms) |
| Center Contact Resistance | <6m ohm |
| Outer Contact Resistance | <3m ohm |
Crimp BNC connector fits cabling such as: Canare L-5CFB and V-5CFB, Belden 9290 and 1189A, and similar. Crimps with TC-1 and TCD-5CF die. Strips with TS100E and TS-5C die.
Canare's newly developed BNC crimp plug designed for Canare Mid Size Video Patchbay. 12mm O.D. ideal for use with high-density integrated devices.
Features:
- SMPTE 259M & 292M Compliant.
- Serial Digital Video.
- HDTV Upgrades.
- NTSC Analog.
- Test Equipment.
- Satellite Headends.
- TELCOM.
- True 75 ohm construction Crimp Pin & Sleeve.
- DC to 2.4 GHz >20dB Return Loss.
- Mechanically mates with Normal BNC.
- Elongated Body for better finger grip.
- Superior cable pull strength.
- Gold plated center pins 'snap lock in place.
- Beryllium copper outer contact.
- Easy Assembly using Canare Strip & Crimp Tools
| Matching Cable (Canare) | L-2.5CFB |
| Matching Cable (Other) | - |
| Center Pin | B11020D |
| Sleeve | B75004A |
| Boot | CB26 |
| Die Set | TCD-5CF TCD-55FA |
| Parts | Body, Crimp Pin, Sleeve |
| Impedance | 75 Ohms |
| Bandwidth VSWR (Return Loss) DC to 2GHz |
<1.2 (>20dB) |
| Body Material (Plating) | Brass (Nickel) |
| Center Contact Material (Plating) | Brass (Gold) |
| Outer Contact Material | Beryllium copper |
| Dielectric Material | PTFE |
| Crimp Sleeve Material (Plating) | Copper (Tin) |
| Cable Retention lbs. (kgs) | >55 (>24.9) |
| Insulation Resistance at 500V DC | >1000M ohm |
| Voltage Rating for 1 mim. | 1500V AC (rms) |
| Center Contact Resistance | <6m ohm |
| Outer Contact Resistance | <3m ohm |
