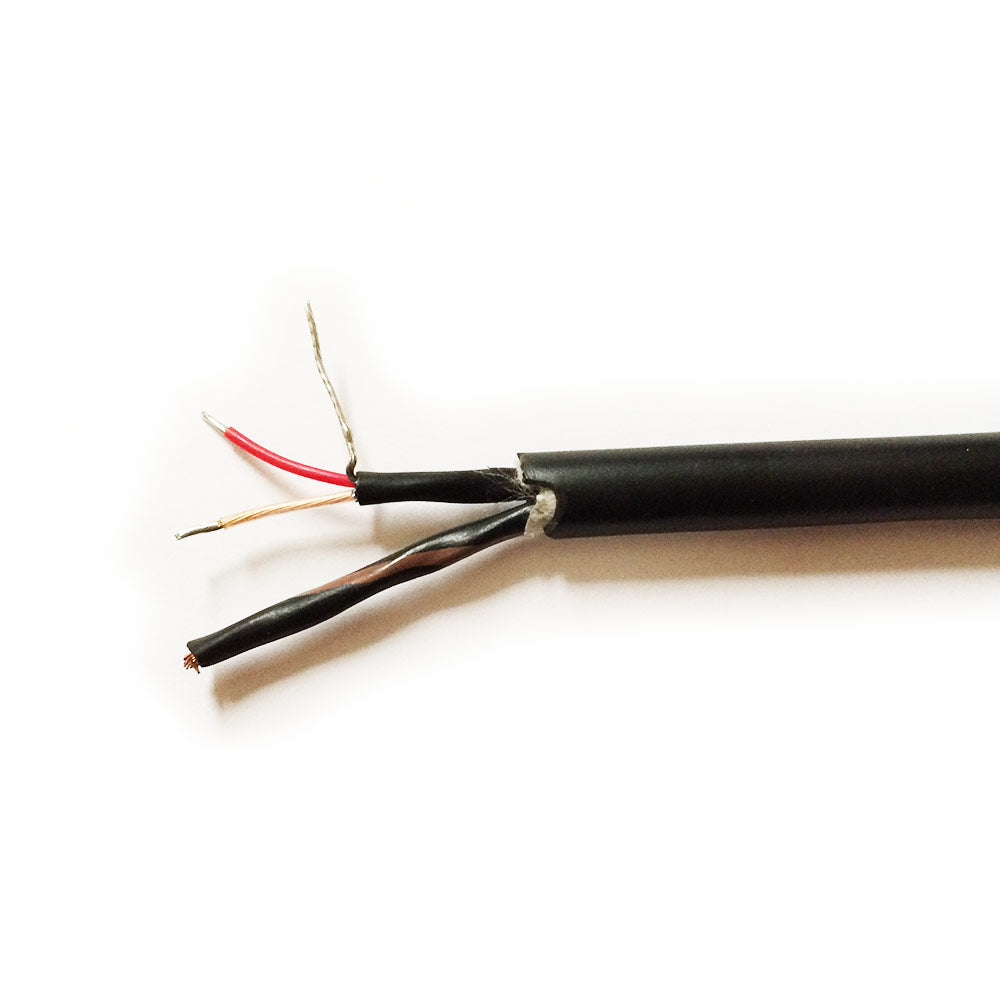

Canare MR202-2AT - 2-Channel Microphone Snake Cable (Black Jacket / 100 Meter Spool)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
A practical, 100% foil shielded multichannel audio snake cable for general purpose studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.
Features:
- Foil Shield with Drain Wire
- Variety of Channel Counts
Applications:
- Microphones
- Audio Rack Wiring
- Recording Suites
- Post Production
| Standard Length | 328 ft (100 m) 656 ft (200 m) |
| No. of Channels (Pairs) | 2 |
| No. of Conductors (2 Per Channel) | 4 |
| Weight Per Standard Length | 12 lbs (5 kg) |
| Nominal Outside Diameter | .264 in (6.7 mm) |
| PVC Jacket Nominal Thickness | .032 in (0.8 mm) |
| Brittle Point | -4 F (-20 C) |
| Channel Outside Diameter | .106 in (2.7 mm) |
| Channel Jacket Nominal Thickness | 11.8 mil |
| Insulation Type, Thickness | IPE 9.1 mil |
| Cond-AWG (Qty./mil) Cross Sec. Area | AC - #25 (7/7.09) 279 |
| Pitch Of Pairs | <.99 in (<25 mm) |
| Shield Coverage | 100% Alum. Tape Drain Wire #25 AWG |
| Cond. D.C.R. | <32.5 ohms/1000 ft (<10.7 ohms/100 m) |
| Nominal Capacitance (Conductor to Conductor) | 76 ohms |
| Nominal Capacitance (Conductor to Shield) | 142 ohms |
| Colors | Black |
A practical, 100% foil shielded multichannel audio snake cable for general purpose studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.
Features:
- Foil Shield with Drain Wire
- Variety of Channel Counts
Applications:
- Microphones
- Audio Rack Wiring
- Recording Suites
- Post Production
| Standard Length | 328 ft (100 m) 656 ft (200 m) |
| No. of Channels (Pairs) | 2 |
| No. of Conductors (2 Per Channel) | 4 |
| Weight Per Standard Length | 12 lbs (5 kg) |
| Nominal Outside Diameter | .264 in (6.7 mm) |
| PVC Jacket Nominal Thickness | .032 in (0.8 mm) |
| Brittle Point | -4 F (-20 C) |
| Channel Outside Diameter | .106 in (2.7 mm) |
| Channel Jacket Nominal Thickness | 11.8 mil |
| Insulation Type, Thickness | IPE 9.1 mil |
| Cond-AWG (Qty./mil) Cross Sec. Area | AC - #25 (7/7.09) 279 |
| Pitch Of Pairs | <.99 in (<25 mm) |
| Shield Coverage | 100% Alum. Tape Drain Wire #25 AWG |
| Cond. D.C.R. | <32.5 ohms/1000 ft (<10.7 ohms/100 m) |
| Nominal Capacitance (Conductor to Conductor) | 76 ohms |
| Nominal Capacitance (Conductor to Shield) | 142 ohms |
| Colors | Black |
