Canare RCAP-C4A 75 Ohm RCA Video Crimp Connector for LV-61S
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Canare RCAP-C4A 75 Ohm RCA Video Crimp Connector for LV-61S
Sale price$6.68
Regular price$7.03
Description

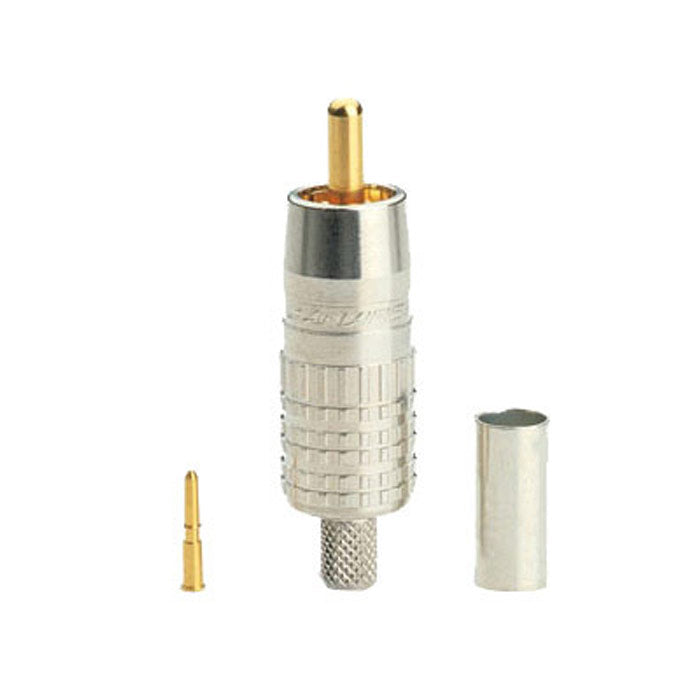

75 ohm RCA Connector, Straight Plug. Pin: B11015E. Sleeve: BN7015A. Crimp Dies: TCD451CA, TCD4C.
Features- Multimedia PatchcordsHi-Res Video MonitorsSPDIF Digital AudioDuplication DecksVCR and CamcordersAudio InterconnectsHome Theater InstallationsTrue 75 ohm construction; Crimp Pin & SleeveDC to 200 MHz; >26dB Return Loss (<1.1 VSWR)Absolutely No Soldering RequiredAssembly Time Reduced by 80%Superior cable pull strengthInternal Pressure Contact FingersGold plated center ShaftEasy Assembly using Canare Strip & Crimp Tools
| Model | RCAP-C Series |
| Parts | Body,Crimp Pin,Sleeve |
| Imp. | 75 ohm |
| Bandwidth | <1.1 (>26dB) |
| Body | Brass (Nickel) |
| Center Contact | Phosphor Bronze (Gold) |
| Outer Contact | Beryllium Copper (Gold) |
| Dielectric Material | PPO Noryl |
| Crimp Pin | Brass (Gold) |
| Cable Retention lbs.(kgs) | >55 (>24.9) |
| Voltage Rating for 1 mim. | 500V AC (rms) |
75 ohm RCA Connector, Straight Plug. Pin: B11015E. Sleeve: BN7015A. Crimp Dies: TCD451CA, TCD4C.
Features- Multimedia PatchcordsHi-Res Video MonitorsSPDIF Digital AudioDuplication DecksVCR and CamcordersAudio InterconnectsHome Theater InstallationsTrue 75 ohm construction; Crimp Pin & SleeveDC to 200 MHz; >26dB Return Loss (<1.1 VSWR)Absolutely No Soldering RequiredAssembly Time Reduced by 80%Superior cable pull strengthInternal Pressure Contact FingersGold plated center ShaftEasy Assembly using Canare Strip & Crimp Tools
| Model | RCAP-C Series |
| Parts | Body,Crimp Pin,Sleeve |
| Imp. | 75 ohm |
| Bandwidth | <1.1 (>26dB) |
| Body | Brass (Nickel) |
| Center Contact | Phosphor Bronze (Gold) |
| Outer Contact | Beryllium Copper (Gold) |
| Dielectric Material | PPO Noryl |
| Crimp Pin | Brass (Gold) |
| Cable Retention lbs.(kgs) | >55 (>24.9) |
| Voltage Rating for 1 mim. | 500V AC (rms) |
