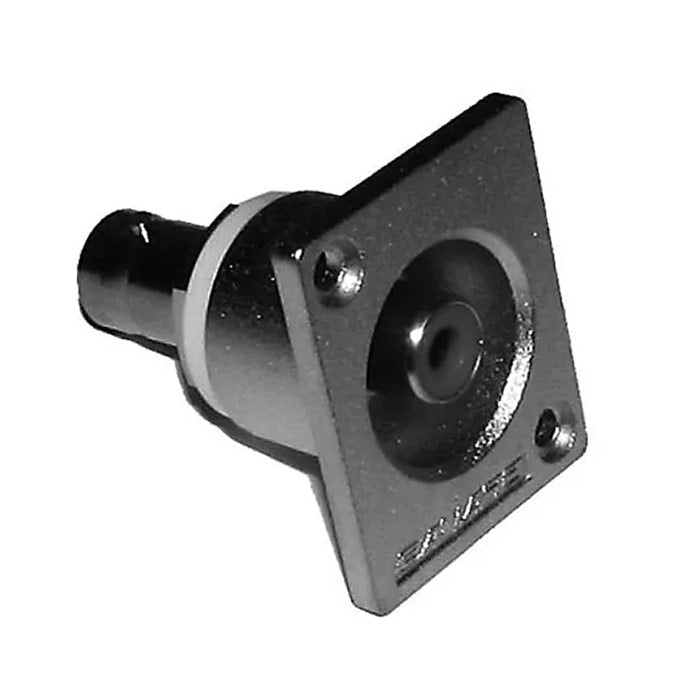

Canare RJ-BCJRU-WHT Recessed RCA to BNC Chassis Mount Jack with White Insert



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:CANA-RJBCJRUWHT

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (orders over $30)
  • Canare RJ-BCJRU White 75 Ohms Type RCA Female to BNC Female Recessed Bulkhead Receptacle. Insulator Color: White.

    Applications: Headends, Multimedia Edit Suites, Master Control Rooms, Satellite, TelCom and Broadband.Features:
    • Jack (Female) to Jack (Female)
    • Mounts in Common Canare Hole Punch
    • Totally Isolated from Panel
    • <=1.1 VSWR DC-100MHz
    • Jack to Jack or Jack to Solder
    • Double D Hole Punch
    • Use with Isolation Bushing IU-7/16
  • Shipping rates calculator


  • ModelRJ-BCJRU
    TypeRCA-BNC
    Insulator ColorWhite
    Bandwidth VSWR Return Loss DC to 100MHz<= 1.1 >26dB
    Center Contact Material PlatingBrass Nickel
    DielectricPTFE
    Flange Material PlatingDieCast AL Nickel
    Insulation resistance at 500V DC> 100Mohms
    Voltage rating for 1 minute500V AC(rms)
    Center contact resistance< 10mohms
    Outer contact resistance< 3mOhms
