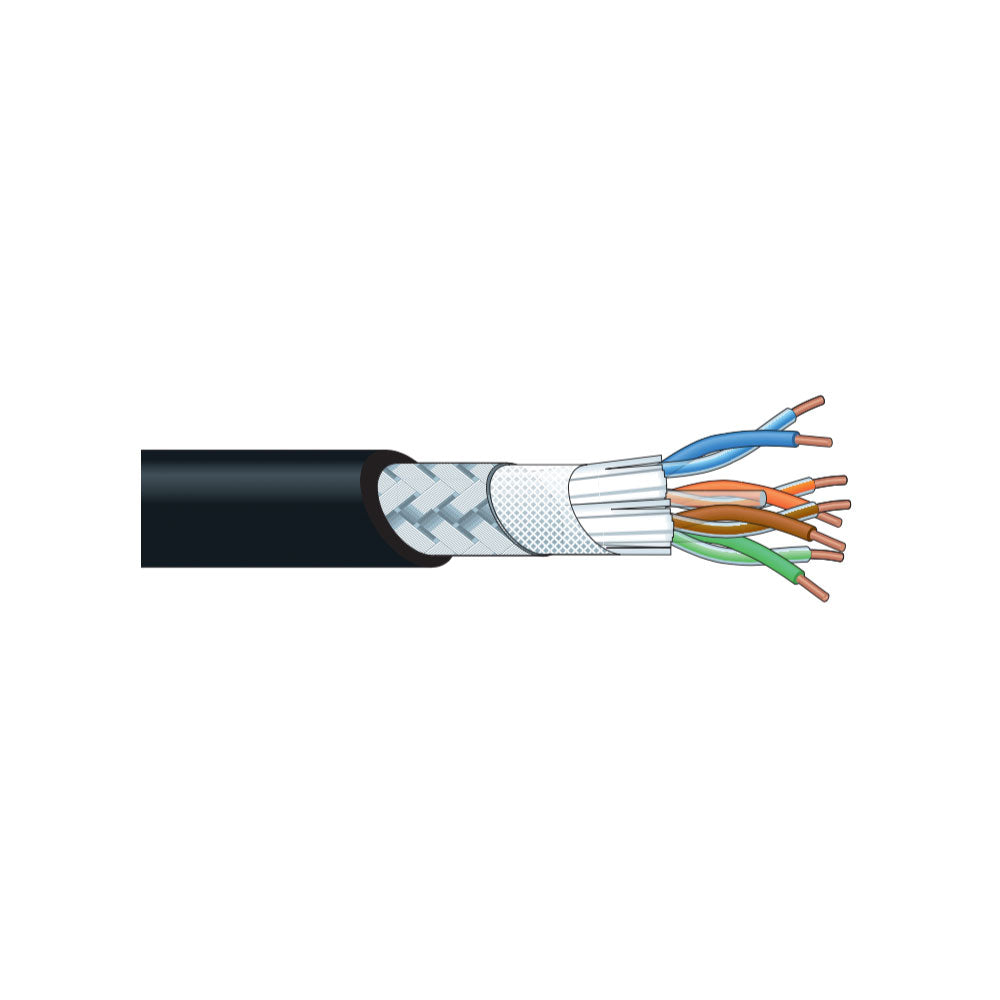

Canare RJC5ES-4P-BS Bulk Cat5e STP Cable (100 Meter Spool)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Canare RJC5ES-4P-BS Bulk Cat5e STP Cable (100 Meter Spool)
Sale price$423.23
Regular price$445.50
Description
Super flexible CAT5e STP cable for short distance. (max. 50 m)
Features:
- 24 AWG stranded conductors
- High-density braided shield (90% coverage)
| Shield Type | Overall Braid (S/UTP) |
| Nominal Outer Diameter | 6.7 mm |
| Weight per 100 meters | 6.1 kg |
| Conductors | 0.22 mm2 (24 AWG) |
| Conductor quantity per mm | 7/0.20A |
| DCR | 9.5 ohms per 100m |
| Impedance | 100 ohms |
| Insertion Loss at 100 MHz | 44.0 dB per 100m |
| Insertion Loss at 250 MHz | n/a |
Super flexible CAT5e STP cable for short distance. (max. 50 m)
Features:
- 24 AWG stranded conductors
- High-density braided shield (90% coverage)
| Shield Type | Overall Braid (S/UTP) |
| Nominal Outer Diameter | 6.7 mm |
| Weight per 100 meters | 6.1 kg |
| Conductors | 0.22 mm2 (24 AWG) |
| Conductor quantity per mm | 7/0.20A |
| DCR | 9.5 ohms per 100m |
| Impedance | 100 ohms |
| Insertion Loss at 100 MHz | 44.0 dB per 100m |
| Insertion Loss at 250 MHz | n/a |
