DALE SKU # CEDA-DNS4

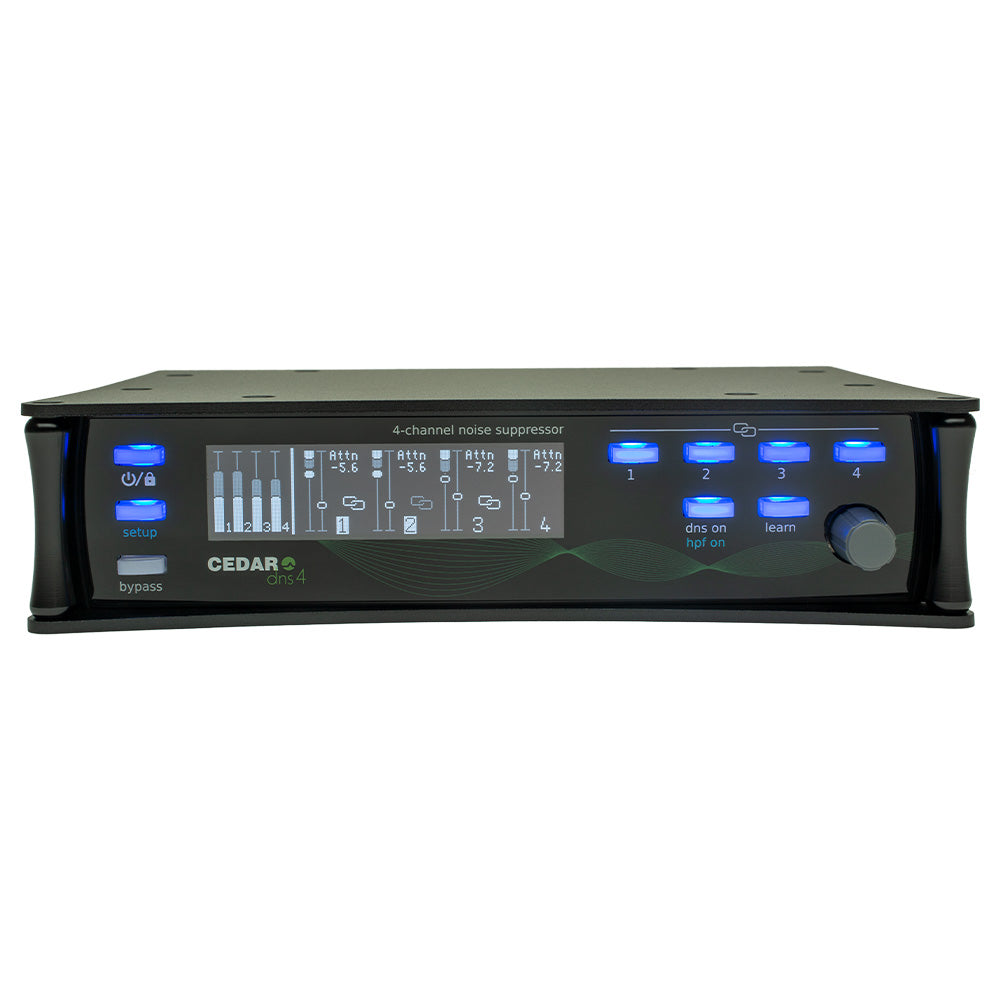

CEDAR Audio DNS 4 - Four-Channel Dialogue Noise Suppressor

Sale price$4,959.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The DNS 4 is the most advanced portable model in the DNS series. With its Hirose HR-10 power input and mini-XLRs for many connections, it takes up little more space than the industry-standard DNS 2 yet doubles the number of channels available.

    It's incredibly fast and simple to use; the DNS algorithm requires nothing more than switching on the Learn function that identifies and adapts to the background noise, and then adjusting the amount of noise attenuation required. Notwithstanding this simplicity, it can achieve remarkable results. What's more, despite being so convenient that you can slip it into your pocket or equipment bag, it offers analogue line and ultra low-noise microphone inputs (the latter with optional 48V phantom powering), AES3/AES11 digital inputs, and both analogue and digital outputs. And, to increase its flexibility still further, it runs on 12V power so you can use it in the middle of a field as easily as in the studio or edit suite.

    Retaining the near-zero latency of its predecessors, the DNS 4 is suitable for use in all situations - location recording, live-to-air broadcasting and live sound in venues such as theatres, concert halls, conferences venues and places of worship, as well as in the studio.

    Features:

    • Four channels of state-of-the-art noise suppression
    • High-resolution 40-bit floating-point processing
    • Near-zero latency to ensure that there's no loss of lip-sync
    • Super-fast setup and control
    • It's small, light and eminently portable
    • It runs on 12V power


    The dialogue noise suppressors that everyone uses everywhere

    CEDAR's dialogue noise suppression (DNS) technology is used on the highest quality productions and broadcasts to eliminate traffic noise, air conditioning, wind, rain, babble and general background noise from audio. It will help to compensate for unfavourable acoustic conditions and poor microphone placement, and will even suppress excessive reverberation.

    It's used to clean up sound for film production, to suppress ambient noise for live broadcasting, to refresh sound libraries, and to enhance speech for audio forensic investigations. It's an industry standard that has earned a string of awards including an Emmy®, an Academy Award®, an IABM Award® and two Cinema Audio Society Awards.

    Line inputs
    Connectors Channels 1/2: Balanced XLR3F
    Channels 3/4: Balanced TA3 mini-XLR
    Impedance 10k½
    Nominal signal level (0dB gain) +4dBu
    ADC line up (0dB gain) +4dBu : -20dBFS
    Clipping level (0dB gain) +24dBu
    Dynamic range (0dB gain) >102dB (AES17 unweighted)
    Gain ranges Channels 1/2: -6dB to +54dB
    Channels 3/4: 0dB to +20dB
    Microphone inputs with ultra low-noise microphone preamplifiers
    Connector Balanced XLR3F
    Impedance 2k½
    Gain range 18dB to 78dB
    ADC line up (36dB gain) -32dBu : -20dBFS
    Dynamic range (36dB gain) >102dB (AES17 unweighted)
    Phantom Power
    Type P48 (IEC61958)
    Unloaded voltage +48V ± 4V
    Current available 10mA per microphone
    Short circuit protection Indefinite
    AD/DA conversion
    Format 24-bit linear PCM
    Sample rate (internal sync.) 48kHz
    Sample rate (external sync.) 40kHz Ð 100kHz
    Digital inputs
    Connector Balanced TA3 mini-XLR
    Format AES3 (IEC60958) or AES11 (DARS)
    Sample rate sync range 40kHz - 100kHz
    Line outputs
    Connector Balanced TA3 mini-XLR
    Nominal signal level +4dBu
    DAC line up -20dBFS : +4dBu
    Maximum output +24dBu
    Dynamic range 96dB
    Minimum load impedance 600½
    Short circuit protection Indefinite
    Digital outputs
    Connector Balanced TA3 mini-XLR
    Format AES3 (IEC60958)
    Sample rate (internal sync) 48kHz (±50ppm)
    Sample rate (external sync) locked to digital input
    DSP
    Type Floating point
    Resolution 40-bit
    Sample rates 44.1kHz, 48kHz, 96kHz
    Power input
    Voltage 8V to 17.5V (nominal 12V)
    Connector Hirose 4-pin HR10 (pin1 -, pin4 +)
    Reverse polarity protection Indefinite
    Over-voltage protection Indefinite, up to 50V
    Max power consumption @ 12V 15W
    Power adapter
    Input voltage 85VAC - 260VAC, 50 - 60Hz
    Input power 15W
    Input connector UK/US/EU
    Output voltage 12V
    Output connector Hirose 4-pin HR10 (pin1 -, pin4 +)
    Physical
    Dimensions 185 x 130 x 45 mm
    Weight 750g

    The DNS 4 is the most advanced portable model in the DNS series. With its Hirose HR-10 power input and mini-XLRs for many connections, it takes up little more space than the industry-standard DNS 2 yet doubles the number of channels available.

    It's incredibly fast and simple to use; the DNS algorithm requires nothing more than switching on the Learn function that identifies and adapts to the background noise, and then adjusting the amount of noise attenuation required. Notwithstanding this simplicity, it can achieve remarkable results. What's more, despite being so convenient that you can slip it into your pocket or equipment bag, it offers analogue line and ultra low-noise microphone inputs (the latter with optional 48V phantom powering), AES3/AES11 digital inputs, and both analogue and digital outputs. And, to increase its flexibility still further, it runs on 12V power so you can use it in the middle of a field as easily as in the studio or edit suite.

    Retaining the near-zero latency of its predecessors, the DNS 4 is suitable for use in all situations - location recording, live-to-air broadcasting and live sound in venues such as theatres, concert halls, conferences venues and places of worship, as well as in the studio.

    Features:

    • Four channels of state-of-the-art noise suppression
    • High-resolution 40-bit floating-point processing
    • Near-zero latency to ensure that there's no loss of lip-sync
    • Super-fast setup and control
    • It's small, light and eminently portable
    • It runs on 12V power


    The dialogue noise suppressors that everyone uses everywhere

    CEDAR's dialogue noise suppression (DNS) technology is used on the highest quality productions and broadcasts to eliminate traffic noise, air conditioning, wind, rain, babble and general background noise from audio. It will help to compensate for unfavourable acoustic conditions and poor microphone placement, and will even suppress excessive reverberation.

    It's used to clean up sound for film production, to suppress ambient noise for live broadcasting, to refresh sound libraries, and to enhance speech for audio forensic investigations. It's an industry standard that has earned a string of awards including an Emmy®, an Academy Award®, an IABM Award® and two Cinema Audio Society Awards.

    Line inputs
    Connectors Channels 1/2: Balanced XLR3F
    Channels 3/4: Balanced TA3 mini-XLR
    Impedance 10k½
    Nominal signal level (0dB gain) +4dBu
    ADC line up (0dB gain) +4dBu : -20dBFS
    Clipping level (0dB gain) +24dBu
    Dynamic range (0dB gain) >102dB (AES17 unweighted)
    Gain ranges Channels 1/2: -6dB to +54dB
    Channels 3/4: 0dB to +20dB
    Microphone inputs with ultra low-noise microphone preamplifiers
    Connector Balanced XLR3F
    Impedance 2k½
    Gain range 18dB to 78dB
    ADC line up (36dB gain) -32dBu : -20dBFS
    Dynamic range (36dB gain) >102dB (AES17 unweighted)
    Phantom Power
    Type P48 (IEC61958)
    Unloaded voltage +48V ± 4V
    Current available 10mA per microphone
    Short circuit protection Indefinite
    AD/DA conversion
    Format 24-bit linear PCM
    Sample rate (internal sync.) 48kHz
    Sample rate (external sync.) 40kHz Ð 100kHz
    Digital inputs
    Connector Balanced TA3 mini-XLR
    Format AES3 (IEC60958) or AES11 (DARS)
    Sample rate sync range 40kHz - 100kHz
    Line outputs
    Connector Balanced TA3 mini-XLR
    Nominal signal level +4dBu
    DAC line up -20dBFS : +4dBu
    Maximum output +24dBu
    Dynamic range 96dB
    Minimum load impedance 600½
    Short circuit protection Indefinite
    Digital outputs
    Connector Balanced TA3 mini-XLR
    Format AES3 (IEC60958)
    Sample rate (internal sync) 48kHz (±50ppm)
    Sample rate (external sync) locked to digital input
    DSP
    Type Floating point
    Resolution 40-bit
    Sample rates 44.1kHz, 48kHz, 96kHz
    Power input
    Voltage 8V to 17.5V (nominal 12V)
    Connector Hirose 4-pin HR10 (pin1 -, pin4 +)
    Reverse polarity protection Indefinite
    Over-voltage protection Indefinite, up to 50V
    Max power consumption @ 12V 15W
    Power adapter
    Input voltage 85VAC - 260VAC, 50 - 60Hz
    Input power 15W
    Input connector UK/US/EU
    Output voltage 12V
    Output connector Hirose 4-pin HR10 (pin1 -, pin4 +)
    Physical
    Dimensions 185 x 130 x 45 mm
    Weight 750g
