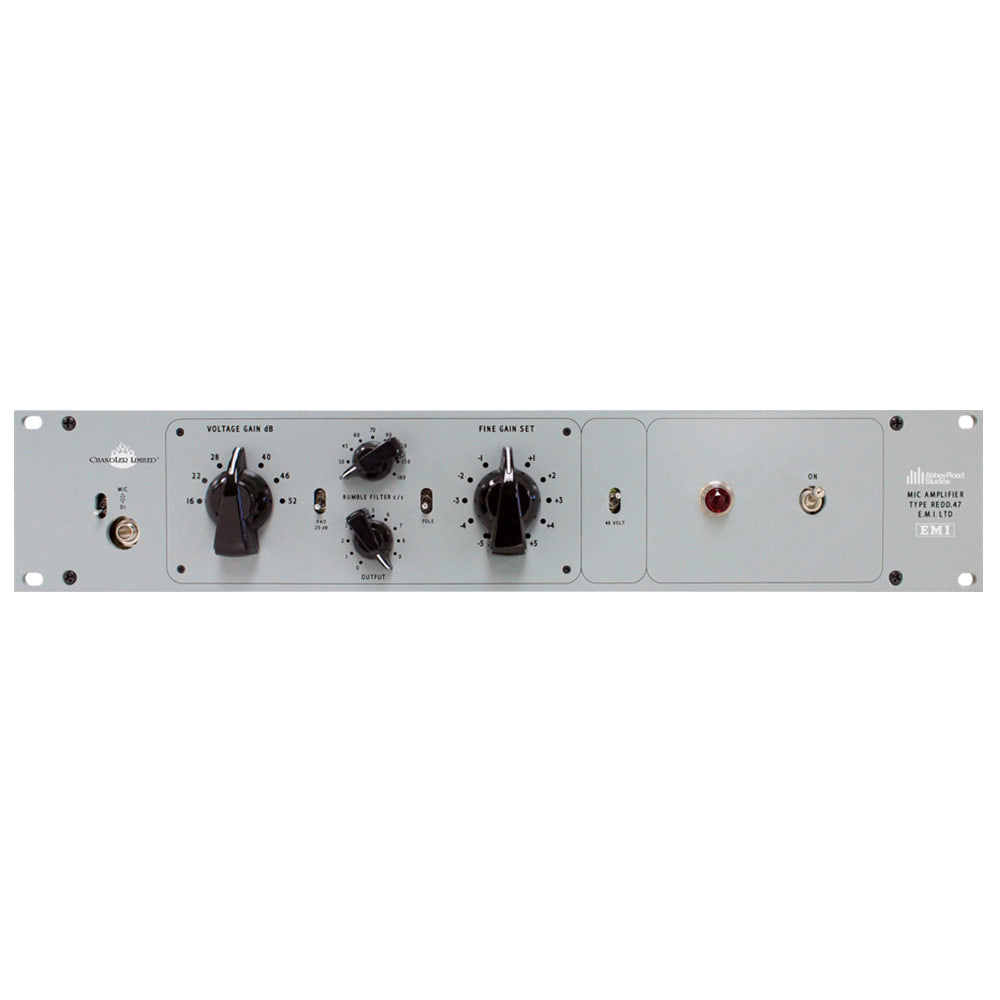

Chandler Limited REDD.47 Single Channel Abbey Road Mic Preamp
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Chandler Limited's REDD.47 microphone pre-amplifier is a recreation of the original valve line amplifiers used in Abbey Road Studios' heralded and rare EMI REDD.51 recording consoles circa 1959-1968.
The Chandler Limited REDD.47 pre-amp offers many additional benefits to the original design including increased gain, allowing a range of tonal options from pristine clean sound to classic rich, saturated tone with up to 2% harmonic distortion before clipping. The Chandler Limited REDD.47 pre-amp easily reproduces the distortions heard on The Beatles' 'Revolution.'
Chandler Limited's REDD.47 tube microphone pre-amplifier delivers the legendary sound of Abbey Road Studios' 'Holy Grail' pre-amp, with extra features to meet today's recording studio standards.
| CHANNELS | Mono |
| CIRCUIT | Tube (EF86, E88CC) |
| CONNECTIONS | Inputs: Mic/Line XLR (pin 2 hot), D/I (1/4") Output: XLR (pin 2 hot) Transformer balanced I/O (custom wound) |
| CONTROLS | Voltage gain: Stepped 16-52db Fine gain: variable +/-5db Total Gain: +57db Output control: variable Rumble filter: Inductor based, switchable (30,45,60,70,90,110,130,180hz) PAD: 20db, switchable Phase: switchable Phantom Power: +48v, switchable |
| POWER | Internal power supply |
Chandler Limited's REDD.47 microphone pre-amplifier is a recreation of the original valve line amplifiers used in Abbey Road Studios' heralded and rare EMI REDD.51 recording consoles circa 1959-1968.
The Chandler Limited REDD.47 pre-amp offers many additional benefits to the original design including increased gain, allowing a range of tonal options from pristine clean sound to classic rich, saturated tone with up to 2% harmonic distortion before clipping. The Chandler Limited REDD.47 pre-amp easily reproduces the distortions heard on The Beatles' 'Revolution.'
Chandler Limited's REDD.47 tube microphone pre-amplifier delivers the legendary sound of Abbey Road Studios' 'Holy Grail' pre-amp, with extra features to meet today's recording studio standards.
| CHANNELS | Mono |
| CIRCUIT | Tube (EF86, E88CC) |
| CONNECTIONS | Inputs: Mic/Line XLR (pin 2 hot), D/I (1/4") Output: XLR (pin 2 hot) Transformer balanced I/O (custom wound) |
| CONTROLS | Voltage gain: Stepped 16-52db Fine gain: variable +/-5db Total Gain: +57db Output control: variable Rumble filter: Inductor based, switchable (30,45,60,70,90,110,130,180hz) PAD: 20db, switchable Phase: switchable Phantom Power: +48v, switchable |
| POWER | Internal power supply |
