Chandler Limited TG Microphone Cassette - Abbey Road Channel Strip (Requires PSU-1)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

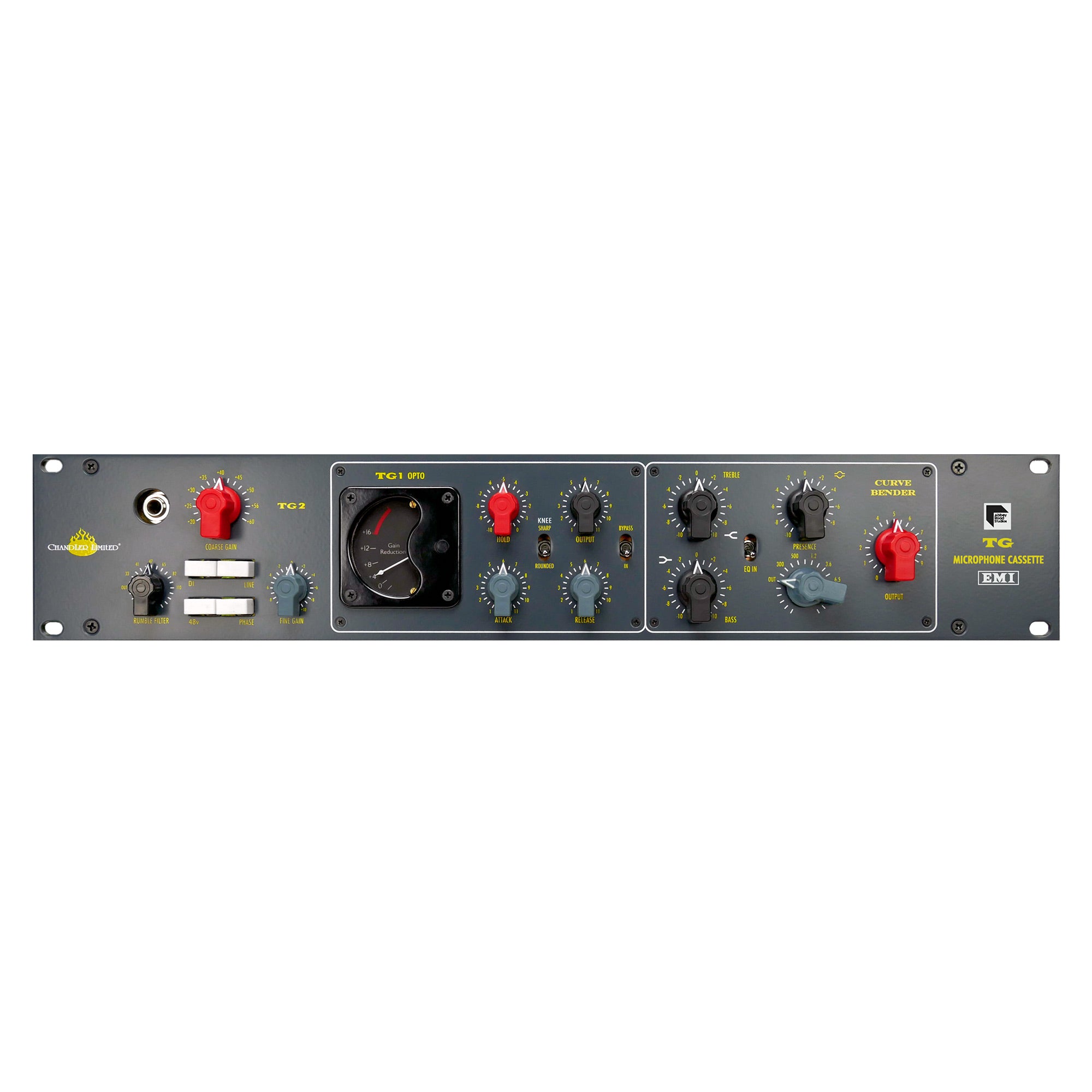

Chandler Limited's TG Microphone Cassette is a full-featured mixing console channel strip, incorporating elements of the historic EMI/Abbey Road Studios TG12345 recording and mastering desks of the late '60s and '70s.
The Chandler Limited TG Microphone Cassette delivers the historic TG sound with modern conveniences, flexibility, and something new - the TG1 Opto Limiter.
The three sections of the TG Microphone Cassette comprise Chandler Limited's TG2 Pre-Amp coupled with a Curve Bender EQ section, including Treble, Bass, and Presence controls, and an independently patchable TG1 Opto Limiter.
| Channels | Mono |
| TG2 Preamp | Transistor amplifier |
| Mic/Line | XLR Input (Transformer balanced, Mic 300 Impedance) |
| DI | 1/4" Unbalanced |
| Maximum gain | +70db, Coarse Gain (Stepped +20 to +60db), Fine Gain (Variable +/-10db) |
| Rumble Filter (Low Cut) | 6 Frequencies (Out, 33,41,47,65,82,110hz) |
| Phantom power, Phase | Phantom (+48V), Phase( 0-180å¼) |
| Curve Bender EQ | Treble/Bass Shelf, Presence (Out, 300hz,500hz,1.2k,3.6k,6.5k), Output control, Bypass, XLR Output |
| TG1 Opto Limiter | Independently patachable (XLR I/O), Hold, Attack, Release, Knee (Sharp/Rounded), Output (makeup gain), Bypass, Linkable (1/4" Jack) |
| Power | External/PSU-1, Purchased separately |
Chandler Limited's TG Microphone Cassette is a full-featured mixing console channel strip, incorporating elements of the historic EMI/Abbey Road Studios TG12345 recording and mastering desks of the late '60s and '70s.
The Chandler Limited TG Microphone Cassette delivers the historic TG sound with modern conveniences, flexibility, and something new - the TG1 Opto Limiter.
The three sections of the TG Microphone Cassette comprise Chandler Limited's TG2 Pre-Amp coupled with a Curve Bender EQ section, including Treble, Bass, and Presence controls, and an independently patchable TG1 Opto Limiter.
| Channels | Mono |
| TG2 Preamp | Transistor amplifier |
| Mic/Line | XLR Input (Transformer balanced, Mic 300 Impedance) |
| DI | 1/4" Unbalanced |
| Maximum gain | +70db, Coarse Gain (Stepped +20 to +60db), Fine Gain (Variable +/-10db) |
| Rumble Filter (Low Cut) | 6 Frequencies (Out, 33,41,47,65,82,110hz) |
| Phantom power, Phase | Phantom (+48V), Phase( 0-180å¼) |
| Curve Bender EQ | Treble/Bass Shelf, Presence (Out, 300hz,500hz,1.2k,3.6k,6.5k), Output control, Bypass, XLR Output |
| TG1 Opto Limiter | Independently patachable (XLR I/O), Hold, Attack, Release, Knee (Sharp/Rounded), Output (makeup gain), Bypass, Linkable (1/4" Jack) |
| Power | External/PSU-1, Purchased separately |
