Chandler Limited TG12345 MKIV - Equalizer Module for 500 Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

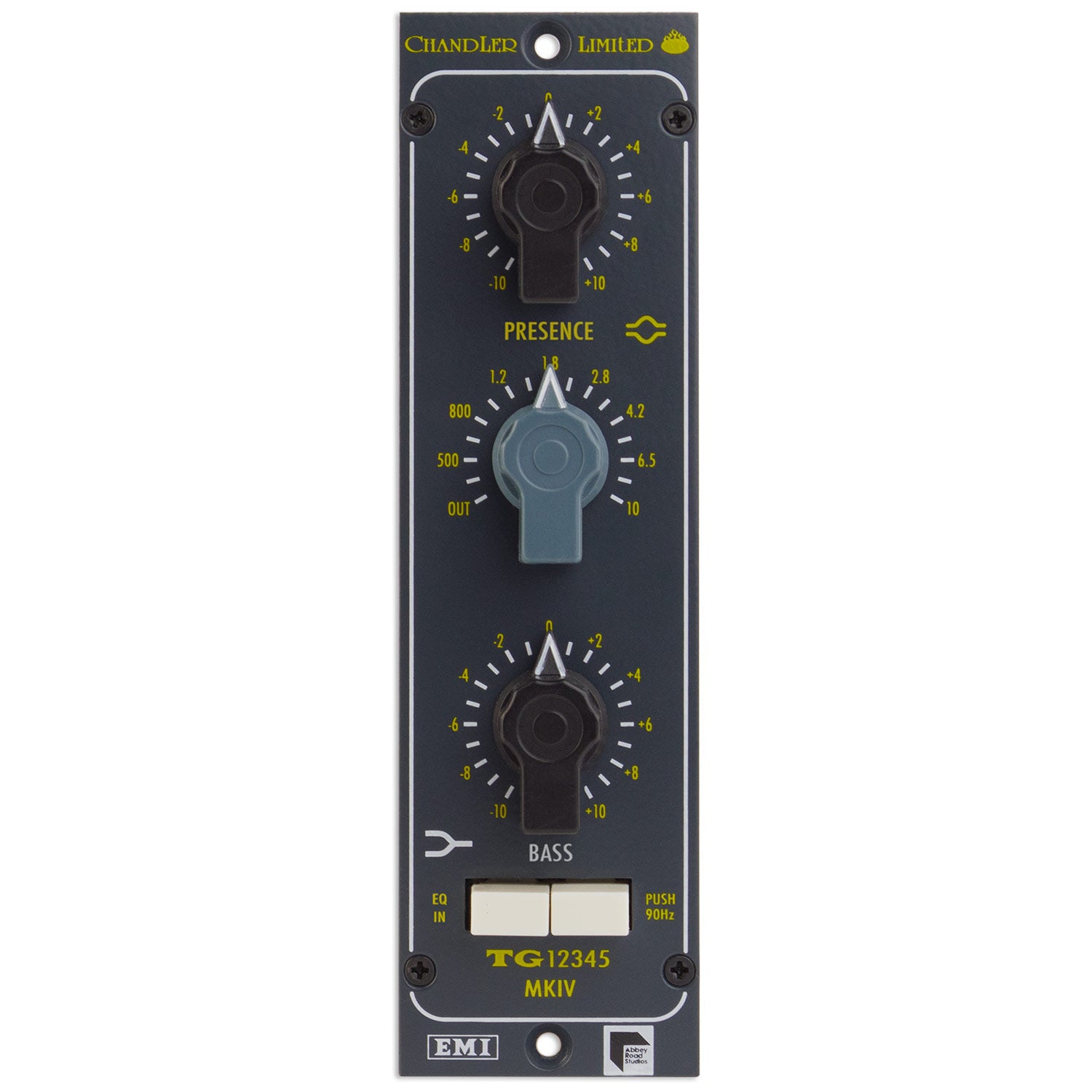

The Chandler Limited TG12345 MKIV equalizer is a handmade, fully discrete, mono, single space module, designed for the 500 Series format.
The TG12345 MKIV EQ for 500 Series, inherits from Chandler Limited's TG Microphone Cassette and flagship TG12345 Curve Bender, and draws its heritage from the input and group channel equalizers found on historic EMI TG12345 recording consoles of the late '60s and early '70s.
The TG12345 MKIV control-set includes: presence and bass bands, with continuous boost/cut, and true bypass.
The presence band is switchable, featuring eight frequencies and an out position. The first seven frequencies are bell type, and the eighth is a shelf at 10 kHz.
The bass band is a shelving type, featuring two frequency options, 90 or 150 Hz.
The remarkable character of the TG12345 MKIV EQ is silky smooth and the sound is Curve Bender sweet.
Create an EMI TG console channel today by adding the TG12345 MKIV EQ, TG Opto compressor and TG2-500 preamp to your 500 Series rack!
Chandler Limited is the only company in the world authorized to develop, manufacture and market the "Official Equipment" of EMI/Abbey Road Studios.
| Channels | Mono |
| Circuit | Discrete, Transistor |
| Presence | Switchable, 8 Frequencies, Out position, Continuous boost/cut |
| Presence Curve | Bell and Shelving (10 kHz) |
| Presence Frequencies | 500, 800, 1.2, 1.8, 2.8, 4.2, 6.5, 10 kHz |
| Bass | Switchable, Continuous boost/cut |
| Bass Curve | Shelving |
| Bass Frequencies | 150, 90 Hz |
| Bypass | True Bypass |
| I/O | 500 Series format (frame dependent) |
| POWER | 500 Series format: +/-16v Max. current draw: +16v @ +105ma / -16v @ -90ma |
The Chandler Limited TG12345 MKIV equalizer is a handmade, fully discrete, mono, single space module, designed for the 500 Series format.
The TG12345 MKIV EQ for 500 Series, inherits from Chandler Limited's TG Microphone Cassette and flagship TG12345 Curve Bender, and draws its heritage from the input and group channel equalizers found on historic EMI TG12345 recording consoles of the late '60s and early '70s.
The TG12345 MKIV control-set includes: presence and bass bands, with continuous boost/cut, and true bypass.
The presence band is switchable, featuring eight frequencies and an out position. The first seven frequencies are bell type, and the eighth is a shelf at 10 kHz.
The bass band is a shelving type, featuring two frequency options, 90 or 150 Hz.
The remarkable character of the TG12345 MKIV EQ is silky smooth and the sound is Curve Bender sweet.
Create an EMI TG console channel today by adding the TG12345 MKIV EQ, TG Opto compressor and TG2-500 preamp to your 500 Series rack!
Chandler Limited is the only company in the world authorized to develop, manufacture and market the "Official Equipment" of EMI/Abbey Road Studios.
| Channels | Mono |
| Circuit | Discrete, Transistor |
| Presence | Switchable, 8 Frequencies, Out position, Continuous boost/cut |
| Presence Curve | Bell and Shelving (10 kHz) |
| Presence Frequencies | 500, 800, 1.2, 1.8, 2.8, 4.2, 6.5, 10 kHz |
| Bass | Switchable, Continuous boost/cut |
| Bass Curve | Shelving |
| Bass Frequencies | 150, 90 Hz |
| Bypass | True Bypass |
| I/O | 500 Series format (frame dependent) |
| POWER | 500 Series format: +/-16v Max. current draw: +16v @ +105ma / -16v @ -90ma |
