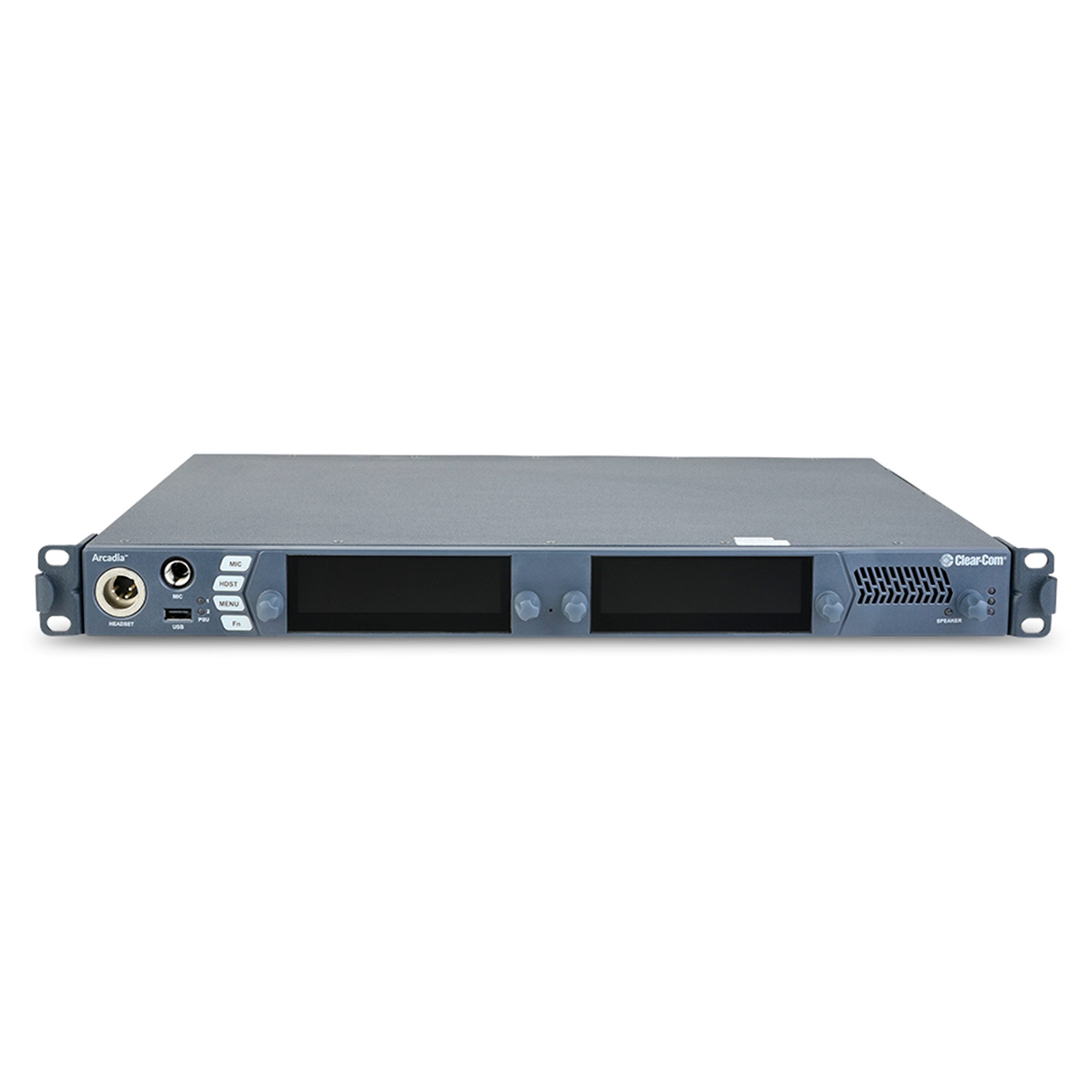

Clear-Com ARCADIA-X4-48P - Arcadia Central Station (XLR4 / 48 Ports)

Arcadia Central Station is a next generation scalable IP platform that integrates wired and wireless partyline systems, including the full range of FreeSpeak™ products. With a mixture of 2-wire and 4-wire audio ports, the 1RU device serves as the centerpiece of a system that includes Clear-Com endpoints along with third-party Dante and AES67 AoIP devices.

Capacity

• Supports up to 32 beltpacks (FSII and/or FSE), 16 IPT transceivers (FSII and/or FSE) and up to 10 E1 transceivers (1.9 or 2.4GHz)
• Supports up to 100 channels
• 96 ports of connectivity

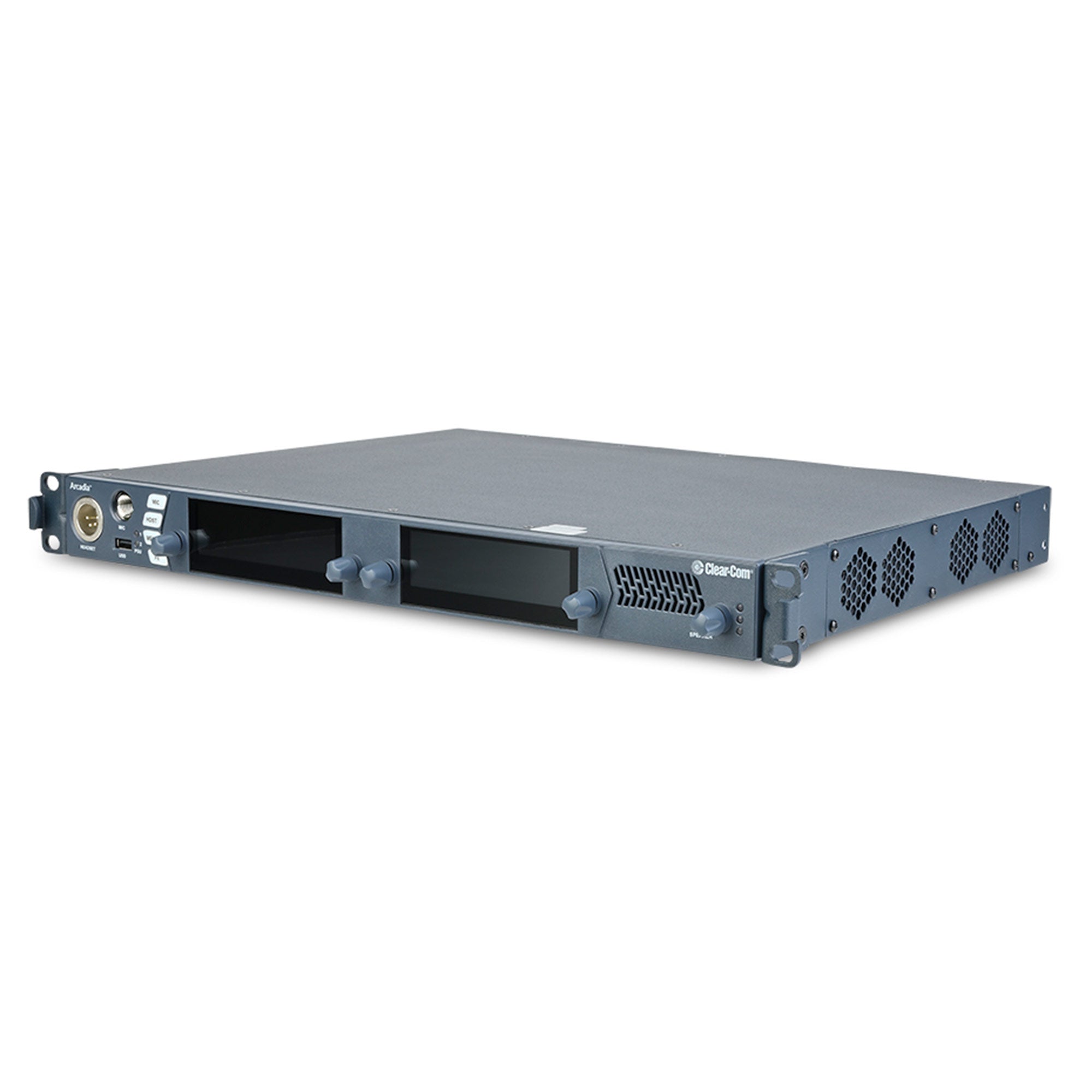

Base Station

• Standard 1 rack unit (RU) device
• High quality 12kHz audio to FS Edge beltpacks

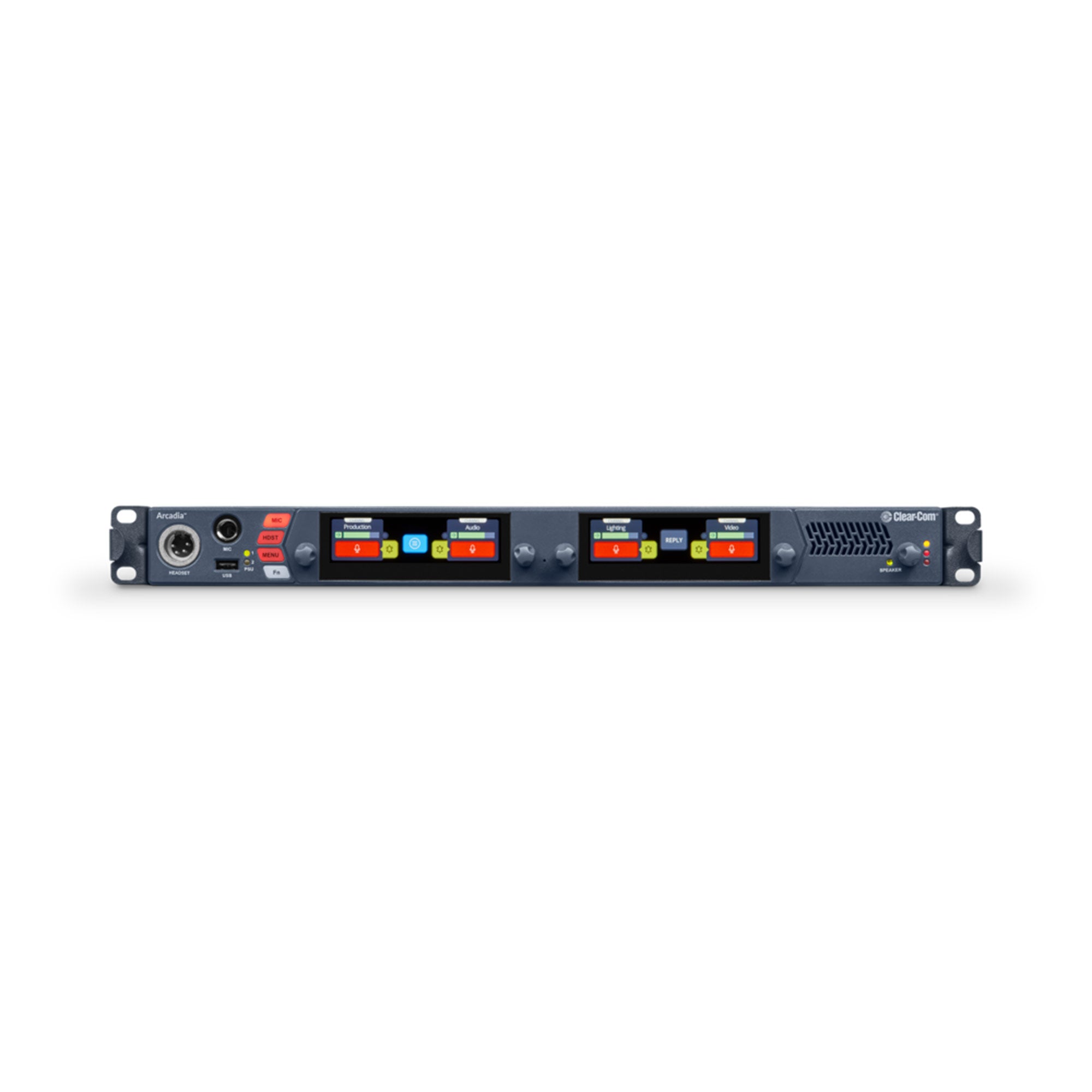

• 2 large full-color touch screen TFT displays
• 4 rotary encoders for gain and menu operation
• Headset or Microphone and Speaker connection
• Stage Announce and Prog. Audio cable included
• Functions as PTP Leader Clock

Connectivity

• Wireless 5GHz Edge transceivers and beltpacks
• Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
• Dante enabled audio devices
• AES67 devices via Dante controller

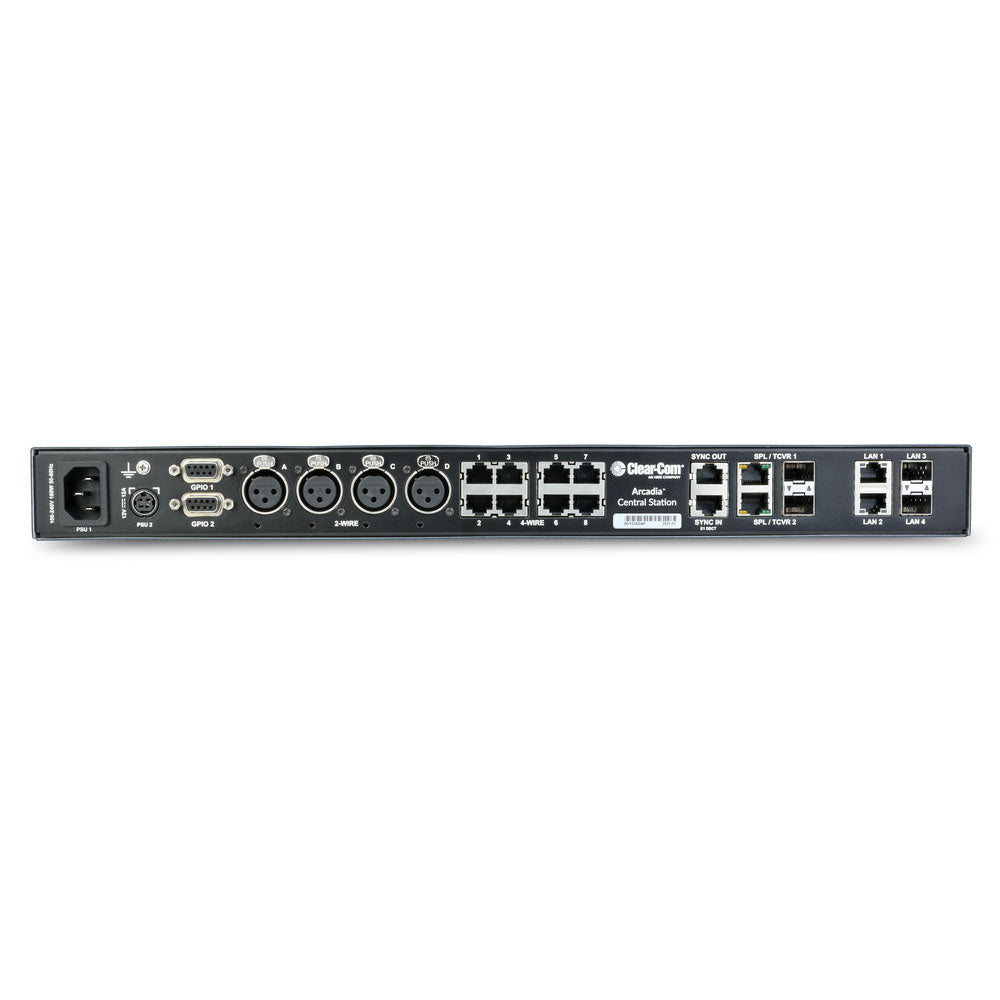

• 4-wire ports (8 ports RJ45)
• 2-wire ports (4 XLR-3F)
• GPIO (D-type 9 pin)
• LAN – 2 x RJ45, 2 x SFP

Configuration

• CCM browser-based configuration tool
• Direct management with encoders and display

Wired and Wireless Integration
Integration of both wired and wireless partyline systems. The 1RU device provides 2-wire, 4-wire, SFP and GPIO connections allowing both analog and digital intercom capability including the full range of FreeSpeak™ products (E1/IP TCVRs; 1.9, 2.4 and 5 GHz beltpacks). HelixNet digital partyline integration capability coming soon.

IP Interoperability
With a multitude of third-party devices running on IP, the Central Station provides tremendous flexibility by allowing communication routes to Dante devices via 64 licensable ports.

Flexible and Future-Proof
The Central Station allows the user to increase the number of ports to 96 – with port licenses available in increments of 16. New future functionality, such as HelixNet integration, will also be available through the licensing system.

Easy Setup and Monitoring
The system is configured through a redesigned Core Configuration Manager (CCM™) enabling rapid setup, configuration and monitoring. The intuitive user interface has a consistent design for a quick and simple means of configuring the Central Station with role-based beltpacks, including save and restore, text messaging, individual beltpack and group call signal and remote mic kill.

Performance Center Communications
A Performance Center could have multiple theaters, multiple dressing rooms, a carpentry area and additional the box office and administrative space. The Arcadia Central Station is a 1RU device that supports up to 32 beltpacks from all three FreeSpeak frequency bands. An additional 64 ports of Dante and AES67 can be added through a flexible port licensing system. The device also houses 2-wire and 4-wire ports to add analog intercom equipment and third-party devices. This scalability makes covering the entire Performance Center with a single device a reality.

Large Church Communications
A large church production team has to manage multiple pastors and speakers, singers, band members, mobile mics in the crowd and more. Allowing the production staff to move freely around different areas of the church while still in communication with the rest of the team provides a seamless and smooth live delivery. The flexibility of the Arcadia Central Station provides the team with a single 1RU device that powers multiple FreeSpeak frequency bands. The 2-wire connection points give new life to legacy analog systems like Encore.
