Clear-Com ARCADIA-X5-48P - Arcadia Central Station (XLR5 / 48 Ports)

  • Dale #:

    CLEA-ARCADIAX548P
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Arcadia Central Station is a next generation scalable IP platform that integrates wired and wireless partyline systems, including the full range of FreeSpeak™ products. With a mixture of 2-wire and 4-wire audio ports, the 1RU device serves as the centerpiece of a system that includes Clear-Com en... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Arcadia Central Station is a next generation scalable IP platform that integrates wired and wireless partyline systems, including the full range of FreeSpeak™ products. With a mixture of 2-wire and 4-wire audio ports, the 1RU device serves as the centerpiece of a system that includes Clear-Com endpoints along with third-party Dante and AES67 AoIP devices.

Capacity

  • Supports up to 32 beltpacks (FSII and/or FSE), 16 IPT transceivers (FSII and/or FSE) and up to 10 E1 transceivers (1.9 or 2.4GHz)
  • Supports up to 100 channels
  • 96 ports of connectivity

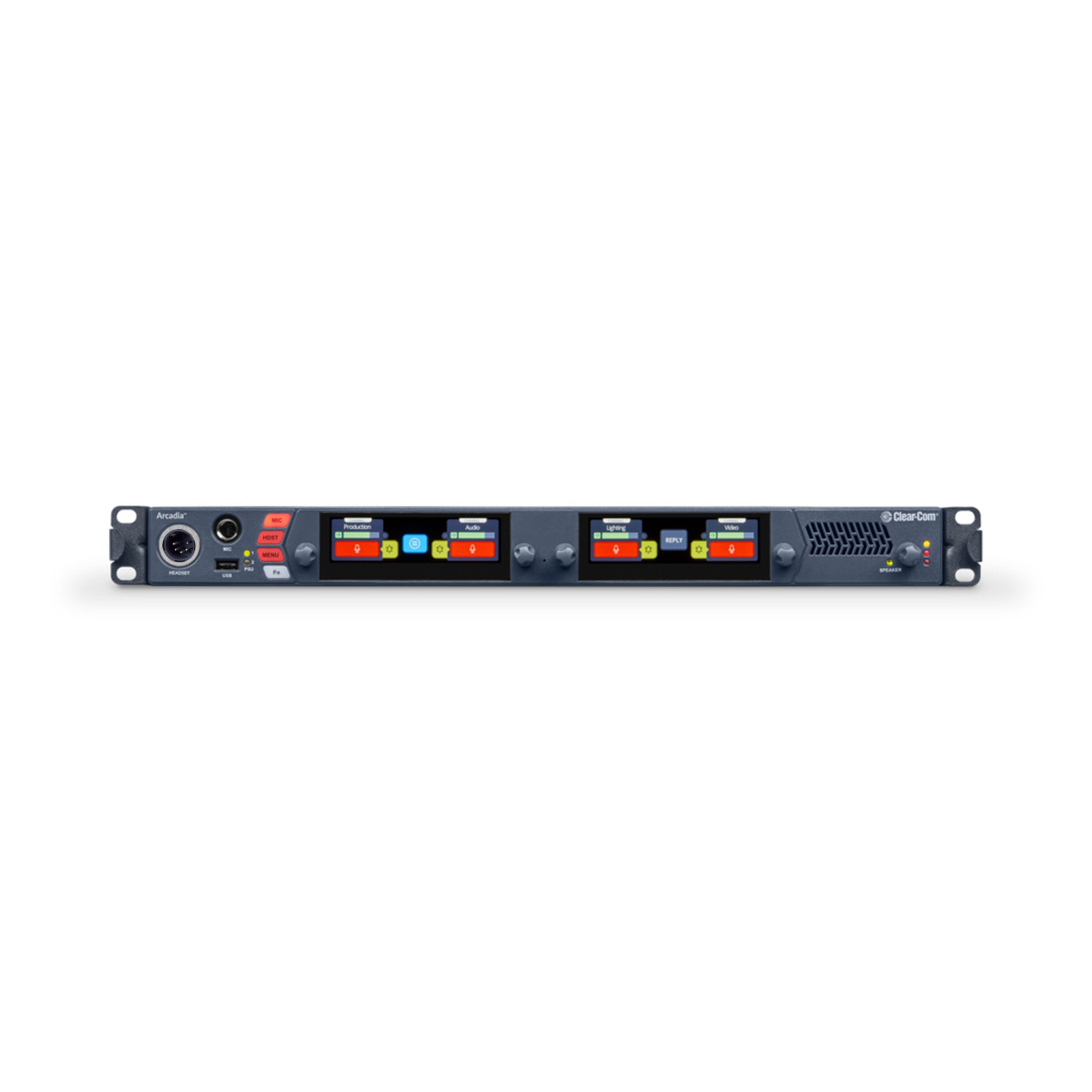

Base Station

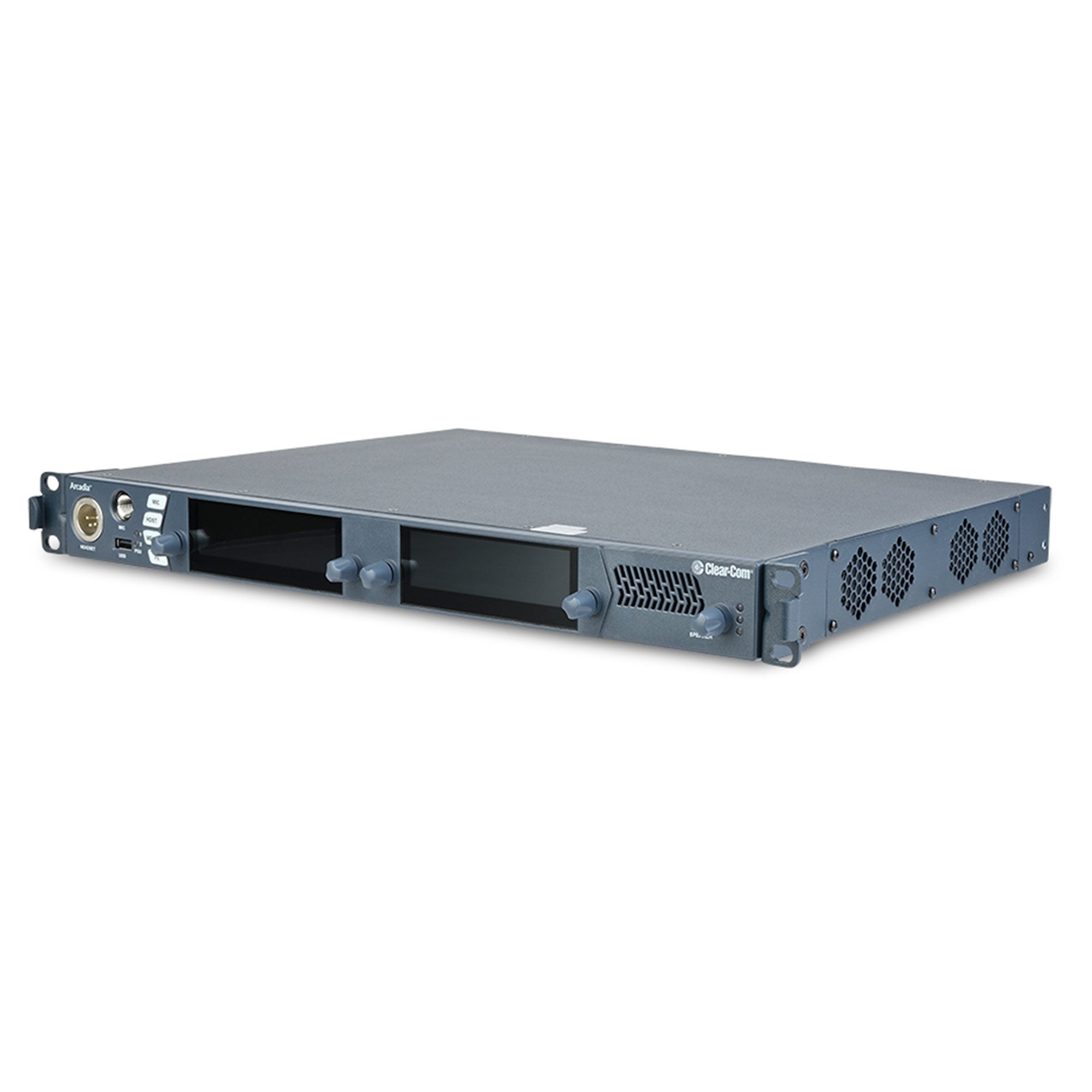

  • Standard 1 rack unit (RU) device
  • High quality 12kHz audio to FS Edge beltpacks
  • 2 large full-color touch screen TFT displays
  • 4 rotary encoders for gain and menu operation
  • Headset or Microphone and Speaker connection
  • Stage Announce and Prog. Audio cable included
  • Functions as PTP Leader Clock

Connectivity

  • Wireless 5GHz Edge transceivers and beltpacks
  • Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
  • Dante enabled audio devices
  • AES67 devices via Dante controller
  • 4-wire ports (8 ports RJ45)
  • 2-wire ports (4 XLR-3F)
  • GPIO (D-type 9 pin)
  • LAN – 2 x RJ45, 2 x SFP

Configuration

  • CCM browser-based configuration tool
  • Direct management with encoders and display


Wired and Wireless Integration
Integration of both wired and wireless partyline systems. The 1RU device provides 2-wire, 4-wire, SFP and GPIO connections allowing both analog and digital intercom capability including the full range of FreeSpeak™ products (E1/IP TCVRs; 1.9, 2.4 and 5 GHz beltpacks). HelixNet digital partyline integration capability coming soon.

IP Interoperability
With a multitude of third-party devices running on IP, the Central Station provides tremendous flexibility by allowing communication routes to Dante devices via 64 licensable ports.

Flexible and Future-Proof
The Central Station allows the user to increase the number of ports to 96 – with port licenses available in increments of 16. New future functionality, such as HelixNet integration, will also be available through the licensing system.

Easy Setup and Monitoring
The system is configured through a redesigned Core Configuration Manager (CCM™) enabling rapid setup, configuration and monitoring. The intuitive user interface has a consistent design for a quick and simple means of configuring the Central Station with role-based beltpacks, including save and restore, text messaging, individual beltpack and group call signal and remote mic kill.

Performance Center Communications
A Performance Center could have multiple theaters, multiple dressing rooms, a carpentry area and additional the box office and administrative space. The Arcadia Central Station is a 1RU device that supports up to 32 beltpacks from all three FreeSpeak frequency bands. An additional 64 ports of Dante and AES67 can be added through a flexible port licensing system. The device also houses 2-wire and 4-wire ports to add analog intercom equipment and third-party devices. This scalability makes covering the entire Performance Center with a single device a reality.

Large Church Communications
A large church production team has to manage multiple pastors and speakers, singers, band members, mobile mics in the crowd and more. Allowing the production staff to move freely around different areas of the church while still in communication with the rest of the team provides a seamless and smooth live delivery. The flexibility of the Arcadia Central Station provides the team with a single 1RU device that powers multiple FreeSpeak frequency bands. The 2-wire connection points give new life to legacy analog systems like Encore.

More +

Product Specs

Capacity
Beltpacks per Station 32 BPs (FSII or FSE)
Transceivers/Antennas Supported by Station 16 x IPT or FSE TCVR and 10 x E1 TCVRs (1.9 or 2.4GHz)
Gooseneck Microphone Input
Input Type Dynamic/Electret – Selectable
Frequency Response Gooseneck Mic – Partyline: 200Hz – 12kHz + 3dBu
Frequency Response Gooseneck Mic – Line Out: 200Hz – 20kHz + 3dBu
Mic Limiter Threshold -35dBu ±3dB
Mic Limiter Range ≥ 20dB
Max Input Level -10dBu
Input Level -45dBu nominal; -10dBu MAX
Headset Mic Voltage 5V (Electret selectable)
Speaker Output
Speaker Type 1.6 x 2.8in oval
Load Impedance
Max Output Level before 1% Distortion 18dBu ± 2dB
Total Harmonic Distortion (THD) < 0.5% THD at 1kHz
Max Speaker Level 87dB ± 2dB SPL A Weighted at 3ft
Frequency Response 100Hz – 10kHz ± 9dB
Audio/Radio
4-wire I/O Output Impedance >10kΩ, Input Impedance 200Ω + 10%, transformer isolated balanced input and output.
4-wire Operating Levels 0dBu Nominal, 18dBu headroom
2-wire I/O Selectable RTS or Clear-Com mode, Software controlled auto-null, null depth >60dB at 1kHz
2-wire Operating Levels -18dBu nominal (Clear-Com Mode), -12dBu nominal (RTS Mode), Headroom 18dB
Frequency Response Base-to-Beltpack Freespeak Edge Beltpack: 200Hz – 12kHz
Freespeak II Beltpack: 200Hz – 7.1kHz
Partyline I/O
2W Power On/Off A/B, C/D paired- software controlled
2W Output Voltage 25 – 28V DC, 560 mA per pair (A/B or C/D)
2W Impedance >10kΩ
2W Frequency Response 200 to 12kHz. ±3dB
2W Total Harmonic Distortion (THD) < 0.1% THD at 1 kHz
Relay Contacts or GPIO
Connector Type 2 x DB9
Relay Contact Type SPDT
Relay Quantity 4
Relay Contact Voltage Rating 30V DC
Relay Contact Current Rating 1A
Input Type Opto-Isolated
Input Quantity 2
Input Voltage Range 4 – 30V DC or AC
Input Current >=1.2mA required

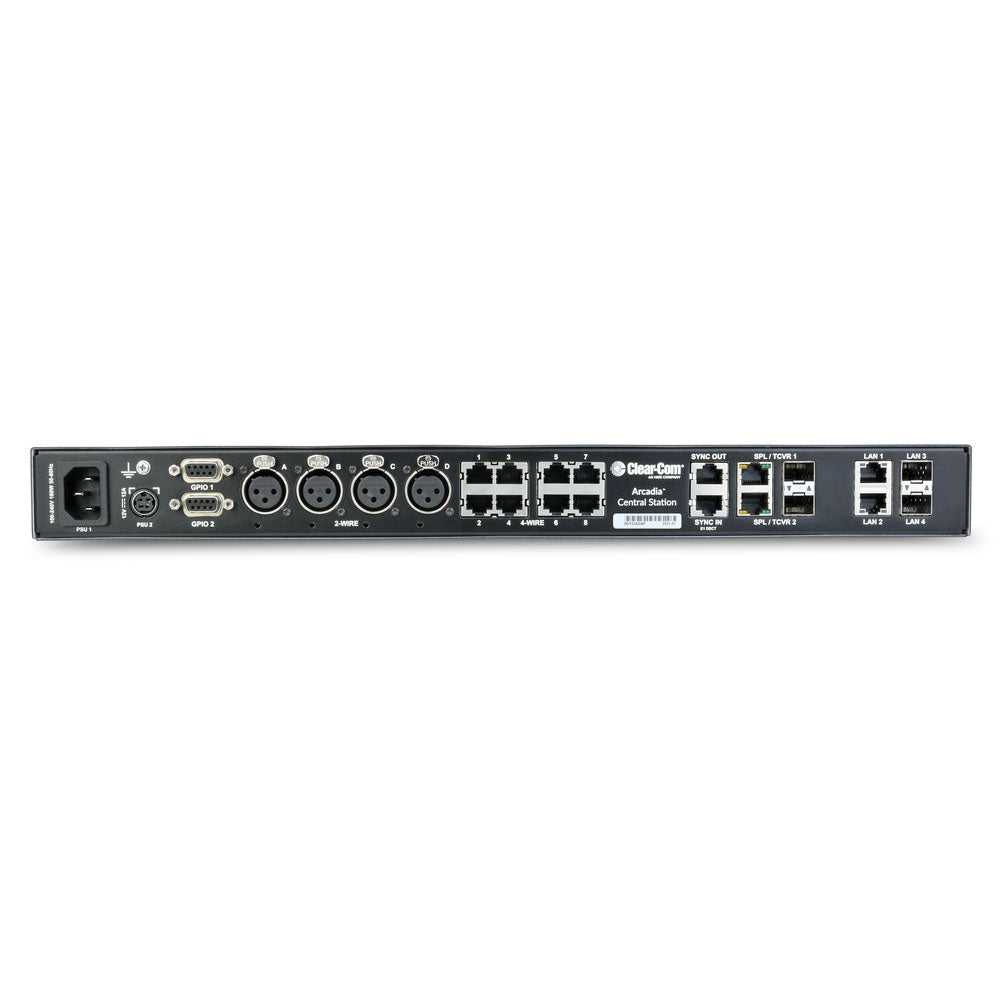

Connectors
4-wire I/O (8) RJ45
2-wire I/O (4) XLR-3F
Program Input XLR-3M, provided using cable assembly CAB-RJ45-PGM-SA
Stage Announce Output XLR-3F, provided using cable assembly CAB-RJ45-PGM-SA
Headset 4-pin XLR-M, auto headset detect
USB USB type A Receptacle
Number of E1 antenna ports 2 x RJ45, 2 x Fiber (2 active at any time)
DECT Radio frequency sync Rear RJ45 input and output RF sync connectors

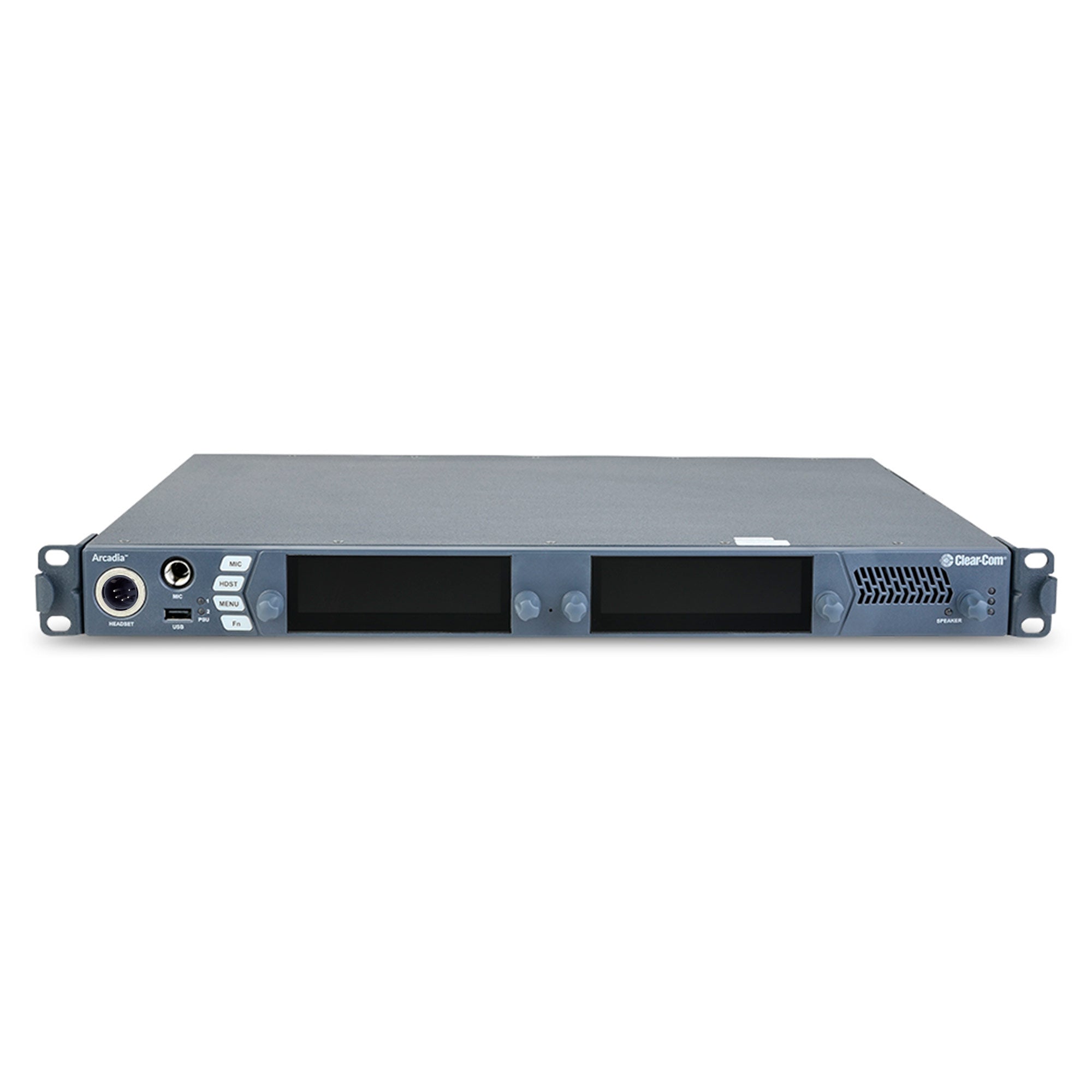

Indicators and Function
Displays (2) 480 x 128 color TFT LED Touch Screen displays
Front Panel Indicators / Function (2) Power Supply Status LEDs
(1) Status LED (Edge)
(1) Three Color Level Control LED Array
Power
AC Mains input 100-240V AC, 50-60Hz, 160W Max, IEC60320 C14 inlet.
DC Low Voltage Input 12V DC +/- 5%, 12A
External AC/DC Power Supply (PSU-EXT-001 Supplied) Input: 100-240V AC, 50-60Hz, 2.2A Max, IEC60320 C14 inlet.
Output: 12V DC +/- 5%, 12.5A
Environmental
Operating 32° to 113°F (0° to 45°C)
Storage 86° to 158°F (30° to 70°C)
Humidity 20-90% Non-Condensing
Dimensions 1RU
19 x 1.72 x 13.929in (WxHxL)
(43.6 x 482.6 x 353.8mm)
Weight 7.25lbs (3.29kg)
Network Specifications
AoIP Interfaces
Protocols RTSP/SAP
AES67
Dante
Audio Sampling 24 bit Linear 48KHz
IP Addressing Static, DHCP
Network Compatibility Layer 2 or 3 LAN only
Quality of Service DiffServ RFC2474
IGMP: On (AoIP)
Multicast: On (AoIP)
Network Timing PTPv2 (AoIP) / PTP v1 (Dante)
Minimum Network Bandwidth Required Perduplex Connection:
1 x FS II IPT bandwidth usage: ~7 Mbps
1 x FS Edge IPT: ~ 9.6 Mbps
Network Protocols Ethernet IPv4 Unicast Audio and Control
mDNS–Multicast Device Discovery
Network Ports
Unicast Port 80 TCP–Web Interface, System Management, Expansion
Port 443 for HTTPS
Port 6001 UDP–AES67 Data
Port 15000 – 15256 UDP – AES67 Audio
Multicast Port 5353 UDP–mDNS, Names, Discovery, Linking, Expansion, Dante (through various ports)
Network Jitter Tolerance < 1us required for RF Syncing of Transceivers
Recommended Ethernet Switches Managed Ethernet Switch – Layer 3
100/1000 Base-T ports for endpoints
1000 Base IP Trunks between switches
QoS Configuration Energy Efficient Ethernet bypass option
IGMP Snooping bypass option
