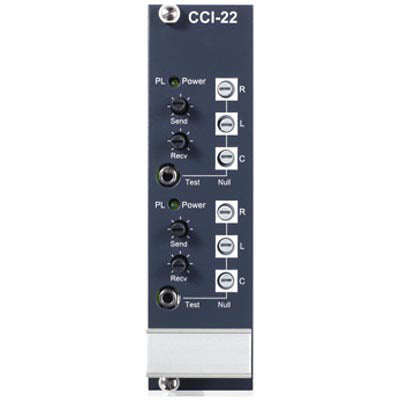

Clear-Com CCI-22 - Dual Partyline Ring Interface Module for Eclipse HX
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CCI-22 connects two 2-wire full duplex party-line circuits with the matrix. The interface supports Clear-Com signaling to and from the matrix system, deriving its power from the external party-line circuit. Levels and cable nulling are completely adjustable. The CCI-22 functions with Clear-Com and other two-wire intercom systems.
Features:
- Connect digital matrix systems with a host of other communications systemsTwo sizes of interface frames: 3 RU x 11 interfaces and 1 RU x 2 interfacesSeamless interfacing with telephone,two-way radio, cameras,party-line intercom, IFB systems,other communications systems and control devicesInterfaces are compatible with Matrix Plus, MicroMatrix, and other digital intercom systemsSpecialty panels for transformer isolation, interfacing with IFB receivers, and connections between Matrix Plus II and Matrix Plus 3 systems
| Frequency Response | 100 Hz-15 kHz, +0/-3 dB |
| Impedance | >10K Ohms (bridging) |
| Audio Level | |
| Clear-Com or compatible | -15 dBv nominal |
| Other | -10 dBv nominal |
| Call Signal Level (Clear-Com or compatible only) | 4 -11 VDC |
| Nulling Capability | |
| Line Length | 0 - 4,000 feet |
| Line Impedance | 120 - 350 Ohms |
| Depth of Null | >30 dB, 200 Hz - 8 kHz |
| Nulling Tone | Via 1/8 phone jack |
| Power Consumption (maximum each channel) | 40 mA @ 20 - 30 VDC (Power is supplied by external party-line) |
| Power Requirements | 0 mA from PSU-101 power supply |
| Cable Length | 5.5 ft/1.75m |
| Connector & Options | 4-pin XLR male |
| Weight (less cable) | 9.9 oz/282 g |
The CCI-22 connects two 2-wire full duplex party-line circuits with the matrix. The interface supports Clear-Com signaling to and from the matrix system, deriving its power from the external party-line circuit. Levels and cable nulling are completely adjustable. The CCI-22 functions with Clear-Com and other two-wire intercom systems.
Features:
- Connect digital matrix systems with a host of other communications systemsTwo sizes of interface frames: 3 RU x 11 interfaces and 1 RU x 2 interfacesSeamless interfacing with telephone,two-way radio, cameras,party-line intercom, IFB systems,other communications systems and control devicesInterfaces are compatible with Matrix Plus, MicroMatrix, and other digital intercom systemsSpecialty panels for transformer isolation, interfacing with IFB receivers, and connections between Matrix Plus II and Matrix Plus 3 systems
| Frequency Response | 100 Hz-15 kHz, +0/-3 dB |
| Impedance | >10K Ohms (bridging) |
| Audio Level | |
| Clear-Com or compatible | -15 dBv nominal |
| Other | -10 dBv nominal |
| Call Signal Level (Clear-Com or compatible only) | 4 -11 VDC |
| Nulling Capability | |
| Line Length | 0 - 4,000 feet |
| Line Impedance | 120 - 350 Ohms |
| Depth of Null | >30 dB, 200 Hz - 8 kHz |
| Nulling Tone | Via 1/8 phone jack |
| Power Consumption (maximum each channel) | 40 mA @ 20 - 30 VDC (Power is supplied by external party-line) |
| Power Requirements | 0 mA from PSU-101 power supply |
| Cable Length | 5.5 ft/1.75m |
| Connector & Options | 4-pin XLR male |
| Weight (less cable) | 9.9 oz/282 g |
