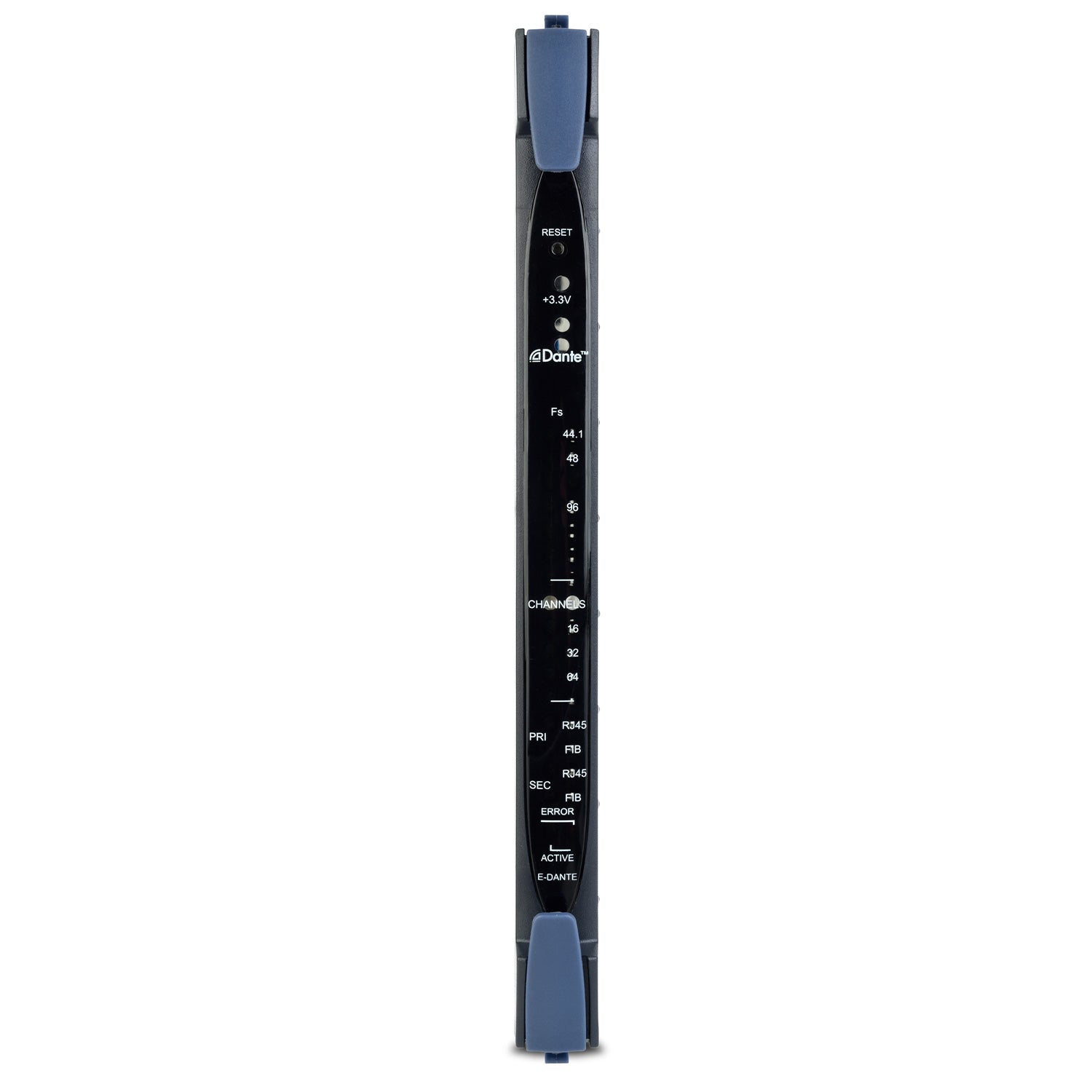

Clear-Com E-DANTE64-HX - 64-Channel Dante Interface Card for Eclipse HX Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Clear-Com E-DANTE64-HX - 64-Channel Dante Interface Card for Eclipse HX Intercom
Sale price$12,150.00
Description
64-Channel Dante Interface Card for Eclipse HX.
Features:
- Up to 64 duplex Dante channels per card
- For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
- Up to 7 cards supported per Eclipse HX card frame
- Sample frequency choices of 44.1KHz, 48KHz and 96KHz
- Selectable channel/port quantity of 16, 32 and 64
- Channel labels derived from 3rdÊparty devices
- AES67 compatibility with simultaneous support for Dante and AES67 connections
- Optional SFP fiber interface fitted on both primary and secondary network interfaces
- Dante channels used for high capacity matrix linking or audio distribution
- Eclipse HX Configuration Software (EHX)
| Maximum cards per frame | 7 |
| Ports per card | 64 |
| Audio | |
| Channel Settings: | 16, 32 and 64 |
| Sample Rates | 44.1, 48 and 96kHz |
| Bit Depth | 24 bits |
| Master Clock | Configurable; generate or receive |
| Input Level Control Range | For each channel, the gain is configurable between 0dB and -45dB |
| Output Level Control Range | For each channel, the gain is configurable between 0dB and -45dB |
| VOX Setting Range | Between 0dBFS and -45dBFS, in 1dB increments |

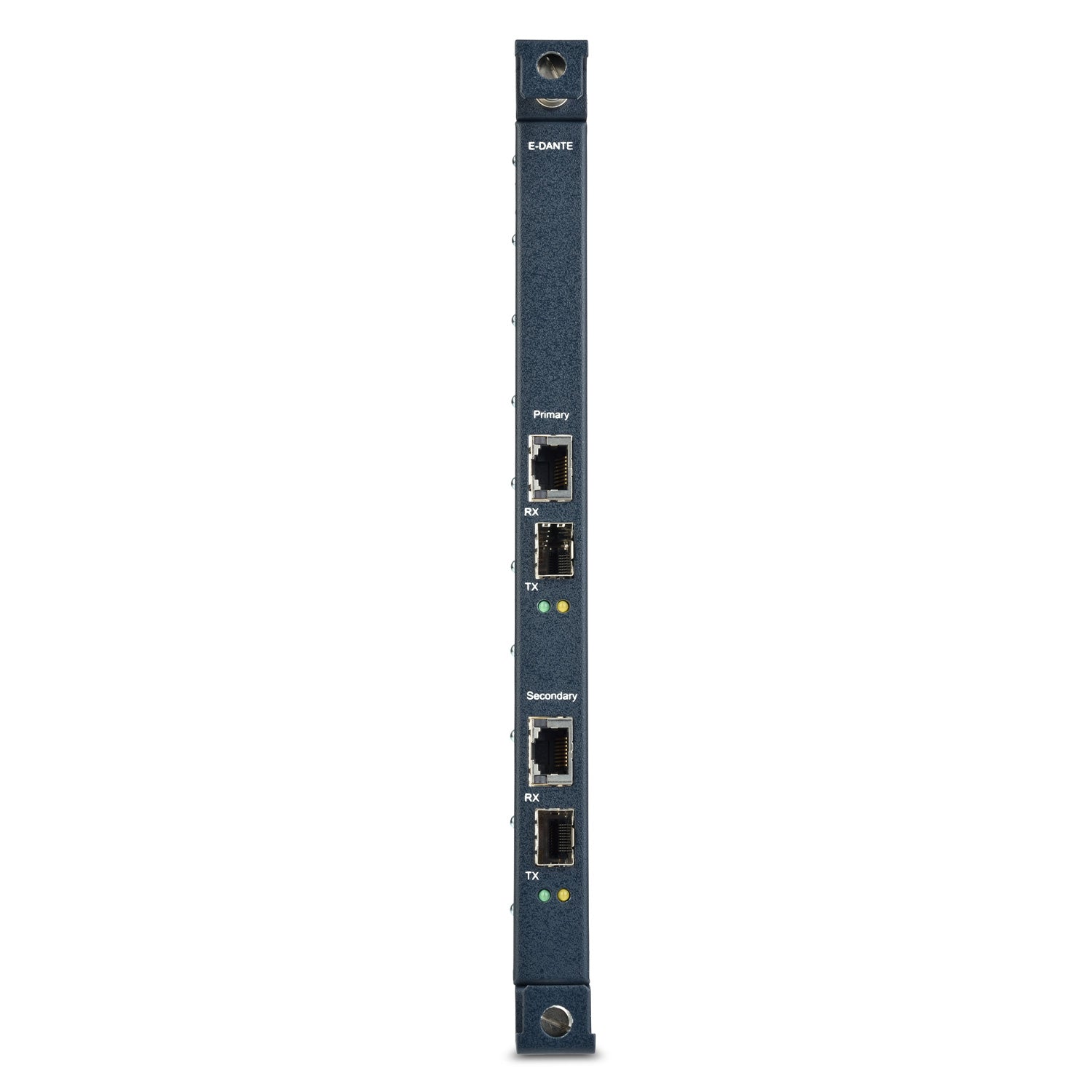

| Connectors | RJ-45 (x2): 100 Mbps/1 Gbs; auto-sensing ethernet, primary and secondary network interfaces SFP Cage (x2): SFP transceivers, primary and secondary network interfaces |
| Environmental | |
| Operating Temperature | +32¡ F to +113¡ F (0¡ C to +45¡ C) |
| Storage Temperature | -22¡ F to +158¡ F (-30¡ C to +70¡ C) |
| Humidity | 90%, non-condensing |
| Dimensions | Height: 6RU (vertically in Eclipse HX-Median and Omega frames, or horizontally in Eclipse HX-Delta frames) |
| Depth | Front Panel: 11.8in (300mm) Rear Panel: 2.28 (58mm) |
| Weight | Front Card: 1.64lbs (0.75kg) Rear Card: 9.2oz (0.26kg) |
