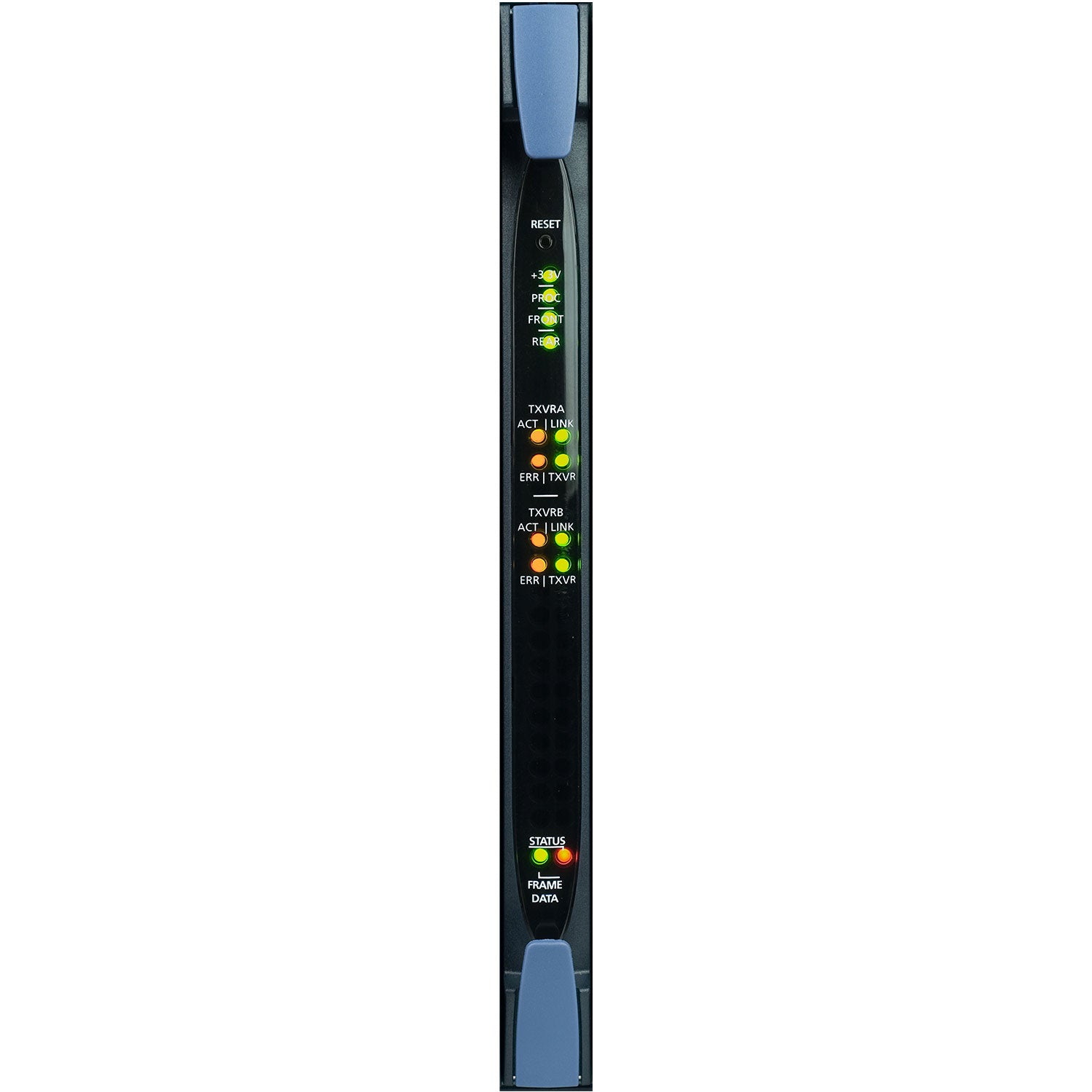

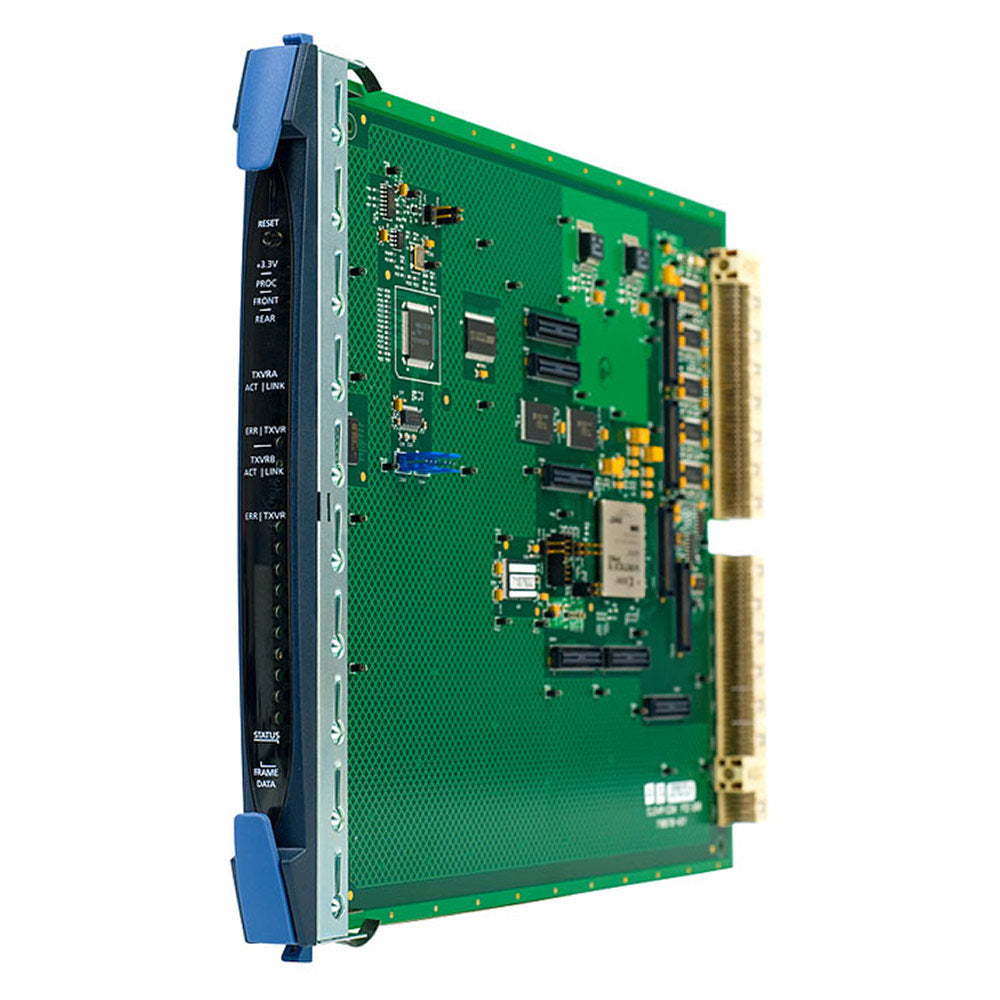

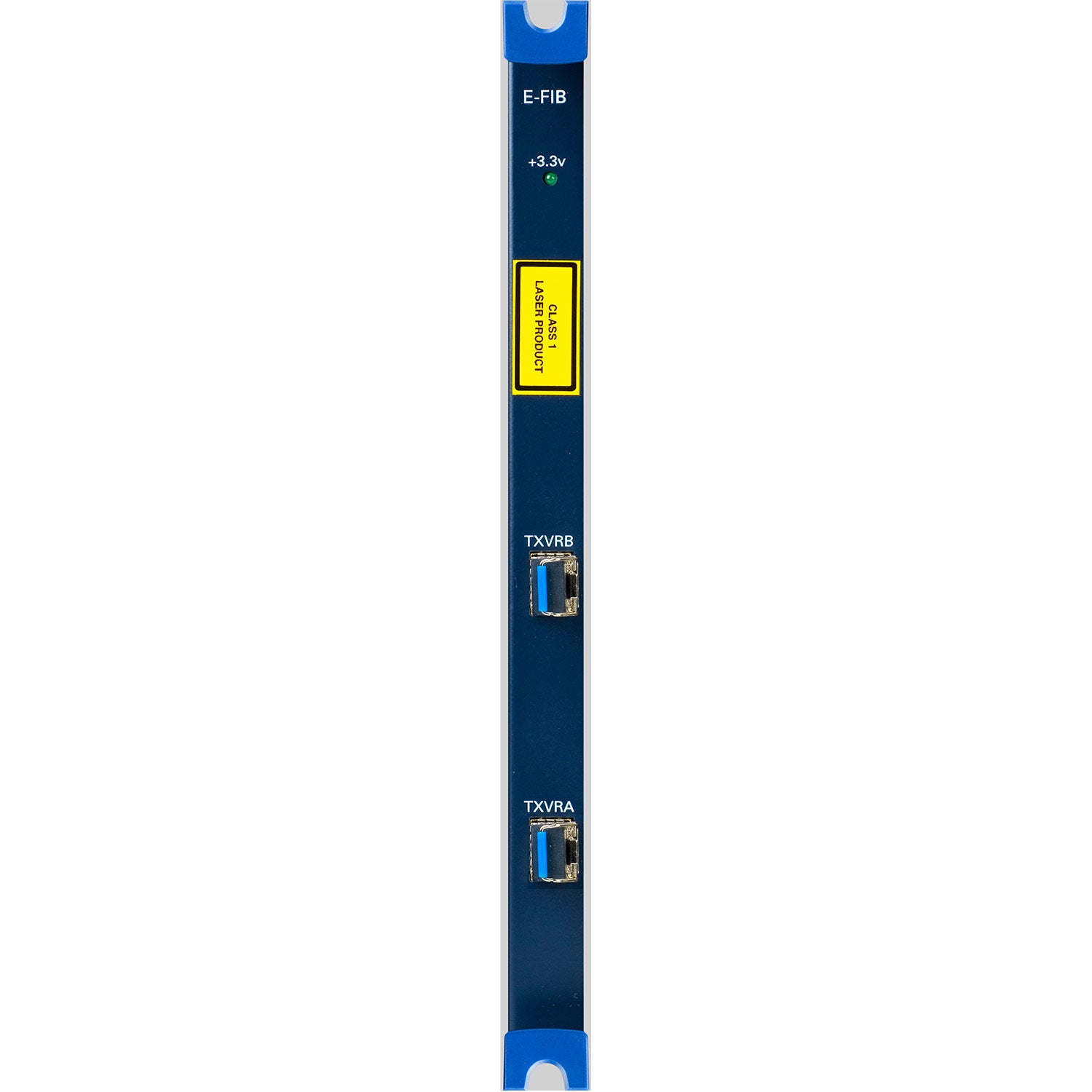

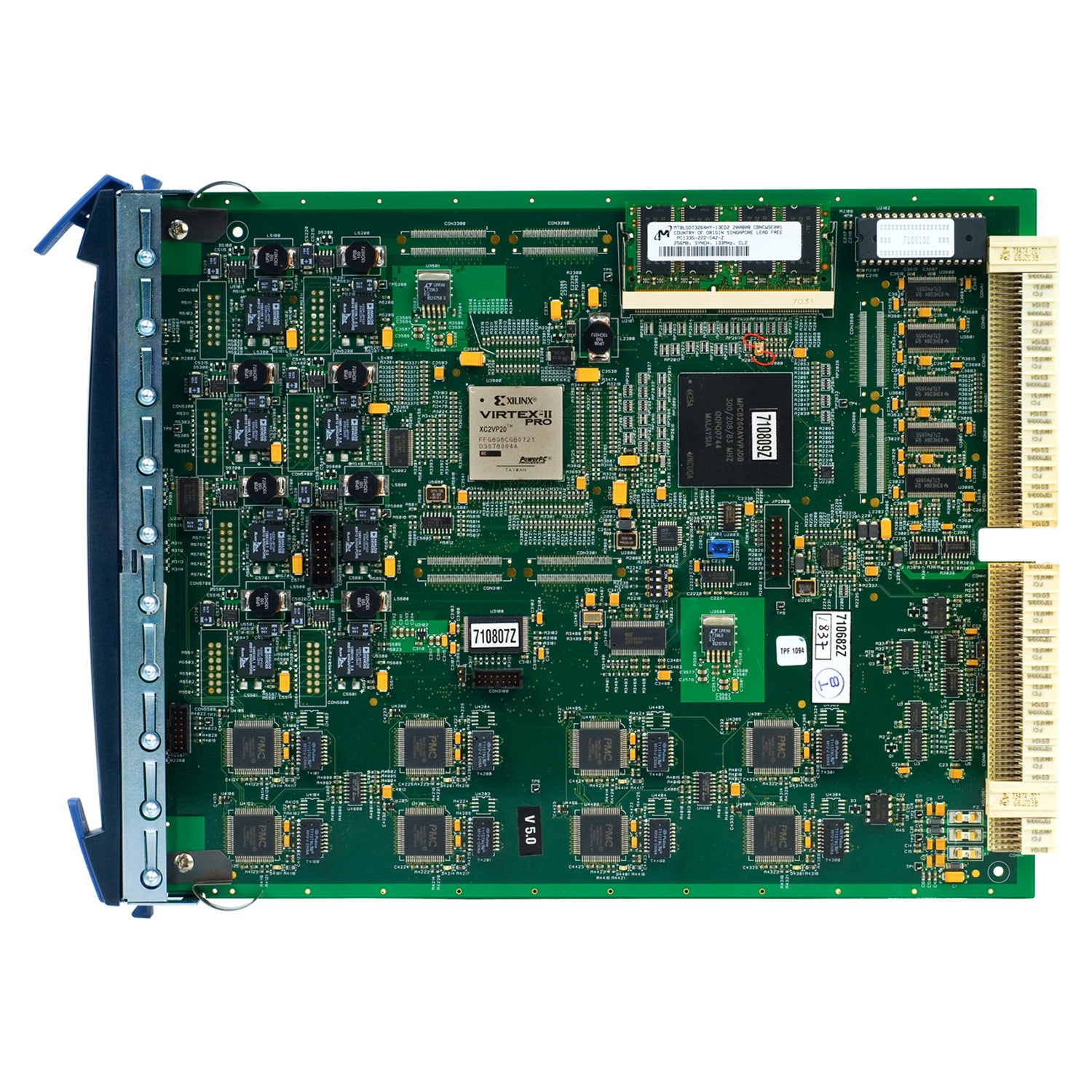

Clear-Com E-FIB-HX - Fiber Interface Card for Eclipse HX
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Clear-Com E-FIB-HX - Fiber Interface Card for Eclipse HX
Sale price$12,155.00
Description
Fiber Interface Card for the Eclipse HX intercom system.
Features:
- Fiber Interface Card
- For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
- Main and backup Fiber rings
- Single-Mode duplex LC connections
- Eclipse HX Configuration Software (EHX)
- Includes 2 Single-Mode SFP transceivers
| Power | +3.3V |
| Transceiver | SFP Transceiver Wavelength: 1310nm Connector: Duplex LC Max Length: 10km (other distances available to order) |
| Cable Type | Single Mode, 9/125_ |
| Operating Temperature: | 0¼ C to +40¼ C |
| Storage Temperature | -55¼ C to +70¼ C |
| Operating Humidity | 40 Ð 90%, non-condensing |
| Height | 6RU (vertically in Eclipse HX-Median and Omega frames; horizontally in Eclipse HX-Delta frames) |
| Depth | Front Panel: 11.8in (300mm) Rear Panel: 2.3in (58mm) |
| Weight | 2.14 lbs (0.97 kg) |
Fiber Interface Card for the Eclipse HX intercom system.
Features:
- Fiber Interface Card
- For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
- Main and backup Fiber rings
- Single-Mode duplex LC connections
- Eclipse HX Configuration Software (EHX)
- Includes 2 Single-Mode SFP transceivers
| Power | +3.3V |
| Transceiver | SFP Transceiver Wavelength: 1310nm Connector: Duplex LC Max Length: 10km (other distances available to order) |
| Cable Type | Single Mode, 9/125_ |
| Operating Temperature: | 0¼ C to +40¼ C |
| Storage Temperature | -55¼ C to +70¼ C |
| Operating Humidity | 40 Ð 90%, non-condensing |
| Height | 6RU (vertically in Eclipse HX-Median and Omega frames; horizontally in Eclipse HX-Delta frames) |
| Depth | Front Panel: 11.8in (300mm) Rear Panel: 2.3in (58mm) |
| Weight | 2.14 lbs (0.97 kg) |
