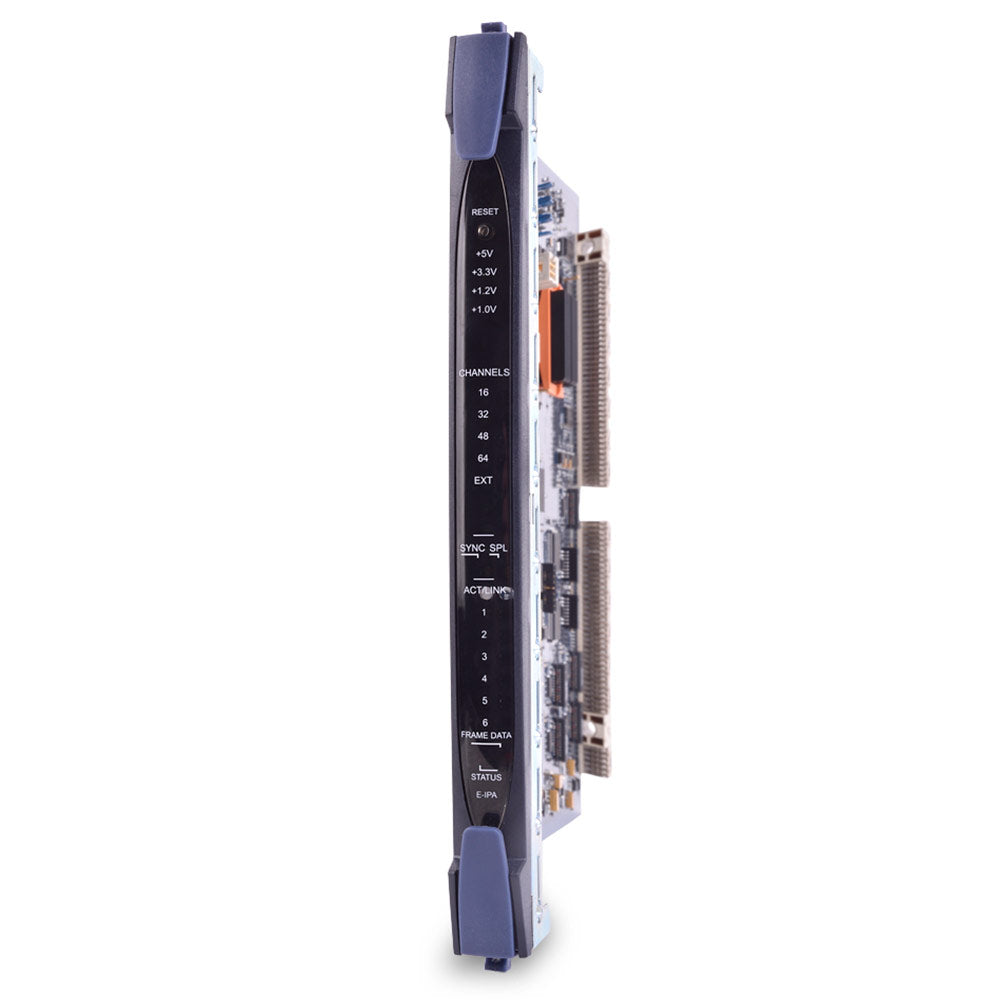

Clear-Com E-IPA-32-HX - 32-Port High-Density IP Interface Card for Eclipse HX
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Clear-Com E-IPA-32-HX - 32-Port High-Density IP Interface Card for Eclipse HX
Sale price$15,050.00
Description
The E-IPA-HX is a high density IP interface card that supports up to 64 Clear-Com intercom devices. The interface card can be used with the Eclipse HX-Delta Lite, HX-Delta, HX-Median, and HX-Omega matrix frames. Eclipse HX Configuration Software (EHXª) configures each port for its intended application and provides a dedicated IP Manager screen to monitor connections and add users. The E-IPA-HX card also supports SMPTE ST2110 and AES67 connectivity.
Features:
- Available in 16, 32, 48, and 64 port cards (16 port upgrades)
- Software definable port configuration to support multiple IP connection and standards
- Compatible with Eclipse HX-Delta Lite, -Delta, -Median and -Omega frames
- Supports up to 64 IP ports (endpoint connections) and additionally up to 64 FreeSpeak IP Transceivers
- Max of 3 E-IPA cards in an Eclipse HX-Delta, max of 4 in -Median, and max of 5 in -Omega frames
- N+1 card redundancy on E-IPA cards to back up primary cards in a frame
- LAN connection network redundancy
- Supports connection to V-Series and V-Series Iris panels, Agent-IC mobile app, FreeSpeak Icon and FreeSpeak II wireless beltpacks, LQ Series devices and Station-IC Virtual Desktop Client
- AES67-based connection to V-Series Iris panels providing intercom and 2 auxiliary audio channels
- SMPTE ST2110/AES67 connection to third-party devices; available in bundles of 8 port licenses
- Remote I.V. Core connection to V-Series and V-Series Iris panels providing intercom and 2 auxiliary audio channels
- Provides up to 64 ports of SIP connectivity to third-party telephony devices
- Max of 3 E-IPA cards in an Eclipse HX-Delta, max of 4 in -Median, and max of 5 in -Omega frames
- SMPTE ST2110/AES67 connection to third-party devices; available in bundles of 8 port licenses
- AES128 encryption and silence suppression on all Agent-IC clients (not available in certain countries)
- Supports connection to V-Series and V-Series Iris panels, Agent-IC mobile app, Station-IC Workstation App, FreeSpeak II wireless beltpacks, and LQ Series devices
- Remote I.V. Core connection to V-Series and V-Series Iris panels providing intercom and 2 auxiliary audio channels
- Supports up to 64 IP ports (endpoint connections) and additionally up to 64 FreeSpeak IP Transceivers
- Compatible with Eclipse HX-Delta Lite, -Delta, -Median and ÐOmega frames
- Software definable port configuration to support multiple IP connection and standards
| Maximum Cards Per Frame | 1 for -Delta Lite, 3 for -Delta, 4 for -Median and 5 for -Omega |
| Ports Per Card | 16, 32, 48, or 64 |
| Physical LAN | 4x 100/1000BASE-T Full-Duplex Ethernet (auto-negotiation not supported) 2x 1G SFP fiber |
| I.V. Core Interfaces | |
| Protocols | Clear-Com I.V. Core |
| CODEC | G.722 @ 16khHz sample rate |
| IP addressing | Static and DHCP |
| Network compatibility | Layer 1, Layer 2 and Layer 3, LAN , WAN, and VPN infrastructure. Routable via 3G, 4G, LTE data services |
| Firewall | One open port required (configurable) |
| Quality of Service | TOS set for Priority Immediate and Critical |
| Minimum Network bandwidth required | 140kb/s per each direction (I.V. Core) |
| AoIP Interfaces | |
| Protocols | RTP/RTSP/SAP AES67 SMPTE 2110-10 SMPTE 2110-30 Conformance level A (TX 1 to 4 ch, RX 1 to 8 ch) Conformance level B (TX 1 to 4, RX 1 to 8 ch) Packet time for Card (1ms or 125us) |
| Audio Sampling | 24 bit Linear 48KHz (by default) |
| IP Addressing | Static, mDNS & DHCP |
| Network compatibility | Layer 2 & 3 LAN only |
| Quality of Service | DiffServ RFC2474 |
| IGMP | On (AoIP) |
| Multicast | On (AoIP) |
| Network Timing | PTP v2(AoIP) |
| Minimum Network bandwidth required | Perduplex connection: 11Mb/s |
| Power (front and rear cards combined) | Min: +3.3V 4.75A Max: +20.3V 5.7A |
| Environmental | Operating Temperature: +32¼ to +104¼F (0¼ to +40¼C) Storage Temperature: -67¼ to +158¼F (-55¼ to +70¼C) |
| Humidity | 40 - 90%, non-condensing |
| Dimensions | |

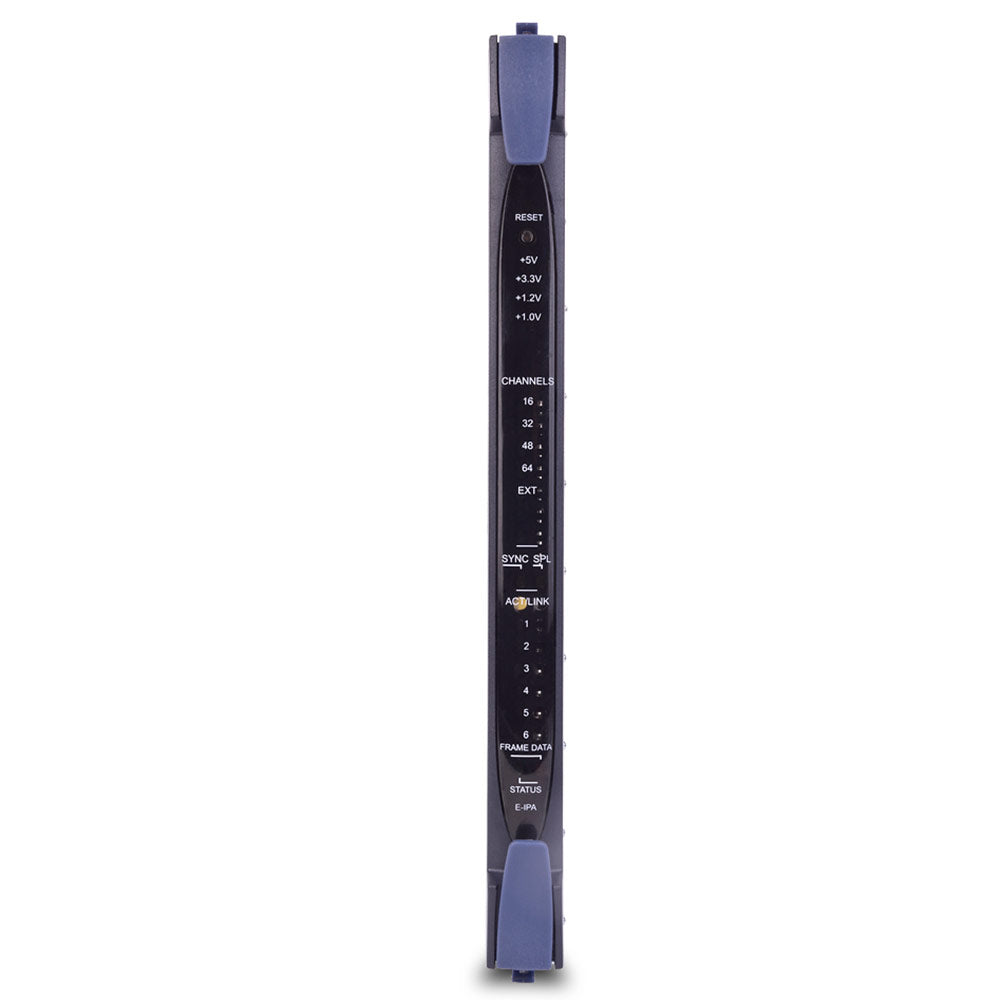

| Front Panel | 0.78 x 10.44 x 12.99in (WxHxD) (20 x 265 x 330mm) |

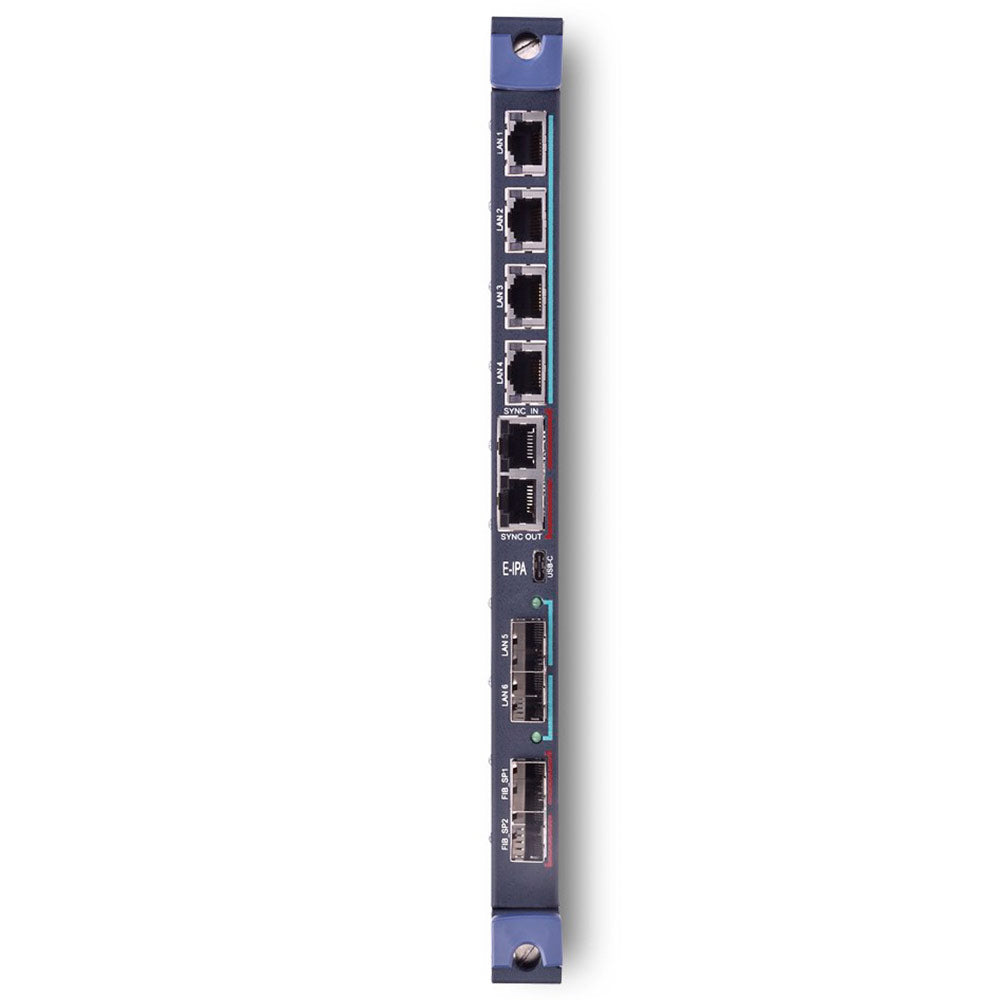

| Rear Panel | 0.78 x 10.44 x 3.79in (WxHxD) (20 x 265 x 96mm) |
| Weight | Front Card: 1.64lbs (0.75kg) Rear Card: 9.2oz (0.26kg) |
