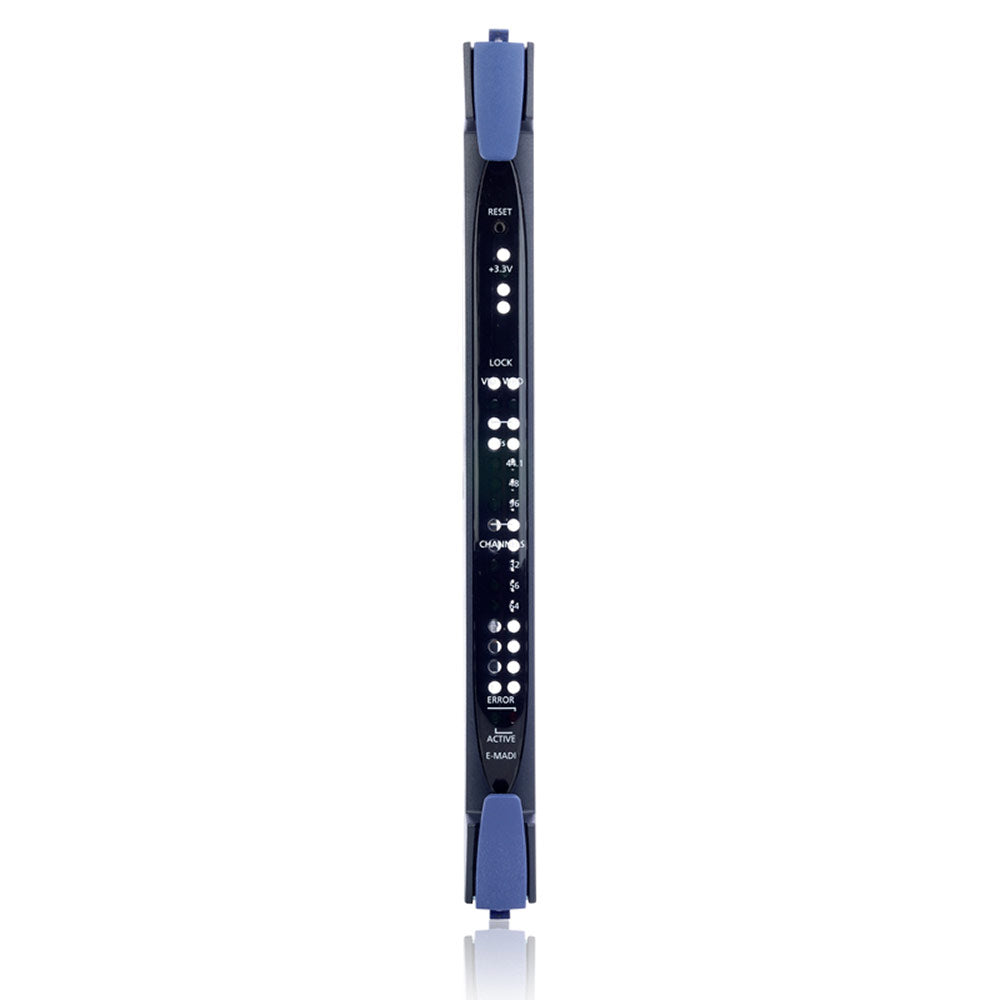

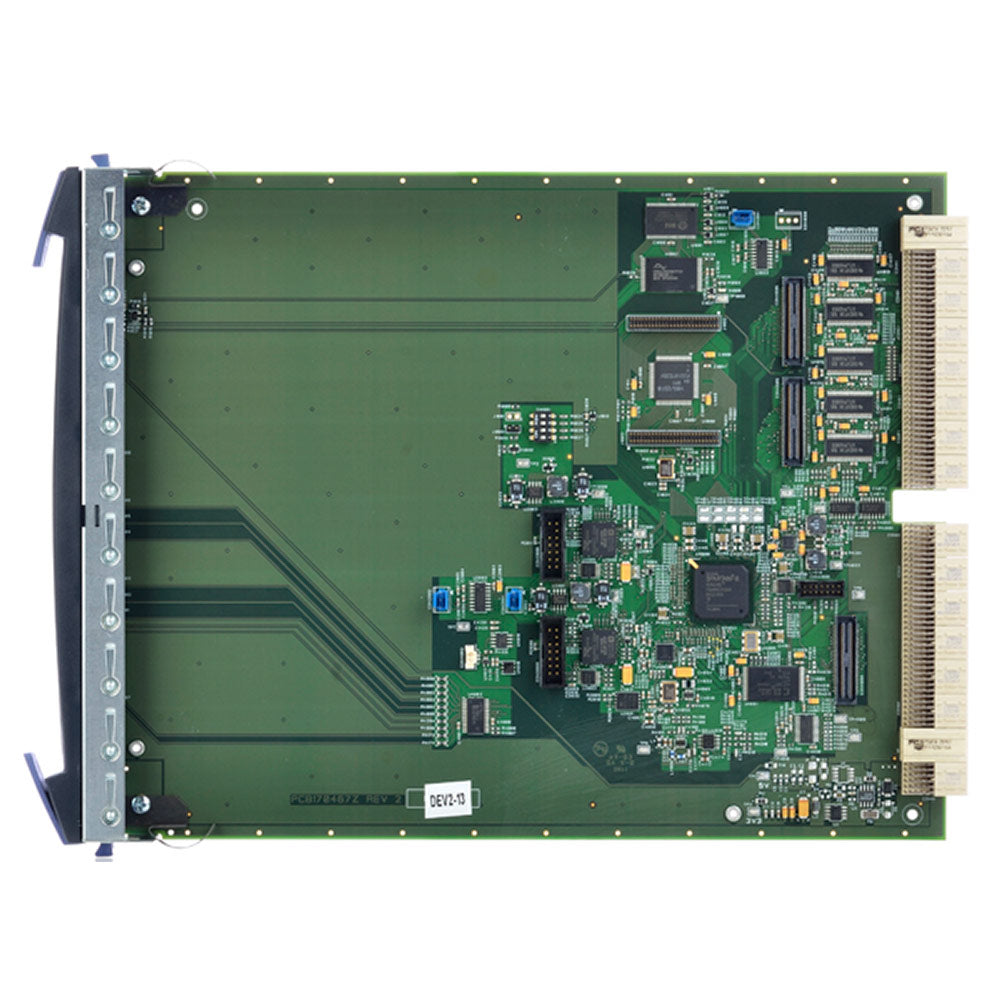

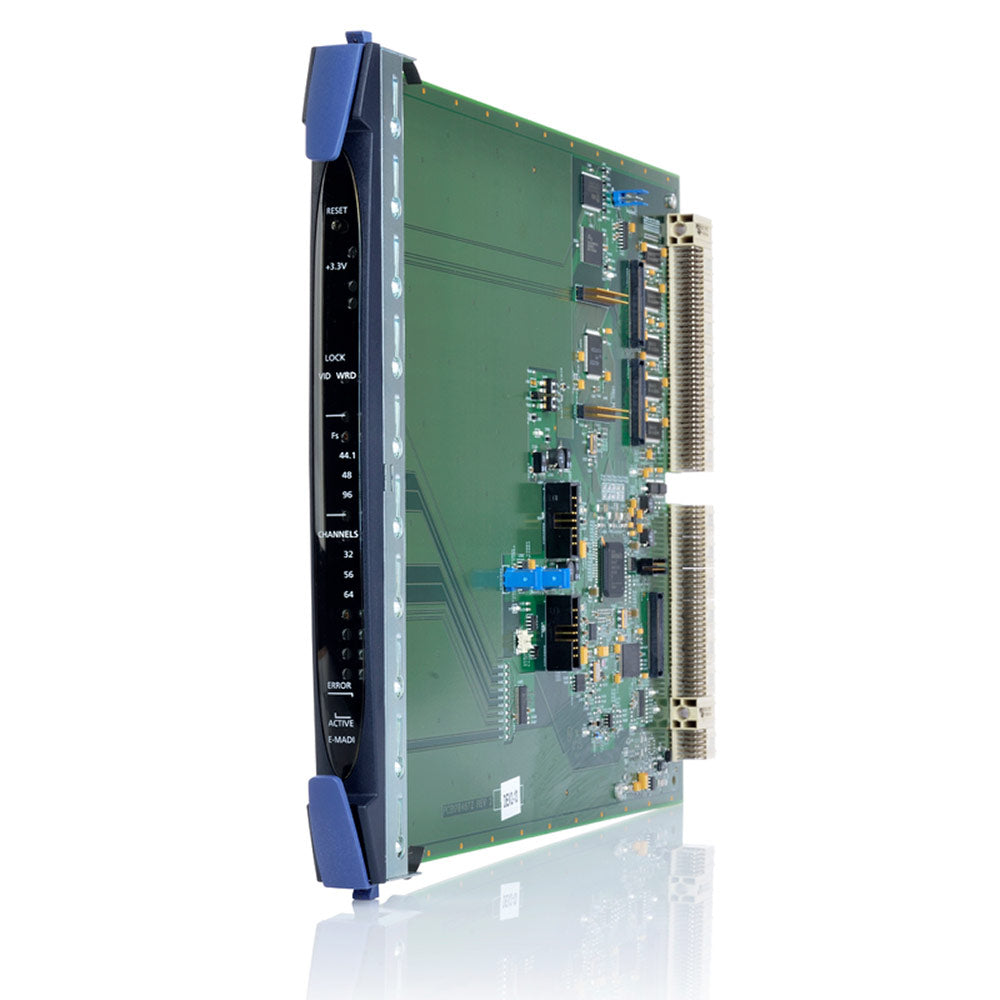

Clear-Com E-MADI64-HX - 64-Channel MADI Interface Card for Eclipse HX
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Clear-Com E-MADI64-HX - 64-Channel MADI Interface Card for Eclipse HX
Sale price$12,405.00
Description
64-Channel MADI Interface Card for the Eclipse HX intercom system.
Features:
- Up to 64 duplex MADI channels per card
- For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
- Up to 4 cards supported in HX-Delta and HX-Median frames, Up to 6 cards supported in HX-Omega frame (with restrictions)
- Sample frequency choices of 44.1KHz, 48KHz and 96KHz
- Selectable channel/port quantity of 32, 56 and 64
- Fiber (MM) SFP duplex LC removable transceiver module
- BNC MADI In and BNC MADI Out
- Word clock derived from SD NTSC/PAL Video, Tri-Level HD or AES word clock
- MADI channels used for high capacity matrix linking or audio distribution
- Eclipse HX Configuration Software (EHX)
| Channel settings | 32, 56 and 64 |
| Sample Rates | 44.1, 48 and 96 kHz |
| Clock Sources | AES word clock (conforms to Annex B of AES11-2009), PAL Video B & Burst, NTSC Video B & Burst, Tri-Level HD |
| Bit Depth | 24 bits AES |
| Level Control Range | For each channel the gain shall be configurable between -72dB and +18dB |
| VOX Setting Range | Between -18dBFS and -63dBFS in 1dB steps |
| MADI BNC Connections | 75½ single direction (pair) |
| Co-axial Cable Range | 50m (164 feet) |
| Fiber Connections | LC Duplex SFP Multi-Mode (default) |
| Fiber Range | 2Km (6,560 feet) |
| Compliances | CE, FCC Part 15. Class A UL60065 7th edition CAN/CSA C22.2 No. 60065-03 IEC60065 (2001) 7th edition Audio Engineering Society AES10-2008 |
| Environmental | Operating Temperature: 32¡F - +113¡F (0¡C - +40¡C) Storage Temperature: -22¡F - +158¡F (-30¡C - +70¡C) Operating Humidity: 40 Ð 90%, non-condensing |
| Dimensions | Front Card: 6RU H x 11.8in D (6RU H x 300mm D) Rear Card: 6RU H x 2.3in D (6RU H x 58mm D) |
| Weight | 2.14 lbs (0.97 kg) |
64-Channel MADI Interface Card for the Eclipse HX intercom system.
Features:
- Up to 64 duplex MADI channels per card
- For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
- Up to 4 cards supported in HX-Delta and HX-Median frames, Up to 6 cards supported in HX-Omega frame (with restrictions)
- Sample frequency choices of 44.1KHz, 48KHz and 96KHz
- Selectable channel/port quantity of 32, 56 and 64
- Fiber (MM) SFP duplex LC removable transceiver module
- BNC MADI In and BNC MADI Out
- Word clock derived from SD NTSC/PAL Video, Tri-Level HD or AES word clock
- MADI channels used for high capacity matrix linking or audio distribution
- Eclipse HX Configuration Software (EHX)
| Channel settings | 32, 56 and 64 |
| Sample Rates | 44.1, 48 and 96 kHz |
| Clock Sources | AES word clock (conforms to Annex B of AES11-2009), PAL Video B & Burst, NTSC Video B & Burst, Tri-Level HD |
| Bit Depth | 24 bits AES |
| Level Control Range | For each channel the gain shall be configurable between -72dB and +18dB |
| VOX Setting Range | Between -18dBFS and -63dBFS in 1dB steps |
| MADI BNC Connections | 75½ single direction (pair) |
| Co-axial Cable Range | 50m (164 feet) |
| Fiber Connections | LC Duplex SFP Multi-Mode (default) |
| Fiber Range | 2Km (6,560 feet) |
| Compliances | CE, FCC Part 15. Class A UL60065 7th edition CAN/CSA C22.2 No. 60065-03 IEC60065 (2001) 7th edition Audio Engineering Society AES10-2008 |
| Environmental | Operating Temperature: 32¡F - +113¡F (0¡C - +40¡C) Storage Temperature: -22¡F - +158¡F (-30¡C - +70¡C) Operating Humidity: 40 Ð 90%, non-condensing |
| Dimensions | Front Card: 6RU H x 11.8in D (6RU H x 300mm D) Rear Card: 6RU H x 2.3in D (6RU H x 58mm D) |
| Weight | 2.14 lbs (0.97 kg) |
