Clear-Com EQP-TCVR - 5GHz Transceiver for EQUIP Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

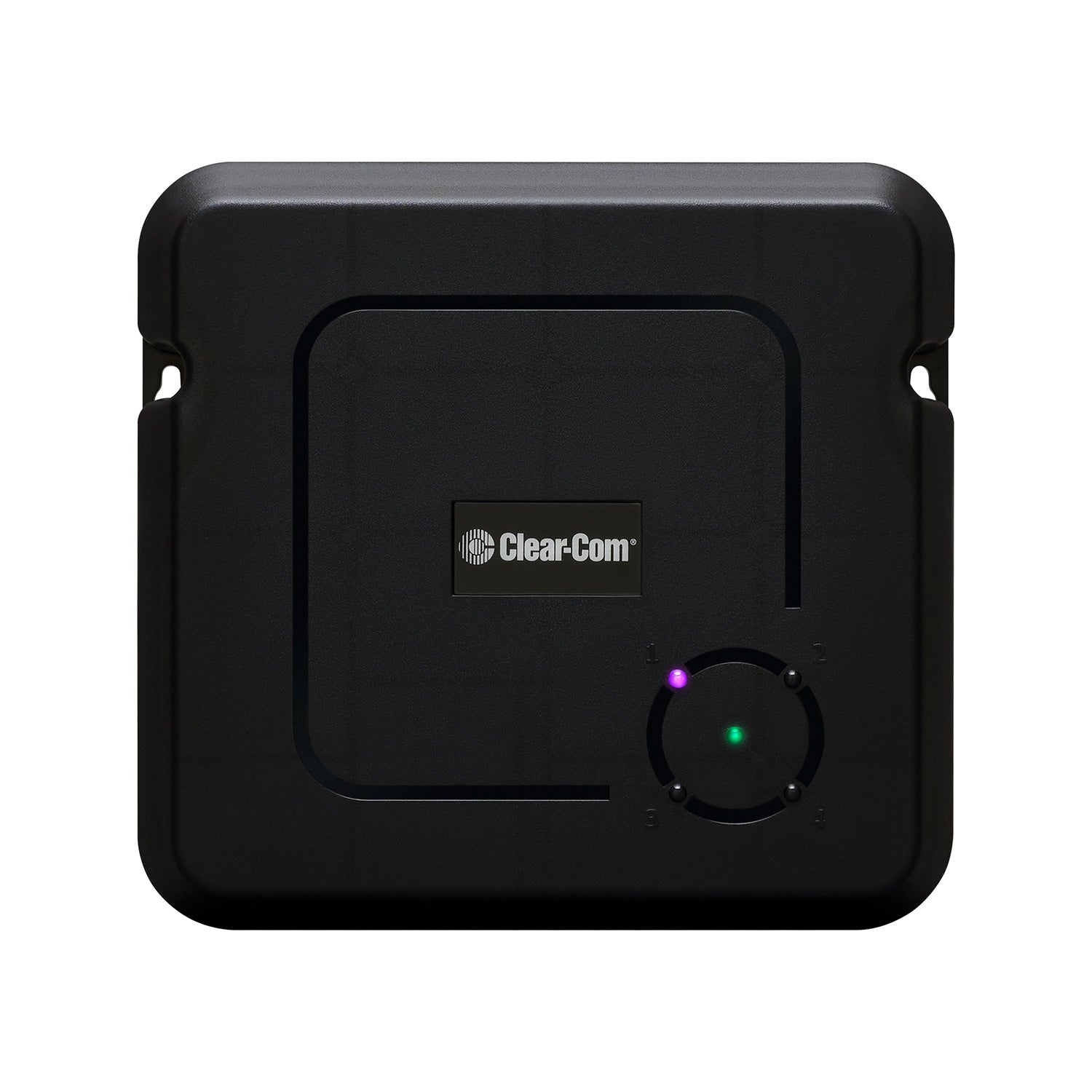

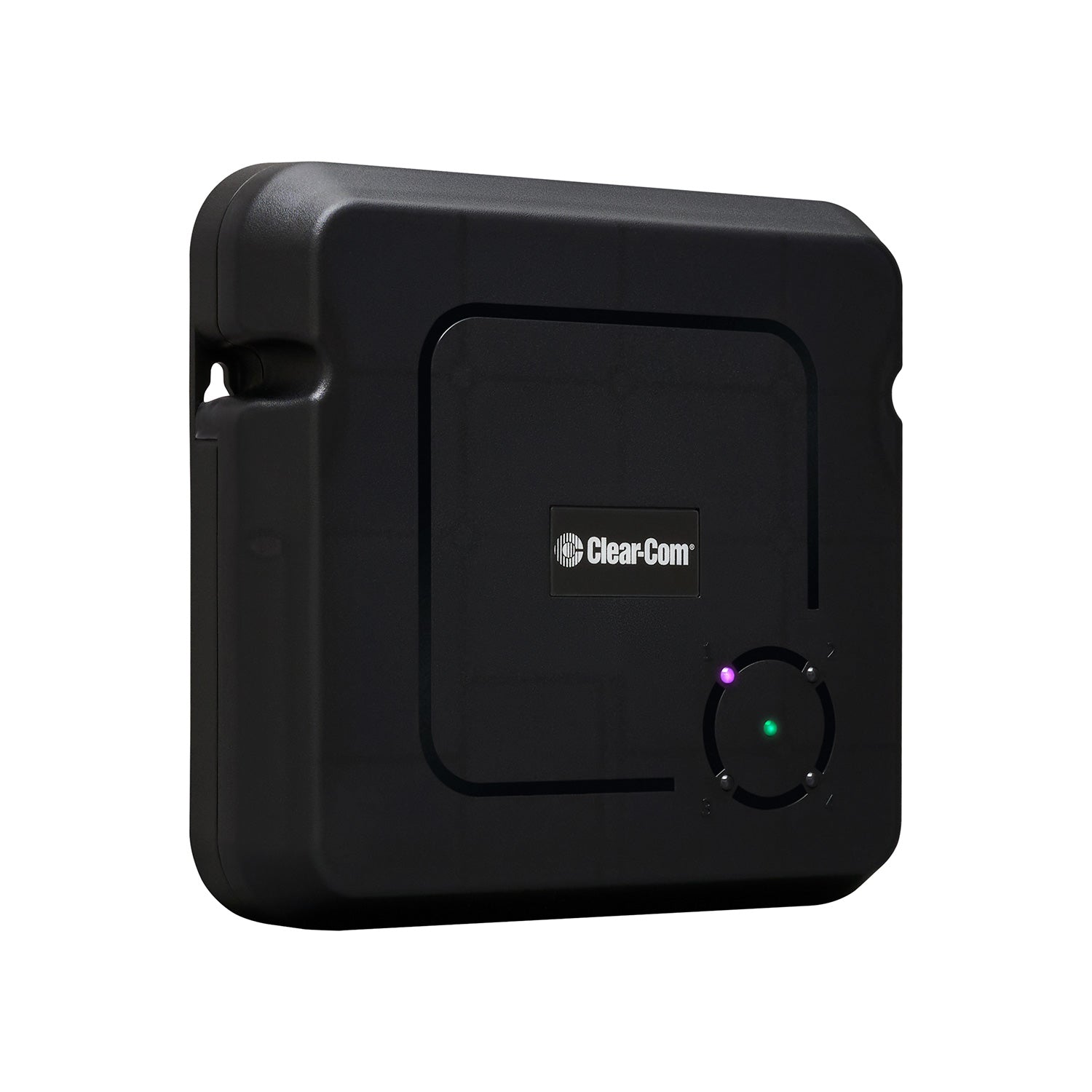

The EQUIP-TCVR is a digital remote transceiver for the EQUIP wireless intercom system, connecting to the EQUIP-WH all-in-one headsets to the EQUIP-BASE base station. Up to four of the rugged, wall mountable transceivers can be connected to a single base station to ensure maximum coverage range.
Operation
The EQUIP-TCVR is an omni-directional 5 GHz transceiver that provides connection for up to 40 wireless EQUIP headsets. Each transceiver is controlled and monitored by the EQUIP base station.
Durability
The EQUIP-TCVR is IP53 rated for wet weather or dusty conditions, making it ideal for outdoor environments.
Features:
- Power and audio to transceivers
- Remote monitoring from the EQUIP base station
- 5 GHz license free radio band
- Single CAT5/6 cable to EQUIP Base
- Centrally powered from the EQUIP Base Station
- Site Survey Mode for transceiver placement
- 40 Wireless headsets per system
- Status LEDs
| Connections | |
| Transport Protocol | Data and Audio with power up to 500 ft from the EQUIP Base |

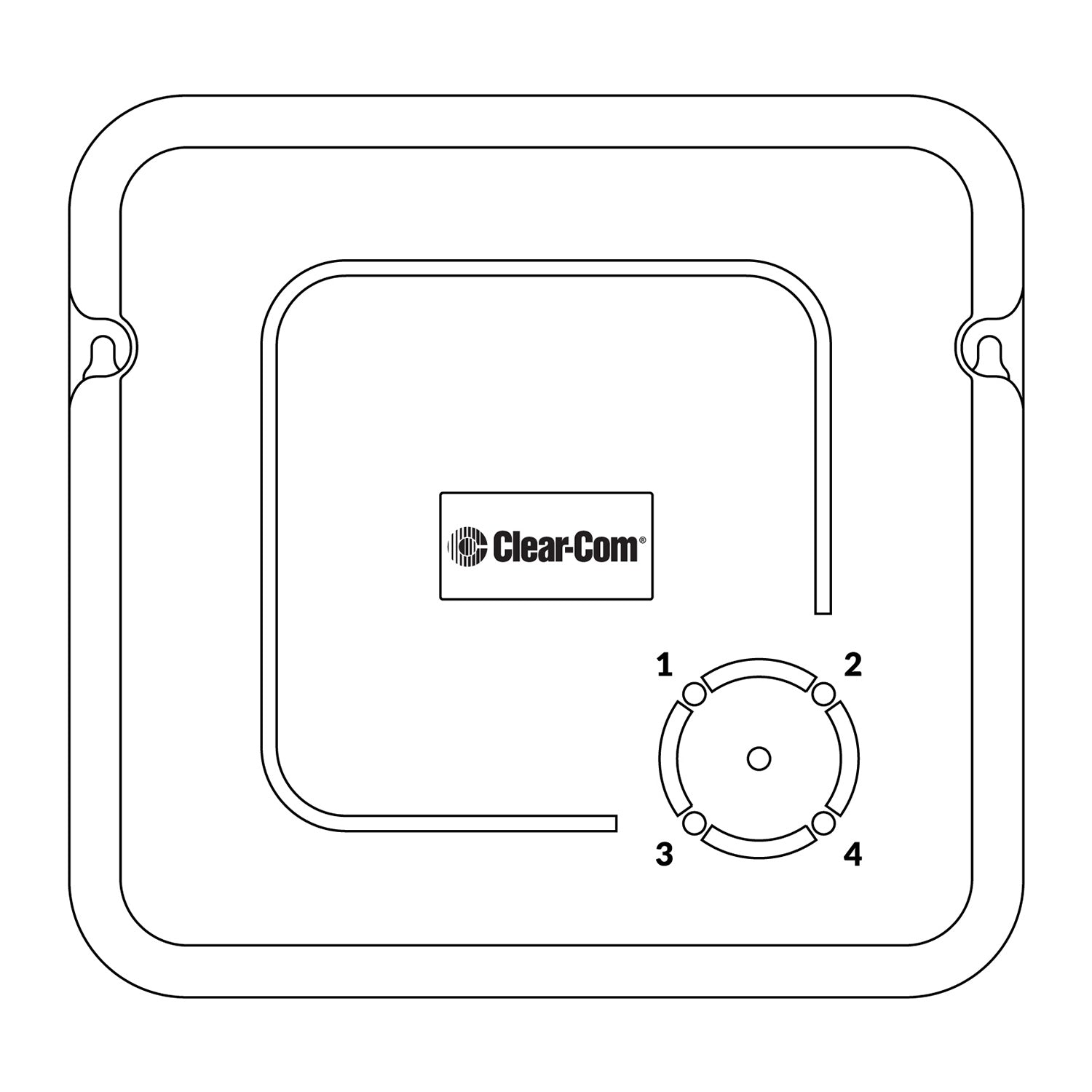

| Front Panel | LED type: 5 x RGB, one for power and 4 for connection status |

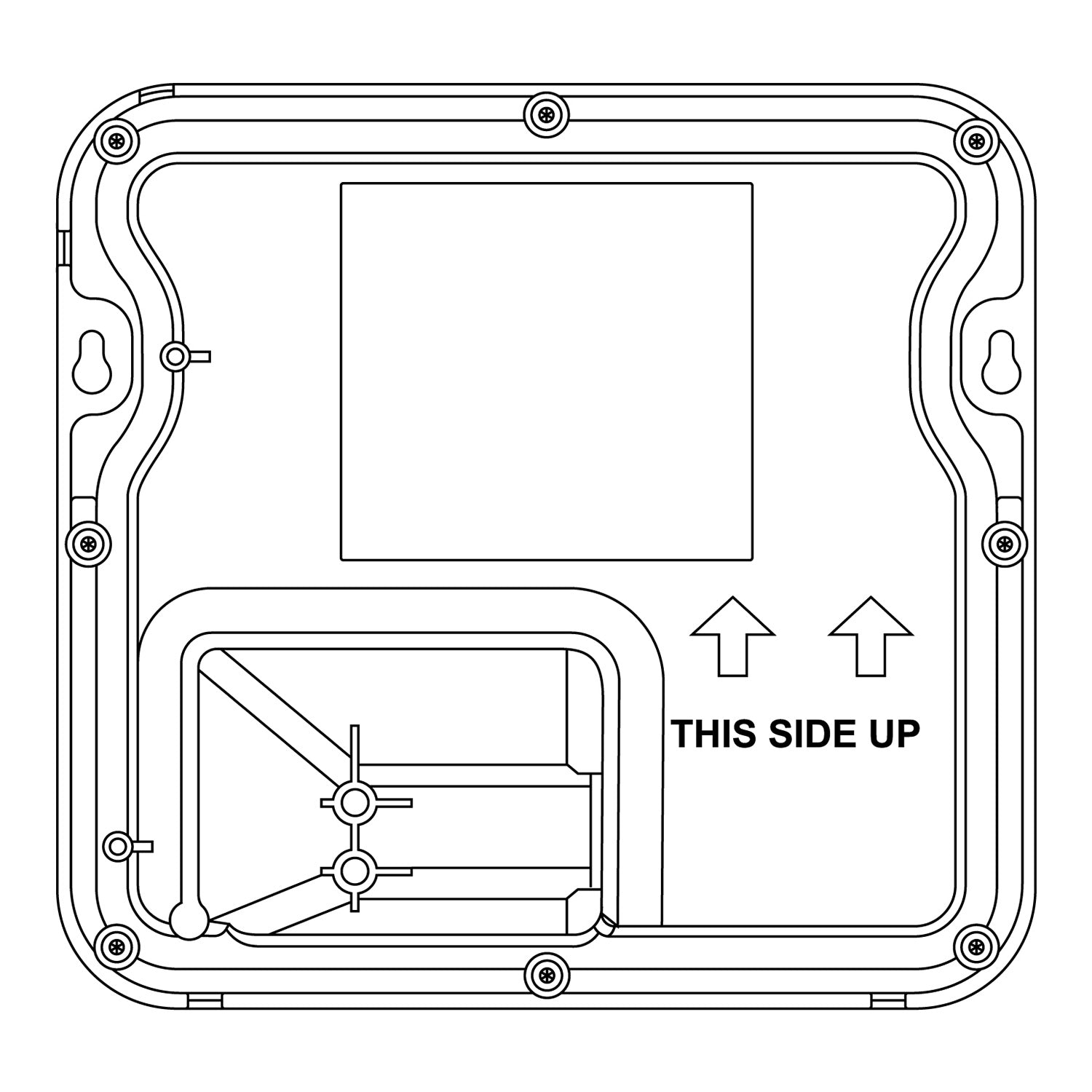

| Rear Panel | RJ45 port |
| Frequency Range | |
| Main Radio | 5.180 Ð 5.8525GHz |
| Power Supply | |
| Voltage | 48V DC (powered from EP-BASE) |
| Current | 60 mA pk-pk @ 48 V |
| Power | 2.88W |
| Note | Frequency used in each country may vary based on local regulatory requirements. |
| Physical | |
| Environmental | IP53 water and dust resistance |
| Temperature | Operating: 32¼-125¼F (0¼-50¼C) Storage: 32¼-150¼F (0¼-70¼C) |
| Humidity | Between 20% and 90%, Non-Condensing |
| Dimensions | 6.7 x 7.2 x 1.56 in (HxWxD) (170.31 x 181.8 x 39.6mm) |
| Weight | 14oz (396g) |
