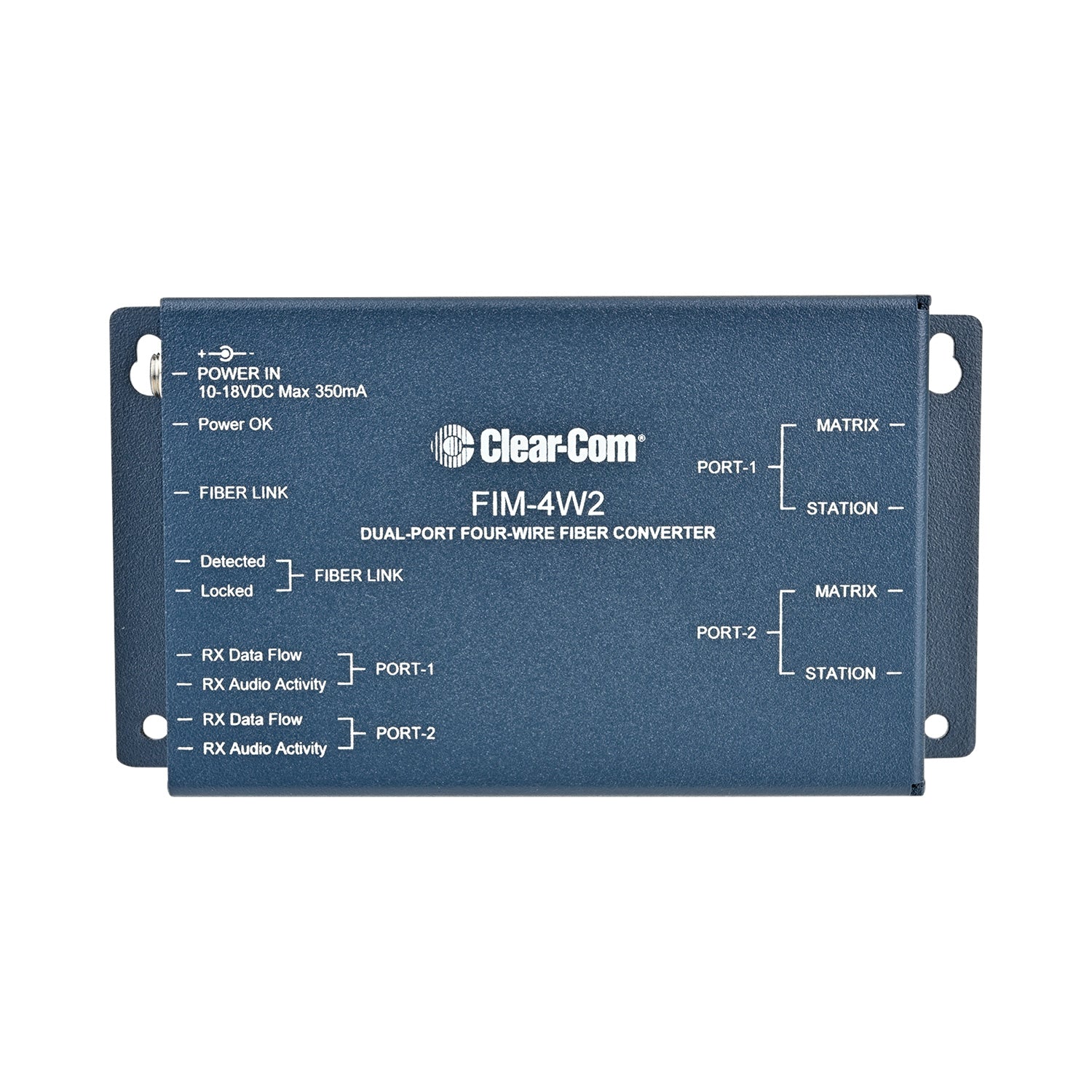

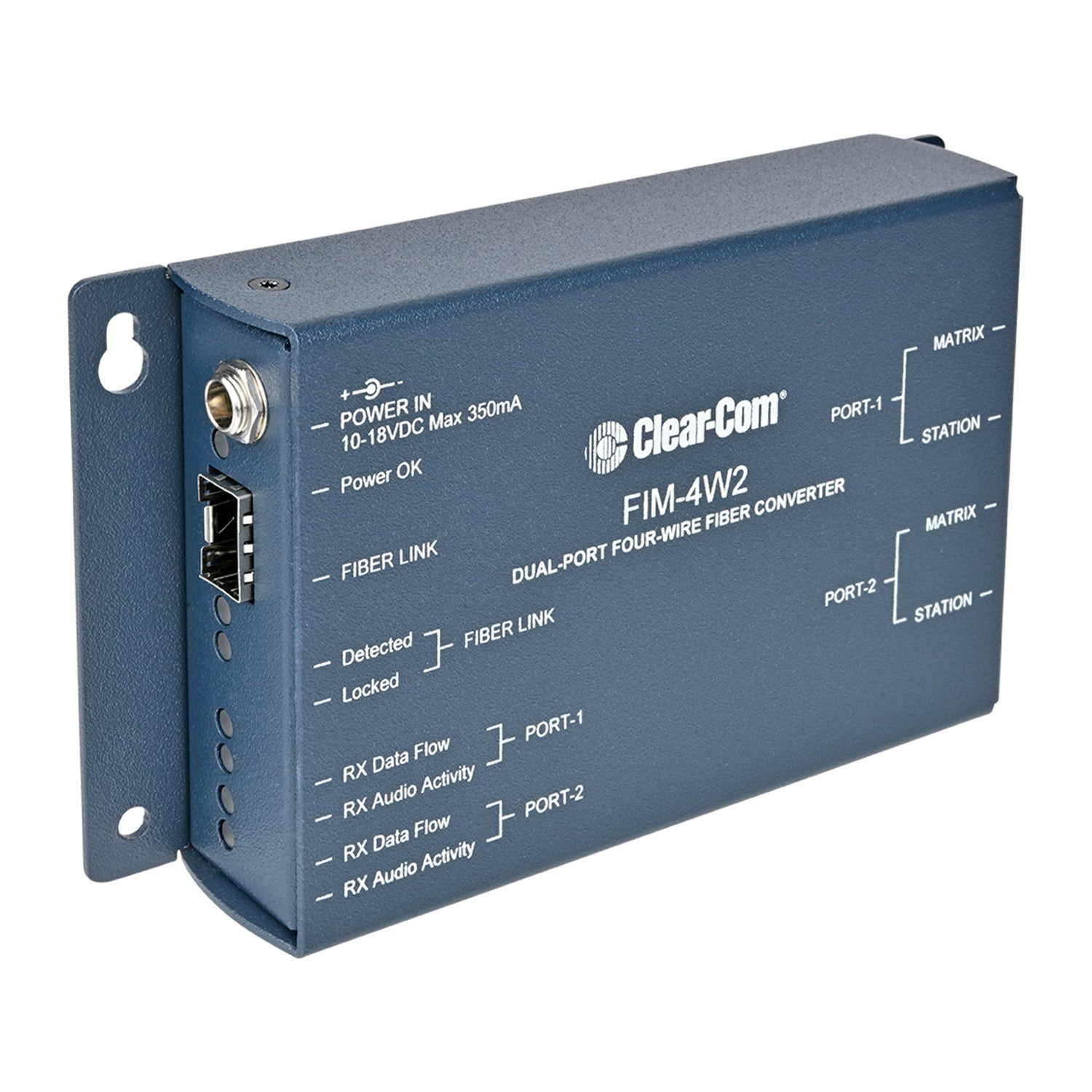

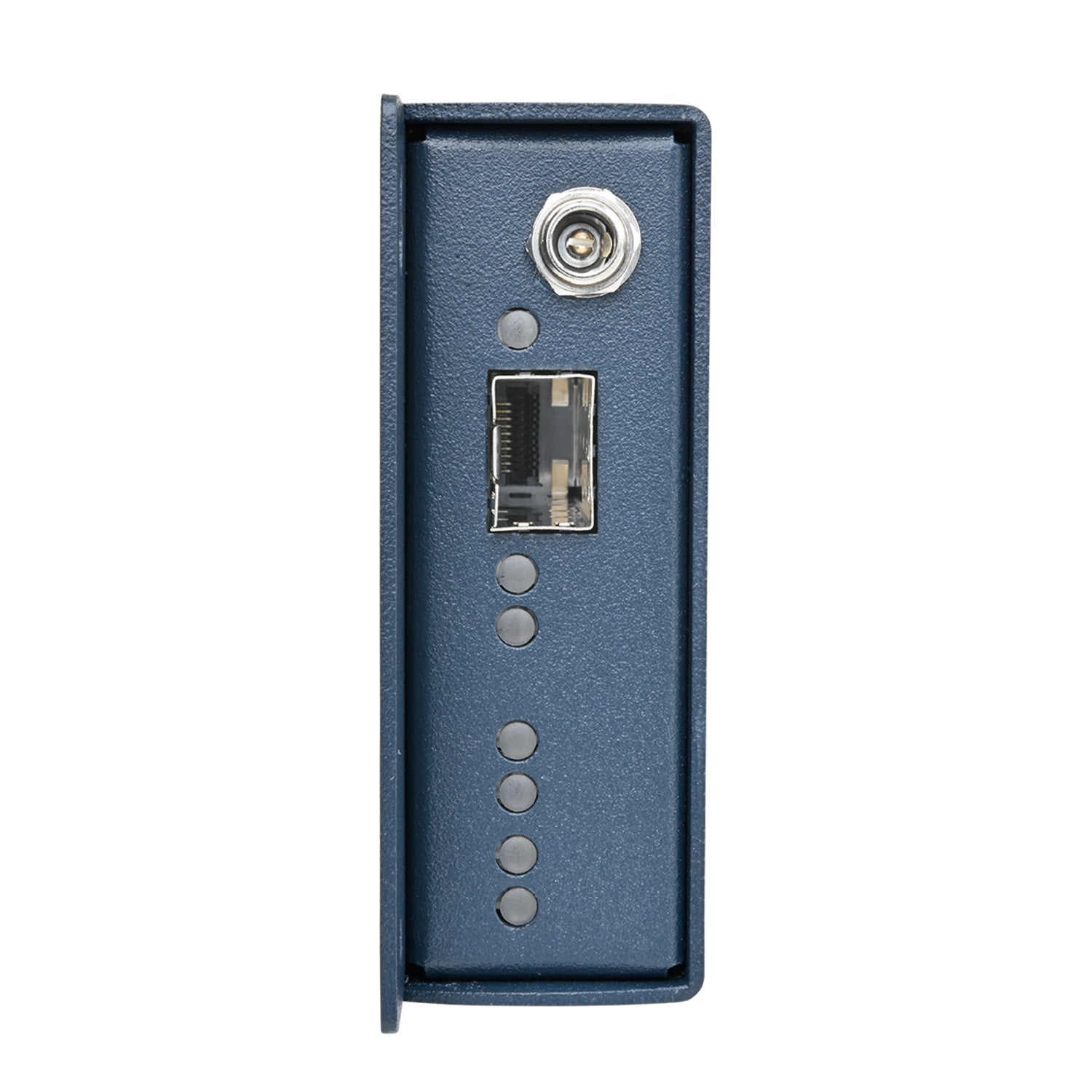

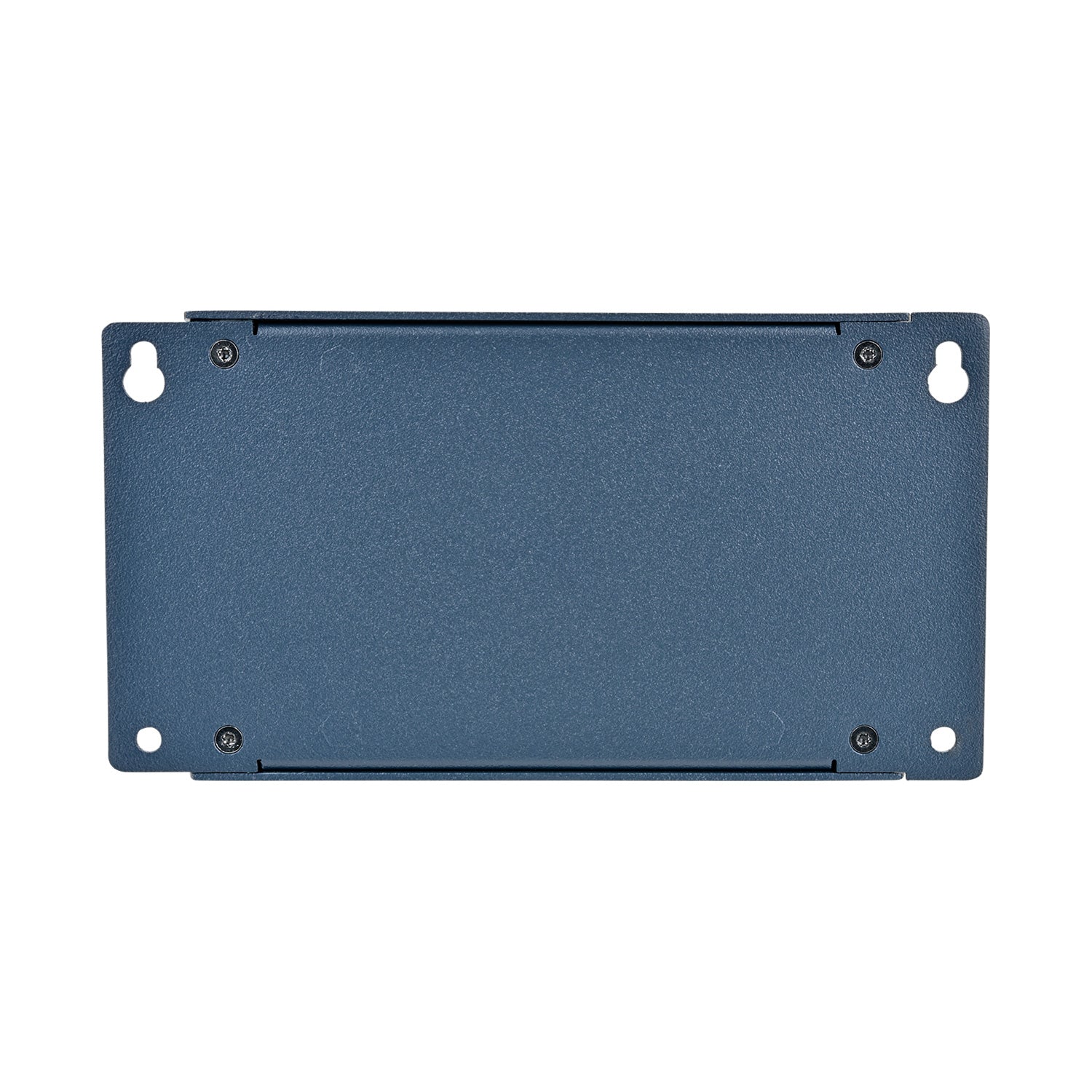

Clear-Com FIM-4W2 - Optical Fiber Interface for Eclipse HX Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FIM-4W2 optical fiber interface allows one or two digital matrix intercom user panels, interface modules or 4-wire sources to be remotely connected to Eclipse, Eclipse HX and Matrix +3 intercom systems over optical fiber. A pair of FIM-S222 interfaces is required for each fiber link; one at the matrix frame and the other at the matrix user panel.
Features:
- Compact 2-channel interface box
- Remotely locates one or two digital matrix panels or interface models over fiber
- 24-bit digital DEMUX
- 48kHz audio sampling rate
- Sends and receives RS-422 control data
- Flat frequency response up to 20kHz, S/N 80dB

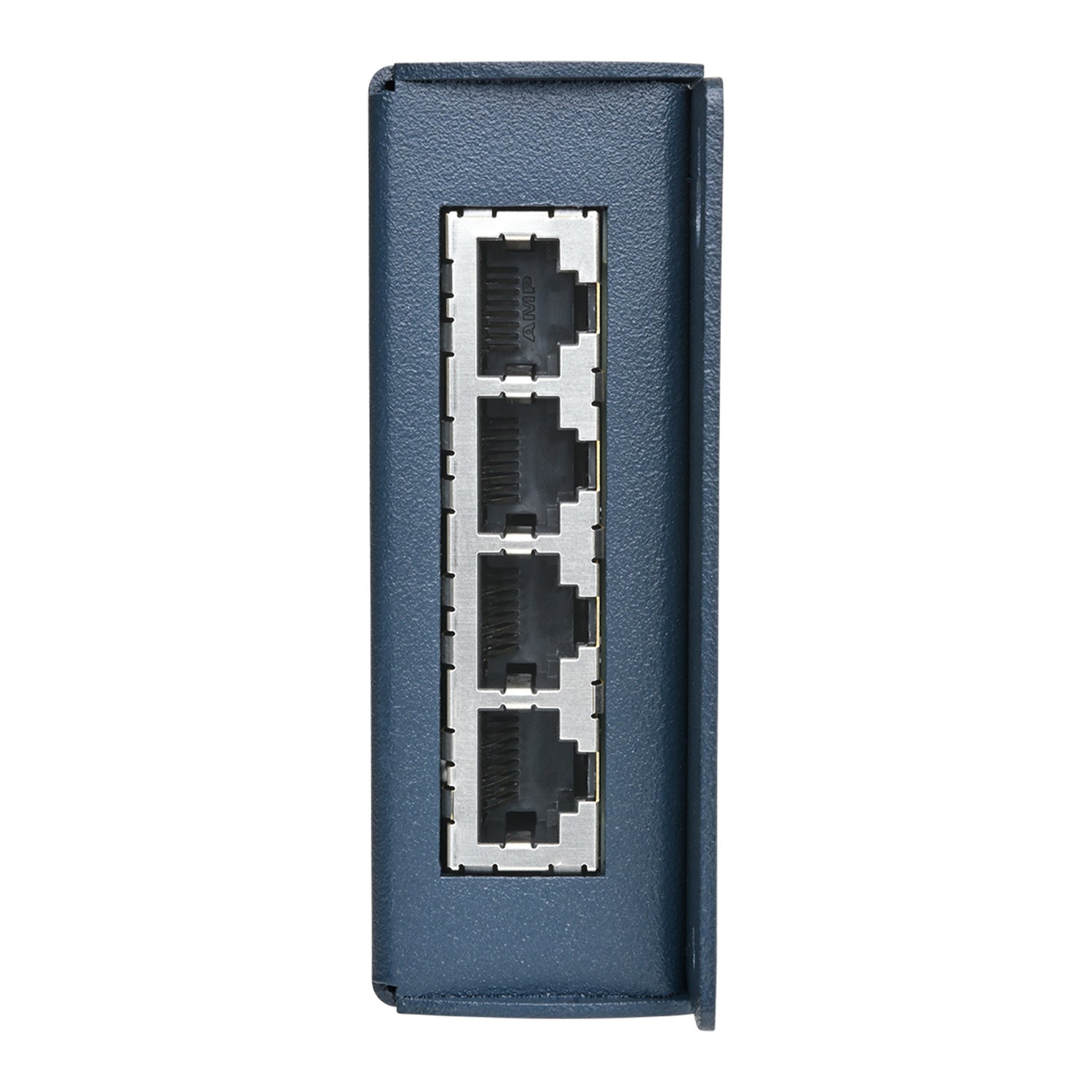

- RJ45 connectors for direct connection with matrix panels, frames and interfaces
- Can be used to extend any line level 4-wire audio signal
- Can be used to extend any RS-422 signal
| Audio | |
| Transmission Method | Digital, TDM, 48k samples/sec |
| Input Impedance | >20k½, balanced |
| Output Impedance | 60½, balanced |
| Maximum Input Level | +18dBu, balanced, <1% THD+N |
| Maximum Output Level | +18dBu balanced; 50-20kHz>10k½; <1% THD+N |
| Frequency Response | 50-20kHz, 0dBu +/-0.4dBu |
| Total Harmonic Distortion + Noise | <0.2%, across bandwidth, +8dBu <0.007%, 1kHz, max level |
| Signal to Noise Ratio (SNR) | <-80dB, ITU-R 468 wtd; Ref. Max level +18dBu |
| Port Separation (Crosstalk) | <-90dB, Ref. 0dBu, 1kHz. channel to channel |
| Fiber Data Link Speed | 1.2288Gbps |
| System Delay | <1ms |
| Frame-to-Panel Digital Data | |
| Transmission Rate (RS-422, Balanced TTL Levels) | 0 to 250 kBits/sec |
| Jitter | <250ns |
| Connectors | |
| Connectors | (4) RJ45 |
| Power Connector | 2.5mm jack, screwlock, center pin positive |
| Power Supply | |
| Input Voltage Range | 10-18V DC |
| Power Consumption | @12V per end, all channels at full level; <5 watts |
| A/C Adapter | Supplied |
| Temperature | Operating: 32¡F - +113¡F (0¡C - +45¡C) Storage: -22¡F - 158¡F (-30¡C - +70¡C) |
| Humidity | 20%Ð 90%, non-condensing at 40¡C |
| Dimensions | 3.4 x 1.2 x 6.3in (WxHxD) (86.4 x 30.5 x 160.02mm) |
| Weight | 0.6lbs (0.27kg) |
