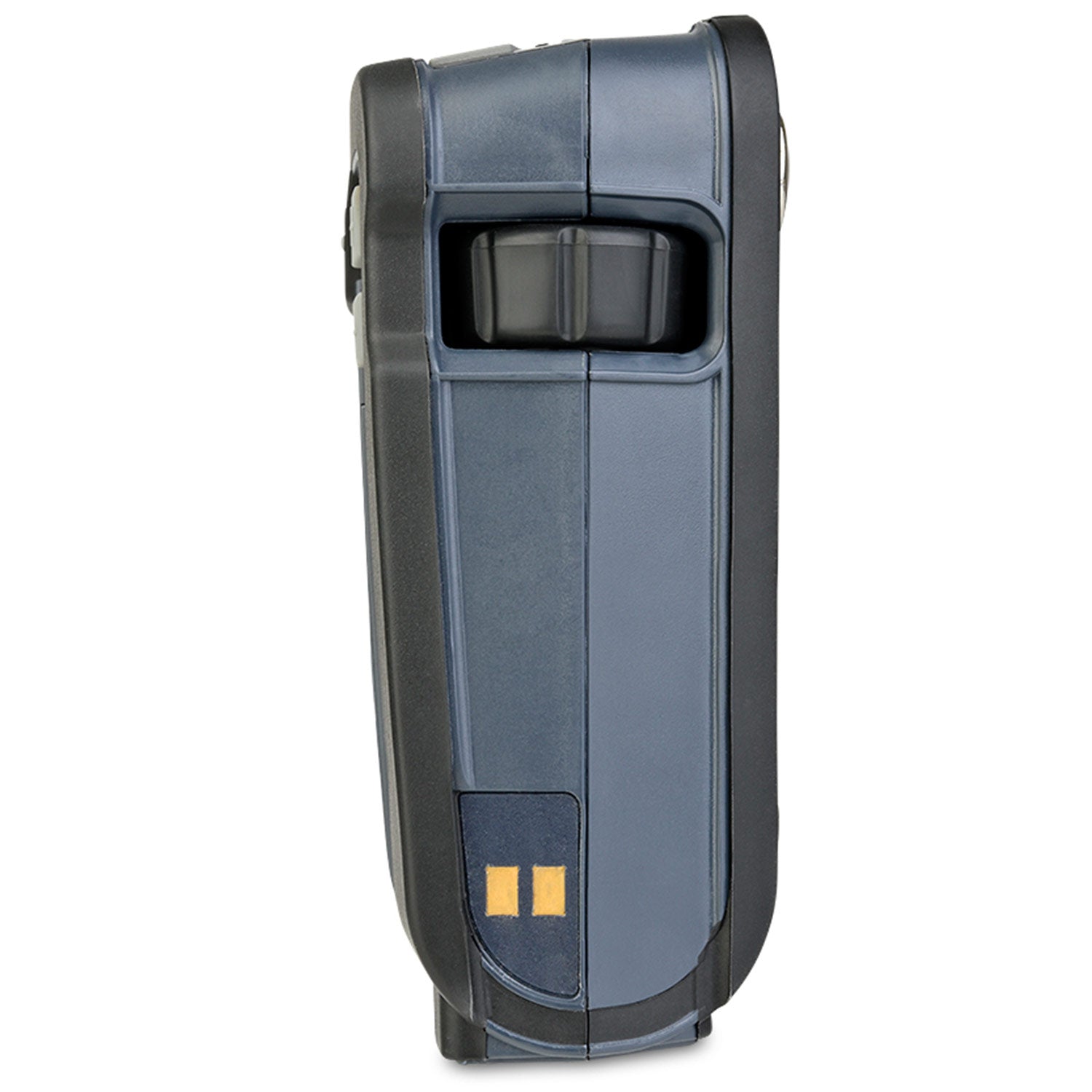

Clear-Com FSE-BP50 FreeSpeak Edge 5 GHz Wireless Beltpack (XLR-4M headset connector)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Digital wireless beltpack including 8 talk and listen buttons with 4 integral crosspoint level controls and dedicated master volume control. Includes Reply, LED level and call signalization and Color OLED menu. Fitted with XLR-4M headset connector, comes with USB cable, and one BAT80 rechargeable Lithium Ion battery. Universal beltpack works with any FreeSpeak Edge region transceiver.
Features:
-
Beltpack

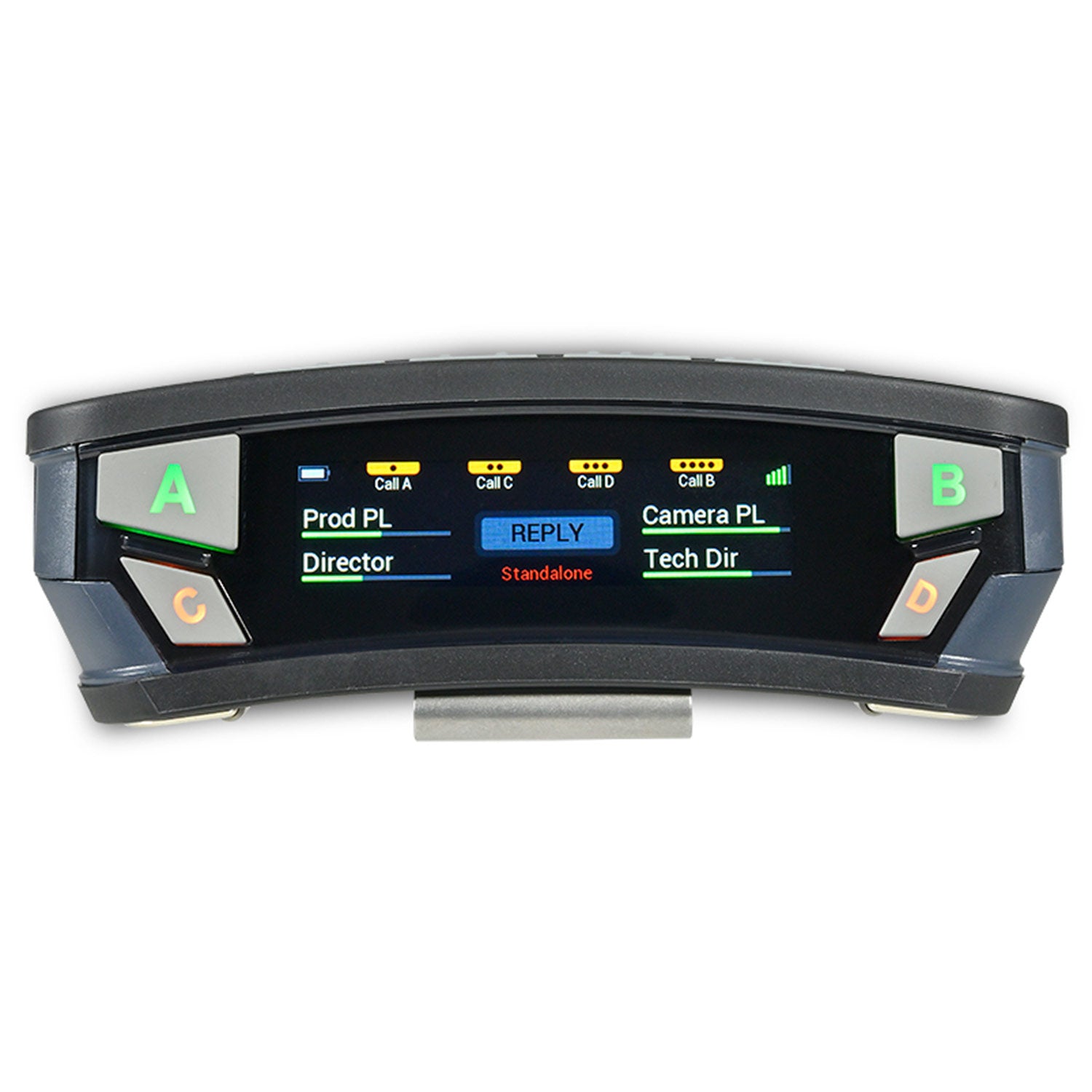

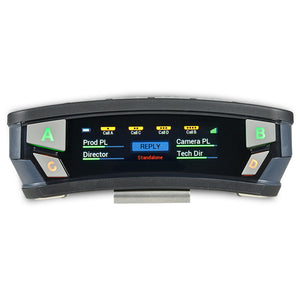

- TFT color display
- 4 top buttons with individual level control
- 5 additional programmable buttons

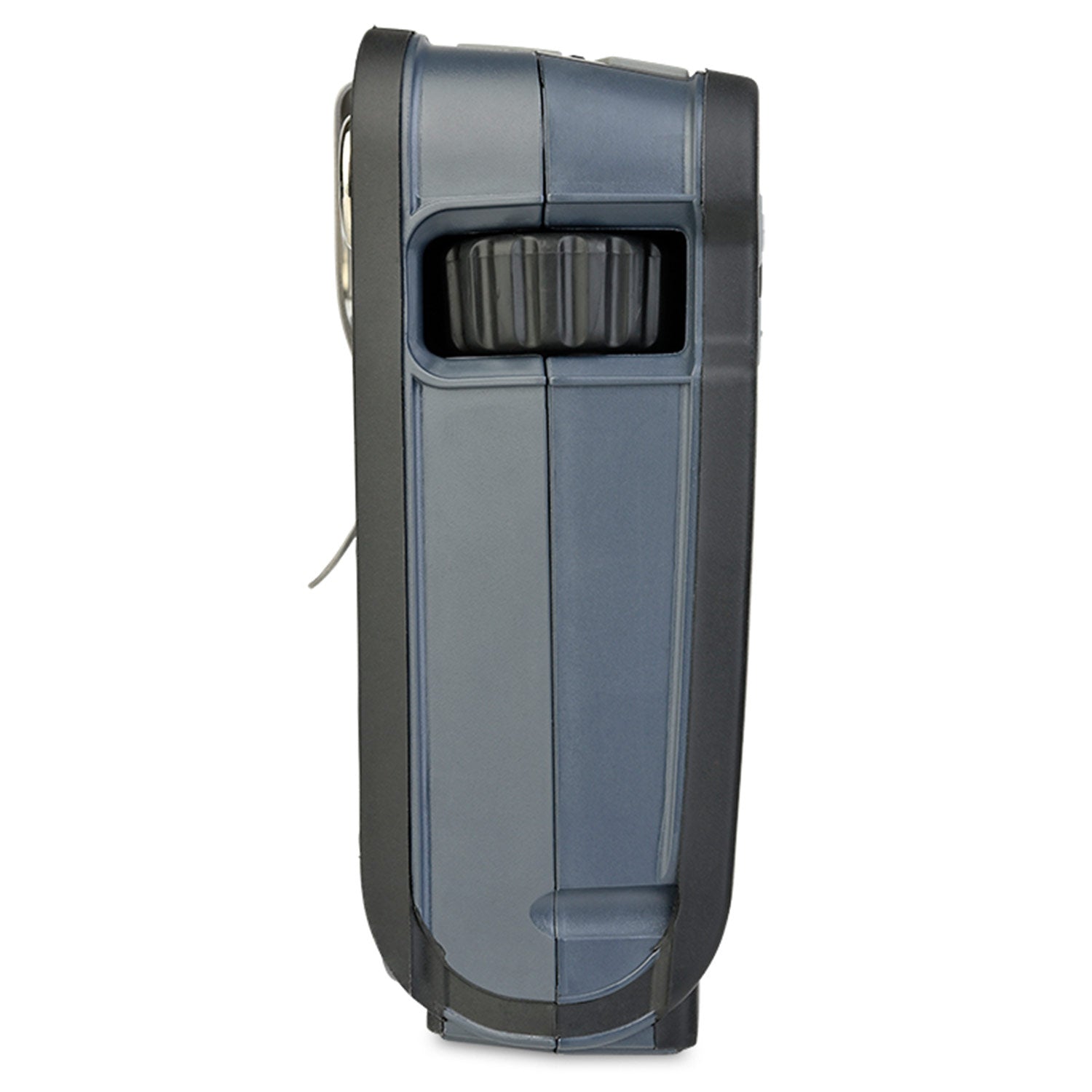

- Rotary controls on both sides and up/ down level controls
- Master volume control on bottom
- Mic and speaker mode
- Built-in flashlight
- Drop-in and USB-C charging
-
Connectivity
- 5 GHz radio frequency
- 20-27 radio channels (region specific)
- Robust radio link works in high multipath or reflective environments
- Dual redundant radios
- Bluetooth Low Energy (BLE) radio; beltpack pairing and firmware updates over the air
- Low latency audio: < 35ms (60ms beltpack to beltpack)
- Wi-Fi coexistence
- 5 GHz Scanner Mode – built in scanning tool for selecting channels
- AES256 shared key encryption
-
Mechanical
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
The FSE-BP50 is a rugged, water-resistant multi-channel beltpack that operates in the ISM license-free 5 GHz frequency range. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, and overall dedicated master volume control.
| Audio | |
| Audio Bandwidth | 200 Ð 12 kHz |
| No. of Full-Duplex Audio Paths | 9 |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 9 push buttons, 5 level controls (2 rotary and 2 button level controls, with 1 master level control) |
| Menu Button | 1 |

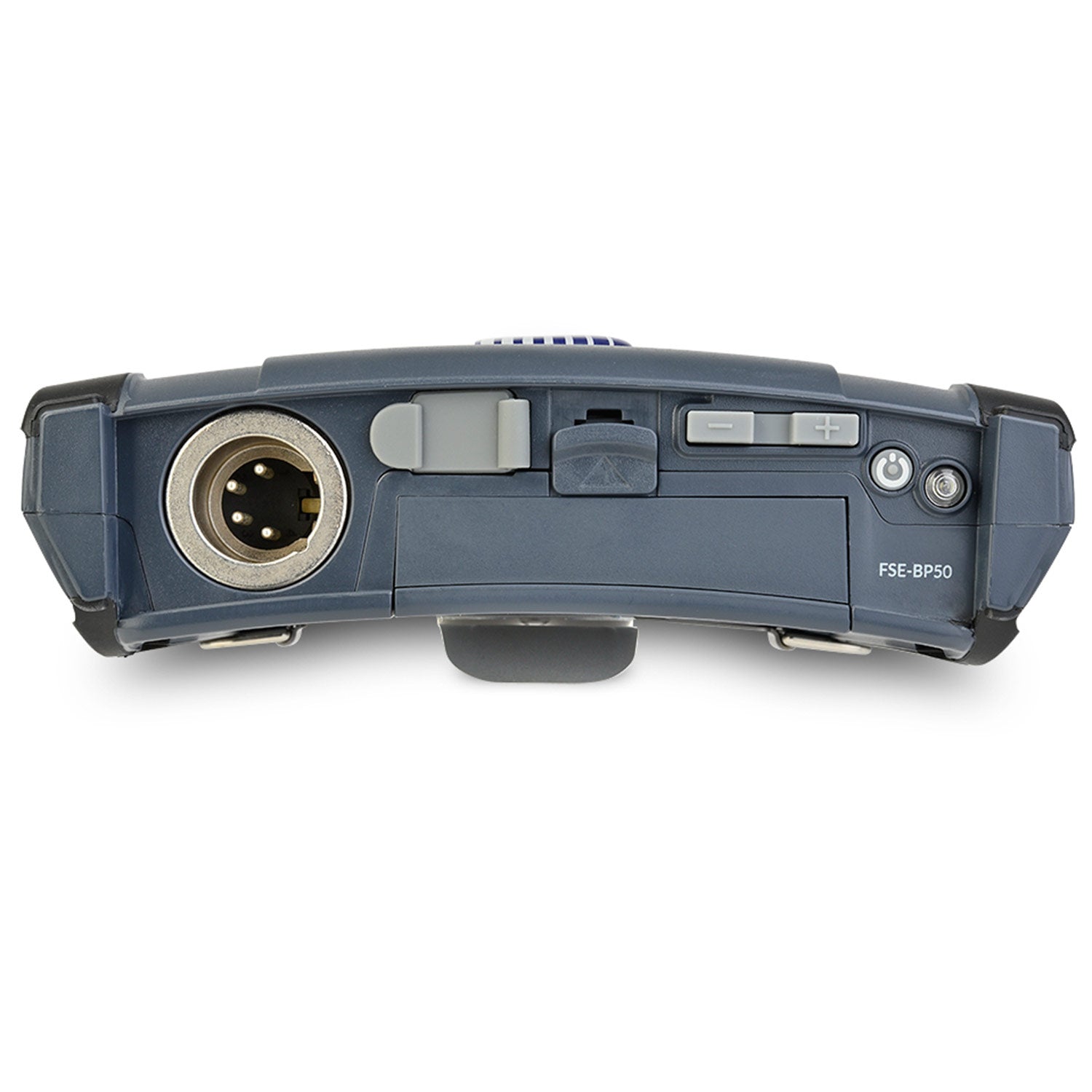

| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Headset Limiter | Selectable from beltpack menu |
| Radio | |
| Frequency Spectrum | 5170 -5875MHz (20MHz channels set by country) |
| Output Power | Adjustable from 1 Ð 24dBm (Maximum output power is determined by selected channel and country) |
| Modulation | OFDM |
| Range | Typical indoor range 250ft (80m), outdoor range 750ft (230m) |
| Battery | |
| Battery | 4400mAh |
| Power | 16Wh |
| Typical Voltage | 3.6V |
| Battery Life | 12 hours |
| Environmental | |
| IP54 water and dust resistance | |
| Operating | 32 to 113¼F (0¼ to 45¼C) |
| Storage | -22 to 158¼F (-30¼ to 70¼C) |
| Humidity | 20-90%, Non-Condensing |
| Dimensions | 5.31 x 4.07 x 1.92in (WxHxD) (134.87 x 103.34 x 48.77mm) |
| Weight | Without Battery: 0.72lbs (0.37kg) With Battery: 0.96lbs (0.44kg) |
Digital wireless beltpack including 8 talk and listen buttons with 4 integral crosspoint level controls and dedicated master volume control. Includes Reply, LED level and call signalization and Color OLED menu. Fitted with XLR-4M headset connector, comes with USB cable, and one BAT80 rechargeable Lithium Ion battery. Universal beltpack works with any FreeSpeak Edge region transceiver.
Features:
-
Beltpack
- TFT color display
- 4 top buttons with individual level control
- 5 additional programmable buttons
- Rotary controls on both sides and up/ down level controls
- Master volume control on bottom
- Mic and speaker mode
- Built-in flashlight
- Drop-in and USB-C charging
-
Connectivity
- 5 GHz radio frequency
- 20-27 radio channels (region specific)
- Robust radio link works in high multipath or reflective environments
- Dual redundant radios
- Bluetooth Low Energy (BLE) radio; beltpack pairing and firmware updates over the air
- Low latency audio: < 35ms (60ms beltpack to beltpack)
- Wi-Fi coexistence
- 5 GHz Scanner Mode – built in scanning tool for selecting channels
- AES256 shared key encryption
-
Mechanical
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
The FSE-BP50 is a rugged, water-resistant multi-channel beltpack that operates in the ISM license-free 5 GHz frequency range. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, and overall dedicated master volume control.
| Audio | |
| Audio Bandwidth | 200 Ð 12 kHz |
| No. of Full-Duplex Audio Paths | 9 |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 9 push buttons, 5 level controls (2 rotary and 2 button level controls, with 1 master level control) |
| Menu Button | 1 |
| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Headset Limiter | Selectable from beltpack menu |
| Radio | |
| Frequency Spectrum | 5170 -5875MHz (20MHz channels set by country) |
| Output Power | Adjustable from 1 Ð 24dBm (Maximum output power is determined by selected channel and country) |
| Modulation | OFDM |
| Range | Typical indoor range 250ft (80m), outdoor range 750ft (230m) |
| Battery | |
| Battery | 4400mAh |
| Power | 16Wh |
| Typical Voltage | 3.6V |
| Battery Life | 12 hours |
| Environmental | |
| IP54 water and dust resistance | |
| Operating | 32 to 113¼F (0¼ to 45¼C) |
| Storage | -22 to 158¼F (-30¼ to 70¼C) |
| Humidity | 20-90%, Non-Condensing |
| Dimensions | 5.31 x 4.07 x 1.92in (WxHxD) (134.87 x 103.34 x 48.77mm) |
| Weight | Without Battery: 0.72lbs (0.37kg) With Battery: 0.96lbs (0.44kg) |
