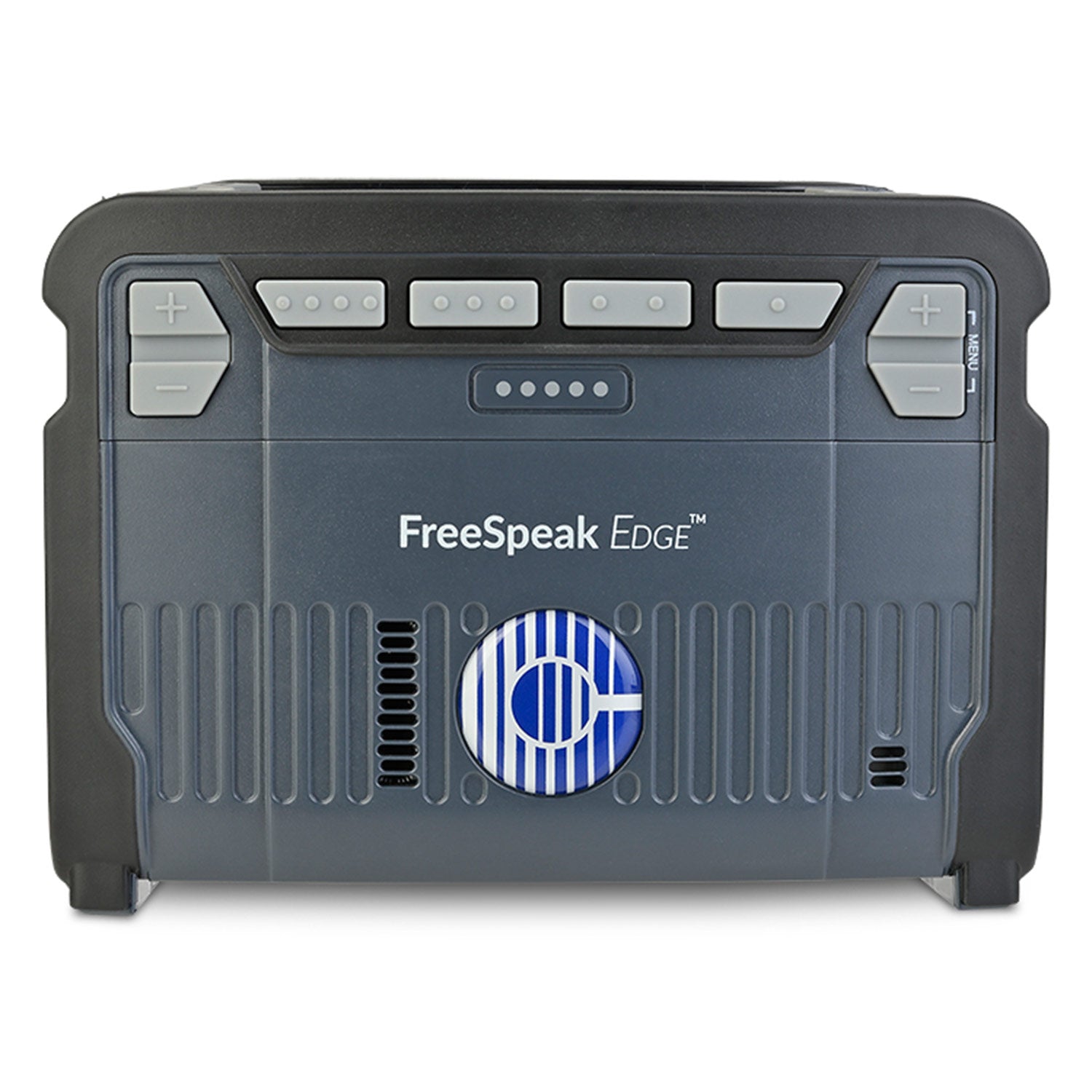

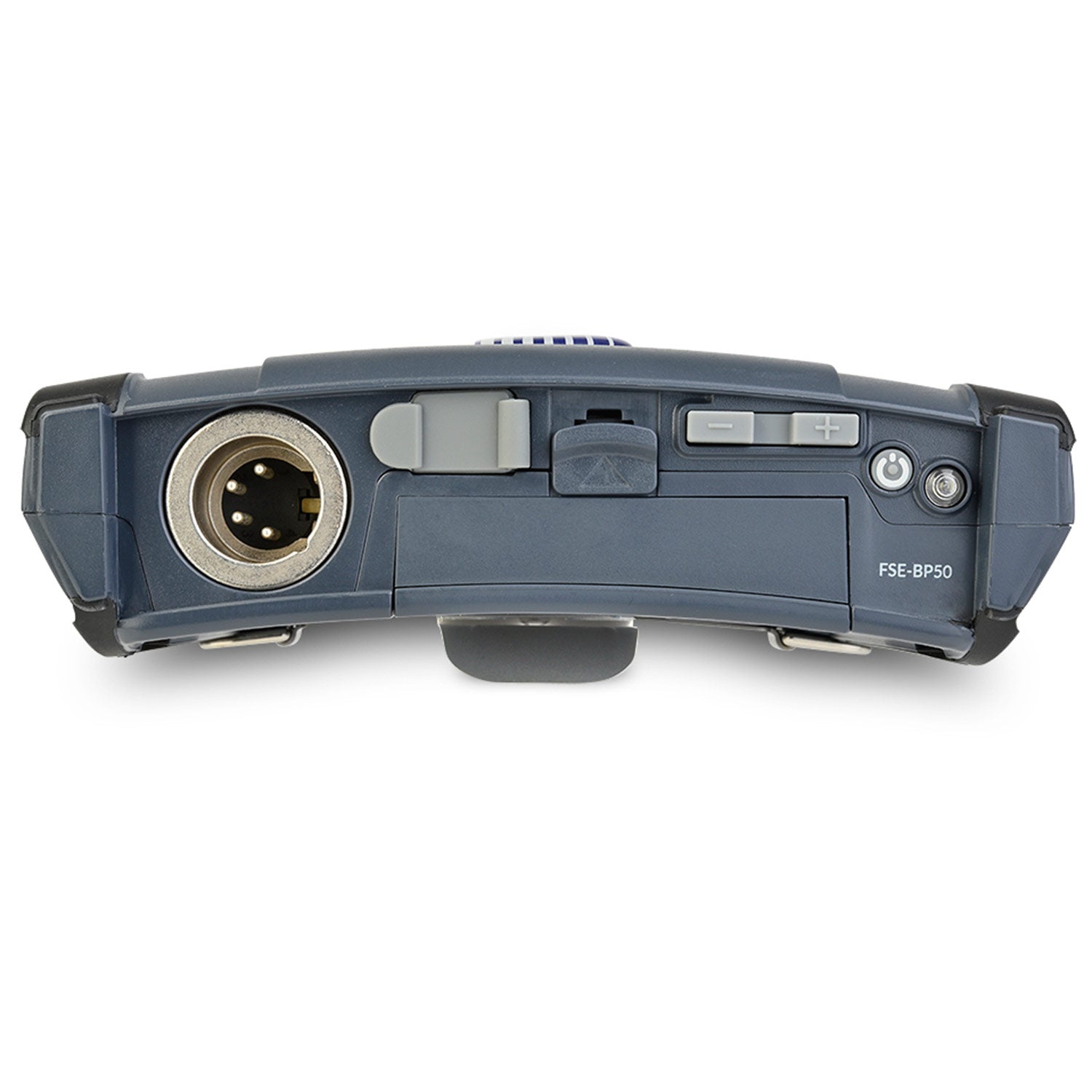

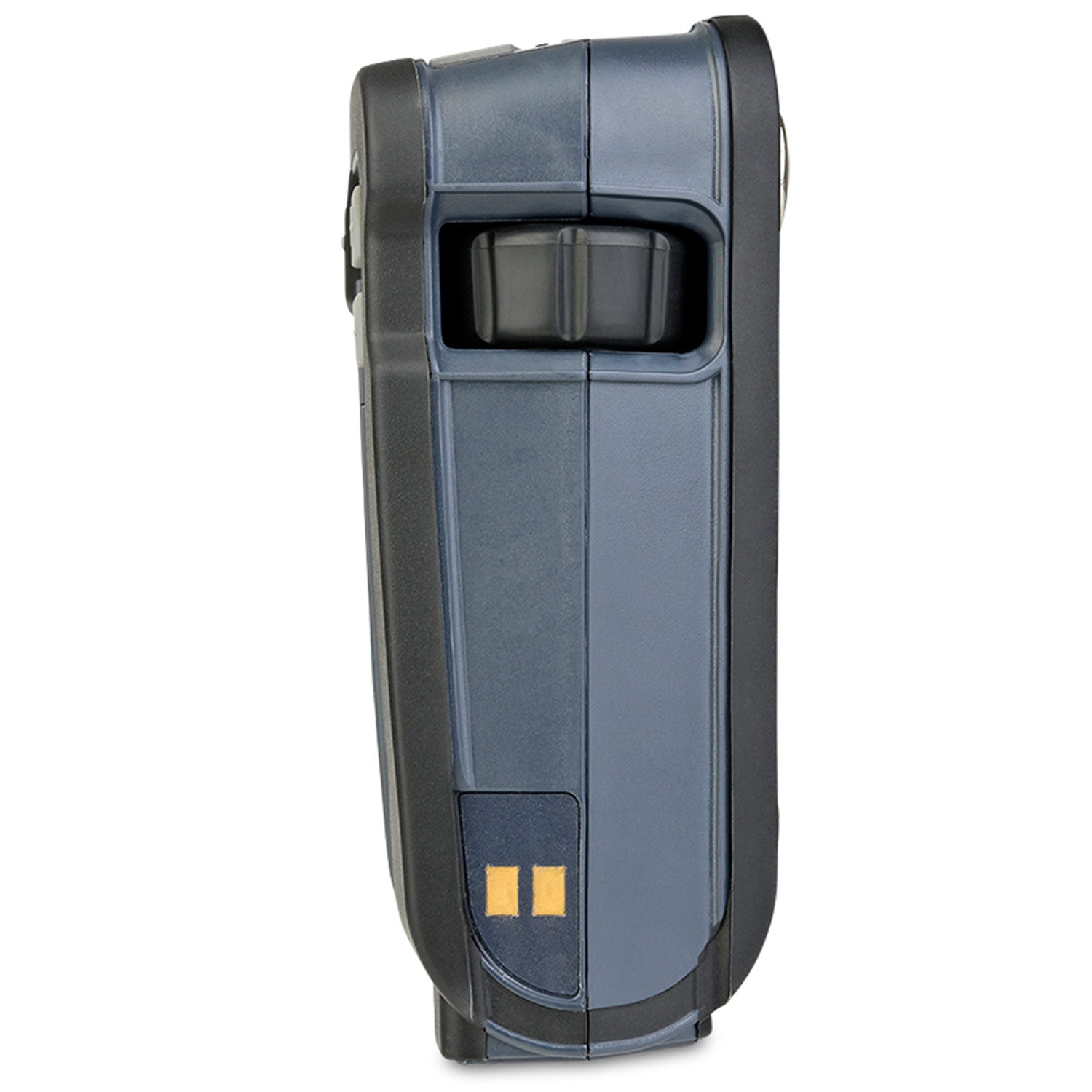

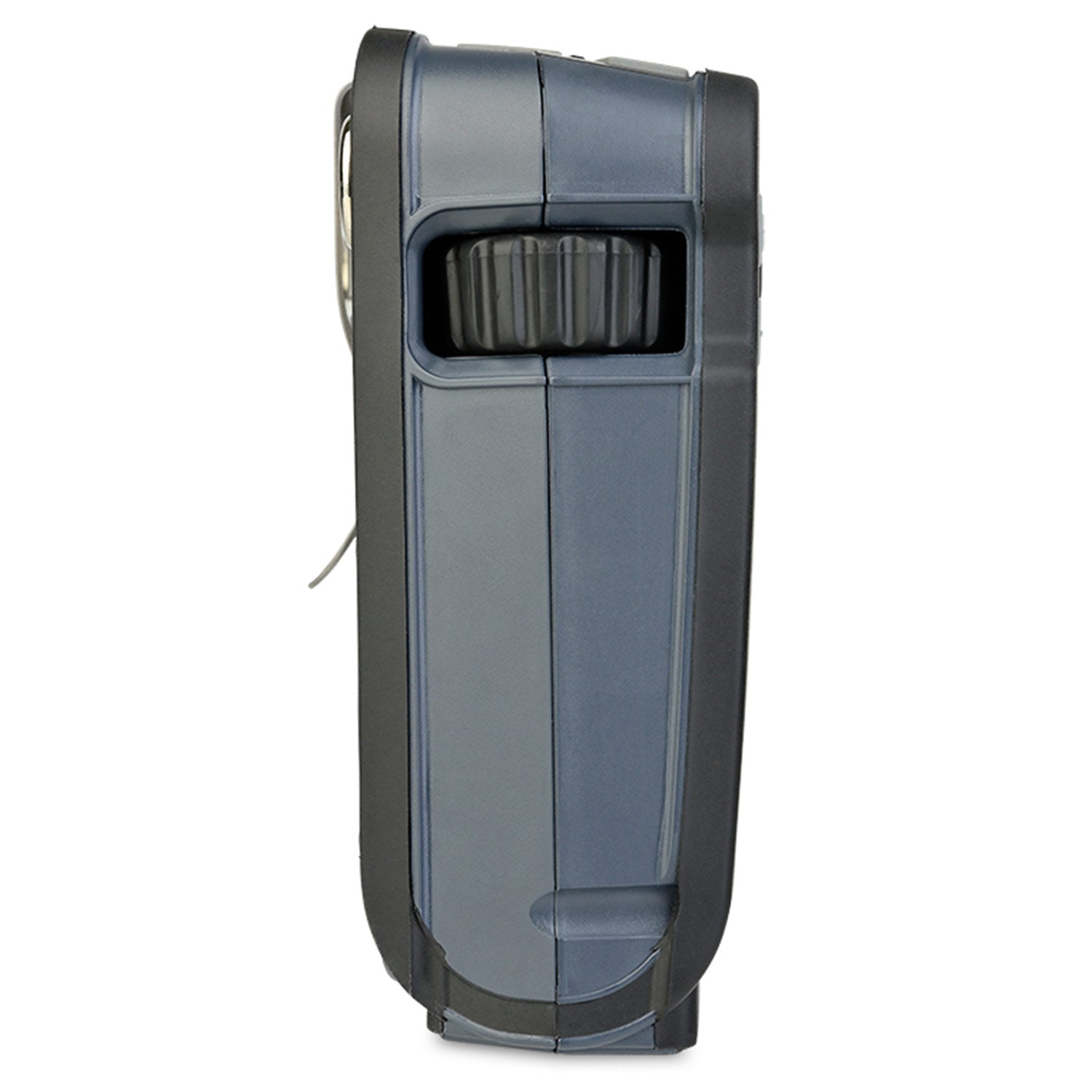

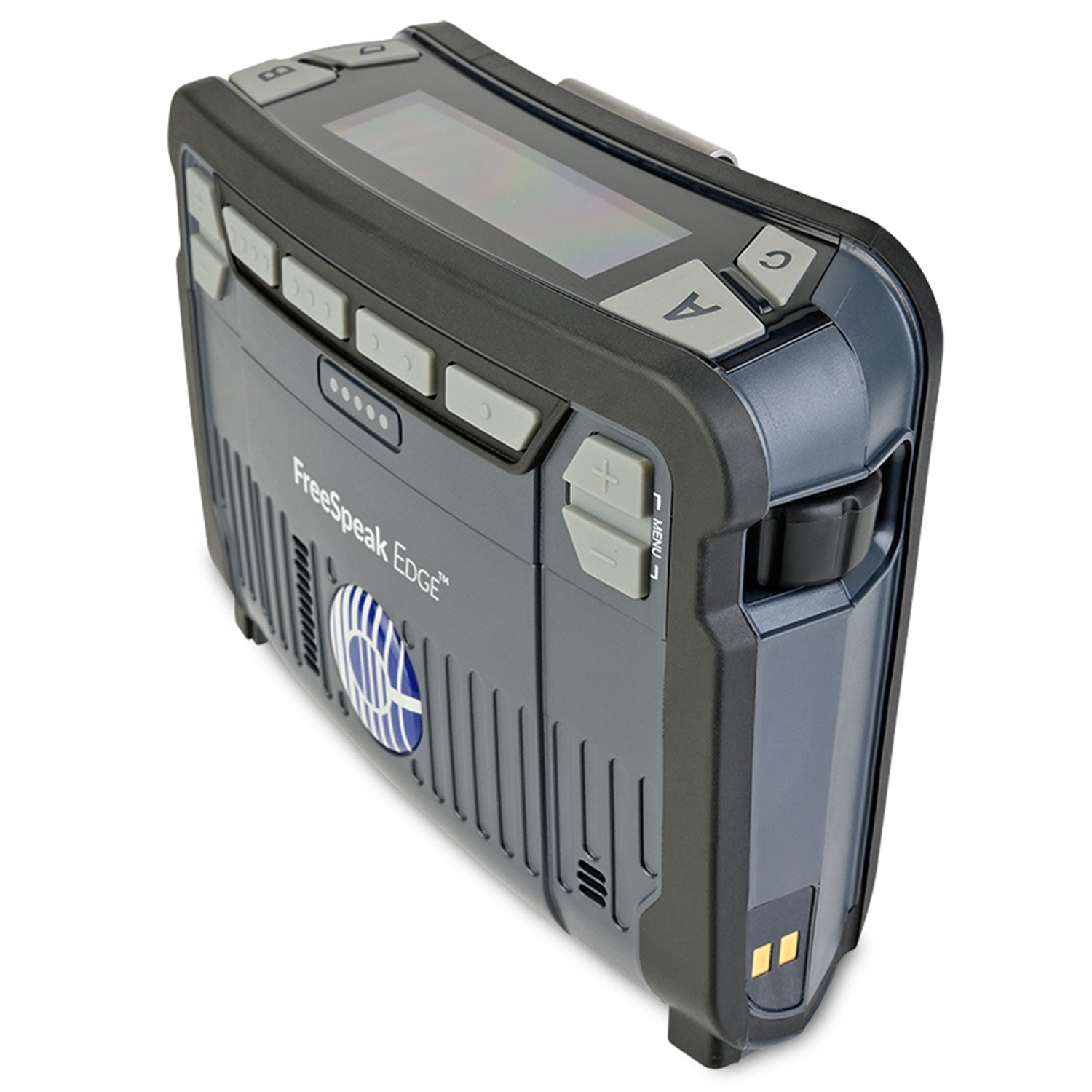

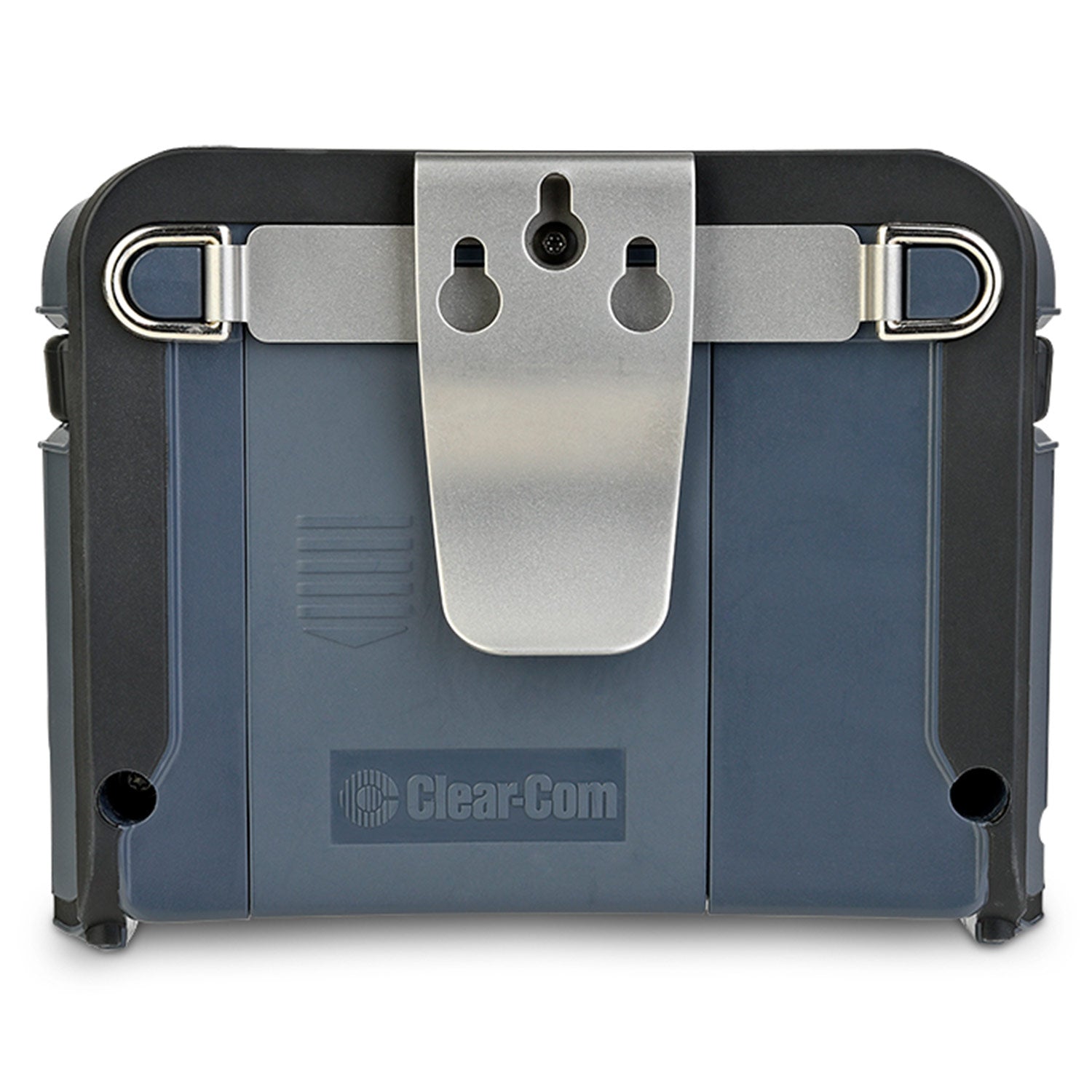

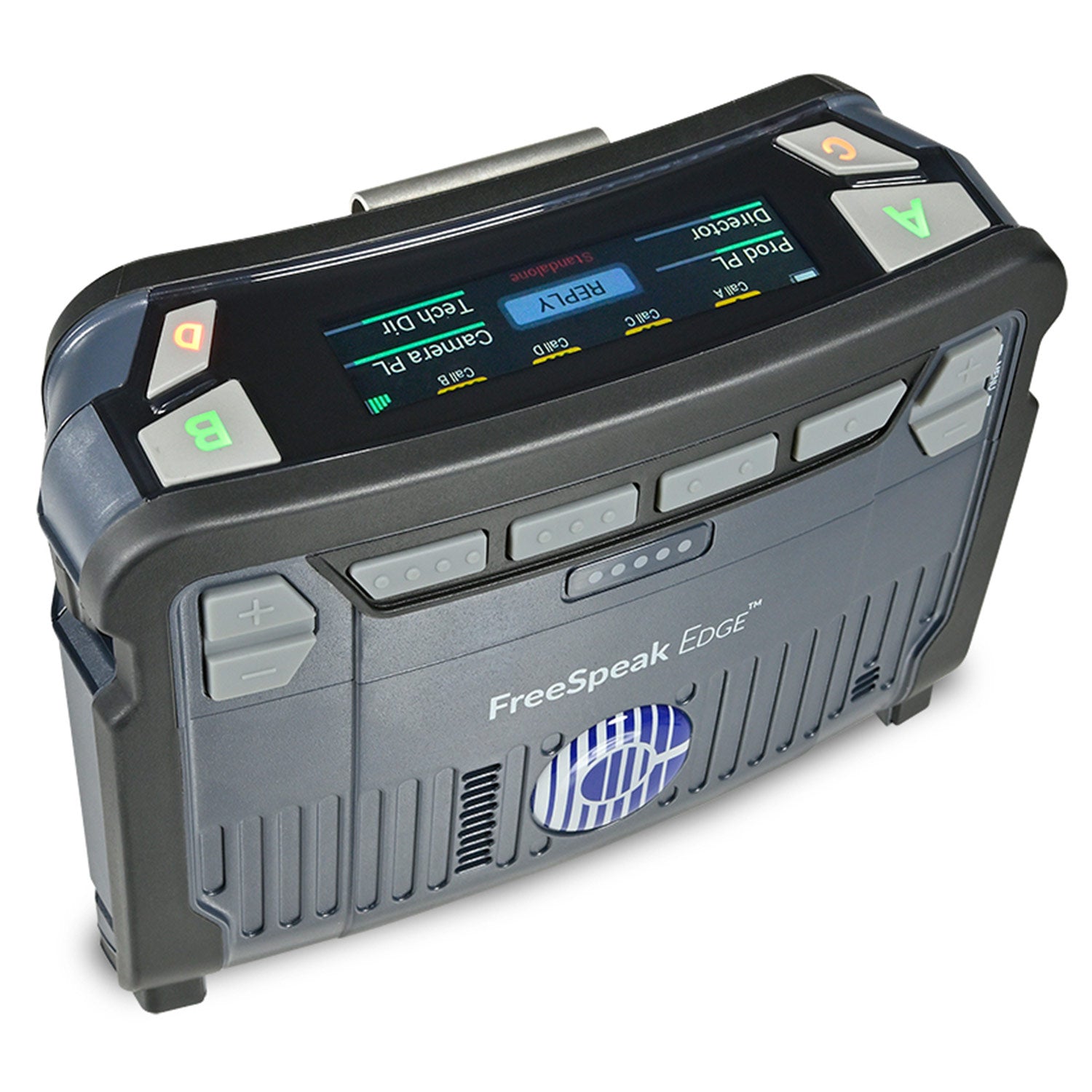

Clear-Com FSE-BP50 FreeSpeak Edge 5 GHz Wireless Beltpack (XLR-5F headset connector)

  • Dale #:

    CLEA-FSEBP50X5
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Digital wireless beltpack including 8 talk and listen buttons with 4 integral crosspoint level controls and dedicated master volume control. Includes Reply, LED level and call signalization and Color OLED menu. Fitted with XLR-4M headset connector, comes with USB cable, and one BAT80 rechargeable... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Digital wireless beltpack including 8 talk and listen buttons with 4 integral crosspoint level controls and dedicated master volume control. Includes Reply, LED level and call signalization and Color OLED menu. Fitted with XLR-4M headset connector, comes with USB cable, and one BAT80 rechargeable Lithium Ion battery. Universal beltpack works with any FreeSpeak Edge region transceiver.

Features:

  • Beltpack
    • TFT color display
    • 4 top buttons with individual level control
    • 5 additional programmable buttons
    • Rotary controls on both sides and up/ down level controls
    • Master volume control on bottom
    • Mic and speaker mode
    • Built-in flashlight
    • Drop-in and USB-C charging
  • Connectivity
    • 5 GHz radio frequency
    • 20-27 radio channels (region specific)
    • Robust radio link works in high multipath or reflective environments
    • Dual redundant radios
    • Bluetooth Low Energy (BLE) radio; beltpack pairing and firmware updates over the air
    • Low latency audio: < 35ms (60ms beltpack to beltpack)
    • Wi-Fi coexistence
    • 5 GHz Scanner Mode – built in scanning tool for selecting channels
    • AES256 shared key encryption
  • Mechanical
    • Curved shape fits to body
    • IP54 rating for wet and dusty conditions

The FSE-BP50 is a rugged, water-resistant multi-channel beltpack that operates in the ISM license-free 5 GHz frequency range. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, and overall dedicated master volume control.

More +

Product Specs

Audio
Audio Bandwidth200 – 12 kHz
No. of Full-Duplex Audio Paths9
Mode of OperationFull duplex on all routes
Level/Talk Controls9 push buttons, 5 level controls
(2 rotary and 2 button level controls, with 1 master level control)
Menu Button1
Headset Connector4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Microphone TypeElectret and Dynamic, selectable in beltpack menu
Headset LimiterSelectable from beltpack menu
Radio
Frequency Spectrum5170 -5875MHz (20MHz channels set by country)
Output PowerAdjustable from 1 – 24dBm
(Maximum output power is determined by selected channel and country)
ModulationOFDM
RangeTypical indoor range 250ft (80m), outdoor range 750ft (230m)
Battery
Battery4400mAh
Power16Wh
Typical Voltage3.6V
Battery Life12 hours
Environmental
IP54 water and dust resistance
Operating32 to 113ºF (0º to 45ºC)
Storage-22 to 158ºF (-30º to 70ºC)
Humidity20-90%, Non-Condensing
Dimensions5.31 x 4.07 x 1.92in (WxHxD)
(134.87 x 103.34 x 48.77mm)
WeightWithout Battery: 0.72lbs (0.37kg)
With Battery: 0.96lbs (0.44kg)
