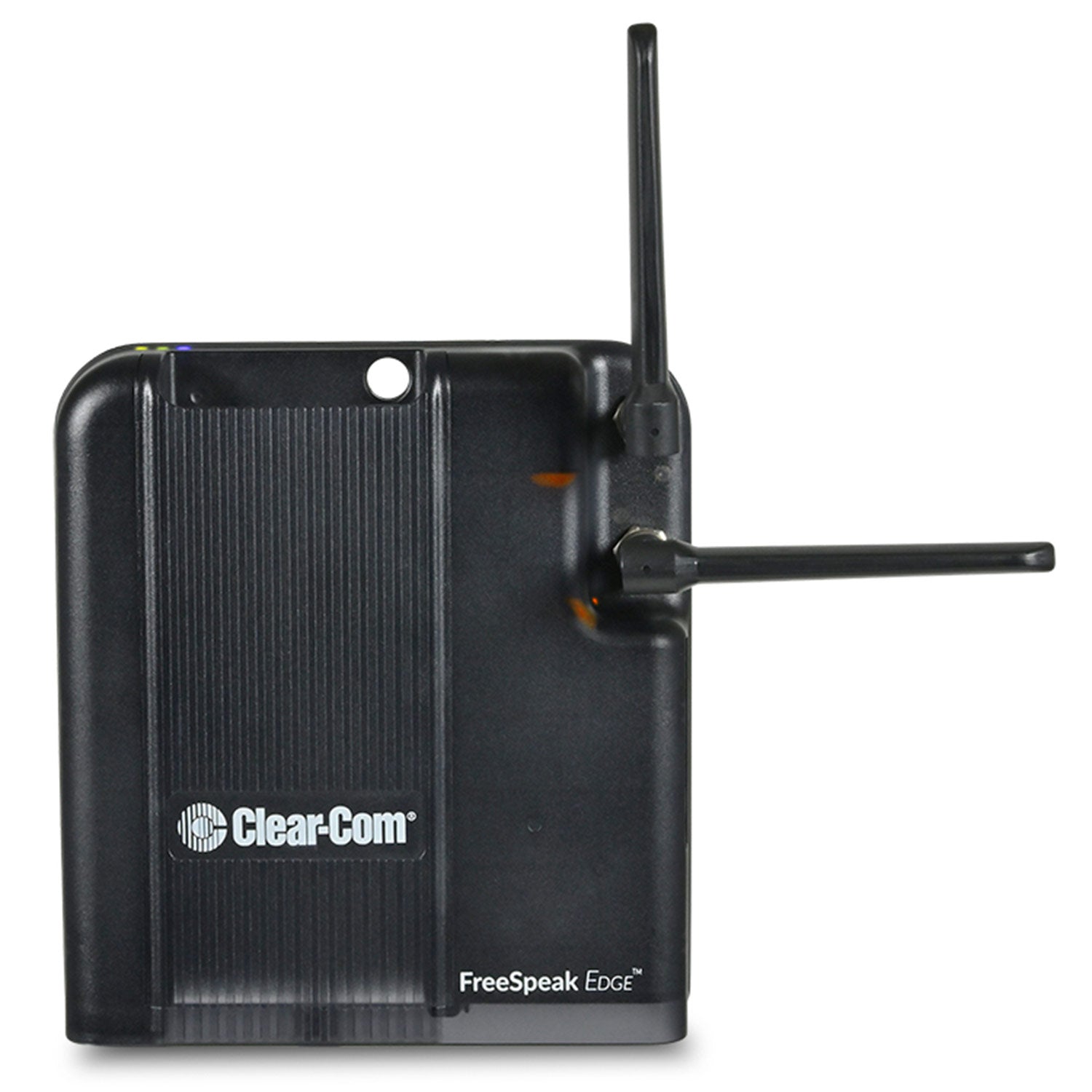

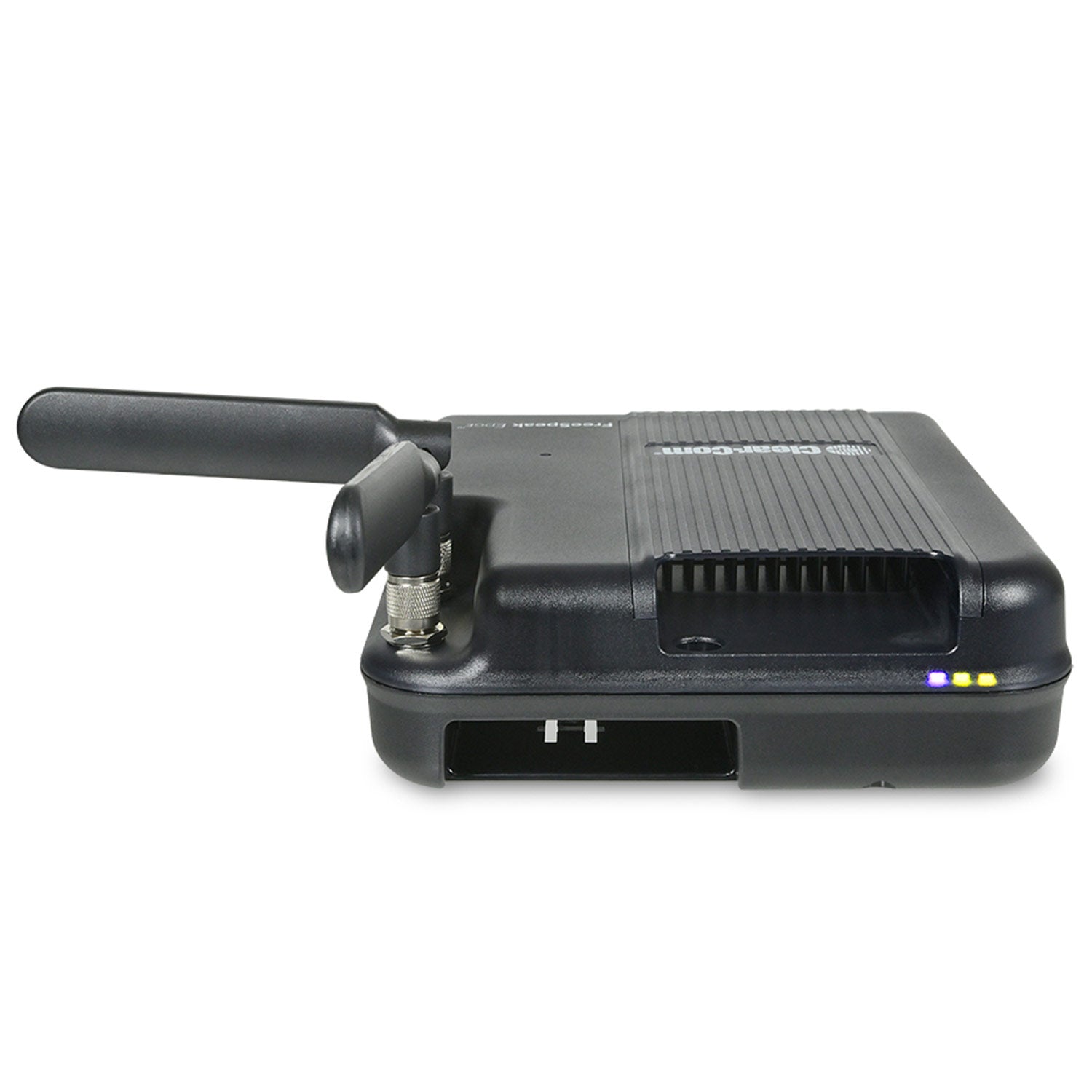

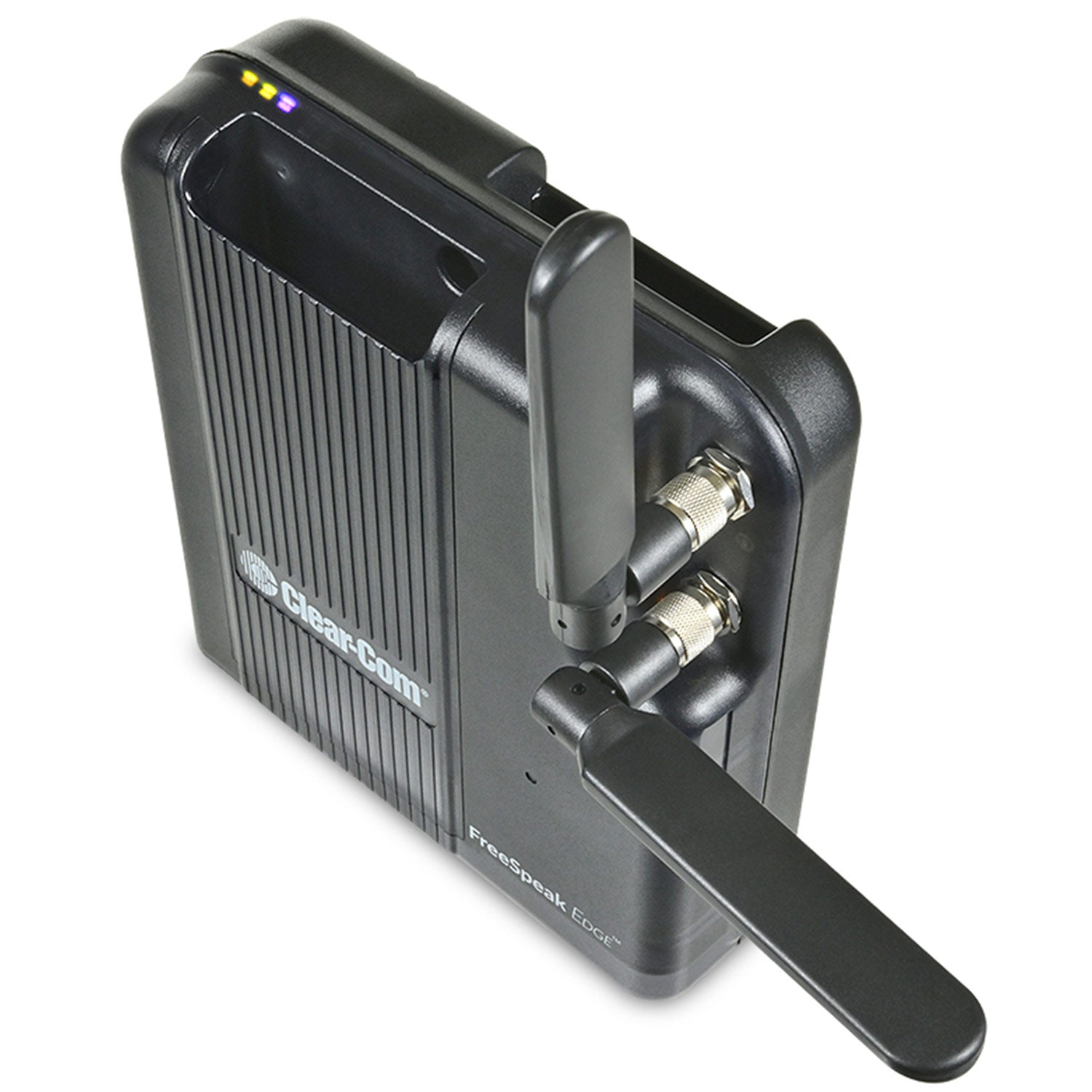

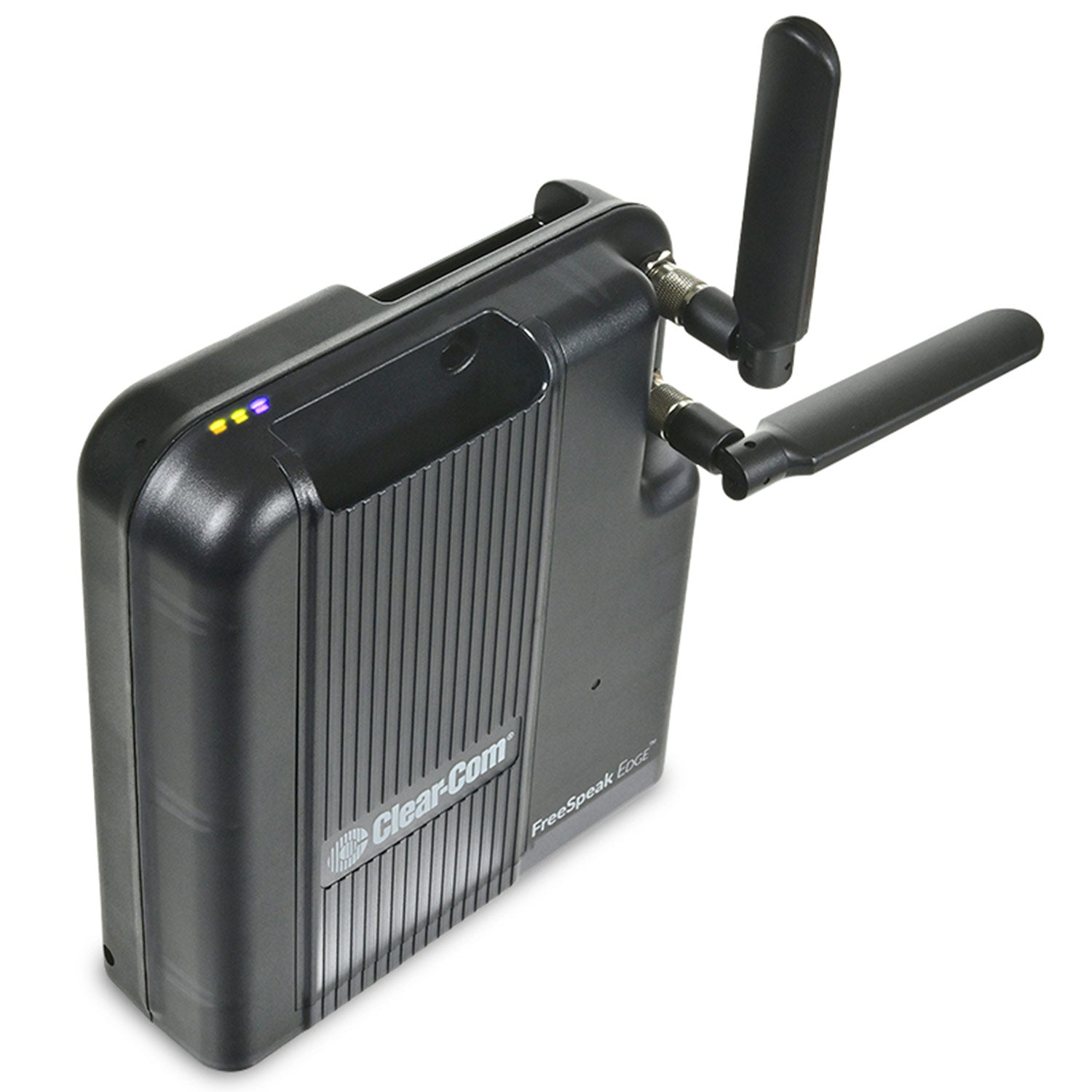

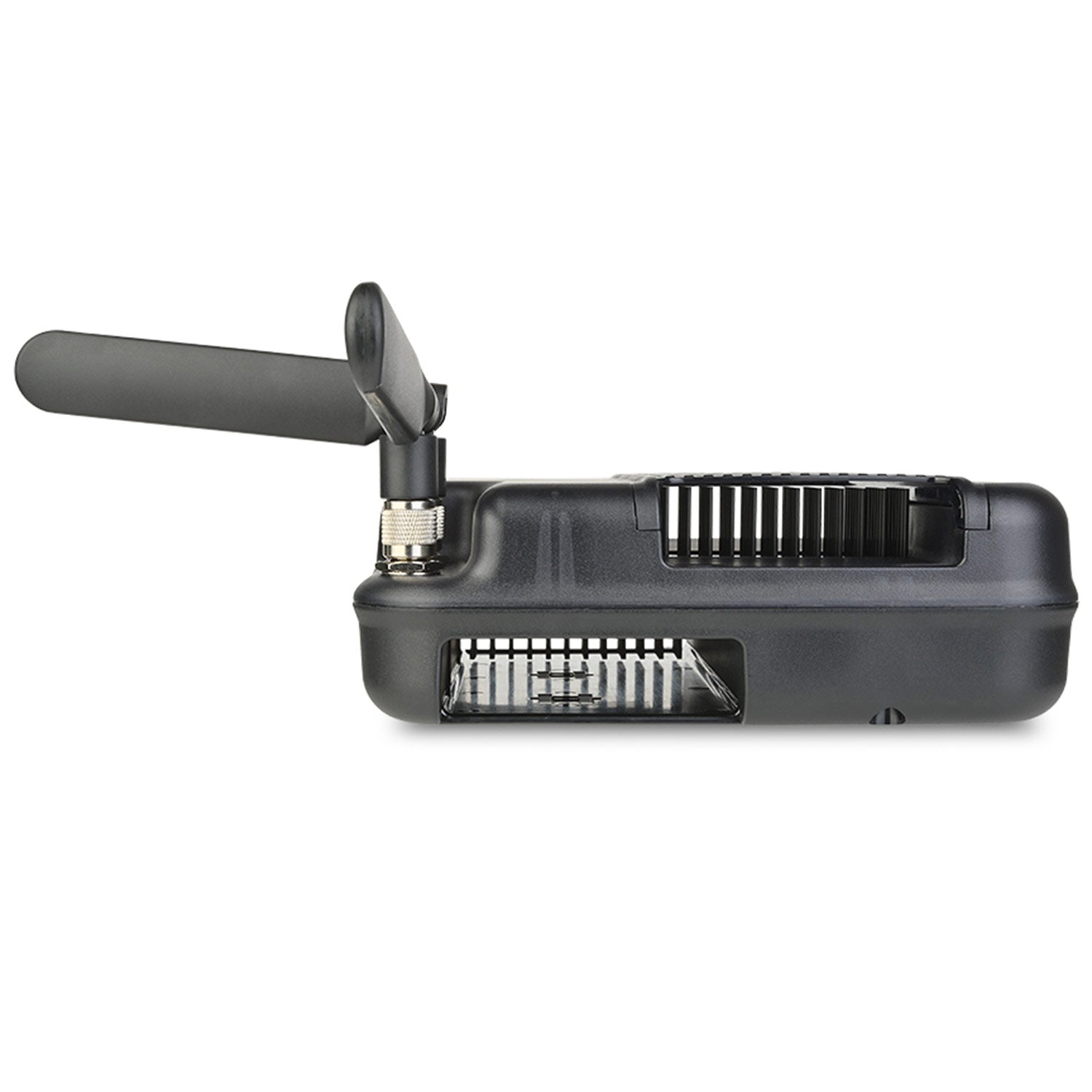

Clear-Com FSE-TCVR-50 FreeSpeak Edge Transceiver
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
FreeSpeak Edge IP connected Transceiver (E-IPT) for the FreeSpeak Edge digital wireless system. Connects up to 10 FS Edge beltpacks. Requires licensed and available ports on the E-IPA-HX card in the Eclipse-HX matrix and an AES67 compliant network connection. The transceiver can be powered from an AES67 compliant network switch PoE or from a local PSU adapter, supplied. RJ-45 and Fiber SFP LAN connections are provided. Fiber transceivers are not supplied see SFP-SMFO-1G-S (Single Mode) or SFPMMFO-1G-LX (Multi-Mode) Fiber transceivers.
Please note: SFP modules can vary in electrical capabilities despite being mechanically compatible. Clear-Com can only support Clear-Com supplied SFP transceivers which have been tested with Clear-Com products. FCC approved for use in the USA and Canada.
Features:
-
Transceiver

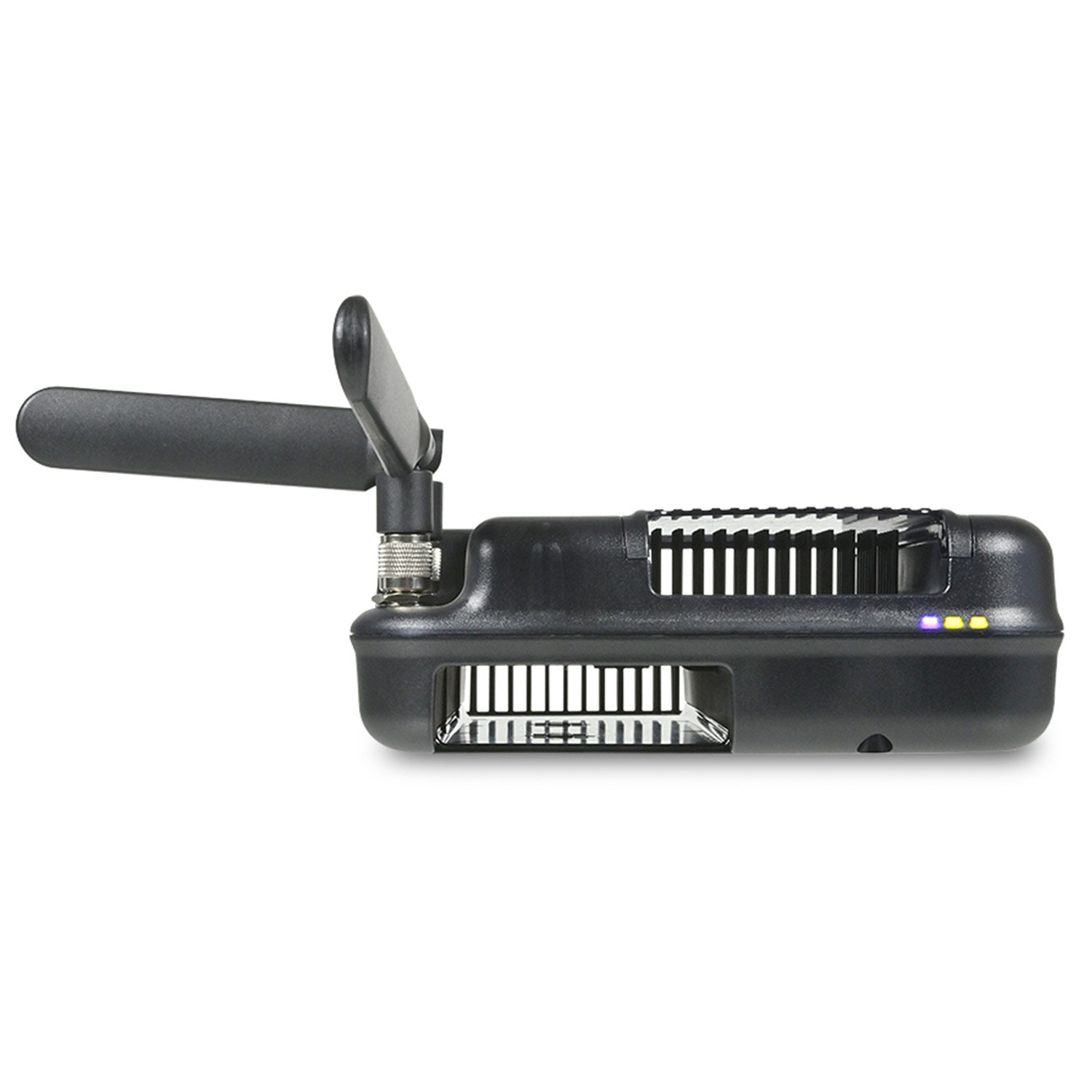

- LED status indicators on top and bottom of transceiver
- External omnidirectional antennas for the transceiver
- Dual redundant radios per beltpack and transceiver
- Separate radios for RF and radar scanning

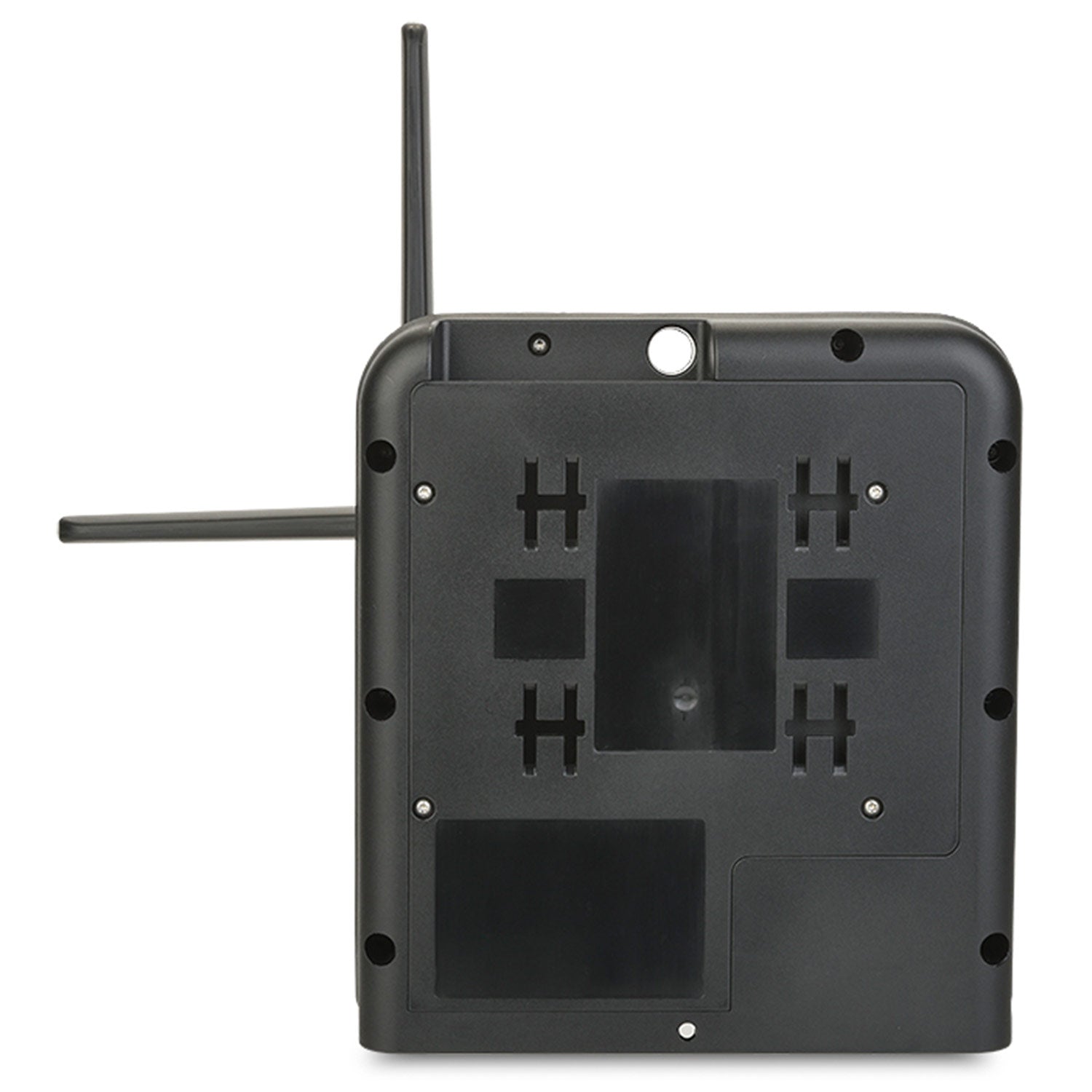

- Wall-mount plate
- Microphone stand mounts (metric and imperial threads)
- Tripod spigot mount
-
Connectivity
- Supports 10 FreeSpeak Edge beltpacks per transceiver
- Supports up to 64 transceivers on an Eclipse HX matrix system with 64 port E-IPA-HX card
- Robust radio link works in high multipath or reflective environments
- Wi-Fi coexistence
- Standalone mode for site survey and demo
- AES256 shared key encryption

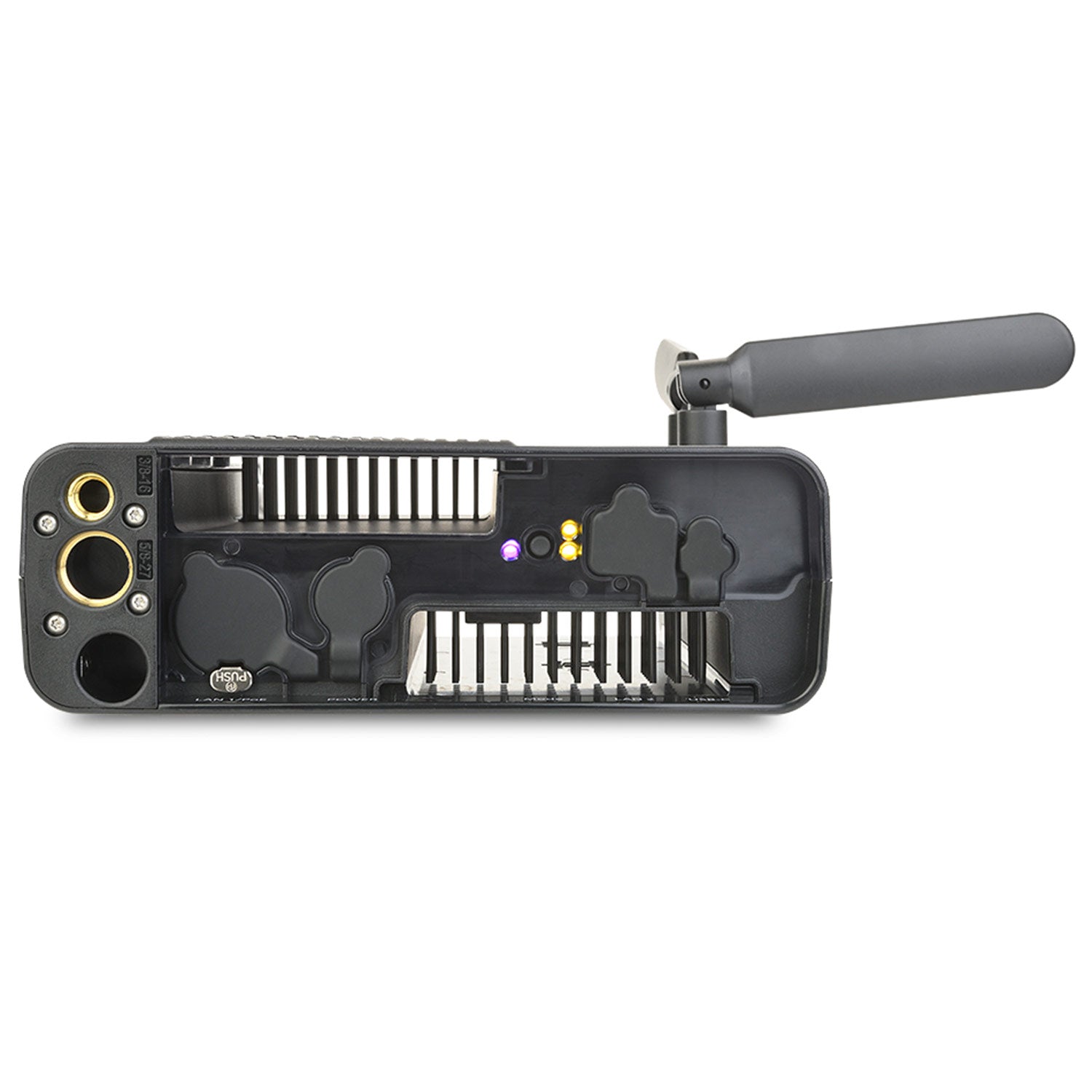

- Dual network connections
- etherCON RJ45 network connection
- High speed SFP fiber cage
- Power-over-Ethernet (PoE) up to 330ft (100m)
- Daisy-chaining up to three locally powered transceivers
-
Mechanical
- IP53 rating for wet and dusty conditions
The FSE-TCVR-50-IP is an active IP transceiver antenna for the FreeSpeak Edge wireless system. The transceiver delivers duplex communications from the Eclipse® HX matrix system via the E -IPA-HX interface card to the FreeSpeak Edge beltpacks. Each transceiver can support up to ten FSE-BP50 beltpacks. When supported with an E-IPA-HX card with 64 licensed ports, up to 64 FreeSpeak Edge beltpacks and 64 transceivers can be deployed with one Eclipse HX matrix system.
| Frequency Spectrum | 5170 -5875MHz (20MHz channels set by country) |
| Output Power | Adjustable from 1 Ð 24dBm (Maximum output power is determined by selected channel and country) |
| Modulation | OFDM |
| Antennas | 3dB Omni |
| Antenna Connector | RP-TNC |
| Power Supply | |
| Input Voltage | 100 to 240V AC (50 Ð 60Hz) |
| Output Voltage | 12V @ 5A (60W) |
| MTBF (min.) | 300,000 Hours (Calculated Hours at 25¼C by Telcordia SR-332) |
| Environmental | |
| IP53 water and dust resistance | |
| Operating | 32 to 113¡F (0 to 45¡C) |
| Storage | 86 to 158¡F (30 to 70¡C) |
| Humidity | 20-90% Non-Condensing |
| Dimensions | |
| With Transceiver Mount Bracket | 7.60 x 8.25 x 4.12in (WxHxD) (193.04 x 209.6 x 104.65mm) |
| Without Transceiver Mount Bracket | 7.60 x 8.25 x 3.37in (WxHxD) (193.04 x 209.6 x 85.6mm) |
| Transceiver Mount Bracket | 4.26 x 4.51 x 0.75in (WxHxD) (108.27 x 114.62 x 19.05mm) |
| Distance Between Vertical Screw Holes | 3.5in (88.9mm) |
| Distance Between Horizontal Screw Holes | 3in (76.2mm) |
| Weight | |
| With Transceiver Mount Bracket | 2.527lbs (1.15kg) |
| Without Transceiver Mount Bracket | 2.252lbs (1.02kg) |
