Clear-Com FSIC-BP19-X5 - FreeSpeak Icon Intercom Beltpack (5-Pin XLR)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

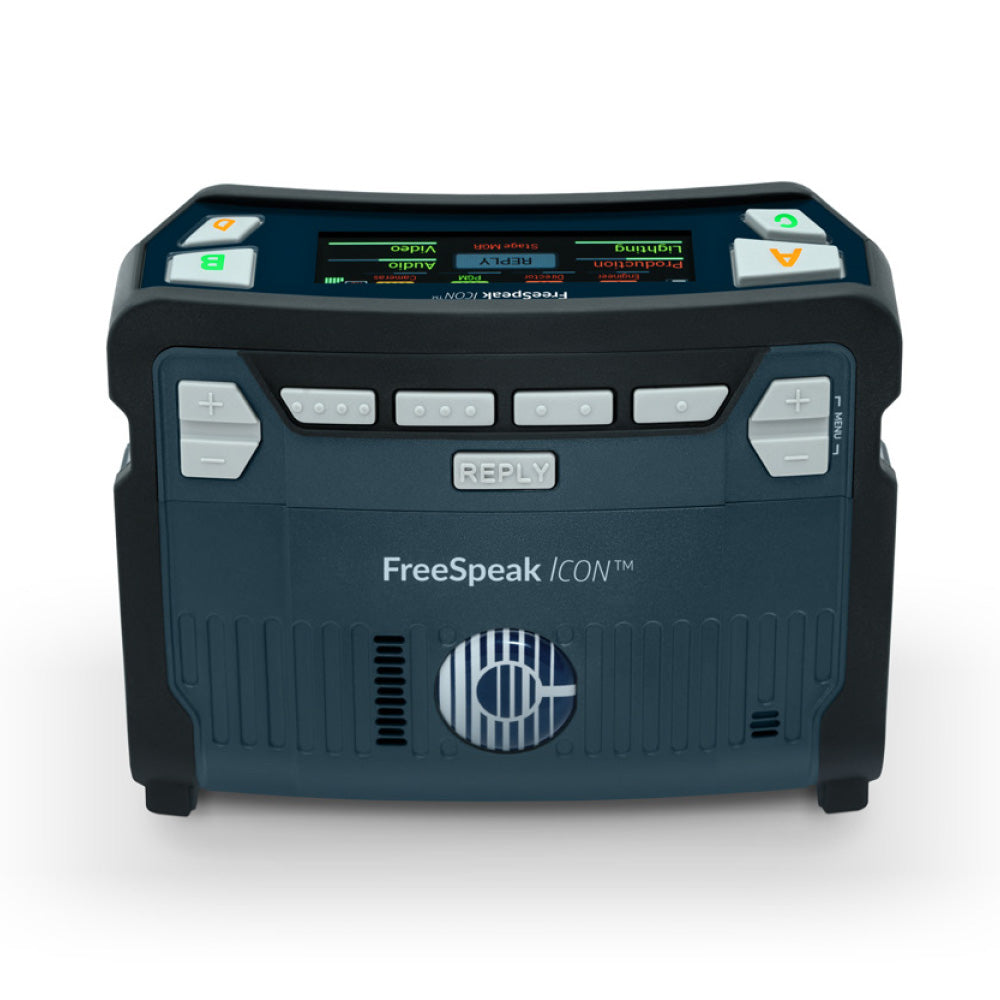

The FSIC-BP19 is a rugged, water-resistant multi-channel beltpack that operates in the 1.9 GHz band connecting to the FreeSpeak Edge Base, Arcadia Central Station1, and Eclipse HX2 frames via E-IPA cards. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A / B encoders, individual level controls for C / D, a dedicated master volume control, and a built-in mic and speaker station mode. The beltpack can be deployed on the same wireless network as the existing FreeSpeak II 1.9 GHz beltpack giving users two devices to utilize.
- Functions with FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- Supports up to 200 beltpacks on a single system

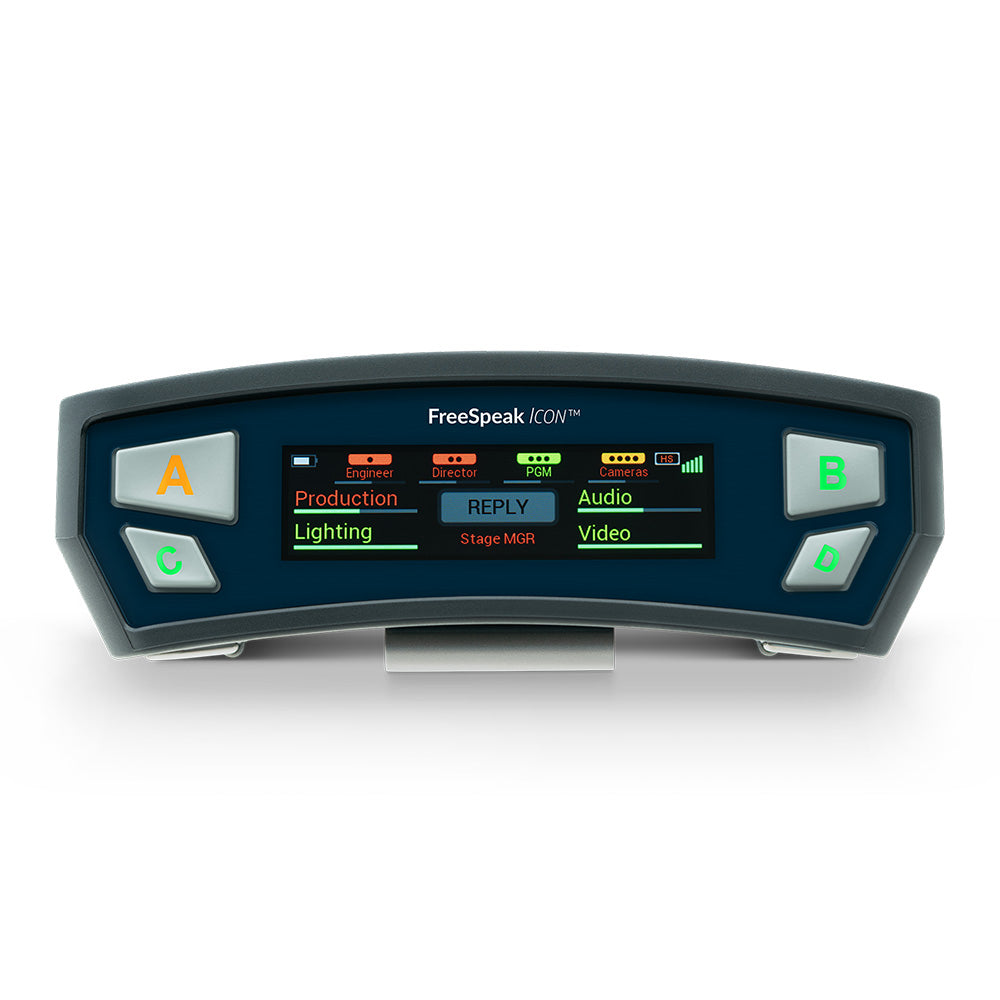

- TFT color display (120x480)
- 4 top buttons with individual level control
- 5 additional programmable buttons
- Rotary controls on both sides and up/down level controls
- Main volume control on bottom
- BLE (Bluetooth Low Energy) Radio
- Supports Bluetooth 5.2
- Built-in mic and speaker
- Built-in flashlight
- Drop-in and USB-C charging
- 1.9 GHz radio frequency
- Compatible with FSII E1 and IP transceivers
- 10 beltpacks per transceiver with the FSII IPT
- Low latency audio: under 35ms (70ms beltpack to beltpack)
- USB-C port for beltpack pairing and firmware updates and charging
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 9 keys |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 8 pushbuttons - A/B/C/D (top buttons) and 1/2/3/4 (front buttons), 1 reply button, 2 rotary encoders, 2 level up/down controls, and 1 (reprogrammable) main level control |
| Reply Button | 1 |
| Bluetooth | 5.3 Headset Profile |
| Bluetooth Codec | MSBC using HFP (Hands Free Profile) |
| Frequency Spectrum | |
| USA, Canada | 1920-1930 MHz |
| Transceiver Range Output Power | 100mW |
| Connectors | |

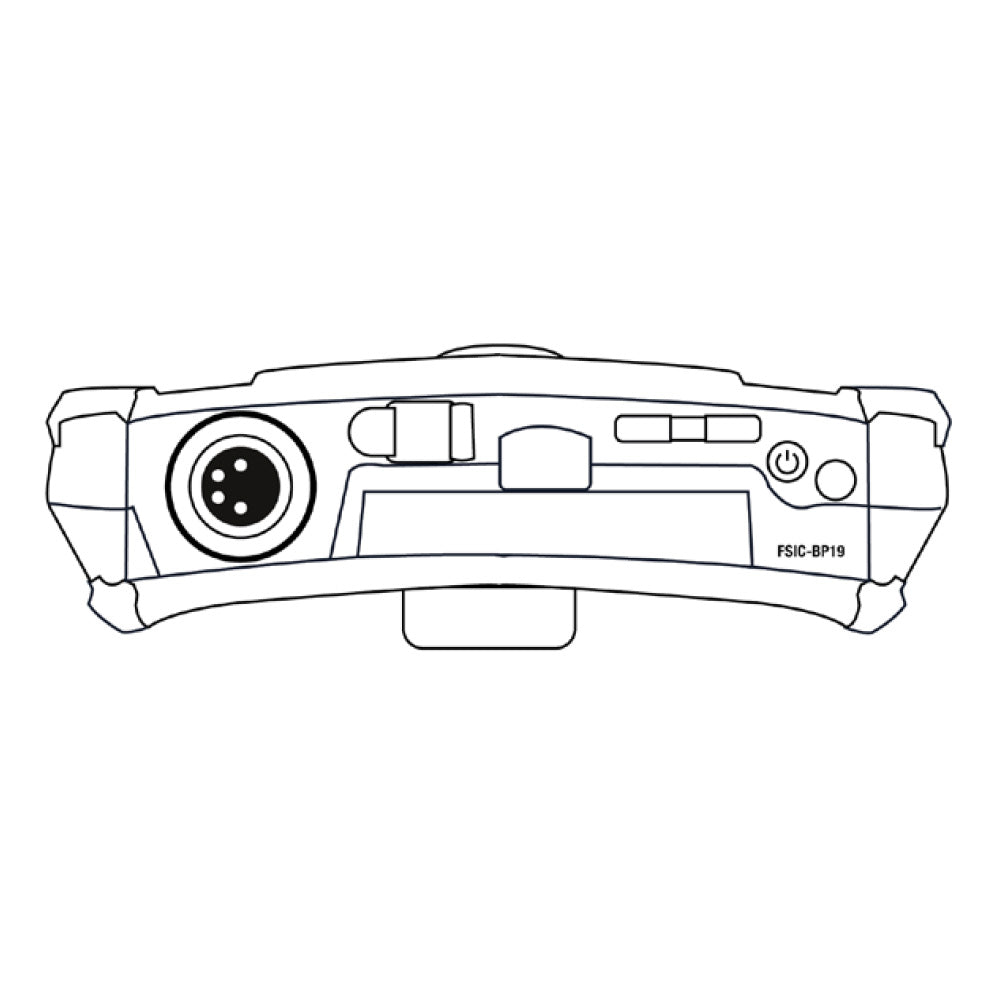

| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Microphone Voltage | Electret Mic: -40dBu Mic bias for Electret mode is 4.4V Dynamic Mic: -55dBu Mic bias for Dynamic mode is 1.8V |
| Headset Limiter | Selectable from beltpack menu |
| Max Distance (Beltpack To Transceiver, Indoor) | ~300-400ft (90-122m) |
| Max Distance (Beltpack To Transceiver, Outdoor) | ~600-800ft (183-450m) |
| Power | |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
| Output | (US) 18-20dBm |
| Battery | Li-Ion |
| Battery Charging | Drop-in charger (AC80) or local USB |
| Battery Life | 18+ hours |
| Environmental | |
| IP54 water and dust resistance | Operating: 14¼-125¼F (-10¼-50¼C) Storage: -22¼-150¼F (-30¼-70¼C) |
| Humidity | Between 20% and 90%, Non- Condensing |
| Dimensions | |
| Tapered design at largest points | 5.31 x 4.27 x 1.92in (WxHxD) (134.87 x 108.46 x 48.77mm) |
| Weight | Without Battery: 12.31oz (349g) With Battery: 16.23oz (460g) |
| Regulatory | |
| Regulatory Model | 1414 |
The FSIC-BP19 is a rugged, water-resistant multi-channel beltpack that operates in the 1.9 GHz band connecting to the FreeSpeak Edge Base, Arcadia Central Station1, and Eclipse HX2 frames via E-IPA cards. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A / B encoders, individual level controls for C / D, a dedicated master volume control, and a built-in mic and speaker station mode. The beltpack can be deployed on the same wireless network as the existing FreeSpeak II 1.9 GHz beltpack giving users two devices to utilize.
- Functions with FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- Supports up to 200 beltpacks on a single system
- TFT color display (120x480)
- 4 top buttons with individual level control
- 5 additional programmable buttons
- Rotary controls on both sides and up/down level controls
- Main volume control on bottom
- BLE (Bluetooth Low Energy) Radio
- Supports Bluetooth 5.2
- Built-in mic and speaker
- Built-in flashlight
- Drop-in and USB-C charging
- 1.9 GHz radio frequency
- Compatible with FSII E1 and IP transceivers
- 10 beltpacks per transceiver with the FSII IPT
- Low latency audio: under 35ms (70ms beltpack to beltpack)
- USB-C port for beltpack pairing and firmware updates and charging
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 9 keys |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 8 pushbuttons - A/B/C/D (top buttons) and 1/2/3/4 (front buttons), 1 reply button, 2 rotary encoders, 2 level up/down controls, and 1 (reprogrammable) main level control |
| Reply Button | 1 |
| Bluetooth | 5.3 Headset Profile |
| Bluetooth Codec | MSBC using HFP (Hands Free Profile) |
| Frequency Spectrum | |
| USA, Canada | 1920-1930 MHz |
| Transceiver Range Output Power | 100mW |
| Connectors | |
| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Microphone Voltage | Electret Mic: -40dBu Mic bias for Electret mode is 4.4V Dynamic Mic: -55dBu Mic bias for Dynamic mode is 1.8V |
| Headset Limiter | Selectable from beltpack menu |
| Max Distance (Beltpack To Transceiver, Indoor) | ~300-400ft (90-122m) |
| Max Distance (Beltpack To Transceiver, Outdoor) | ~600-800ft (183-450m) |
| Power | |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
| Output | (US) 18-20dBm |
| Battery | Li-Ion |
| Battery Charging | Drop-in charger (AC80) or local USB |
| Battery Life | 18+ hours |
| Environmental | |
| IP54 water and dust resistance | Operating: 14¼-125¼F (-10¼-50¼C) Storage: -22¼-150¼F (-30¼-70¼C) |
| Humidity | Between 20% and 90%, Non- Condensing |
| Dimensions | |
| Tapered design at largest points | 5.31 x 4.27 x 1.92in (WxHxD) (134.87 x 108.46 x 48.77mm) |
| Weight | Without Battery: 12.31oz (349g) With Battery: 16.23oz (460g) |
| Regulatory | |
| Regulatory Model | 1414 |
