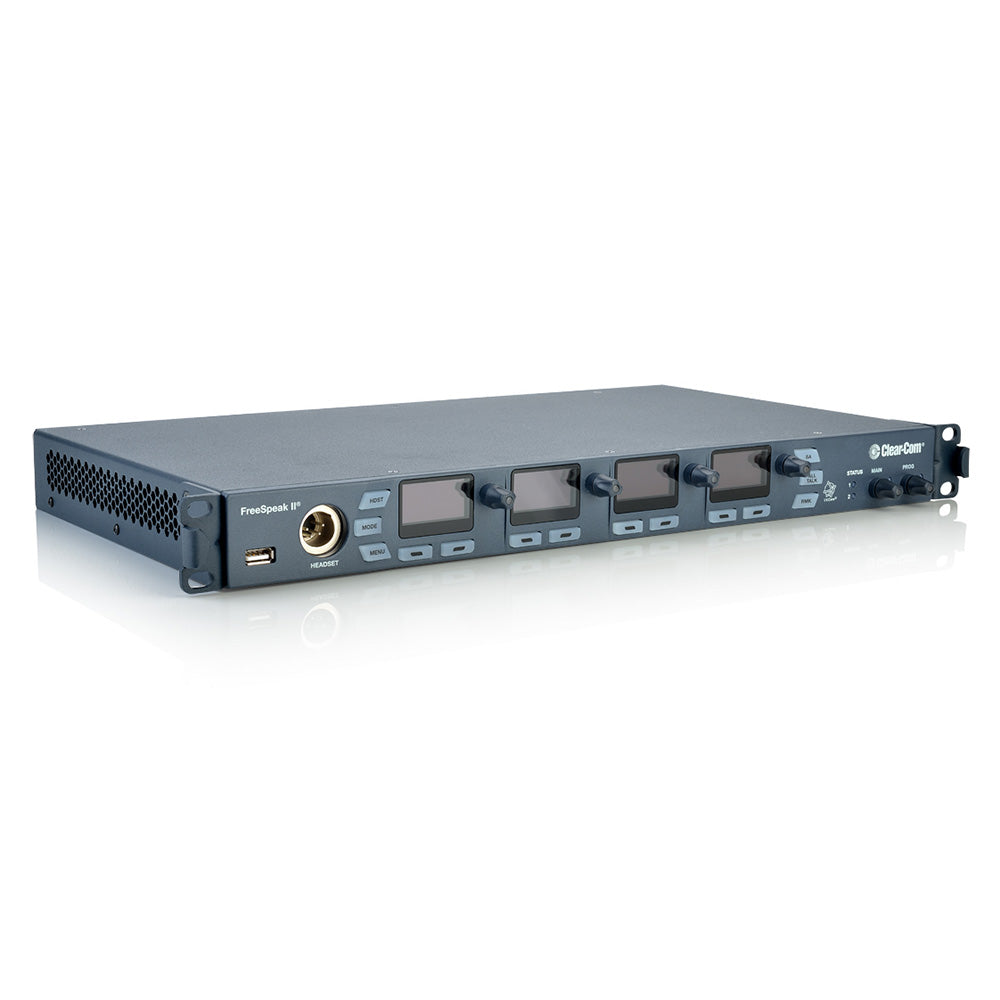

Clear-Com FSII-BASE-II-5 FreeSpeak II Base Station for 5 Beltpacks
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FreeSpeak II-Base-II-5 is a standalone wireless system that can connect up to 5 full-duplex beltpacks. Up to 10 active transceiver antennas can enable beltpack-to-base staion distance range up to 3,200ft (1,000m). The system has 4-wire and partyline intercom connectivity, program feed input, stage announce, IFB, up to 5 wireless partyline groups and partyline call alert functionality. The base station can intelligently mix 1.9GHz and 2.4GHz system components, such as wireless beltpacks and transceiver antennas on the same system.
Features:
- Routing and configuration of up to 5 FSII beltpacks
- Browser-based configuration tool
- Multi-mode user interface with monitoring, setup and main station modes with assignable soft keys
- Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
| Base-to-Beltpack Frequency Response | 100Hz - 7.1kHz |
| No. of Beltpacks per Base Station | 5 |
| No. of Transceiver/ Antennas Supported by Base | 10 |
| No. of Active Transceiver Ports | 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver |
| PC Programming Port | 2 LAN RJ45 |
| Relay Port | DB15, supports one relay assigned to the SA out |
| Partyline A ,B,C,D (each) | XLR-3F, on/off termination switch, Clear-Com and RTS compatible |
| Partyline Power On/Off | A/B, C/D paired |
| Partyline Output Voltage | 26 - 28VDC, 850mA per pair (A/B or C/D) |
| Four-Wire/Matrix Connection | 4 RJ45 |
| Program Input | XLR-3F, transformer isolated, line-level input |
| Stage Announce | Output: XLR-3M, transformer isolated, line-level output |
| Front Panel Headset | 4-pin male and 5-pin female options |
| Front Panel Displays | 4 OLEDÕs with encoders and assignable soft keys |
| Front Panel Indicators | Antenna Status, Beltpack Status |
| External Power Supply Connection | 12VDC |
| Base Station Programming/Editing | Push-to-enter rotary encoder |
| Dimensions | 1.75 x 19.0 x 10.2 in (HxWxD) (44 x 483 x 259 mm) |
| Weight | 5.57 lbs (2.5 kg) |
The FreeSpeak II-Base-II-5 is a standalone wireless system that can connect up to 5 full-duplex beltpacks. Up to 10 active transceiver antennas can enable beltpack-to-base staion distance range up to 3,200ft (1,000m). The system has 4-wire and partyline intercom connectivity, program feed input, stage announce, IFB, up to 5 wireless partyline groups and partyline call alert functionality. The base station can intelligently mix 1.9GHz and 2.4GHz system components, such as wireless beltpacks and transceiver antennas on the same system.
Features:
- Routing and configuration of up to 5 FSII beltpacks
- Browser-based configuration tool
- Multi-mode user interface with monitoring, setup and main station modes with assignable soft keys
- Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
| Base-to-Beltpack Frequency Response | 100Hz - 7.1kHz |
| No. of Beltpacks per Base Station | 5 |
| No. of Transceiver/ Antennas Supported by Base | 10 |
| No. of Active Transceiver Ports | 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver |
| PC Programming Port | 2 LAN RJ45 |
| Relay Port | DB15, supports one relay assigned to the SA out |
| Partyline A ,B,C,D (each) | XLR-3F, on/off termination switch, Clear-Com and RTS compatible |
| Partyline Power On/Off | A/B, C/D paired |
| Partyline Output Voltage | 26 - 28VDC, 850mA per pair (A/B or C/D) |
| Four-Wire/Matrix Connection | 4 RJ45 |
| Program Input | XLR-3F, transformer isolated, line-level input |
| Stage Announce | Output: XLR-3M, transformer isolated, line-level output |
| Front Panel Headset | 4-pin male and 5-pin female options |
| Front Panel Displays | 4 OLEDÕs with encoders and assignable soft keys |
| Front Panel Indicators | Antenna Status, Beltpack Status |
| External Power Supply Connection | 12VDC |
| Base Station Programming/Editing | Push-to-enter rotary encoder |
| Dimensions | 1.75 x 19.0 x 10.2 in (HxWxD) (44 x 483 x 259 mm) |
| Weight | 5.57 lbs (2.5 kg) |
