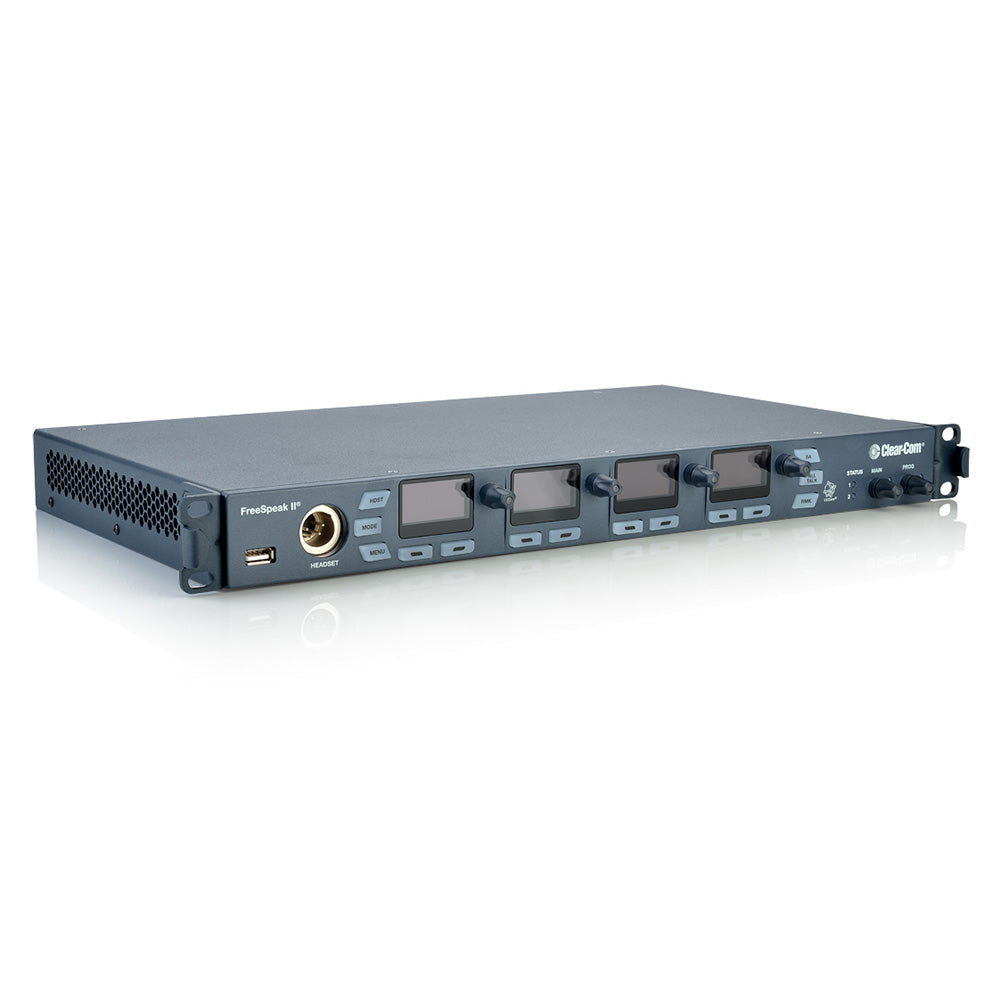

Clear-Com FSII-BASE-II-5 FreeSpeak II Base Station for 5 Beltpacks (with XLR5 Headset Connection)


  • Dale #:

    CLEA-FSIIBASEIIX5
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The FreeSpeak II-Base-II-5 is a standalone wireless system that can connect up to 5 full-duplex beltpacks. Up to 10 active transceiver antennas can enable beltpack-to-base staion distance range up to 3,200ft (1,000m). The system has 4-wire and partyline intercom connectivity, program feed input, ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The FreeSpeak II-Base-II-5 is a standalone wireless system that can connect up to 5 full-duplex beltpacks. Up to 10 active transceiver antennas can enable beltpack-to-base staion distance range up to 3,200ft (1,000m). The system has 4-wire and partyline intercom connectivity, program feed input, stage announce, IFB, up to 5 wireless partyline groups and partyline call alert functionality. The base station can intelligently mix 1.9GHz and 2.4GHz system components, such as wireless beltpacks and transceiver antennas on the same system.

Features:

  • Routing and configuration of up to 5 FSII beltpacks
  • Browser-based configuration tool
  • Multi-mode user interface with monitoring, setup and main station modes with assignable soft keys
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station

More +

Product Specs

Base-to-Beltpack Frequency Response 100Hz - 7.1kHz
No. of Beltpacks per Base Station 5
No. of Transceiver/ Antennas Supported by Base 10
No. of Active Transceiver Ports 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
PC Programming Port 2 LAN RJ45
Relay Port DB15, supports one relay assigned to the SA out
Partyline A ,B,C,D (each) XLR-3F, on/off termination switch, Clear-Com and RTS compatible
Partyline Power On/Off A/B, C/D paired
Partyline Output Voltage 26 - 28VDC, 850mA per pair (A/B or C/D)
Four-Wire/Matrix Connection 4 RJ45
Program Input XLR-3F, transformer isolated, line-level input
Stage Announce Output: XLR-3M, transformer isolated, line-level output
Front Panel Headset 4-pin male and 5-pin female options
Front Panel Displays 4 OLED’s with encoders and assignable soft keys
Front Panel Indicators Antenna Status, Beltpack Status
External Power Supply Connection 12VDC
Base Station Programming/Editing Push-to-enter rotary encoder
Dimensions 1.75 x 19.0 x 10.2 in (HxWxD)
(44 x 483 x 259 mm)
Weight 5.57 lbs (2.5 kg)
