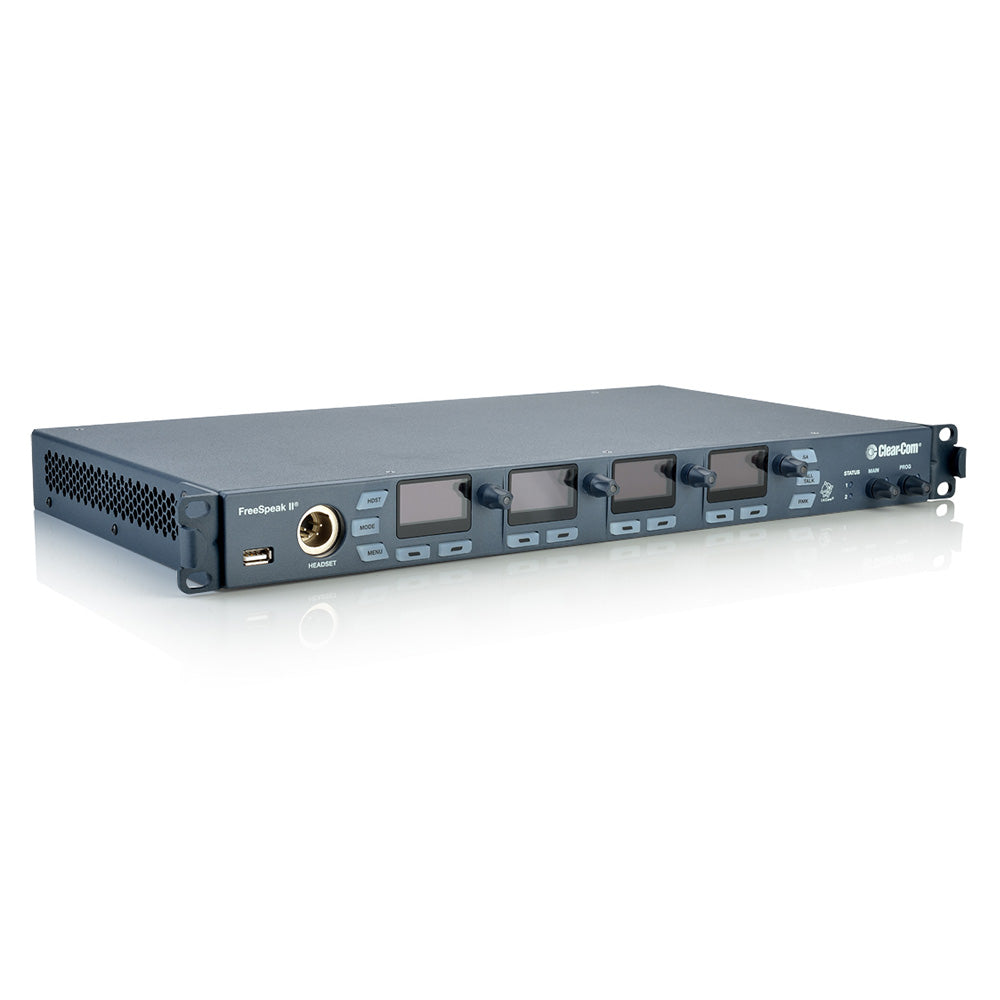

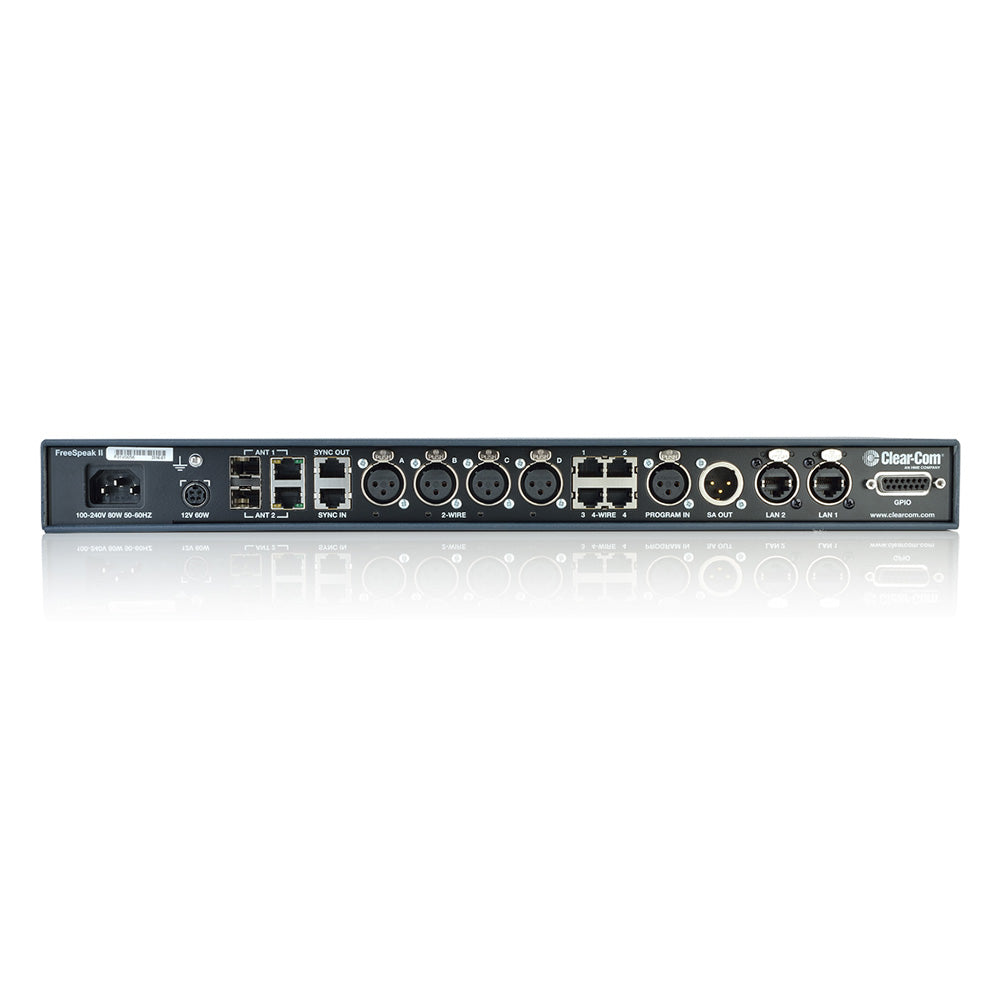

Clear-Com FSII-BASE-II FreeSpeak Digital Wireless Base Station
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9GHz and 2.4GHz active transceiver and beltpacks with four 2-wire analog partyline connections, four 4-wire audio connections and four digital displays with soft keys. The base station can operate a mix of up to 25 1.9GHz and/or 2.4 GHz beltpacks on a single system. The base station can be used in Main Station mode with Talk and Call soft keys or as a Headset Station for communication and monitoring from the panel.The base station's digital displays allow easy system configuration directly from the base station or through the browser-based Core Configuration Manager tool.
Features:
- Routing and configuration of up to 25 FSII beltpacks
- Browser-based configuration tool
- Four 2-wire ports with call signal, auto-nulling
- Four 4-wire ports with call signal
- One dry contact relays
- Multi-mode user interface with monitoring, setup and main station modes with assignable soft keys
- Dedicated front panel keys for remote mic kill, stage announce and all talk
- Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
- Matrix and partyline configurations support up to 12 channels and/or groups
| Base-to-Beltpack Frequency Response | 100Hz - 7.1kHz |
| No. of Beltpacks per Base Station | 25 |
| No. of Transceiver/ Antennas Supported by Base | 10 |
| No. of Active Transceiver Ports | 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver |
| PC Programming Port | 2 LAN RJ45 |
| Relay Port | DB15, supports 1 set of relays and 2 GPI |
| Partyline A ,B,C,D (each) | XLR-3F, on/off termination switch, Clear-Com and RTS compatible |
| Partyline Power On/Off | A/B, C/D paired |
| Partyline Output Voltage | 26 - 28VDC, 850mA per pair (A/B or C/D) |
| Four-Wire/Matrix Connection | 4 RJ-45 |
| Program Input | XLR-3F, transformer isolated, line-level input |
| Stage Announce Output | XLR-3M, transformer isolated, line-level output |
| Front Panel Headset | 4-pin male and 5-pin female options |

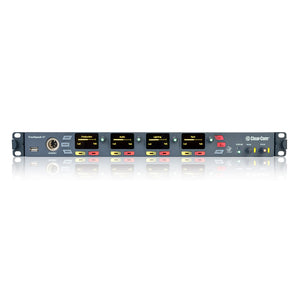

| Front Panel Displays | 4 OLEDÕs with encoders and assignable soft keys |
| Front Panel Indicators | Antenna Status, Beltpack Status |
| External Power Supply Connection | 12VDC |
| Base Station Programming/Editing | Push-to-enter rotary encoder |
| Dimensions | 1.75 x 19.0 x 10.2 in (HxWxD) (44 x 483 x 259 mm) |
| Weight | 5.57 lbs (2.5 kg) |
