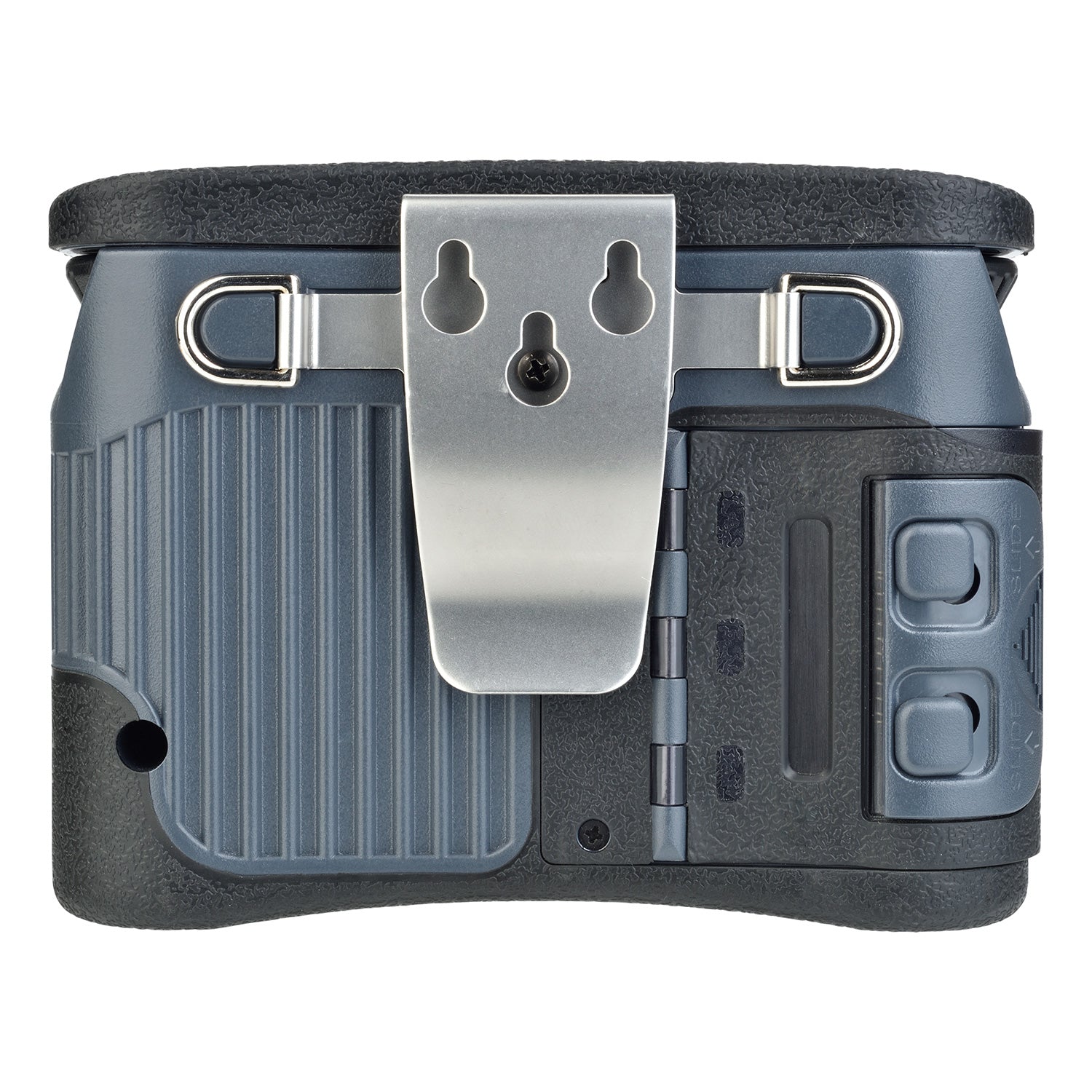

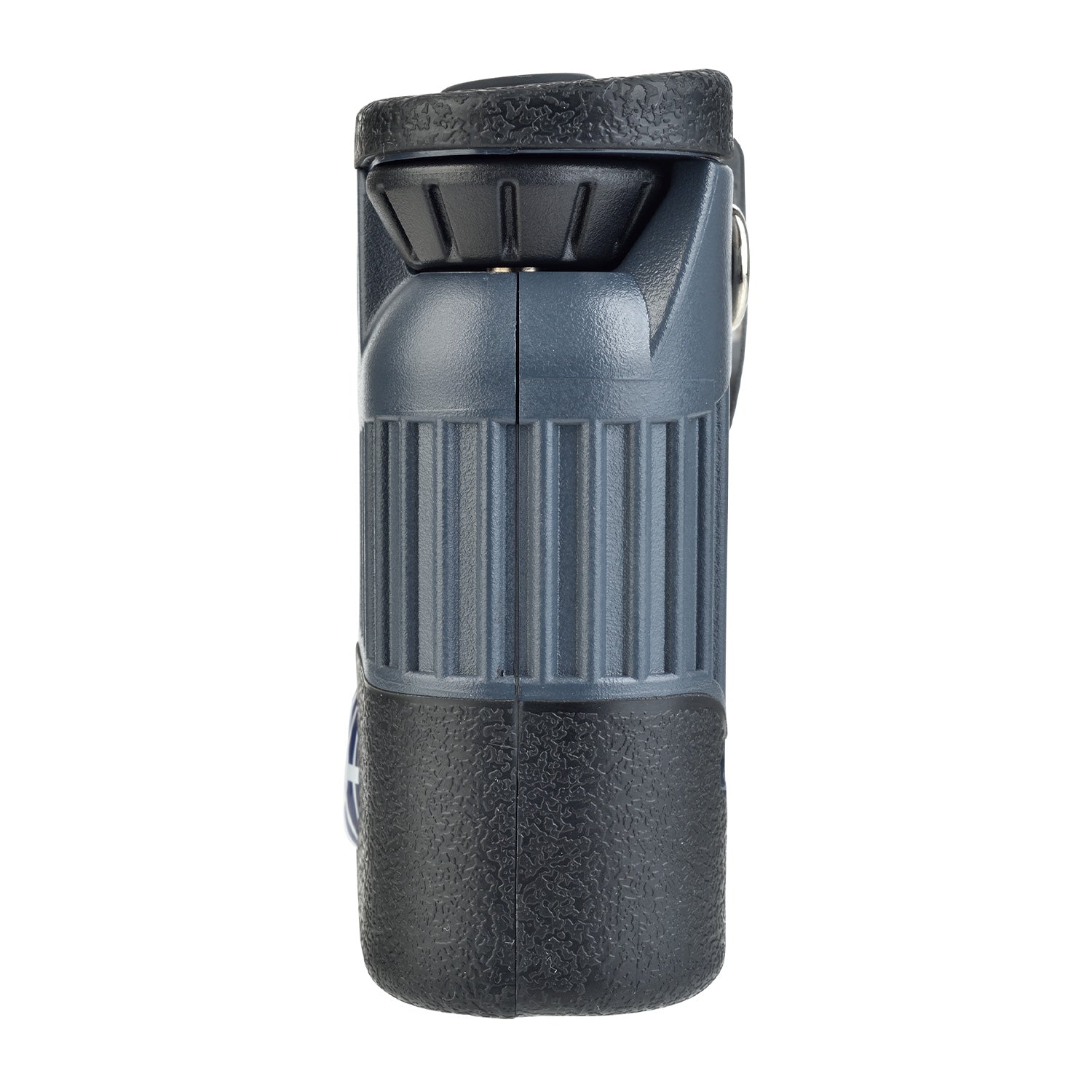

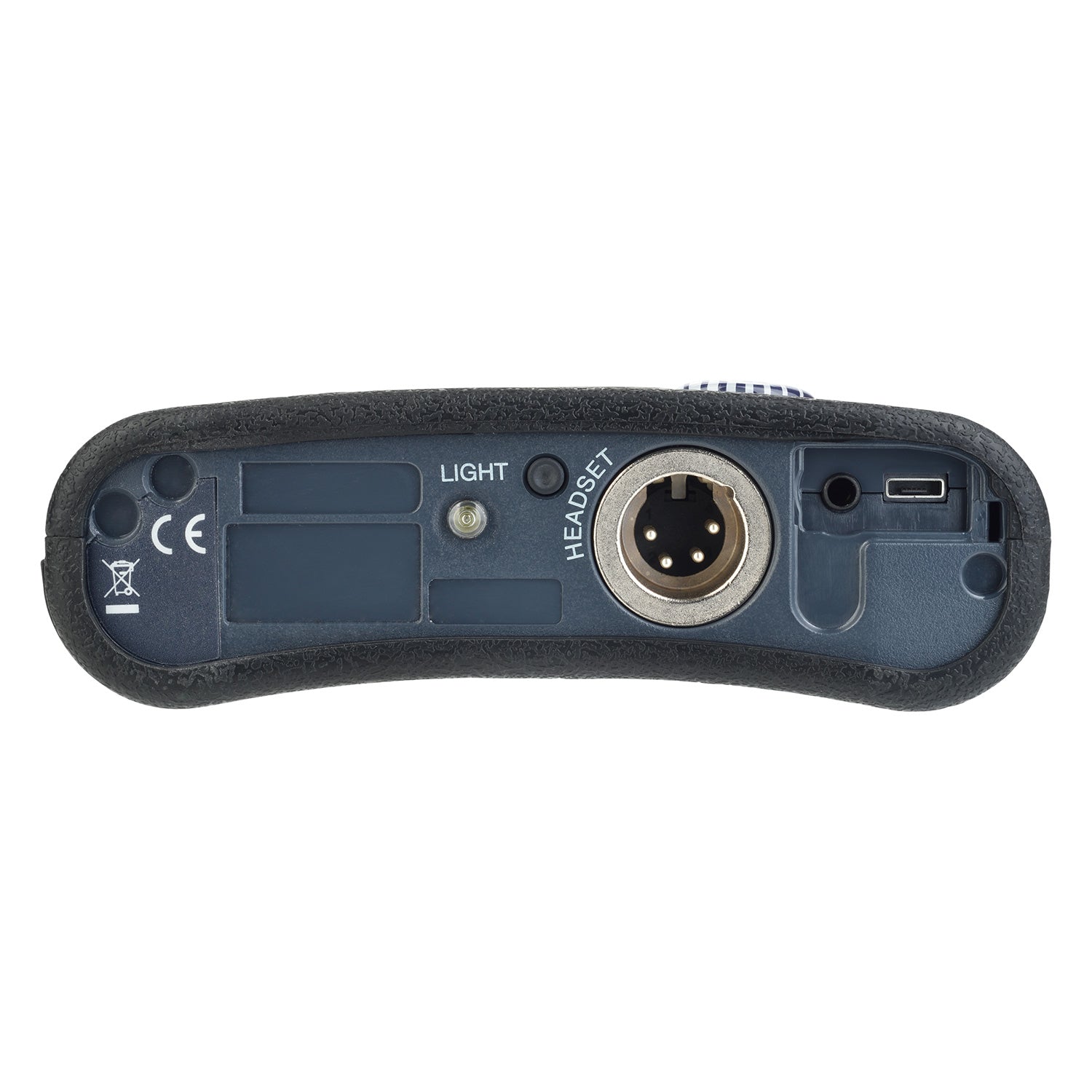

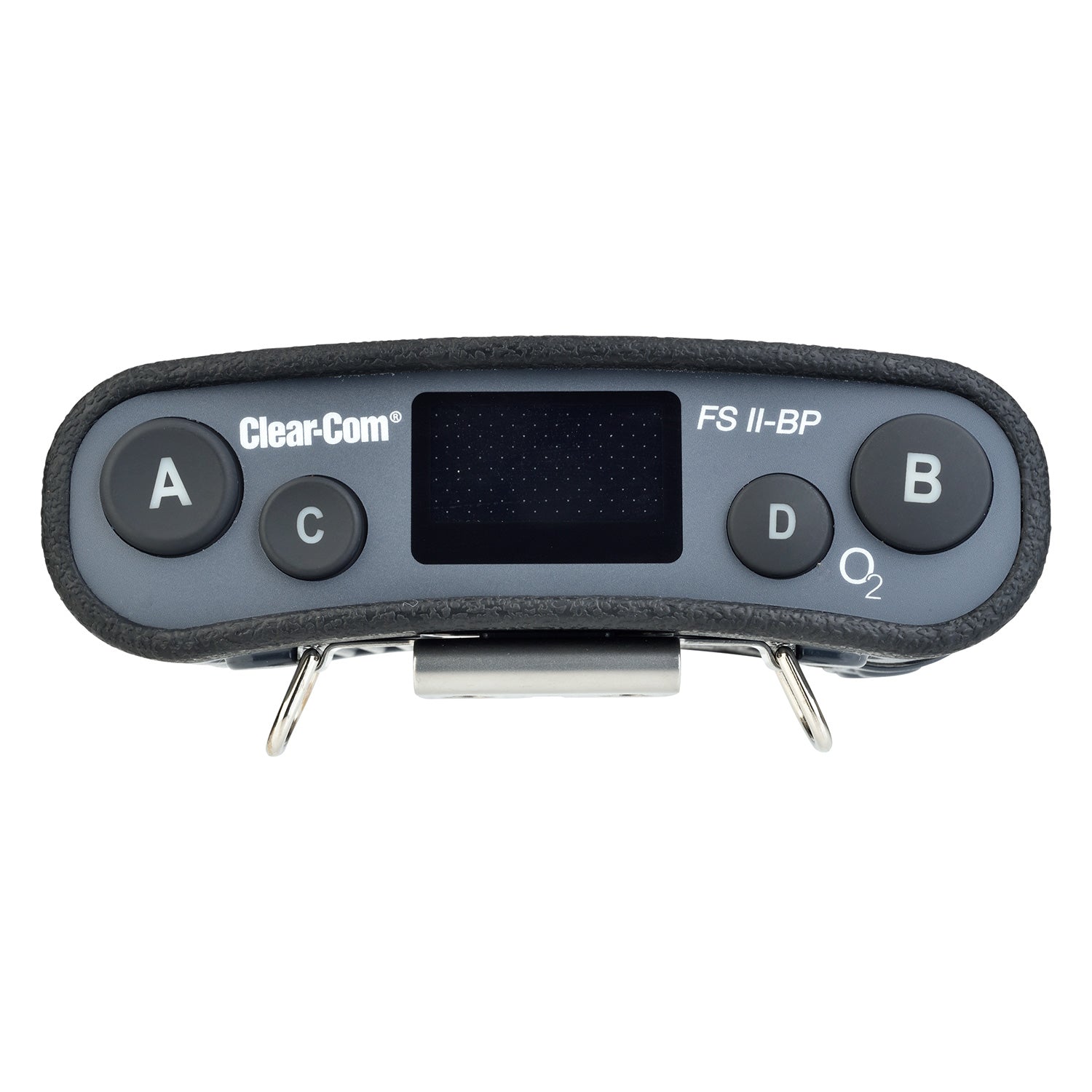

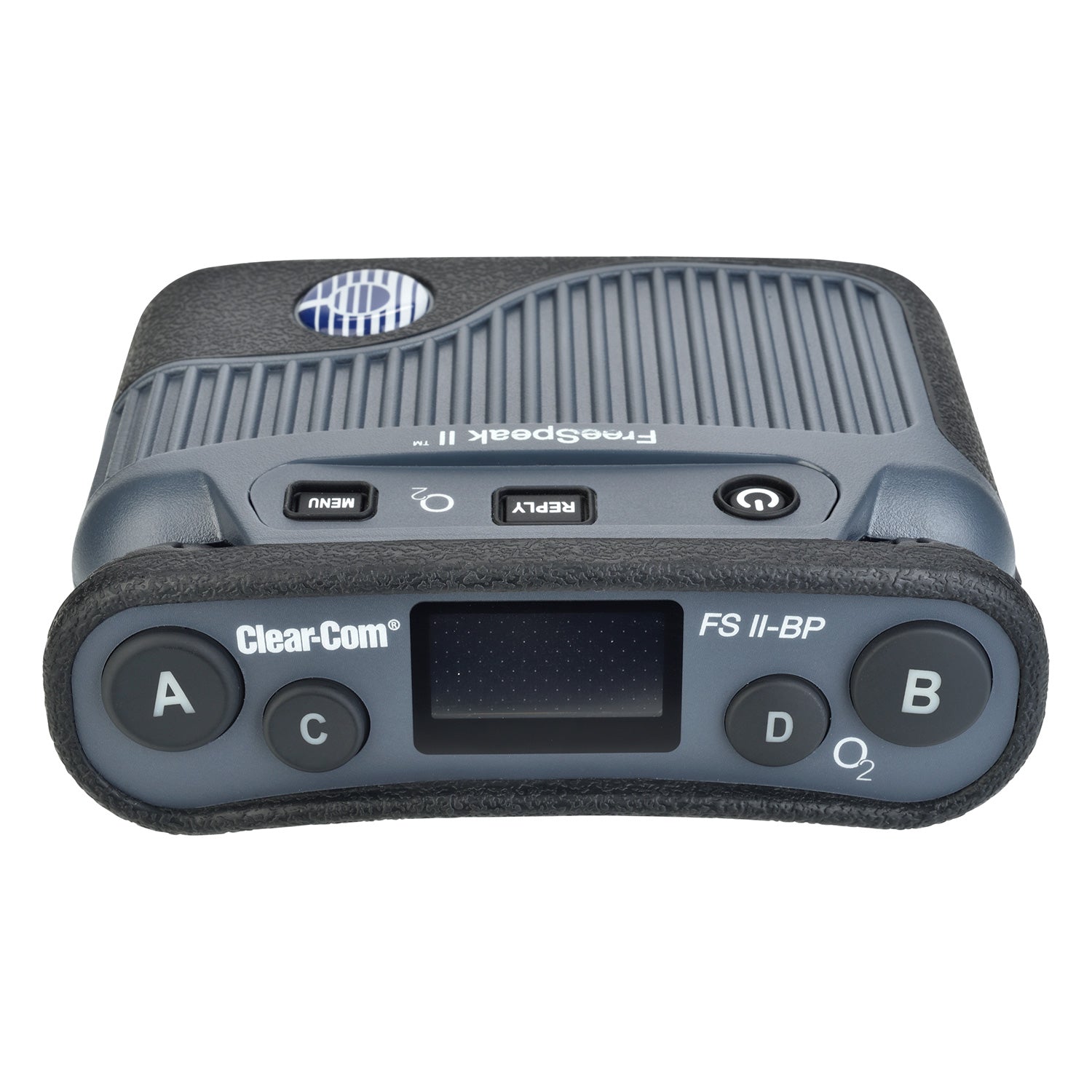

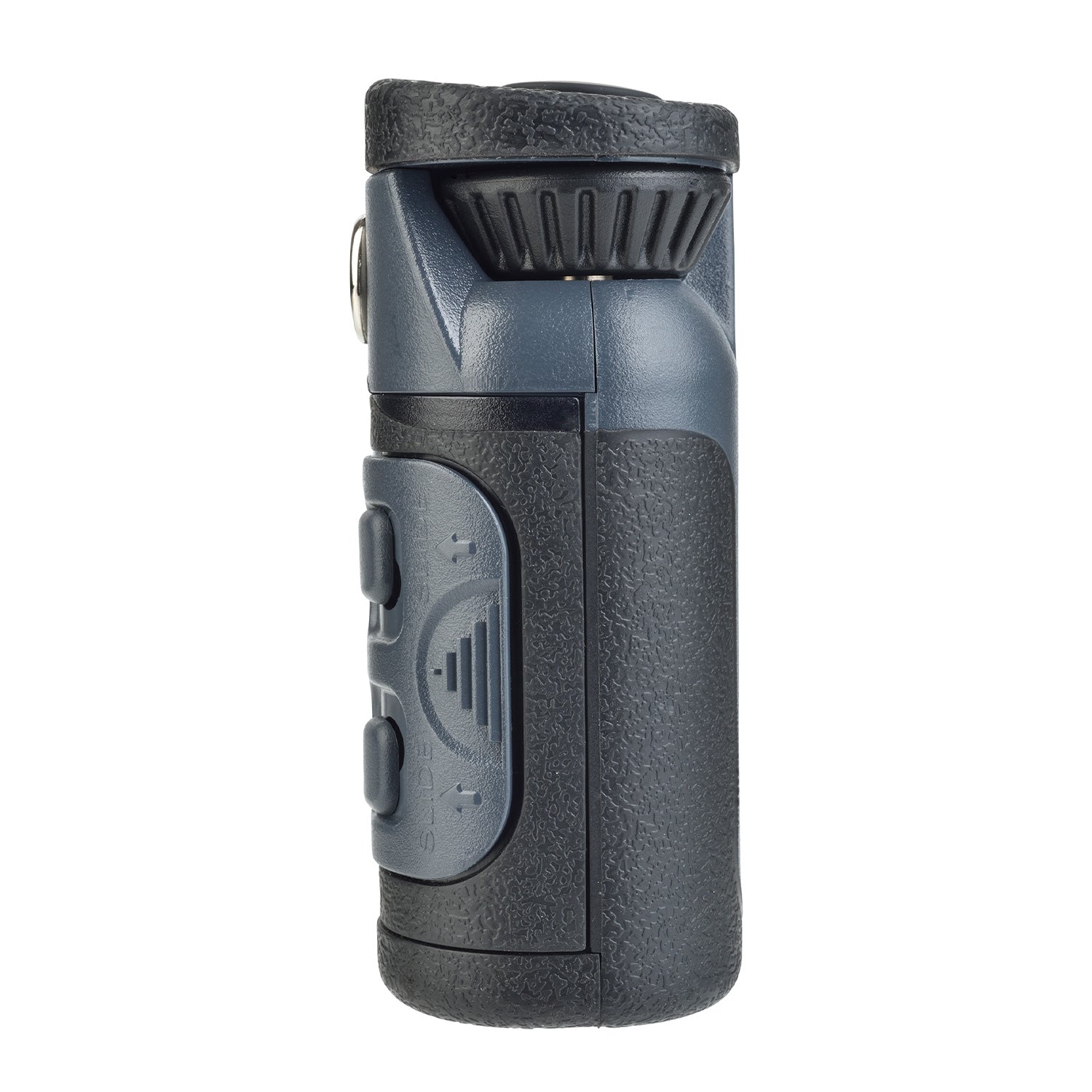

Clear-Com FSII-BP19-X4-O2 - FreeSpeak II 1.9 GHz Wireless Intercom Beltpack (High-Oxygen / XLR4M)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Special version of the FreeSpeak II beltpack for use in hyperbaric environments.
The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.
FreeSpeak II¨ 1.9 beltpacks with firmware version 5.3.32.0 upwards support Bluetooth¨ headsets.
Features:
- Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- 1.9, 2.4 and 5.0 GHz beltpacksÊoperate on a single system
- Supports up to 200 beltpacks on a single system (see Capacity Chart for details)
- Encoder Volume Swap betweenÊA-C and B-D
- "Listen Again" message replay
- Simple 2-channel partylineÊoperation to 5-channel intercomÊon the same beltpack
- Over-the-air beltpack registration
- 1.9 GHz radio frequency
- Typical range 300ft (90m), outdoor range 800ft (240m)
- Robust radio link works in high multipath or reflective environments
- FSII 1.9 beltpacks supports Bluetooth headset connection up to version 5.1
- IP53 rating for wet and dusty conditions
- 18+ hour battery life or USB portÊfor continuous operation
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |
| Bluetooth 4.3 Headset Profile | |
| Codec | MSBC using HFP (Hands Free Profile) |
| Frequency Spectrum | |
| USA, Canada, Mexico | 1920-1930 MHz |
| Transceiver Range Output Power | 100mW |
| Connectors | |
| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Microphone Voltage | Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor). |
| Dynamic Mic | -55dBu |
| Headset Limiter | Selectable from beltpack menu |
| Power | |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
| Output Power | 18-20dBm |
| Range | Typical indoor range 300ft (90m), outdoor range 800ft (240m) |
| Battery | Li-Ion or 3 AA alkaline cells |
| Battery Charging | Drop-in charger (AC60) or local USB |
| Battery Life | 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells |
| Environmental | |
| Rating | IP53 water and dust resistance |
| Temperature | Operating: 32¼-125¼F (0¼-50¼C) Storage: 32¼-150¼F (0¼-70¼C) |
| Humidity | Between 20% and 90%, Non-Condensing |
| Dimensions | |
| Tapered design at largest points | 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm) |
| Weight | 9.0oz (0.4kg) including batteries |
Special version of the FreeSpeak II beltpack for use in hyperbaric environments.
The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.
FreeSpeak II¨ 1.9 beltpacks with firmware version 5.3.32.0 upwards support Bluetooth¨ headsets.
Features:
- Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- 1.9, 2.4 and 5.0 GHz beltpacksÊoperate on a single system
- Supports up to 200 beltpacks on a single system (see Capacity Chart for details)
- Encoder Volume Swap betweenÊA-C and B-D
- "Listen Again" message replay
- Simple 2-channel partylineÊoperation to 5-channel intercomÊon the same beltpack
- Over-the-air beltpack registration
- 1.9 GHz radio frequency
- Typical range 300ft (90m), outdoor range 800ft (240m)
- Robust radio link works in high multipath or reflective environments
- FSII 1.9 beltpacks supports Bluetooth headset connection up to version 5.1
- IP53 rating for wet and dusty conditions
- 18+ hour battery life or USB portÊfor continuous operation
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |
| Bluetooth 4.3 Headset Profile | |
| Codec | MSBC using HFP (Hands Free Profile) |
| Frequency Spectrum | |
| USA, Canada, Mexico | 1920-1930 MHz |
| Transceiver Range Output Power | 100mW |
| Connectors | |
| Headset Connector | 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT |
| Headset Voltage | Maximum of ~+8dBu as set by firmware |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Microphone Voltage | Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor). |
| Dynamic Mic | -55dBu |
| Headset Limiter | Selectable from beltpack menu |
| Power | |
| Modulation | GFSK, TDMA frame 10ms Full and Long slot |
| Output Power | 18-20dBm |
| Range | Typical indoor range 300ft (90m), outdoor range 800ft (240m) |
| Battery | Li-Ion or 3 AA alkaline cells |
| Battery Charging | Drop-in charger (AC60) or local USB |
| Battery Life | 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells |
| Environmental | |
| Rating | IP53 water and dust resistance |
| Temperature | Operating: 32¼-125¼F (0¼-50¼C) Storage: 32¼-150¼F (0¼-70¼C) |
| Humidity | Between 20% and 90%, Non-Condensing |
| Dimensions | |
| Tapered design at largest points | 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm) |
| Weight | 9.0oz (0.4kg) including batteries |
