Clear-Com FSII-BP24-O2 - FreeSpeak II Intercom Beltpack for High-Oxygen Environments
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FSII O2 2.4 GHz beltpack is specifically designed to work in Hyperbaric chambers safely, operating at atmospheric pressures of 5.1 atm, 517 kPa, or 75 psi with a change of +/- 26 psi per minute without damage.
Features:
- Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
- Designed to work at atmospheric pressure up to 75 psi
- Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240 m)
- 1.9 and 2.4 GHz beltpacks operate on a single system
- Up to 65 - 90 beltpacks on a single system
- "Listen Again" message replay
- Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
- Over-the-air beltpack registration

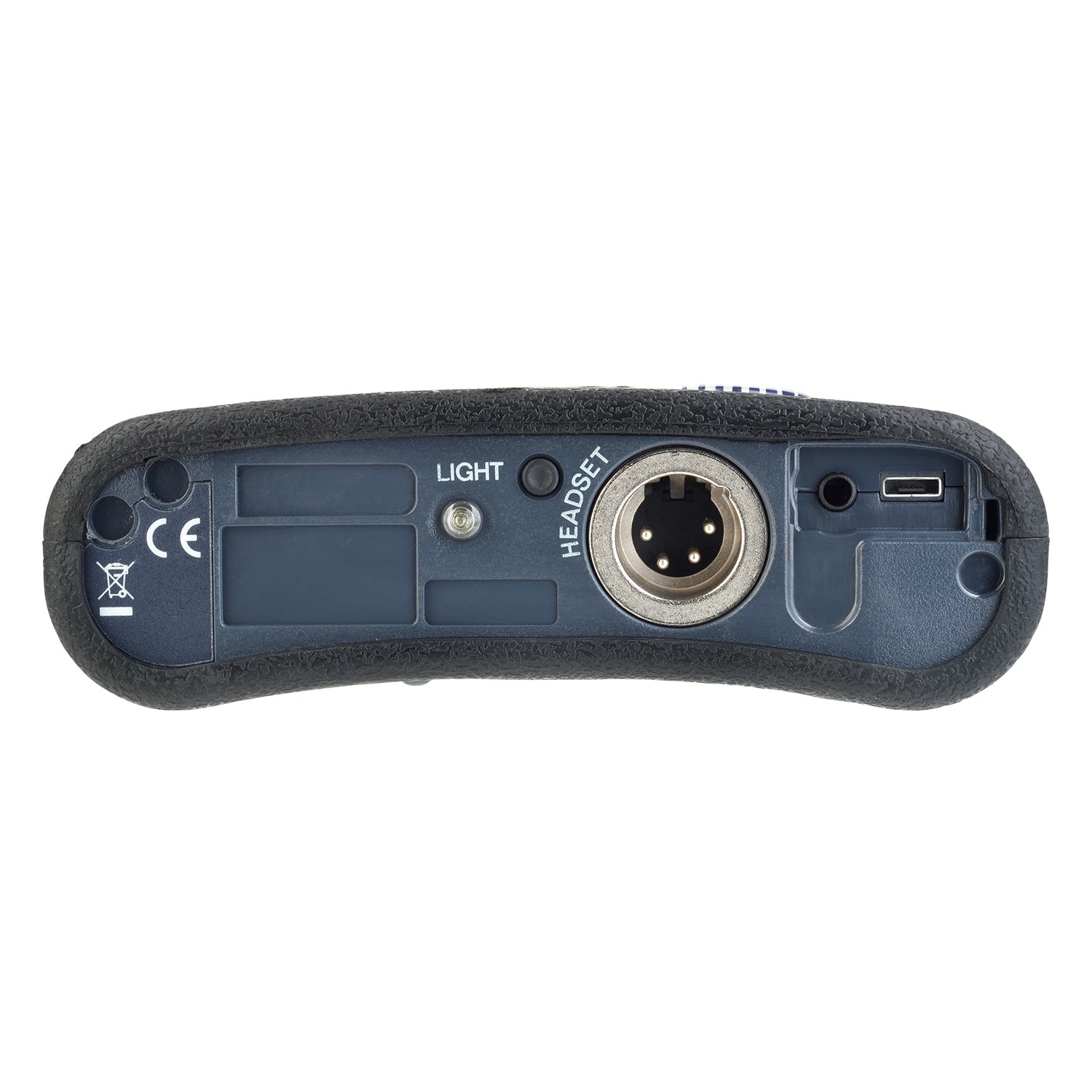

- XLR-4M headset connector
- IP53 rating for wet and dusty conditions
- Built-in flashlight
- Uses AA alkaline or rechargeable Nickel Metal Hydride batteries
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |
| Radio | |
| Frequency Spectrum | 2.400-2.483MHz for EU and US cellular auto roaming technology |
| Modulation | GFSK, TDMA frame 10ms full slot |
| Output power | (EU) 18dBm, (RoW) 22dBm |
| Range | Typical indoor range 300ft (90m), outdoor range 800ft (240m) |
| Battery | 3 AA alkaline or Nickel Metal Hydride |
| Battery Life | 9+ hours |
| Headset Connector | 4-pin male |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Headset Limiter | Selectable from beltpack menu |
| Environmental | IP53 water and dust resistant |
| Temperature | Operating: 32¼-125¼F (0¼-50¼C) Storage: 32¼-150¼F (0¼-70¼C) |
| Humidity | Between 20% and 90%, Non-Condensing Atmospheric pressures of 5.1 atm or 75 psi |
| Dimensions | Tapered design at largest points 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm) |
| Weight | 9.0 oz (0.25 kg) including batteries |
The FSII O2 2.4 GHz beltpack is specifically designed to work in Hyperbaric chambers safely, operating at atmospheric pressures of 5.1 atm, 517 kPa, or 75 psi with a change of +/- 26 psi per minute without damage.
Features:
- Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
- Designed to work at atmospheric pressure up to 75 psi
- Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240 m)
- 1.9 and 2.4 GHz beltpacks operate on a single system
- Up to 65 - 90 beltpacks on a single system
- "Listen Again" message replay
- Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
- Over-the-air beltpack registration
- XLR-4M headset connector
- IP53 rating for wet and dusty conditions
- Built-in flashlight
- Uses AA alkaline or rechargeable Nickel Metal Hydride batteries
| Audio | |
| Audio Bandwidth | 200Hz-7.5KHz |
| No. of Full-Duplex Audio Paths | Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume |
| Mode of Operation | Full duplex on all routes |
| Level/Talk Controls | 4 pushbuttons, a reply button and 2 rotary controls |
| Enter/Answer-Back Button | 1 |
| Radio | |
| Frequency Spectrum | 2.400-2.483MHz for EU and US cellular auto roaming technology |
| Modulation | GFSK, TDMA frame 10ms full slot |
| Output power | (EU) 18dBm, (RoW) 22dBm |
| Range | Typical indoor range 300ft (90m), outdoor range 800ft (240m) |
| Battery | 3 AA alkaline or Nickel Metal Hydride |
| Battery Life | 9+ hours |
| Headset Connector | 4-pin male |
| Microphone Type | Electret and Dynamic, selectable in beltpack menu |
| Headset Limiter | Selectable from beltpack menu |
| Environmental | IP53 water and dust resistant |
| Temperature | Operating: 32¼-125¼F (0¼-50¼C) Storage: 32¼-150¼F (0¼-70¼C) |
| Humidity | Between 20% and 90%, Non-Condensing Atmospheric pressures of 5.1 atm or 75 psi |
| Dimensions | Tapered design at largest points 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm) |
| Weight | 9.0 oz (0.25 kg) including batteries |
