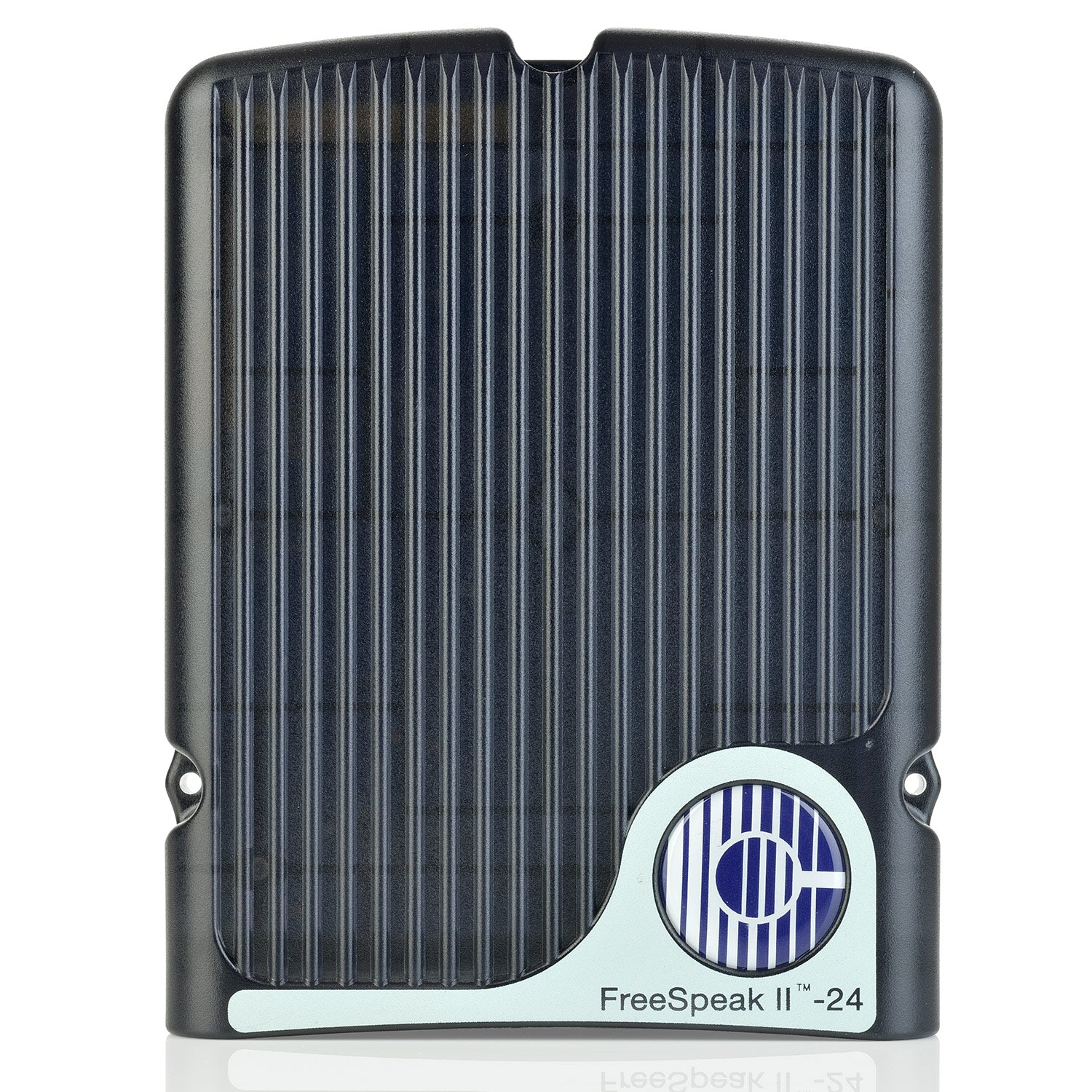

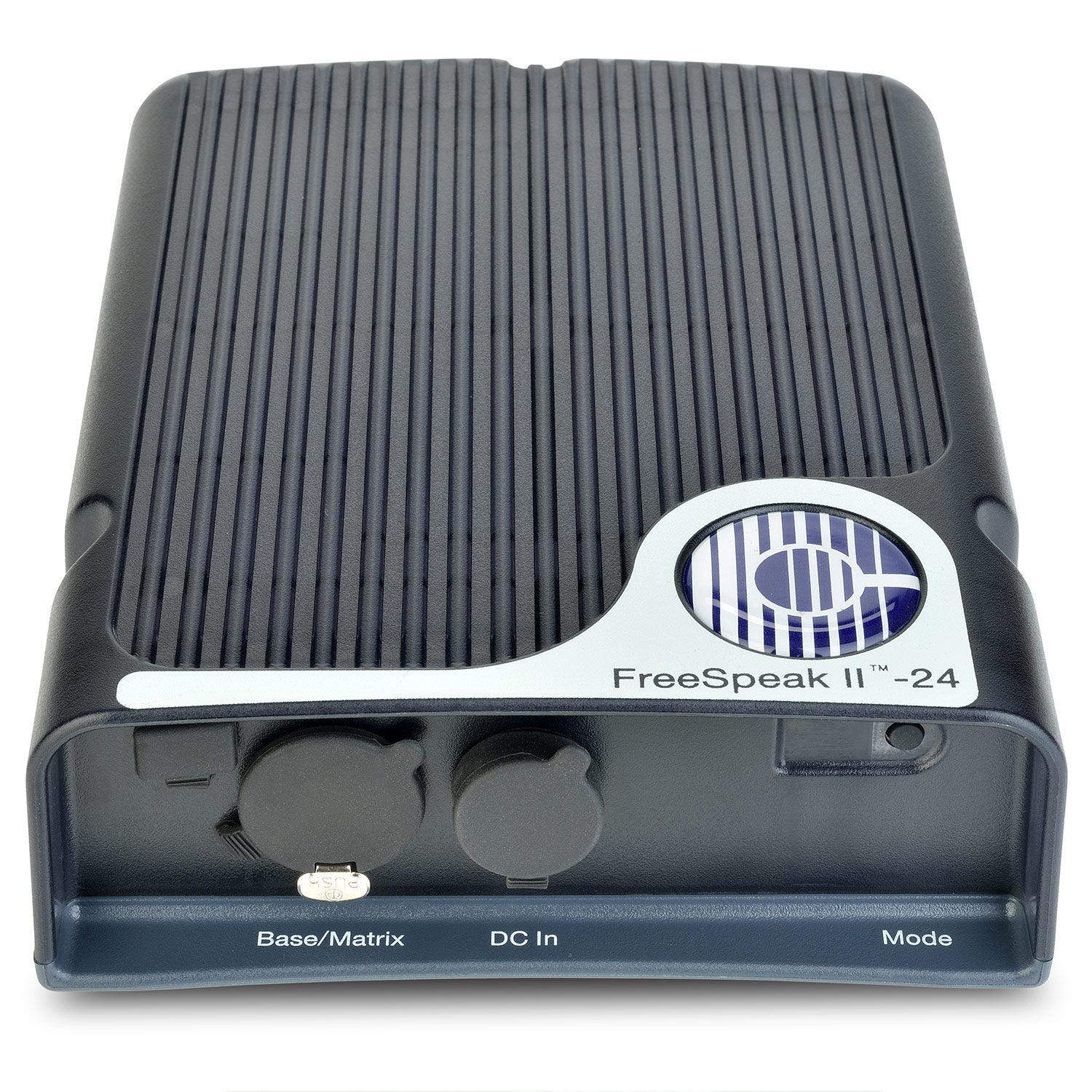

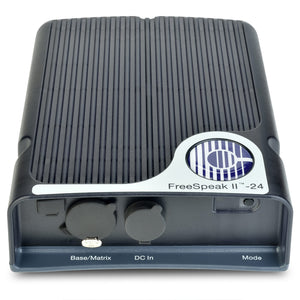

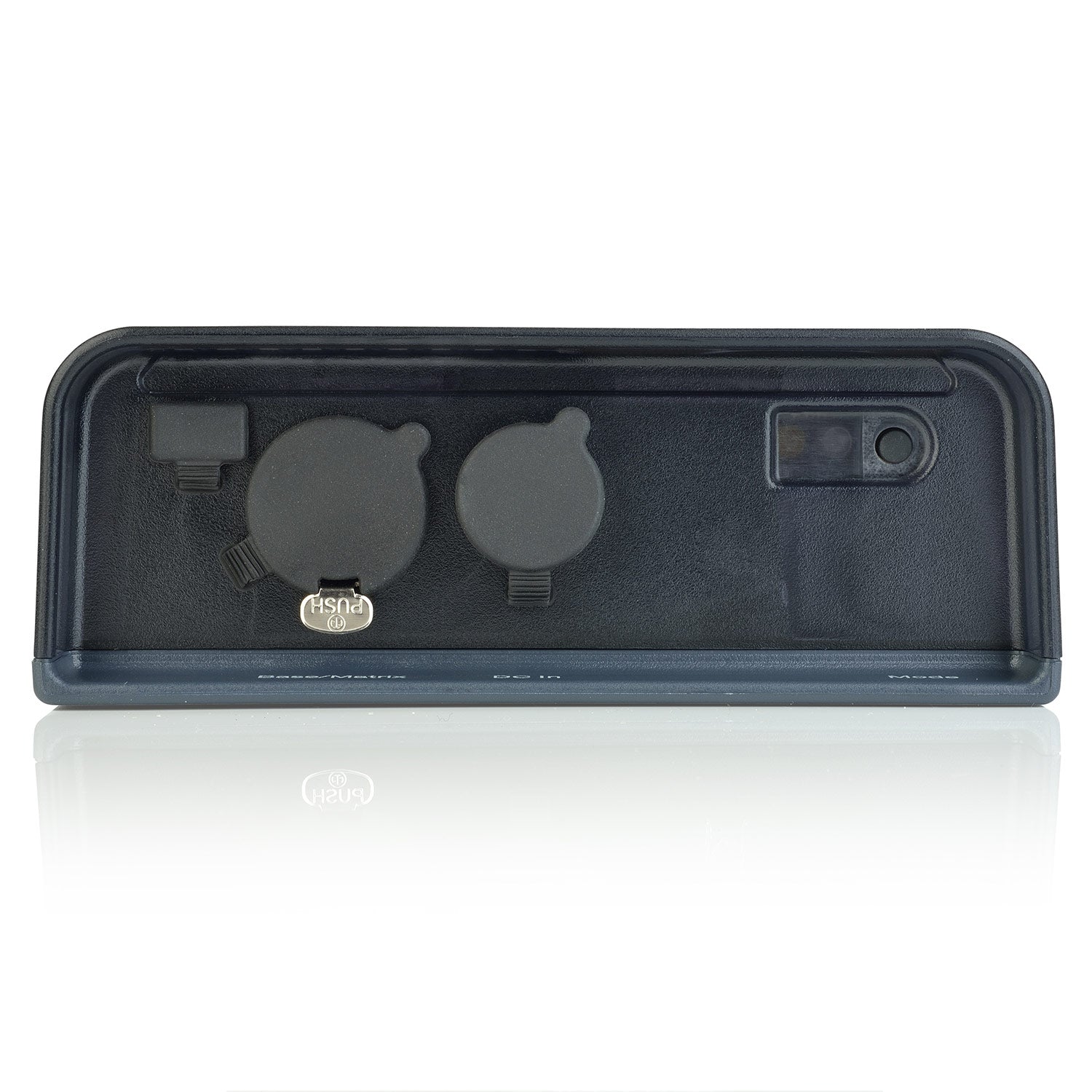

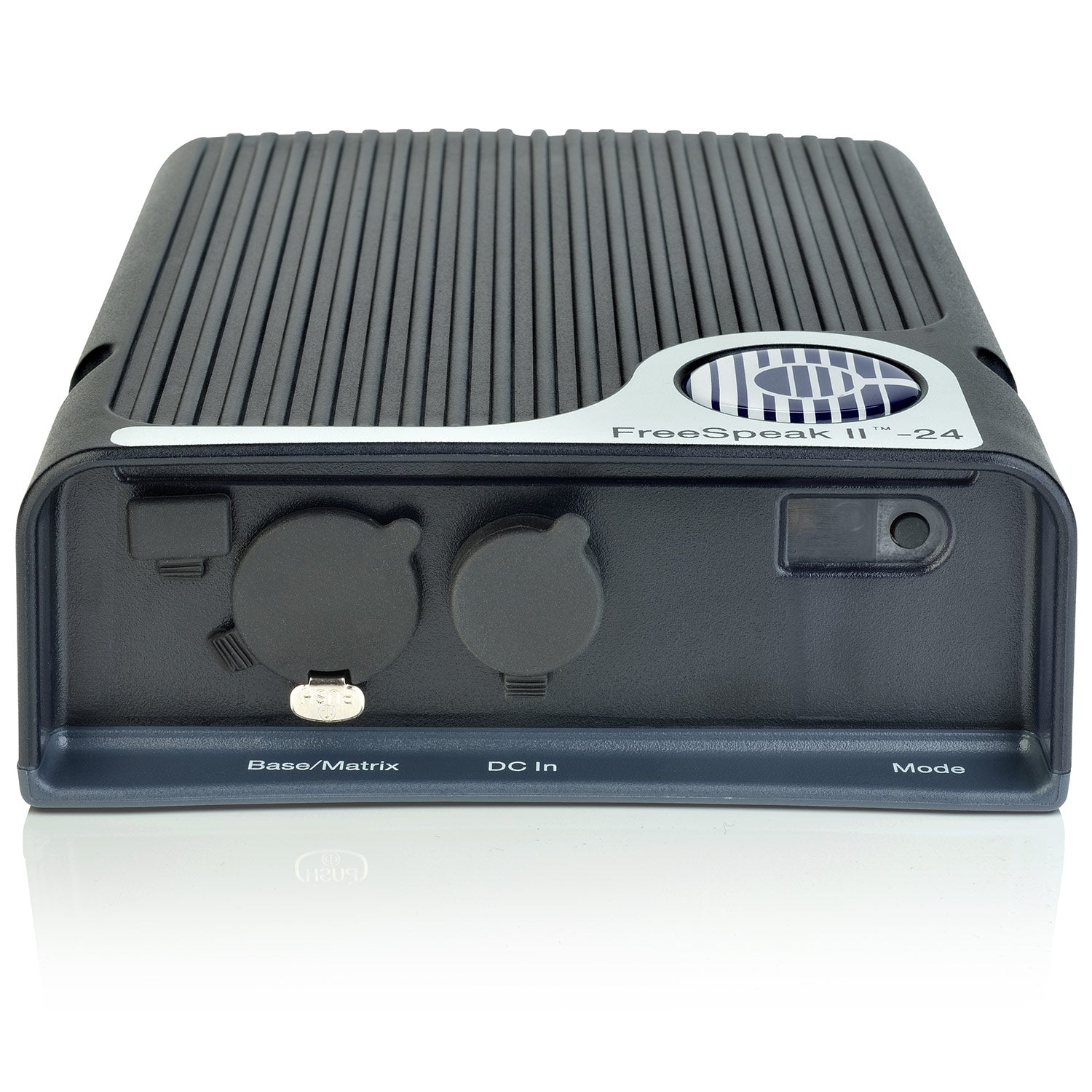

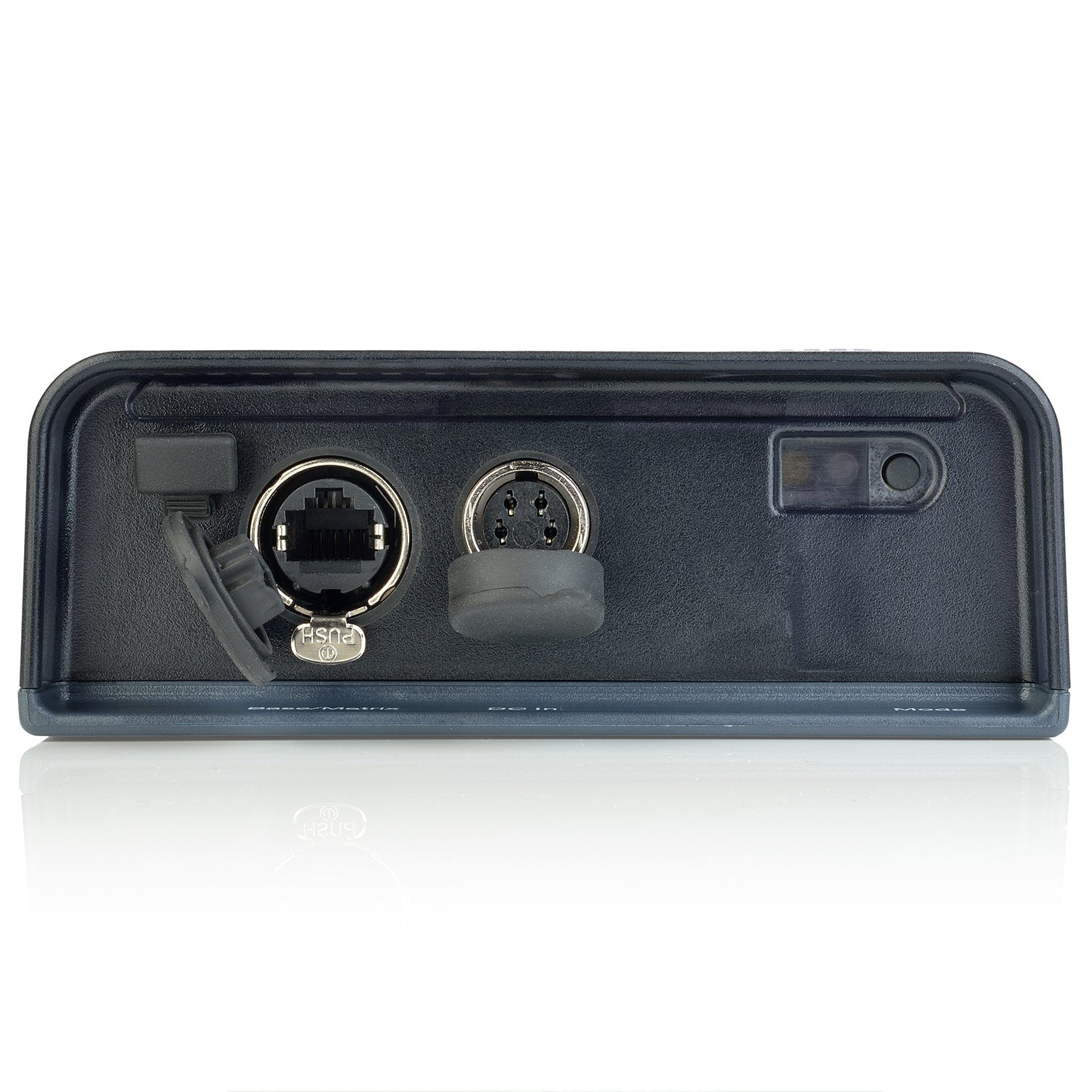

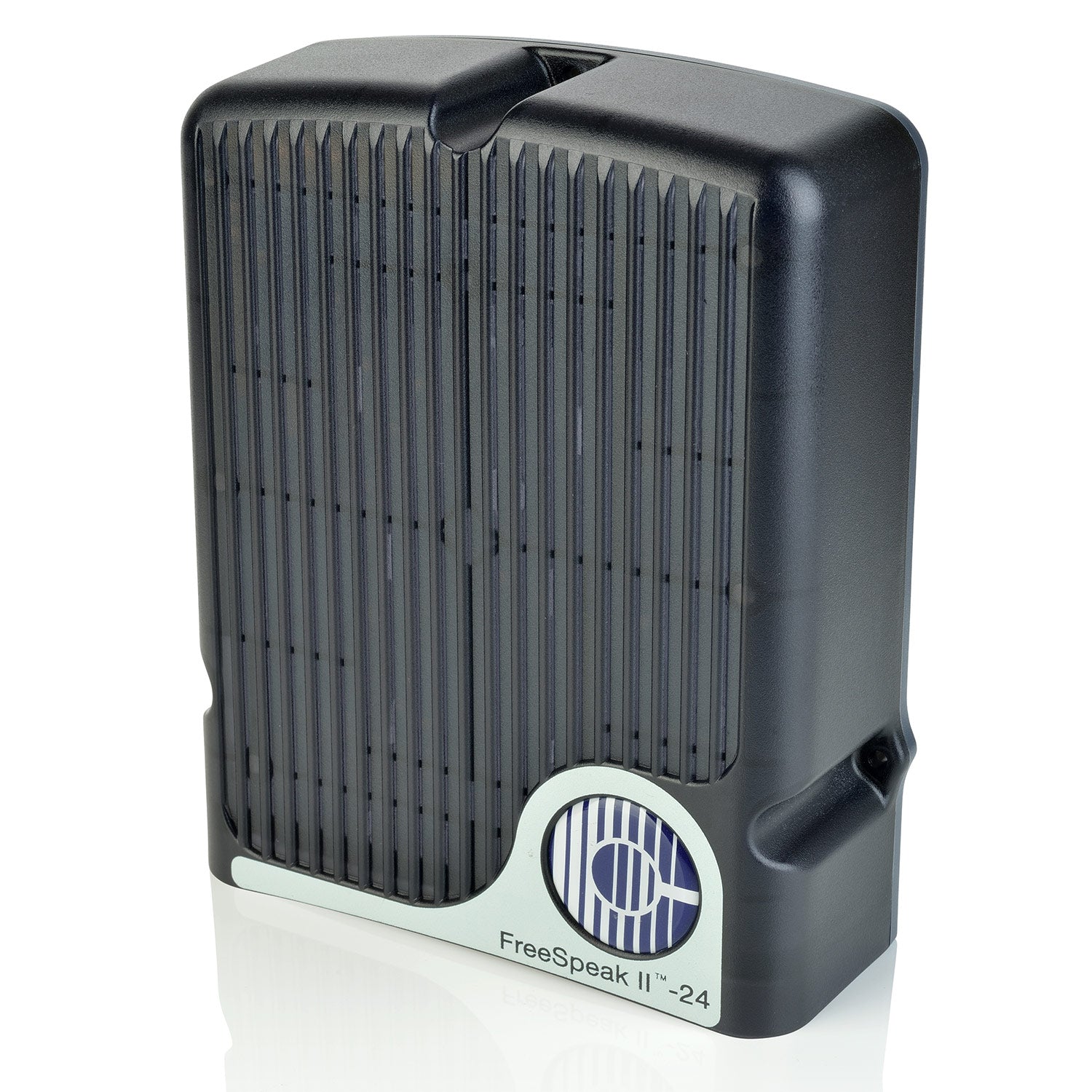

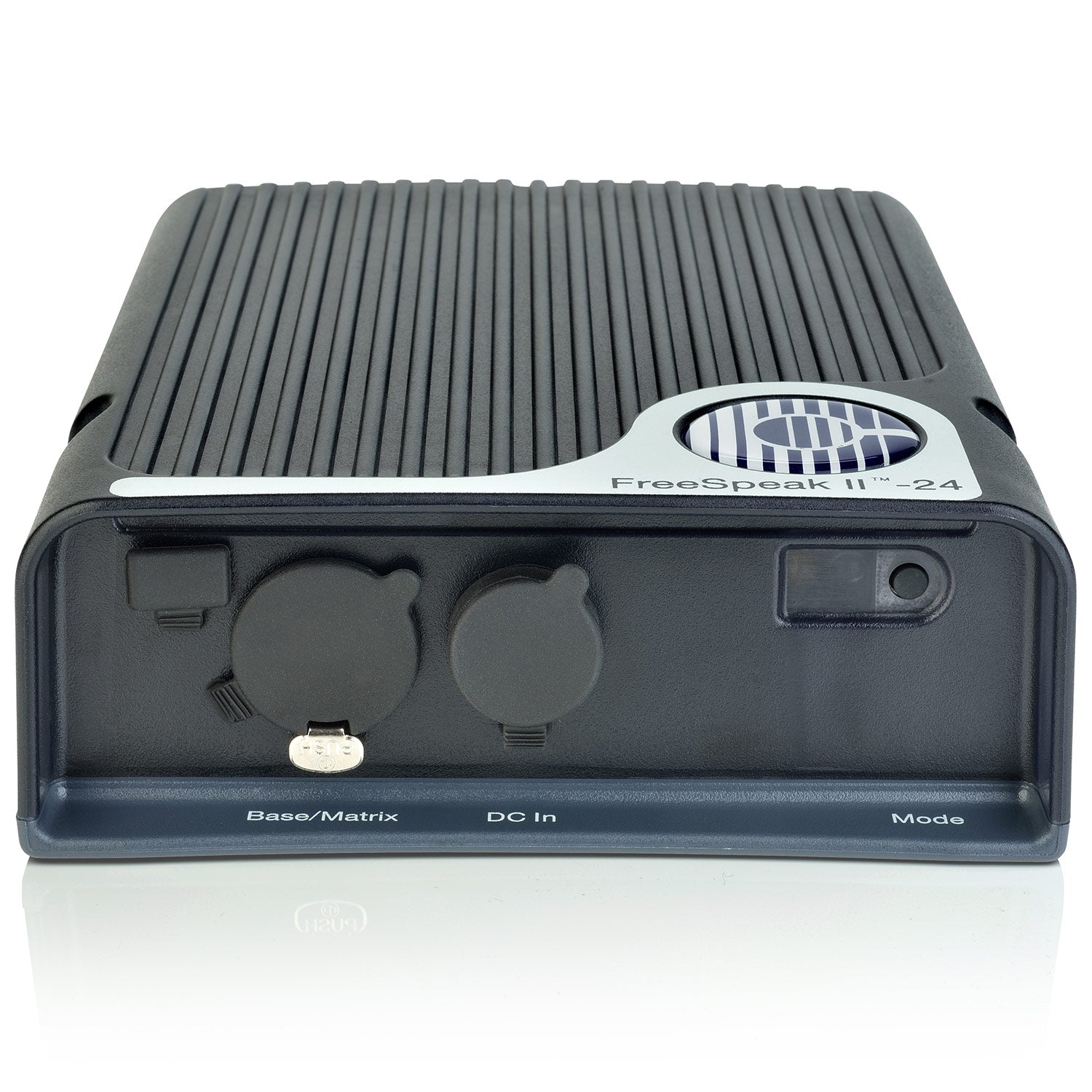

Clear-Com FSII-TCVR-24 FreeSpeak II 2.4 GHz Active Antenna
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
2.4GHz Band Active Transceiver Antenna allows users to freely roam around a facility while staying connected to the base station. Each Active Antenna can create a coverage zone of up to 1,475 feet. One Active Antenna supports up to 4 beltpacks with the ability of adding more if roaming or more beltpack support is required. Up to 10 remote Active Antennas can be strategically placed to cover a wide area. Each active transceiver antenna is IP65 rated for water and dust resistance and has a mount for microphone stands, allowing use and placement in virtually any environment. Unique to the FreeSpeak II system, both 1.9GHz and 2.4GHz beltpacks and active transceiver antennas can co-operate on the same system, increasing both the quantity of users as well as the cell roaming area.
Features:
- Up to 10 Active Antennas can be connected to one system
- Up to 1,475 ft of coverage area per antenna
- 1.9GHz and 2.4GHz antennas can co-operate on the same system
- IP65 rated for water and dust resistance
- Microphone stand mounting
| Frequency Spectrum | 2.400-2.483MHz for EU and US Cellular auto roaming technology |
| Modulation | GFSK, TDMA frame 10ms Full slot |
| Output power (EU) | 18dBm, (RoW): 22dBm |
| Environmental | IP-65 water and dust resistance -67¡F to +158¡F (-55¡C to +70¡C) |
| Dimensions | 2 x 5.5 x 6.75in (52 x 134 x 173mm) (DxWxH) |
| Weight | 7.0oz (0.19kg) |
2.4GHz Band Active Transceiver Antenna allows users to freely roam around a facility while staying connected to the base station. Each Active Antenna can create a coverage zone of up to 1,475 feet. One Active Antenna supports up to 4 beltpacks with the ability of adding more if roaming or more beltpack support is required. Up to 10 remote Active Antennas can be strategically placed to cover a wide area. Each active transceiver antenna is IP65 rated for water and dust resistance and has a mount for microphone stands, allowing use and placement in virtually any environment. Unique to the FreeSpeak II system, both 1.9GHz and 2.4GHz beltpacks and active transceiver antennas can co-operate on the same system, increasing both the quantity of users as well as the cell roaming area.
Features:
- Up to 10 Active Antennas can be connected to one system
- Up to 1,475 ft of coverage area per antenna
- 1.9GHz and 2.4GHz antennas can co-operate on the same system
- IP65 rated for water and dust resistance
- Microphone stand mounting
| Frequency Spectrum | 2.400-2.483MHz for EU and US Cellular auto roaming technology |
| Modulation | GFSK, TDMA frame 10ms Full slot |
| Output power (EU) | 18dBm, (RoW): 22dBm |
| Environmental | IP-65 water and dust resistance -67¡F to +158¡F (-55¡C to +70¡C) |
| Dimensions | 2 x 5.5 x 6.75in (52 x 134 x 173mm) (DxWxH) |
| Weight | 7.0oz (0.19kg) |
