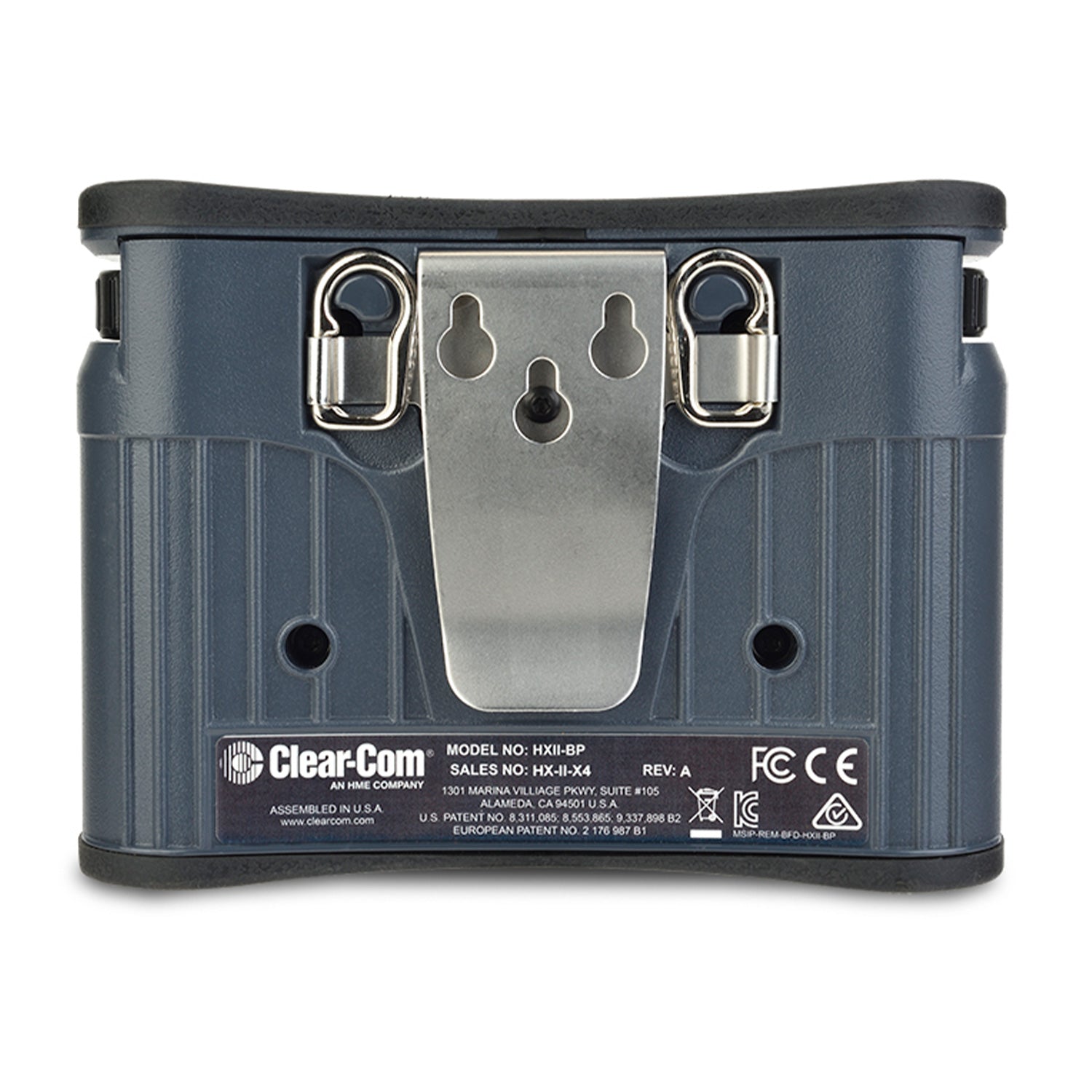

Clear-Com HXII-BP-4K-X4 - 4-Channel Beltpack for HelixNet Intercom (XLR4M)
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Clear-Com HXII-BP-4K-X4 - 4-Channel Beltpack for HelixNet Intercom (XLR4M)
Sale price$1,285.00
Description

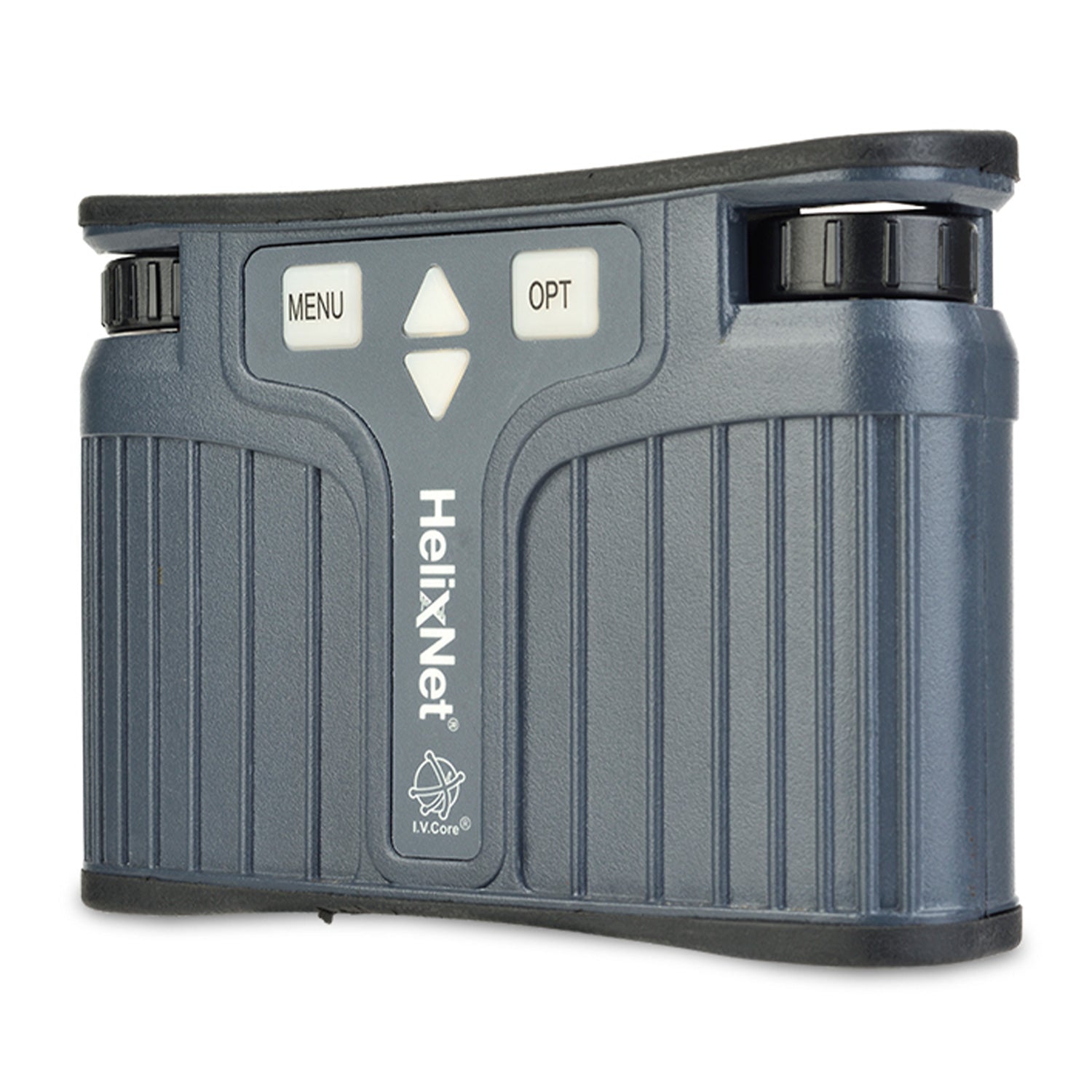

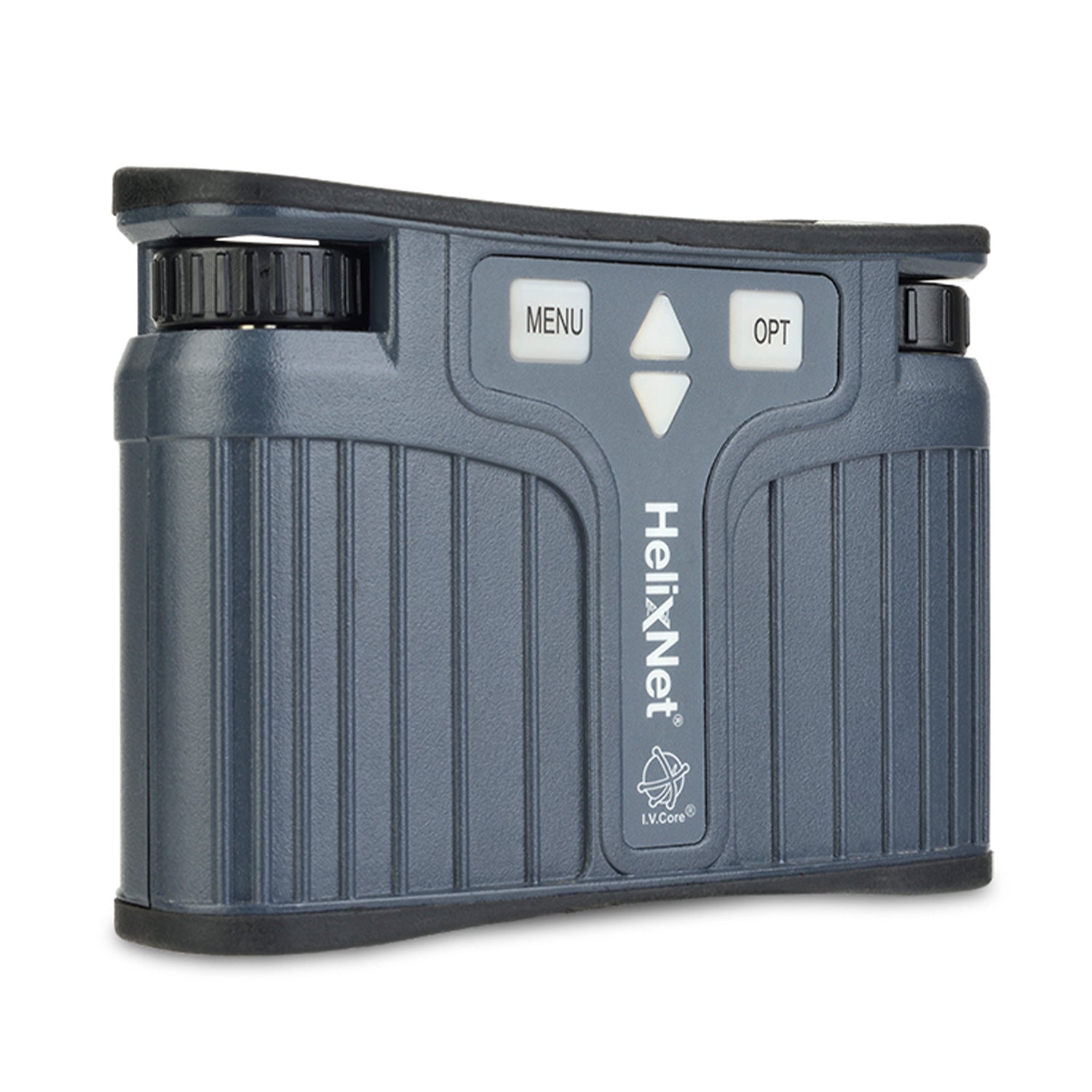

The HelixNet beltpack (HXII-BP-4K) is a four-channel and program audio intercom user station hosted by Arcadia® Central Station or legacy HelixNet HMS-4X main station in a two-channel compatibility mode. The beltpack connects to the intercom system and via PoE Ethernet or XLR Powerline.
Features:
- Easy to use front panel with OLED display and backlit keys
- 4 Keysets assignable to channels
- Stacked keys allow unique combination of channels
- Independent Program Audio control
- USB call signal flasher
- Binaural controls on HXII-BP-X5
- 2 Keyset mode for use with legacy HMS-4X
- Ethernet Network port with PoE
- Powerline via XLR cable
- Multiple mounting options
- Rugged, lightweight polycarbonate enclosure
- IP53 environmental rating
- Easy to use CCM browser configuration
- Fast front panel control / configuration
- Central discovery / pairing on Arcadia
- Plug-and-go powerline
- Central firmware upgrades from host
HelixNet System
- Wired Partyline - Networked
- Hosted by Arcadia or HMS-4X
- Up to 24 Channels – Licensed
- Up to 64 - 128 HelixNet Endpoints
- Program Audio user level control
| HelixNet System Hosts | Arcadia: Supports up to 128 HelixNet User Stations over Ethernet or Powerline via the HXII-DPL powerline device. Up to 24 channels can be HelixNet enabled using a Licensed Port for assignment to any HelixNet User Station keyset. HMS-4X2: Supports up to 64 endpoints (Remote Stations, Speaker Stations, Beltpacks, HLI-2W2, HLI-4W2, LQ port). User stations can connect directly to the 2 HMS-4X Powerlines or via optional HLI-ET2 module using HXII-DPL Powerline Device or 3rd party network switch connection. HMS-4X allows use of 12 channels which can be expanded to 24 using optional license. |

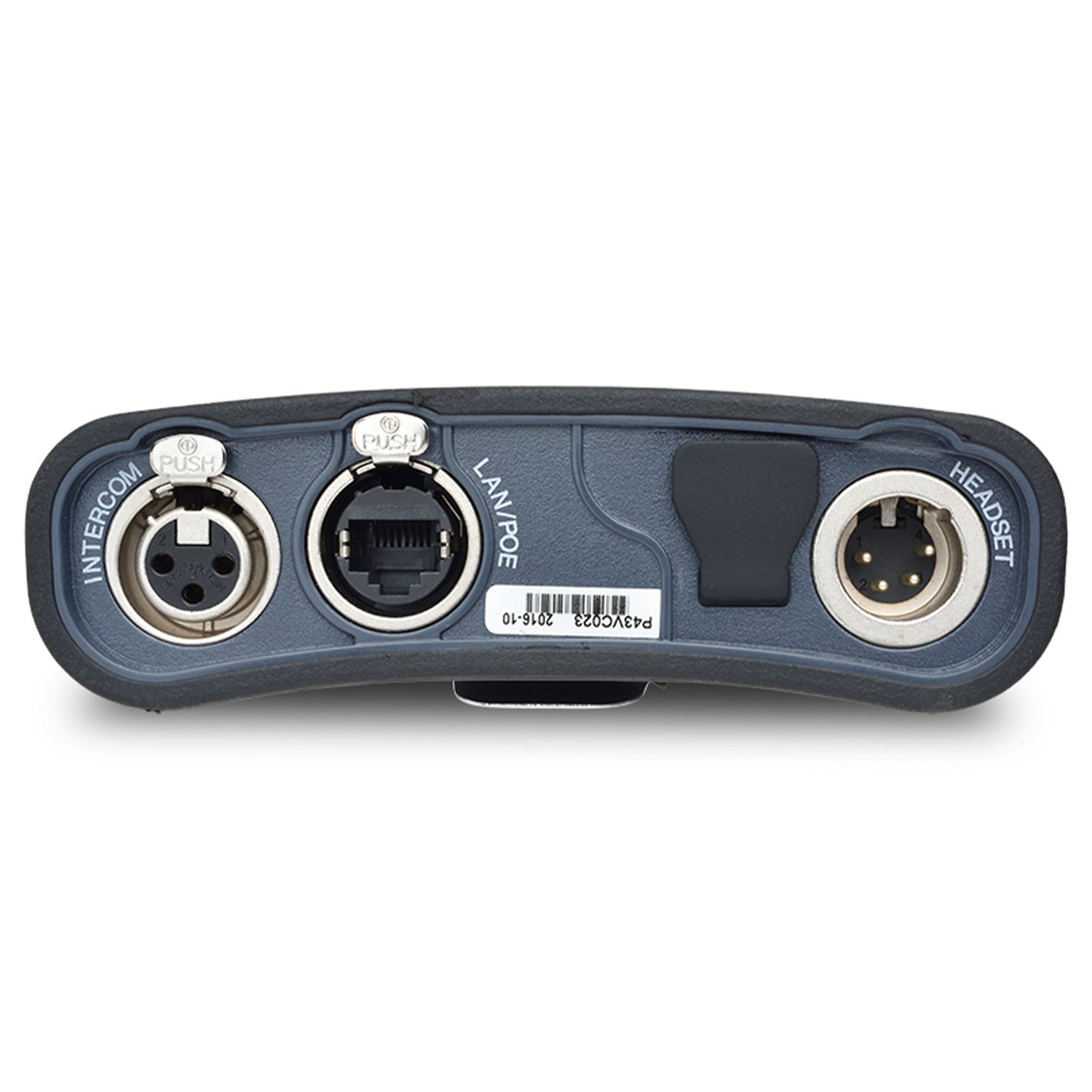

| Connectors | XLR Powerline: 3-pin XLR-F LAN/PoE1: RJ45 etherCON Headset: 4-pin XLR-M (-X4) or 5-pin XLR-F (-X5) USB: Micro AB |
| Microphone Pre-Amplifier | Headset Mic Impedance: 200Ω (Dynamic) Headset Mic Voltage: 1.7V (Electret selectable) Limiter: +23dB |
| Route to 4-wire output at 0dBu out | Mic Gain: 60dB (Dynamic), 45dB (Electret) Frequency Response: 300Hz – 10 kHz ± 3dB, contoured for intelligibility Distortion: <0.2% THD @ 1kHz Noise: <-55dBu (Dynamic), <-65dBu (Electret) |
| Headphone Amplifier | Load Impedance: >32Ω Output Level: +12dBu before clipping Sidetone: -12dB (selectable) |
| Route from a 4-wire input at 0dBu in | Max Gain: 0dB Frequency Response: 40Hz - 10kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: -65dBu Headphone Limiter: 0dB (selectable) |
| Device Power | Voltage: 30-60V DC Current (Max): 0.09A Power (Max): 4W BTU (Max): 13BTU/hr |
| This unit can be powered via: | PoE - Power over Ethernet: IEEE 802.3af-2003 - Class 1 PSE: 4.0W DC max @ Power Source Req. PD: 3.84W DC max @ Powered Device Draw |
| Powerline | Input Voltage: ±29.5V DC Input Current (Max): 0.13A |
| Powerline Utilization | HXII-BP-4K = 1 beltpack |
| Environmental | Operating: 32° to +104°F (0° to +40°C) Humidity: Between 0 - 90%, non-condensing IP53 water and dust resistance |
| Dimensions | 3.9 x 5.3 x 1.7in (WxHxD) 99 x 135 x 43mm (WxHxD) |
| Weight | 12.2oz (0.35kg) |
| Network Specifications (Firmware Version 4.5+) | |
| Network Protocols | Ethernet IPv4–Unicast Control mDNS–Multicast Device Discovery Layer 3 routable with mDNS function limitations HTTP–Management I.V. Core–Decentralized Network Routing & Mixing IVP–Proprietary Intercom Audio and Control WavPack–Audio Codec |
| Network Ports | Unicast: Port 80 TCP–System Management Port 6001 TCP–System Management Port 6001 UDP–Audio Streams Multicast: Port 5353 UDP–mDNS, Names, Discovery, Linking Optional for device names and linking |
| Network Parameters | HMS-4X Endpoint Resource Use: 1 (-X4) HMS-4X Endpoint Resource Use: 2 (-X5) |
| Bandwidth | 300 (max) kbps from each beltpack to Arcadia/HMS-4X 1200 - 2400 (max) kbps from Arcadia/HMS-4X to each beltpack Network Jitter Tolerance: <= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance QoS Tags: DSCP=34, Assured Forwarding (AF=41) Link-Local Default IP Address Range: 169.254.0.0/16 |
| System Reserved IP Range | 10.0.0.0/24 for endpoints on HMS-4X 10.0.0.0-7 for Arcadia |
| Recommended Ethernet Switches | • Managed Ethernet Switch • 100/1000 Base-T Ports • 1000 Base IP Switch Trunks • QoS configuration • Energy Efficient Ethernet bypass option • IGMP Snooping bypass option Please refer to the Clear-Com HelixNet Network Guide for additional switch settings and network characteristics. |
| Note | Ethernet to legacy HMS-4X requires HLI-ET2 HMS-4X is a legacy product |
The HelixNet beltpack (HXII-BP-4K) is a four-channel and program audio intercom user station hosted by Arcadia® Central Station or legacy HelixNet HMS-4X main station in a two-channel compatibility mode. The beltpack connects to the intercom system and via PoE Ethernet or XLR Powerline.
Features:
- Easy to use front panel with OLED display and backlit keys
- 4 Keysets assignable to channels
- Stacked keys allow unique combination of channels
- Independent Program Audio control
- USB call signal flasher
- Binaural controls on HXII-BP-X5
- 2 Keyset mode for use with legacy HMS-4X
- Ethernet Network port with PoE
- Powerline via XLR cable
- Multiple mounting options
- Rugged, lightweight polycarbonate enclosure
- IP53 environmental rating
- Easy to use CCM browser configuration
- Fast front panel control / configuration
- Central discovery / pairing on Arcadia
- Plug-and-go powerline
- Central firmware upgrades from host
HelixNet System
- Wired Partyline - Networked
- Hosted by Arcadia or HMS-4X
- Up to 24 Channels – Licensed
- Up to 64 - 128 HelixNet Endpoints
- Program Audio user level control
| HelixNet System Hosts | Arcadia: Supports up to 128 HelixNet User Stations over Ethernet or Powerline via the HXII-DPL powerline device. Up to 24 channels can be HelixNet enabled using a Licensed Port for assignment to any HelixNet User Station keyset. HMS-4X2: Supports up to 64 endpoints (Remote Stations, Speaker Stations, Beltpacks, HLI-2W2, HLI-4W2, LQ port). User stations can connect directly to the 2 HMS-4X Powerlines or via optional HLI-ET2 module using HXII-DPL Powerline Device or 3rd party network switch connection. HMS-4X allows use of 12 channels which can be expanded to 24 using optional license. |
| Connectors | XLR Powerline: 3-pin XLR-F LAN/PoE1: RJ45 etherCON Headset: 4-pin XLR-M (-X4) or 5-pin XLR-F (-X5) USB: Micro AB |
| Microphone Pre-Amplifier | Headset Mic Impedance: 200Ω (Dynamic) Headset Mic Voltage: 1.7V (Electret selectable) Limiter: +23dB |
| Route to 4-wire output at 0dBu out | Mic Gain: 60dB (Dynamic), 45dB (Electret) Frequency Response: 300Hz – 10 kHz ± 3dB, contoured for intelligibility Distortion: <0.2% THD @ 1kHz Noise: <-55dBu (Dynamic), <-65dBu (Electret) |
| Headphone Amplifier | Load Impedance: >32Ω Output Level: +12dBu before clipping Sidetone: -12dB (selectable) |
| Route from a 4-wire input at 0dBu in | Max Gain: 0dB Frequency Response: 40Hz - 10kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: -65dBu Headphone Limiter: 0dB (selectable) |
| Device Power | Voltage: 30-60V DC Current (Max): 0.09A Power (Max): 4W BTU (Max): 13BTU/hr |
| This unit can be powered via: | PoE - Power over Ethernet: IEEE 802.3af-2003 - Class 1 PSE: 4.0W DC max @ Power Source Req. PD: 3.84W DC max @ Powered Device Draw |
| Powerline | Input Voltage: ±29.5V DC Input Current (Max): 0.13A |
| Powerline Utilization | HXII-BP-4K = 1 beltpack |
| Environmental | Operating: 32° to +104°F (0° to +40°C) Humidity: Between 0 - 90%, non-condensing IP53 water and dust resistance |
| Dimensions | 3.9 x 5.3 x 1.7in (WxHxD) 99 x 135 x 43mm (WxHxD) |
| Weight | 12.2oz (0.35kg) |
| Network Specifications (Firmware Version 4.5+) | |
| Network Protocols | Ethernet IPv4–Unicast Control mDNS–Multicast Device Discovery Layer 3 routable with mDNS function limitations HTTP–Management I.V. Core–Decentralized Network Routing & Mixing IVP–Proprietary Intercom Audio and Control WavPack–Audio Codec |
| Network Ports | Unicast: Port 80 TCP–System Management Port 6001 TCP–System Management Port 6001 UDP–Audio Streams Multicast: Port 5353 UDP–mDNS, Names, Discovery, Linking Optional for device names and linking |
| Network Parameters | HMS-4X Endpoint Resource Use: 1 (-X4) HMS-4X Endpoint Resource Use: 2 (-X5) |
| Bandwidth | 300 (max) kbps from each beltpack to Arcadia/HMS-4X 1200 - 2400 (max) kbps from Arcadia/HMS-4X to each beltpack Network Jitter Tolerance: <= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance QoS Tags: DSCP=34, Assured Forwarding (AF=41) Link-Local Default IP Address Range: 169.254.0.0/16 |
| System Reserved IP Range | 10.0.0.0/24 for endpoints on HMS-4X 10.0.0.0-7 for Arcadia |
| Recommended Ethernet Switches | • Managed Ethernet Switch • 100/1000 Base-T Ports • 1000 Base IP Switch Trunks • QoS configuration • Energy Efficient Ethernet bypass option • IGMP Snooping bypass option Please refer to the Clear-Com HelixNet Network Guide for additional switch settings and network characteristics. |
| Note | Ethernet to legacy HMS-4X requires HLI-ET2 HMS-4X is a legacy product |
