Clear-Com IFB-104 - IFB Matrix Interface for Eclipse Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

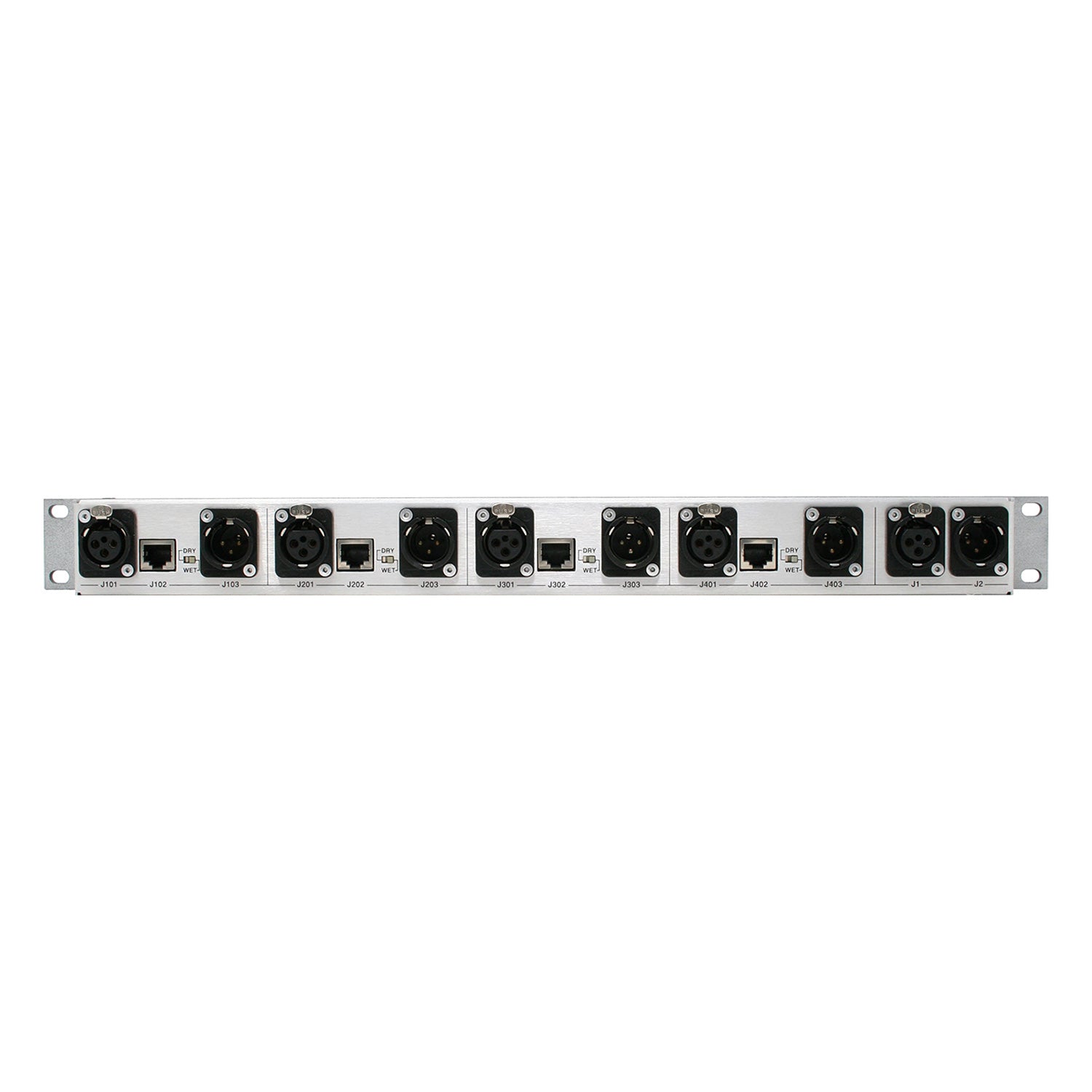

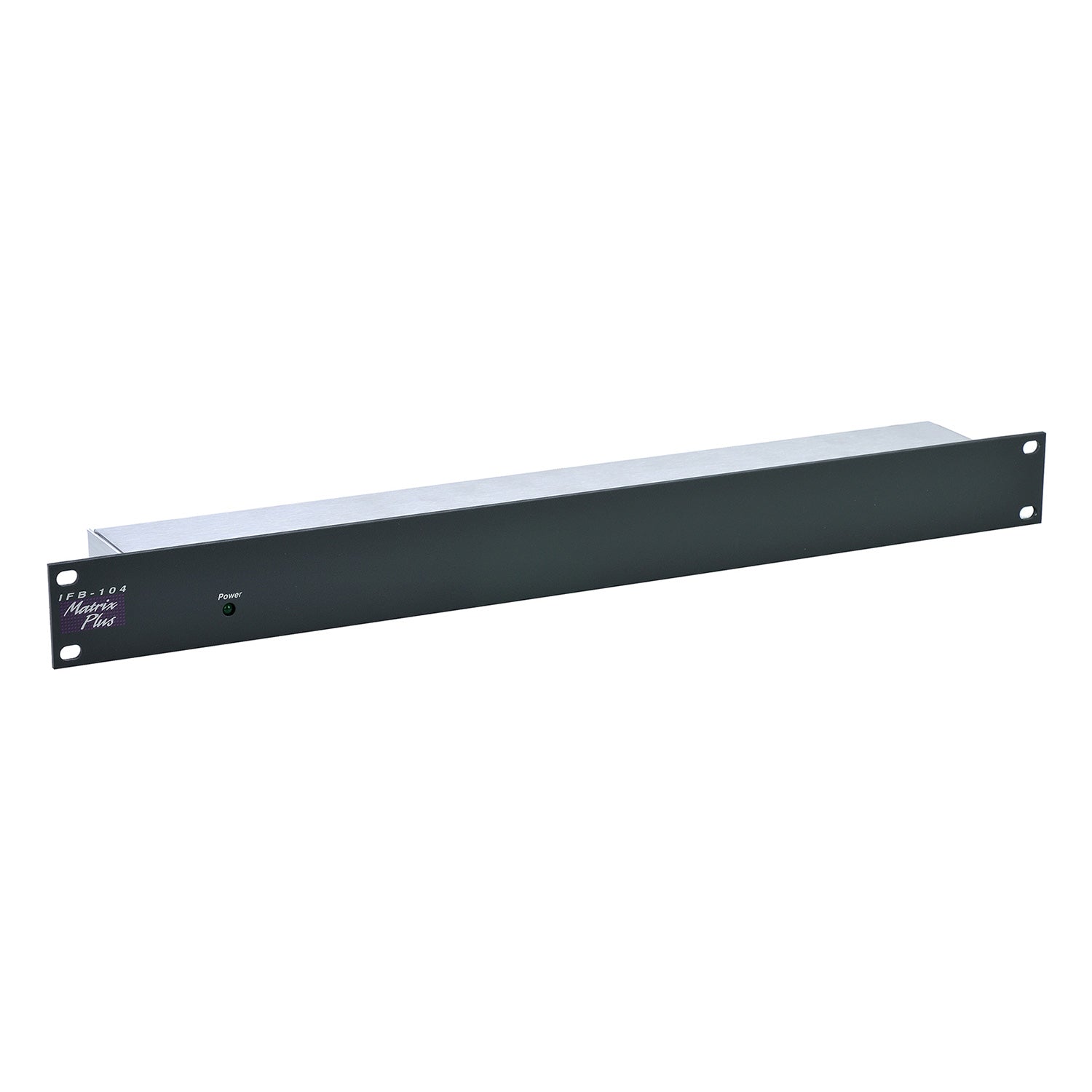

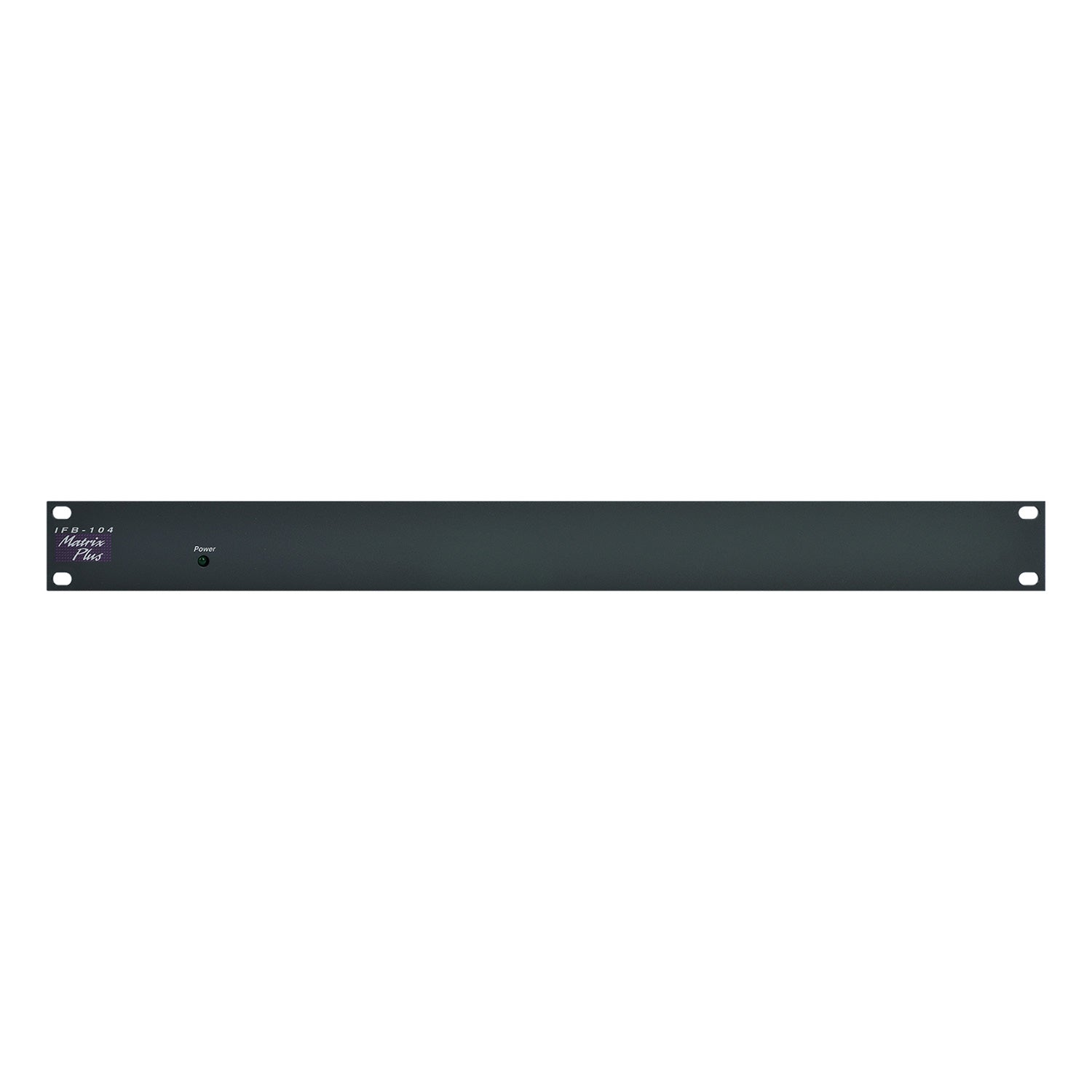

The IFB-104 provides an easy way to connect Matrix panels to on-air talent using IFB (Interruptible Foldback). The interface provides an audio-balanced program input to a Matrix frame and sends IFB outputs to on-air talent. Both the input and output are transformer isolated. The IFB-104 back panel has enough connectors to accommodate as many as four Matrix frames and four on-air talents. Each of the four pairs represents a Matrix frame port. Although each pair can have separate inputs and outputs, each of the four pairs do not have to be used together. Input for each output can come from any source and one input can be used for all four outputs. In addition, the inputs do not have to be IFB-related, but can contain other program material. The front panel has only one indicator. This indicator lights up when power is connected to the IFB-104. Power is only necessary if the talent receivers require it.
Features:
- Connects up to 4 IFB feeds to matrix ports
- Individual or multiple earbuds or headphones used directly from each port
- No external power required
- Rear-mounted wet/dry switch
- Transformer-coupled signal from port to XLR output
| Indicators | \"Power-on\" LED |
| Connectors | Program Input: (4) 3-pin XLR female To Matrix Frame: (4) RJ-45 Talent: (4) 3-pin XLR male DC Power: (1) 3-pin XLR male; (1) 3-pin XLR female |
| Program Input | Type: Transformer isolated Impedance: 600 Ohms bridging Level: 0 dBv |
| Headphone Talent Receiver Outputs | Impedance: 600K Ohms transformer balanced Power: 1 mW into 600 Ohms |
| Line Input (2-pair talk to matrix) | Type: Transformer balanced Impedance: 600K Ohms Level: 0 dBv nominal Frequency Response: 100Hz-15kHz, +/-2dB |
| Environmental | Operating Temperature: 0_ - 50_C (32_ - 125_F) Humidity: 20% to 90%, non-condensing |
| Dimensions | 1.75 x 19 x 2in (HxWxD) (89 x 483 x 51mm) |
| Weight | 1.8lbs (0.82kg) |
The IFB-104 provides an easy way to connect Matrix panels to on-air talent using IFB (Interruptible Foldback). The interface provides an audio-balanced program input to a Matrix frame and sends IFB outputs to on-air talent. Both the input and output are transformer isolated. The IFB-104 back panel has enough connectors to accommodate as many as four Matrix frames and four on-air talents. Each of the four pairs represents a Matrix frame port. Although each pair can have separate inputs and outputs, each of the four pairs do not have to be used together. Input for each output can come from any source and one input can be used for all four outputs. In addition, the inputs do not have to be IFB-related, but can contain other program material. The front panel has only one indicator. This indicator lights up when power is connected to the IFB-104. Power is only necessary if the talent receivers require it.
Features:
- Connects up to 4 IFB feeds to matrix ports
- Individual or multiple earbuds or headphones used directly from each port
- No external power required
- Rear-mounted wet/dry switch
- Transformer-coupled signal from port to XLR output
| Indicators | \"Power-on\" LED |
| Connectors | Program Input: (4) 3-pin XLR female To Matrix Frame: (4) RJ-45 Talent: (4) 3-pin XLR male DC Power: (1) 3-pin XLR male; (1) 3-pin XLR female |
| Program Input | Type: Transformer isolated Impedance: 600 Ohms bridging Level: 0 dBv |
| Headphone Talent Receiver Outputs | Impedance: 600K Ohms transformer balanced Power: 1 mW into 600 Ohms |
| Line Input (2-pair talk to matrix) | Type: Transformer balanced Impedance: 600K Ohms Level: 0 dBv nominal Frequency Response: 100Hz-15kHz, +/-2dB |
| Environmental | Operating Temperature: 0_ - 50_C (32_ - 125_F) Humidity: 20% to 90%, non-condensing |
| Dimensions | 1.75 x 19 x 2in (HxWxD) (89 x 483 x 51mm) |
| Weight | 1.8lbs (0.82kg) |
