Clear-Com IMF-102 - Interface Module Frame for Eclipse Digital Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

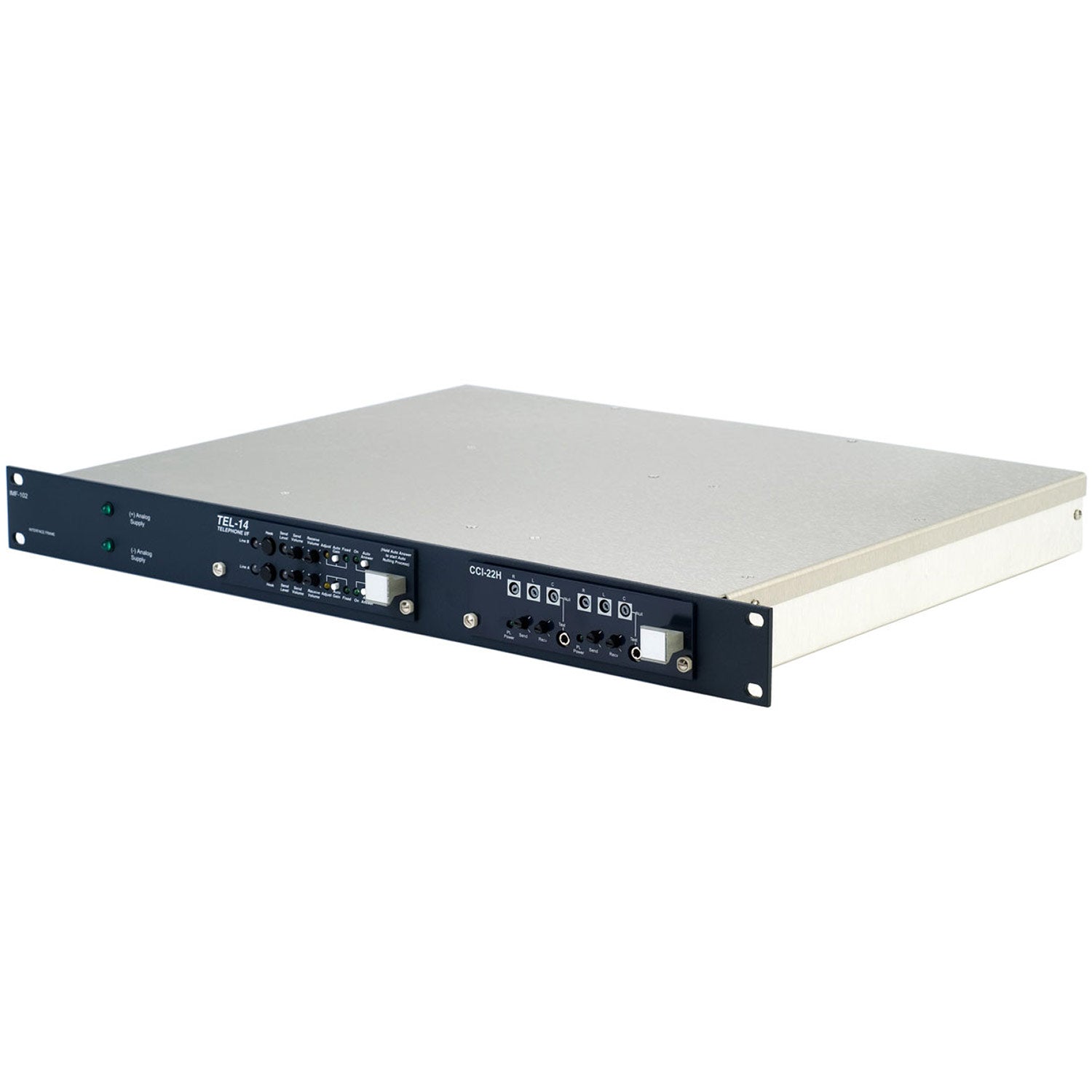

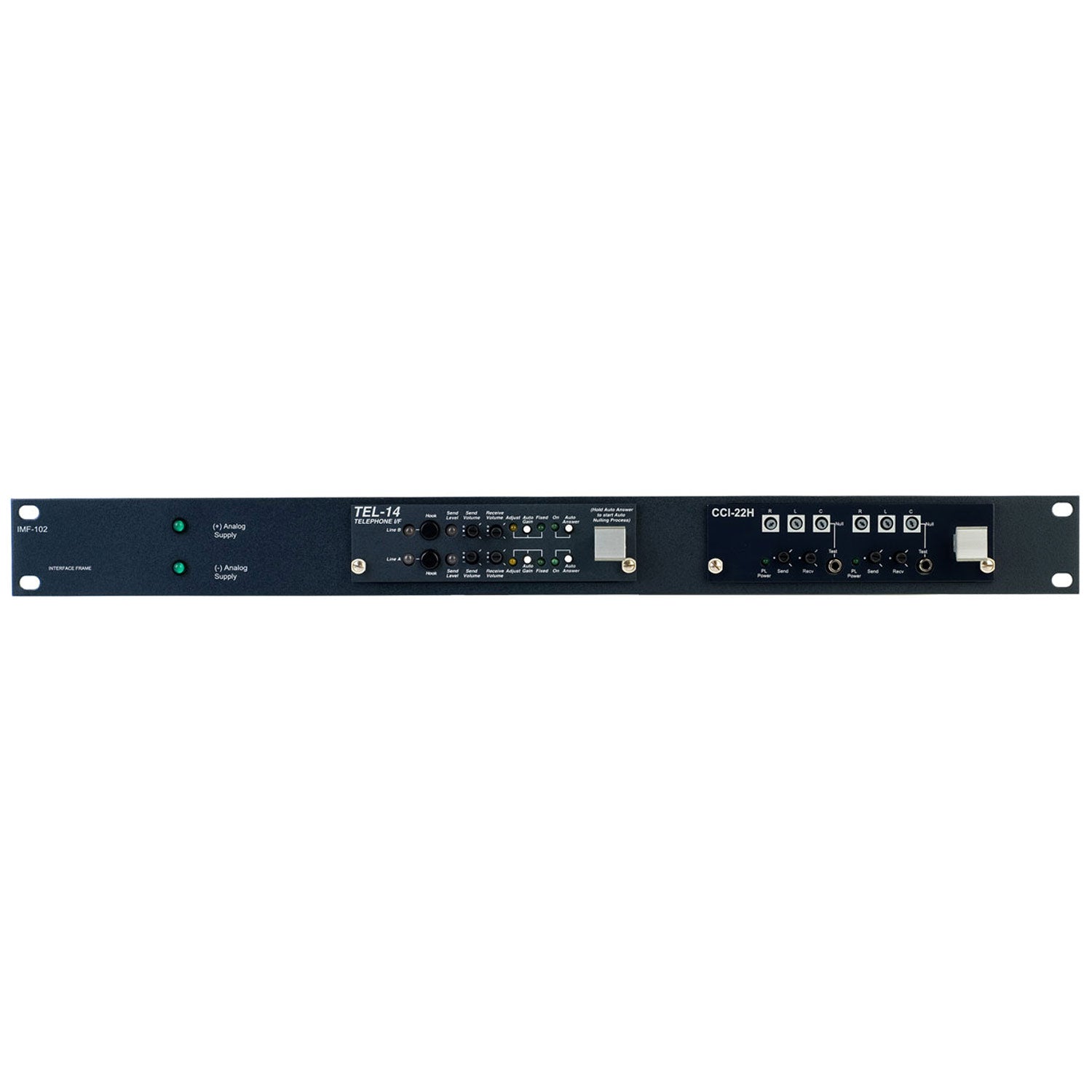

The IMF-102 interface frame combines an internal power supply, connection for a decond redundant supply, a rear input/output connector panel, and slots for two modular interfaces - all in a 1RU chassis. The compact frame offers a practical way to add a small quantity of interfaces to a digital matrix system.ÊNote:ÊInterface modules not included.
Features:
- Frame to hold 1 or 2 interface modules
- Internal power supply with connection for second redundant power supply
| Plug-in Module Capacity | 2 |

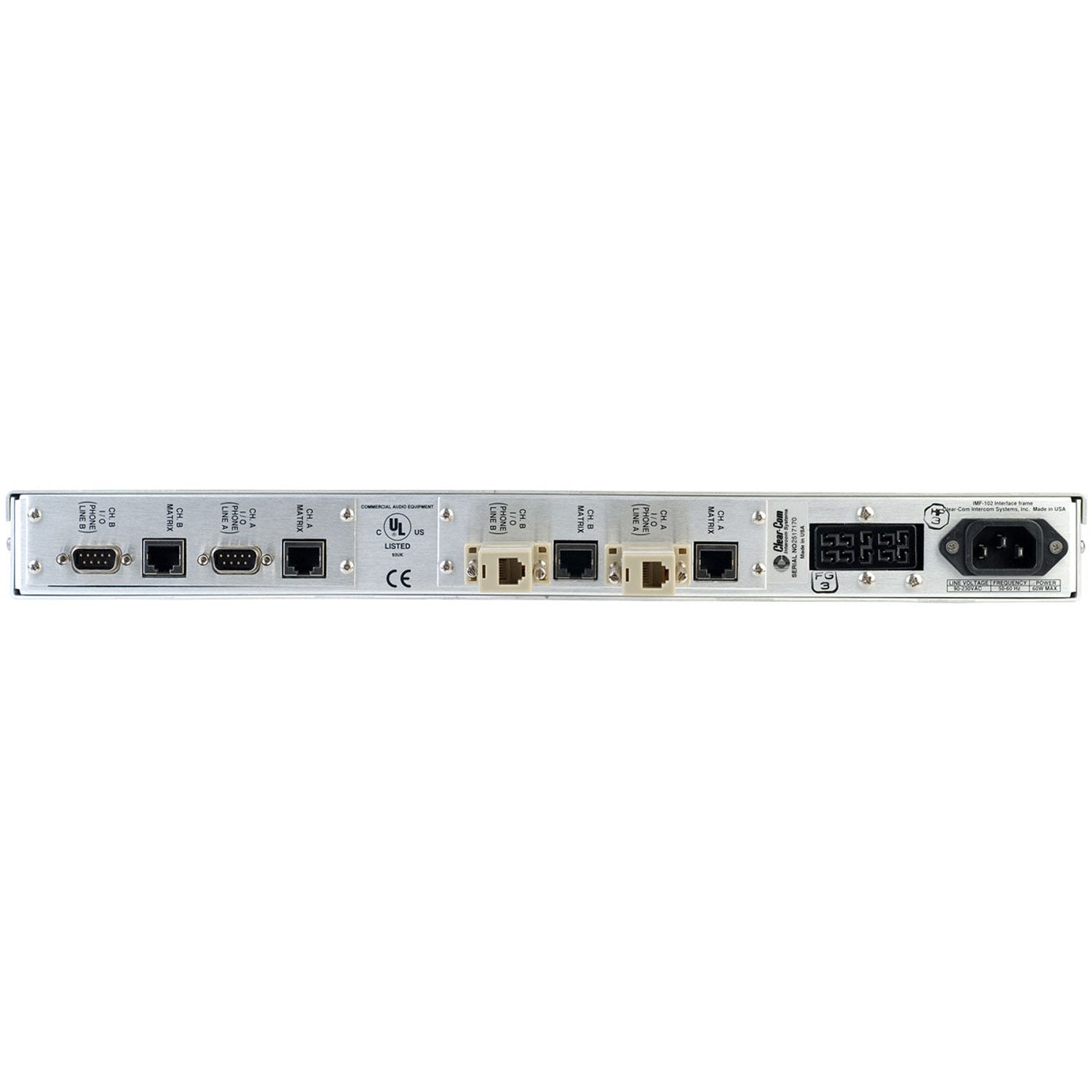

| Rear Panel Connectors | (1) 3-pin EIA (for internal power supply) (1) 10-pin Jones (for PSU-101 redundant power supply) To Matrix Frame: (4) RJ45 (when all interface modules are installed) Interface I/O: (4) DB9-M (when all interface modules are installed) |
| Power | |
| AC Requirements | 90 - 250V AC, 20 W +9 V Analog: 200mA (frame only) -9 V Analog: 200mA (frame only) |
| Environmental | |
| Operating Temperature | 0¼ - 50¼ C (32¼ - 125¼ F) |
| Humidity | 20% to 90%, non-condensing |
| Dimensions | 1.75 x 19 x 13.75in (HxWxD) (89 x 483 x 345mm) |
| Weight | 6.25lbs (2.8kg) |
