Clear-Com IMF-3 - Interface Module Frame for Eclipse Digital Intercom
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

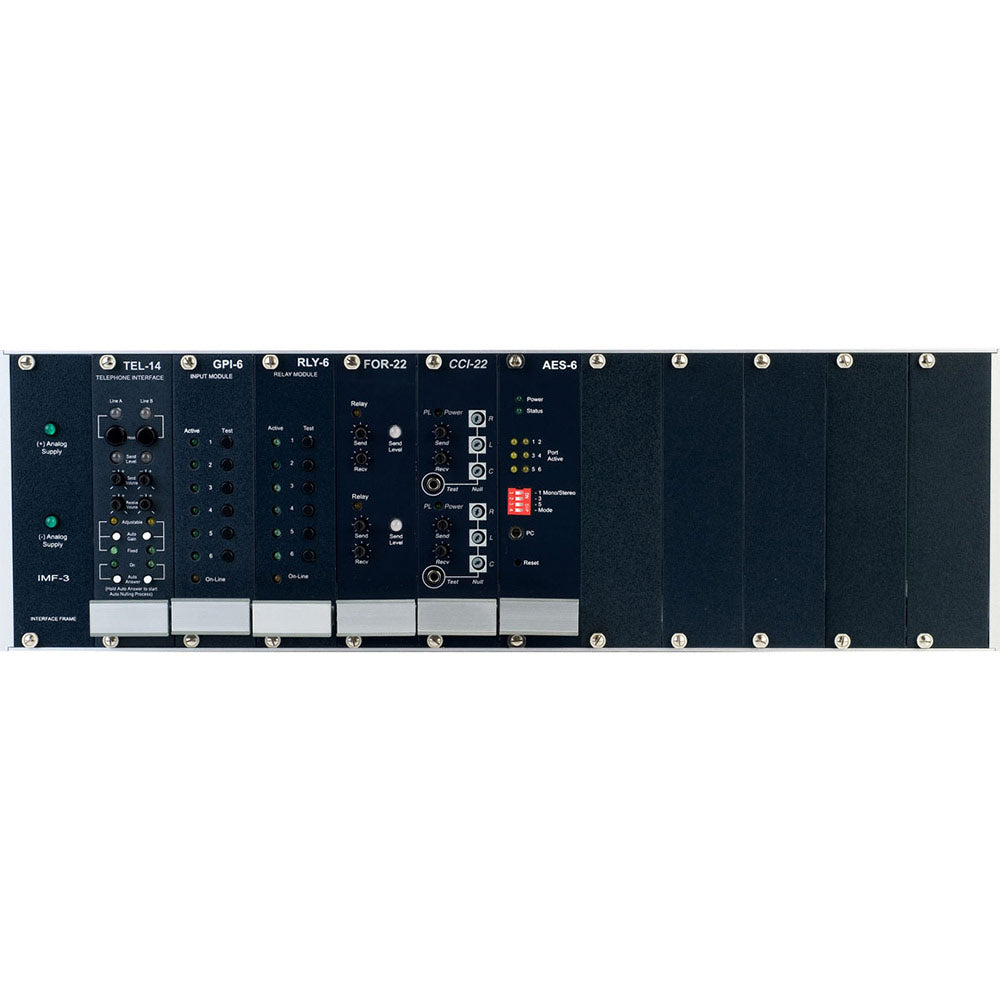

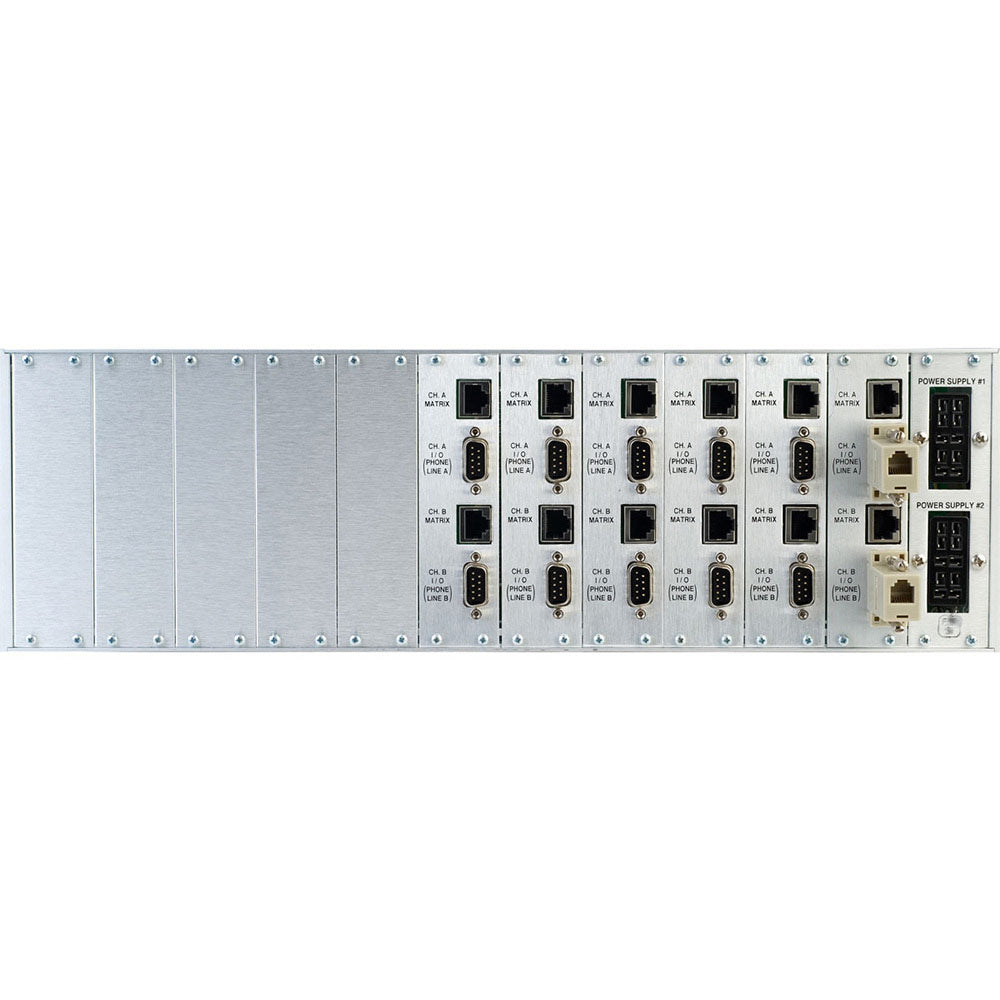

The IMF-3 holds up to 11 interface modules in a 3RU chassis. Modular rear-mounted connector units feature two RJ-45 connectors to the matrix ports and two DB-9s attaching the connected devices. The frame is used in conjunction with the PSU-101 rack-mountable dual power supply, providing power to the enclosed interfaces. (Interface modules and PSU-101 power supply are sold separately.)
| Plug-in Module Capacity | 11 |
| Rear Panel Connectors | (2) 10-pin Jones (for PSU-101 power supply) |
| To Matrix Frame | (22) RJ-45 (when all interface modules are installed) |
| Interface I/O | (22) DB9-M (when all interface modules are installed) |
| Power Requirements | 200 mA from PSU-101 power supply |
| Size | 5.25 H x 19 W x 13.75Ê (133 x 483 x 345 mm) |
| Weight | 10 lbs (4.5 Kg) |
The IMF-3 holds up to 11 interface modules in a 3RU chassis. Modular rear-mounted connector units feature two RJ-45 connectors to the matrix ports and two DB-9s attaching the connected devices. The frame is used in conjunction with the PSU-101 rack-mountable dual power supply, providing power to the enclosed interfaces. (Interface modules and PSU-101 power supply are sold separately.)
| Plug-in Module Capacity | 11 |
| Rear Panel Connectors | (2) 10-pin Jones (for PSU-101 power supply) |
| To Matrix Frame | (22) RJ-45 (when all interface modules are installed) |
| Interface I/O | (22) DB9-M (when all interface modules are installed) |
| Power Requirements | 200 mA from PSU-101 power supply |
| Size | 5.25 H x 19 W x 13.75Ê (133 x 483 x 345 mm) |
| Weight | 10 lbs (4.5 Kg) |
