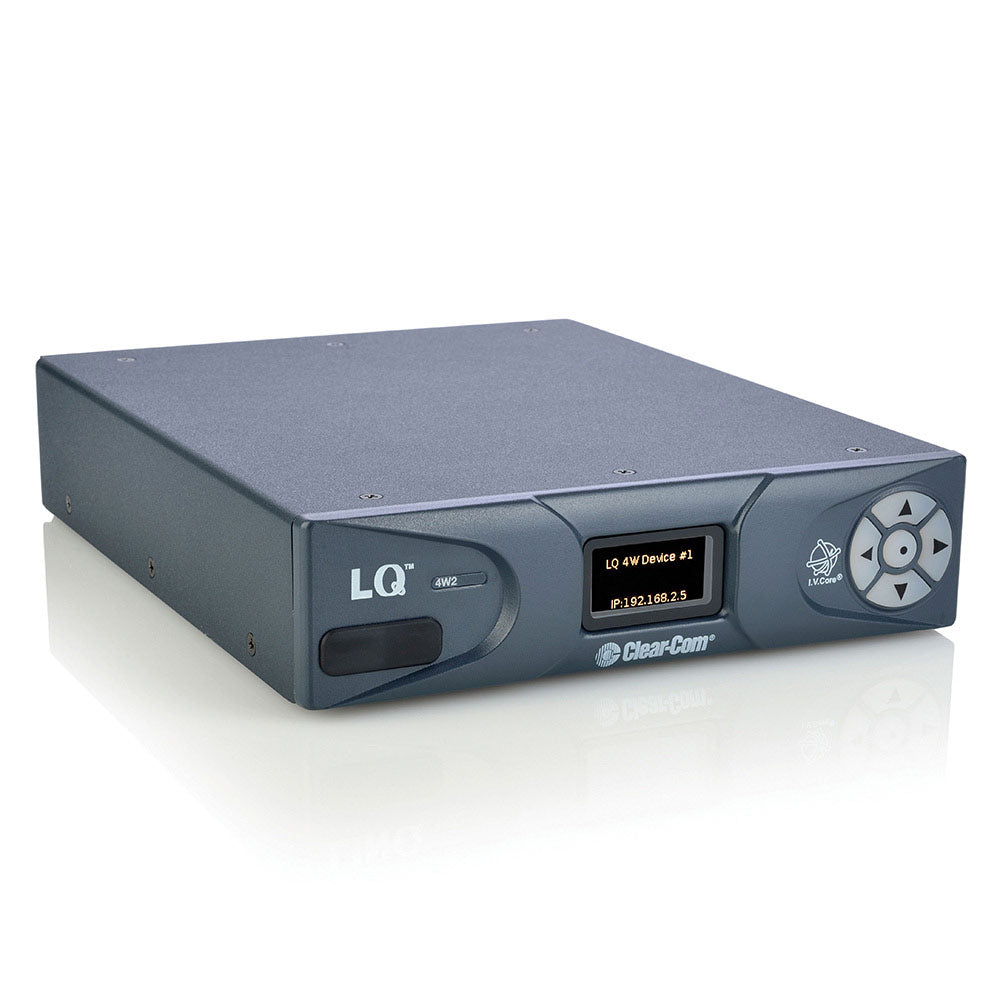

Clear-Com LQ-4W2 4-Wire Partyline Over IP Module
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The LQ-4W2 is a compact box that enable connection of 4-wire audio devices over LAN, WAN or Internet IP infrastructures. The LQ-4W2 can interconnect with devices, such as analog ports of any matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles.
Features:
- Connectivity
- Transport audio and call signaling over LAN, WAN and Internet networks
- Wide range of bitrate settings
- Linking
- Up to 6 units can link together (both 4-wire and partyline)
- Multiple groups of six in any network
- Power Options
- Power-over-Ethernet (PoE)
- External wall DC adapter
- Audio
- Low-latency OPUS CODEC
- 12 KHz frequency response
- Point-to-point and group audio routing
- 2 Port 4-Wire Device
- Professional etherCON connectors
- Core Configurator Manager (CCM) Software
- Browser-based configuration for PC, MAC and Tablet
- Web server inside each device (no additional software needed)
| Audio | Resolution: 12 bit Sample Rate: 24KHz Frequency Response: 100 Ð 12KHz CODEC: OPUS Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB |
| Network Setting | Bit Rates: 32, 48, 64, 128Kbps Packet Size: 5, 10, 20, 40, 60ms Jitter Buffers: 0 - 1000ms |
| Connectors | 2 x EtherCON (female): 2 x Network 2 x EtherCON (female): 2 x Audio I/O |
| Partyline Output Current | Type: Clear-Com / RTS Local DC Powered: 150mA POE Powered: 70mA |
| Power Supply | Plug-in adapter with sleeve locking connector (US, UK , Europe, AUS / China sockets included) Input: 100-240V, 47-63Hz, 0.58A MAX Output: DC 12V, 2A, 24W MAX |
| Environmental | Operating Temperature: +32¡F - +104¡F (0¡C - +40¡C) Storage Temperature: -67¡F - +158¡F (-55¡C - +70¡C) Humidity: 90%, non-condensing |
| Dimensions | 6.8in W x 1.79in H x 8.45in D (173mm x 46mm x 215mm) |
| Weight | 1.83lbs (.83kg) |
