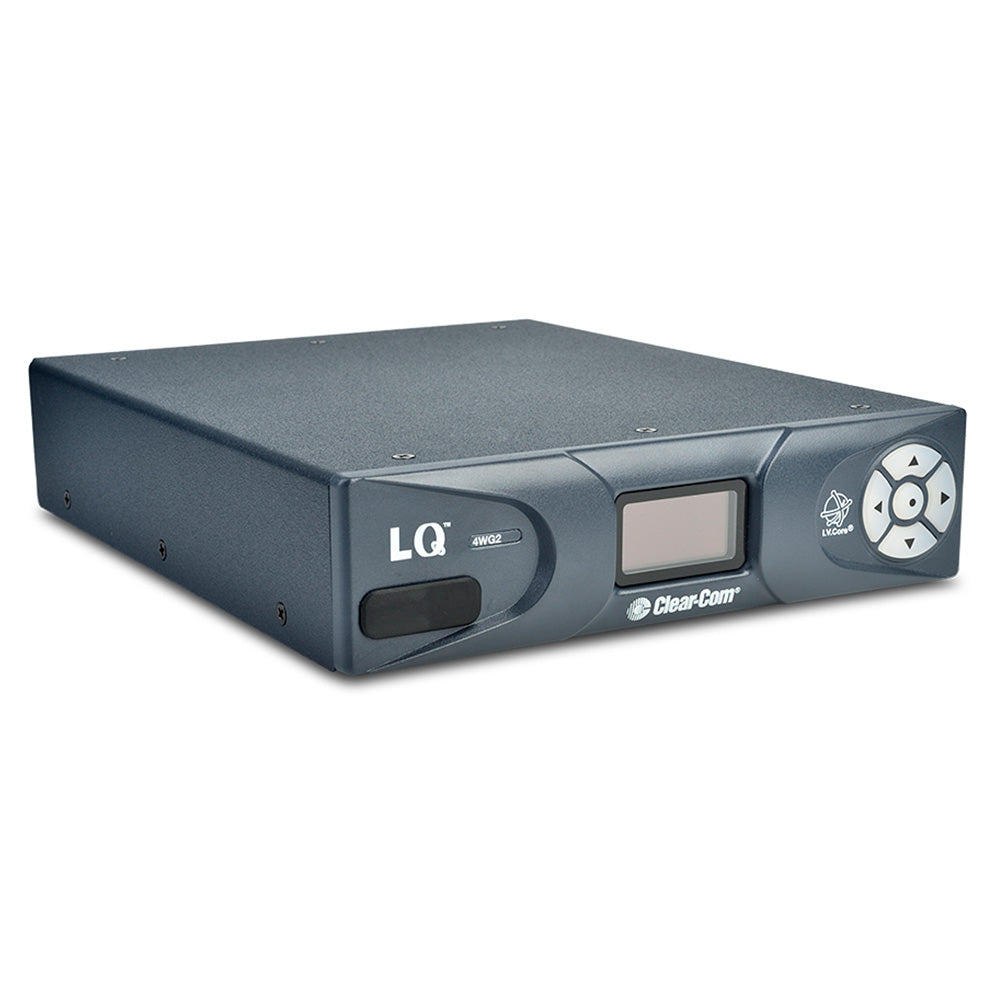

Clear-Com LQ-4WG2 2-Channel 4-Wire Partyline Over IP Module
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The LQ-4WG2 is a compact box that enable connection of 4-wire with GPIO audio over LAN, WAN or Internet IP infrastructures. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. The LQ-4WG2 can interconnect with devices, such as analog ports of any matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles.
| Audio | Resolution: 12, 24 bit Sample Rate: 24, 48 KHz Frequency Response: 100 - 12 KHz or 100 - 20 KHz CODEC: OPUS Line Level: (0 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB Mic Level: (-50 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB |
| Network Setting | Bit Rates: 16, 32, 48, 64, 128Kbps Packet Size: 5, 10, 20, 40, 60ms Jitter Buffers: 0 - 1000ms |

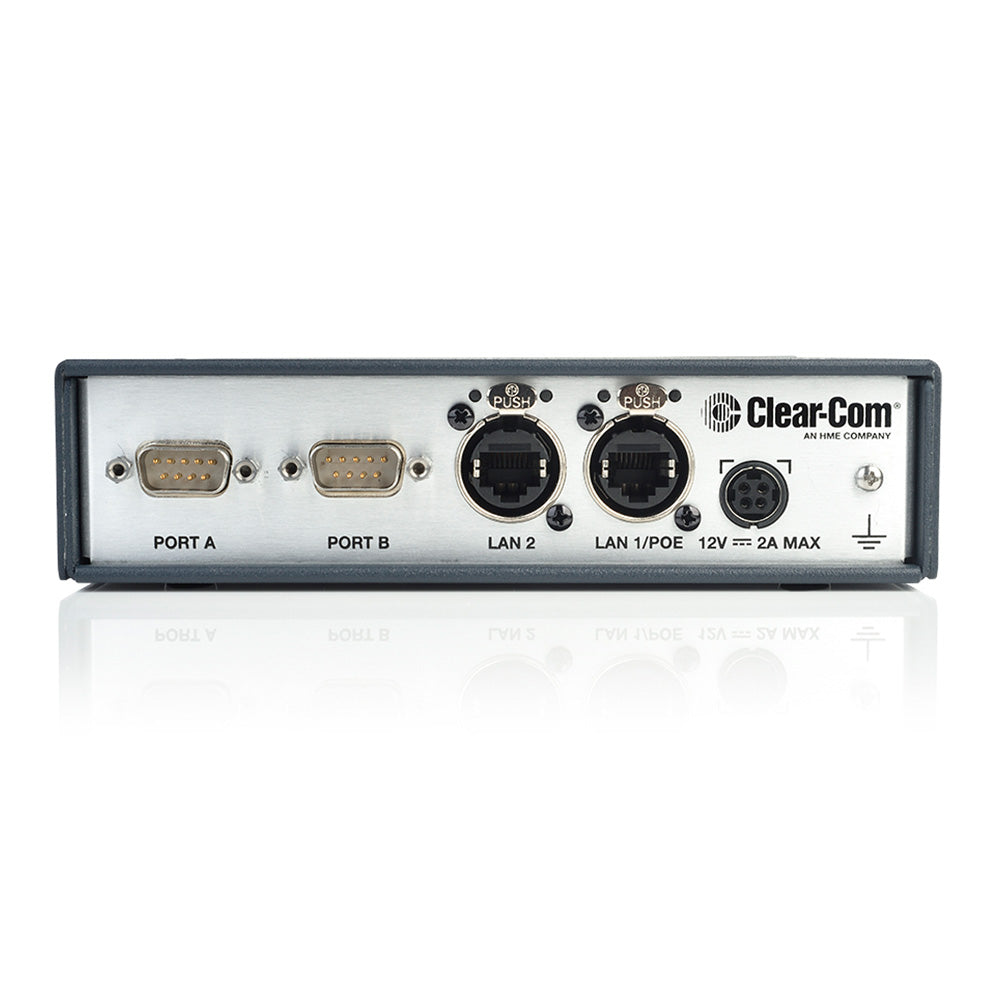

| Connectors | Network/LAN: EtherCON/RJ45 (female) 4-wire with GPIO Audio I/O: 9-way D-type (male) |
| Partyline Output Current | Type: Clear-Com / RTS TW Local DC Powered: 150mA POE Powered: 70mA |
| Power Supply | Plug-in adapter with sleeve locking connector (US, UK, Europe, AUS / China sockets included) Input: 100-240V, 47-63Hz, 0.58A MAX Output: DC 12V, 2A, 24W MAX |
| Environmental | Operating Temperature: +32¡F - +104¡F (0¡C - +40¡C) Storage Temperature: -67¡F - +158¡F (-55¡C - +70¡C) Humidity: 90%, non-condensing |
| Dimensions | 6.8 X 1.79 X 8.45 in (WxHxD) (173 x 46 x 215 mm) |
| Weight | 1.83lbs (.83kg) |
The LQ-4WG2 is a compact box that enable connection of 4-wire with GPIO audio over LAN, WAN or Internet IP infrastructures. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. The LQ-4WG2 can interconnect with devices, such as analog ports of any matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles.
| Audio | Resolution: 12, 24 bit Sample Rate: 24, 48 KHz Frequency Response: 100 - 12 KHz or 100 - 20 KHz CODEC: OPUS Line Level: (0 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB Mic Level: (-50 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB |
| Network Setting | Bit Rates: 16, 32, 48, 64, 128Kbps Packet Size: 5, 10, 20, 40, 60ms Jitter Buffers: 0 - 1000ms |
| Connectors | Network/LAN: EtherCON/RJ45 (female) 4-wire with GPIO Audio I/O: 9-way D-type (male) |
| Partyline Output Current | Type: Clear-Com / RTS TW Local DC Powered: 150mA POE Powered: 70mA |
| Power Supply | Plug-in adapter with sleeve locking connector (US, UK, Europe, AUS / China sockets included) Input: 100-240V, 47-63Hz, 0.58A MAX Output: DC 12V, 2A, 24W MAX |
| Environmental | Operating Temperature: +32¡F - +104¡F (0¡C - +40¡C) Storage Temperature: -67¡F - +158¡F (-55¡C - +70¡C) Humidity: 90%, non-condensing |
| Dimensions | 6.8 X 1.79 X 8.45 in (WxHxD) (173 x 46 x 215 mm) |
| Weight | 1.83lbs (.83kg) |
