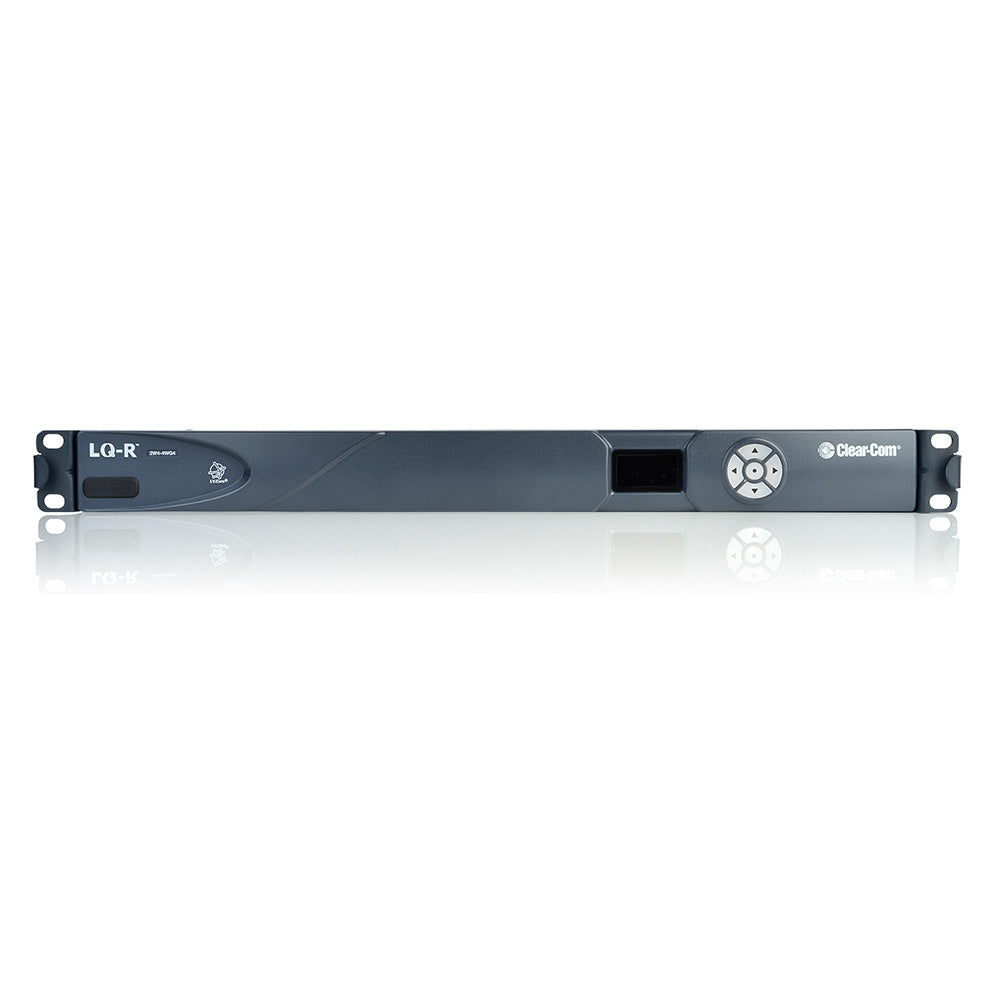

Clear-Com LQ-R2W4-4WG4 8-Channel IP Intercom Base Station
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The LQ-R2W4-4WG4 enables the connection of both partyline and 4-wire with GPIO audio over LAN, WAN or Internet IP infrastructures in a 1RU panel. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. The partyline connections are compatible with Clear-Com and RTS.
| Audio | Resolution: 12, 24 bit Sample Rate: 24, 48 KHz Frequency Response: 100 - 12 KHz or 100 - 20 KHz CODEC: OPUS |
| Partyline Audio | Input Gain: -3dB to +3dB Output Gain: -3dB to +3dB |
| 4-Wire with GPIO Audio | Line Level: (0 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB Mic Level: (-50 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB |
| Network Setting | Bit Rates: 16, 32, 48, 64, 128Kbps Packet Size: 5, 10, 20, 40, 60ms Jitter Buffers: 0 - 1000ms |
| Connectors | Network/LAN: EtherCON/RJ45 (female) Partyline Audio I/O: 3 Pin XLR (female) 4-wire with GPIO Audio I/O: 9-way D-type (male) |
| Partyline Output Current | Type: Clear-Com / RTS TW Local DC Powered: 250mA per pair of partyline ports (500mA total) |
| Power Supply | In-line supply with sleeve locking connector Input: 100-240V, 50-60Hz, 1.4A MAX Output: DC 12V, 5A, 60W MAX |
| Environmental | Operating Temperature: +32¡F - +104¡F (0¡C - +40¡C) Storage Temperature: -67¡F - +158¡F (-55¡C - +70¡C) Humidity: 90%, non-condensing |
| Dimensions | 19 x 1.79 x 8.8 in (WxHxD) (483 x 46 x 224 mm) |
| Weight | 4.29lbs (1.95kg) |
The LQ-R2W4-4WG4 enables the connection of both partyline and 4-wire with GPIO audio over LAN, WAN or Internet IP infrastructures in a 1RU panel. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. The partyline connections are compatible with Clear-Com and RTS.
| Audio | Resolution: 12, 24 bit Sample Rate: 24, 48 KHz Frequency Response: 100 - 12 KHz or 100 - 20 KHz CODEC: OPUS |
| Partyline Audio | Input Gain: -3dB to +3dB Output Gain: -3dB to +3dB |
| 4-Wire with GPIO Audio | Line Level: (0 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB Mic Level: (-50 dB) Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB |
| Network Setting | Bit Rates: 16, 32, 48, 64, 128Kbps Packet Size: 5, 10, 20, 40, 60ms Jitter Buffers: 0 - 1000ms |
| Connectors | Network/LAN: EtherCON/RJ45 (female) Partyline Audio I/O: 3 Pin XLR (female) 4-wire with GPIO Audio I/O: 9-way D-type (male) |
| Partyline Output Current | Type: Clear-Com / RTS TW Local DC Powered: 250mA per pair of partyline ports (500mA total) |
| Power Supply | In-line supply with sleeve locking connector Input: 100-240V, 50-60Hz, 1.4A MAX Output: DC 12V, 5A, 60W MAX |
| Environmental | Operating Temperature: +32¡F - +104¡F (0¡C - +40¡C) Storage Temperature: -67¡F - +158¡F (-55¡C - +70¡C) Humidity: 90%, non-condensing |
| Dimensions | 19 x 1.79 x 8.8 in (WxHxD) (483 x 46 x 224 mm) |
| Weight | 4.29lbs (1.95kg) |
