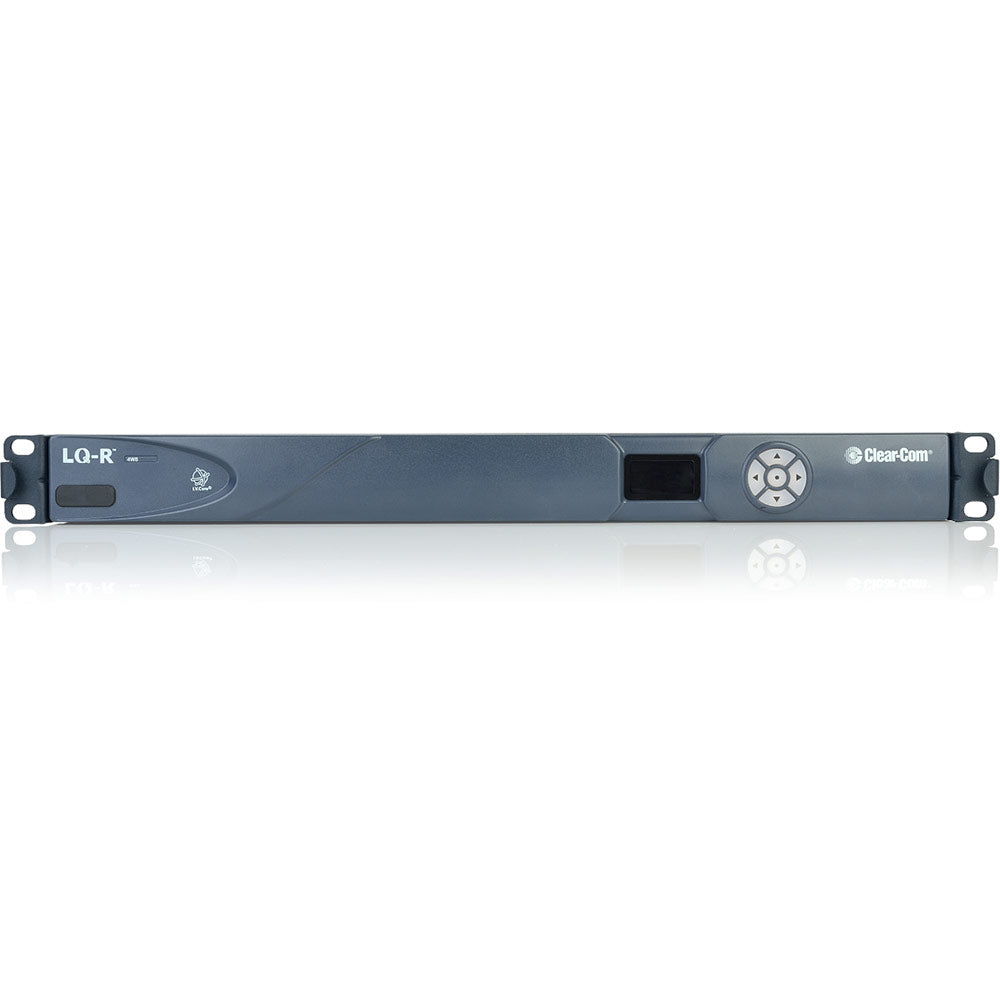

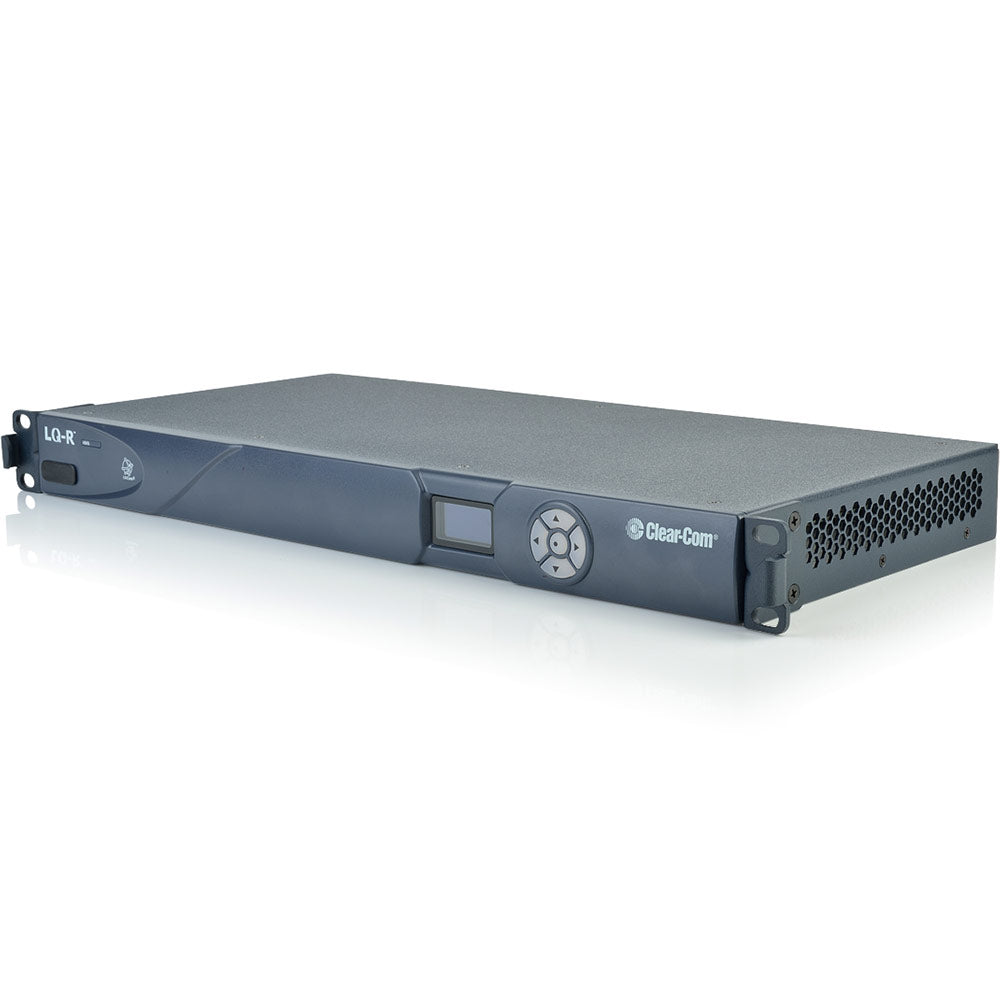

Clear-Com LQ-R4W8 8-Channel IP Intercom Base Station
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The LQ-R4W8 enables the connections of 4-wire audio devices over LAN, WAN or Internet IP infrastructures in a 1RU panel. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. Connect up to 6 panels together to create standalone intercom groups. The LQ-R4W8 supports ECS, EHX and Drake 4000 II panels (4-wire + data).
| Audio | Resolution: 12 bit Sample Rate: 24KHz Frequency Response: 100 Ð 12KHz CODEC: OPUS |
| 4-Wire Audio | Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB |
| Network Setting | Bit Rates: 16, 32, 48, 64, 128Kbps Packet Size: 5, 10, 20, 40, 60ms Jitter Buffers: 0 - 1000ms |

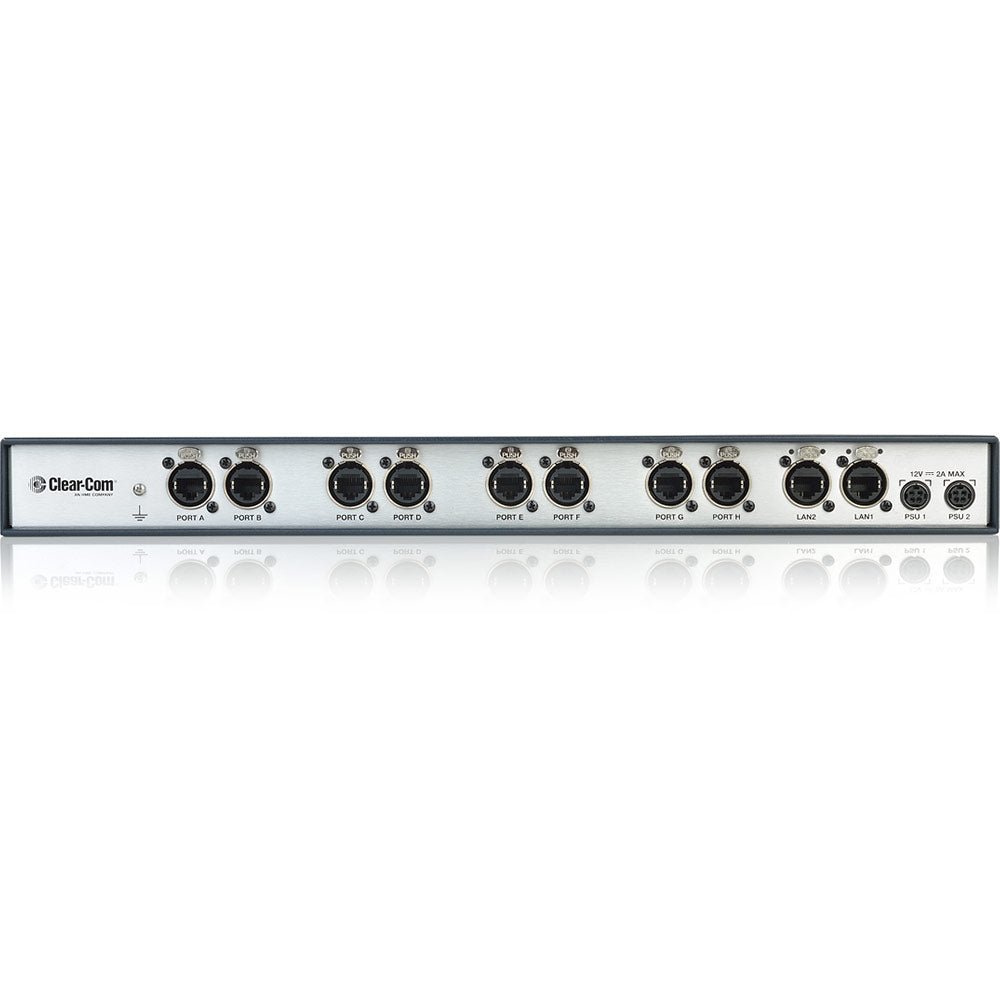

| Connectors | Network/LAN: EtherCON/RJ45 (female) 4-wire Audio I/O: EtherCON/RJ45 (female) |
| Power Supply | In-line supply with sleeve locking connector Input: 100-240V, 50-60Hz, 1.4A MAX Output: DC 12V, 5A, 60W MAX |
| Environmental | Operating Temperature: +32¡F - +104¡F (0¡C - +40¡C) Storage Temperature: -67¡F - +158¡F (-55¡C - +70¡C) Humidity: 90%, non-condensing |
| Dimensions | 19in W x 1.79in H x 8.8in D (483mm x 46mm x 224mm) |
| Weight | 4.29lbs (1.95kg) |
The LQ-R4W8 enables the connections of 4-wire audio devices over LAN, WAN or Internet IP infrastructures in a 1RU panel. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. Connect up to 6 panels together to create standalone intercom groups. The LQ-R4W8 supports ECS, EHX and Drake 4000 II panels (4-wire + data).
| Audio | Resolution: 12 bit Sample Rate: 24KHz Frequency Response: 100 Ð 12KHz CODEC: OPUS |
| 4-Wire Audio | Input Gain: -12dB to +12dB Output Gain: -12dB to +12dB |
| Network Setting | Bit Rates: 16, 32, 48, 64, 128Kbps Packet Size: 5, 10, 20, 40, 60ms Jitter Buffers: 0 - 1000ms |
| Connectors | Network/LAN: EtherCON/RJ45 (female) 4-wire Audio I/O: EtherCON/RJ45 (female) |
| Power Supply | In-line supply with sleeve locking connector Input: 100-240V, 50-60Hz, 1.4A MAX Output: DC 12V, 5A, 60W MAX |
| Environmental | Operating Temperature: +32¡F - +104¡F (0¡C - +40¡C) Storage Temperature: -67¡F - +158¡F (-55¡C - +70¡C) Humidity: 90%, non-condensing |
| Dimensions | 19in W x 1.79in H x 8.8in D (483mm x 46mm x 224mm) |
| Weight | 4.29lbs (1.95kg) |
